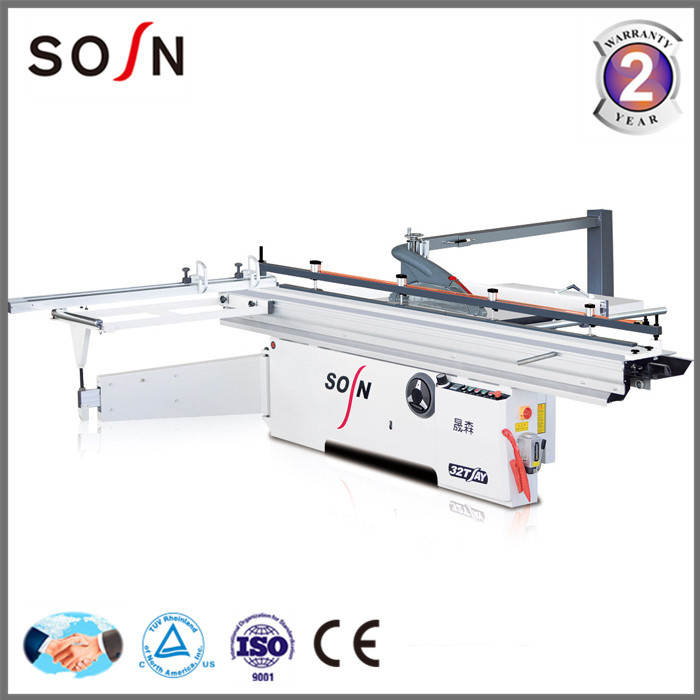

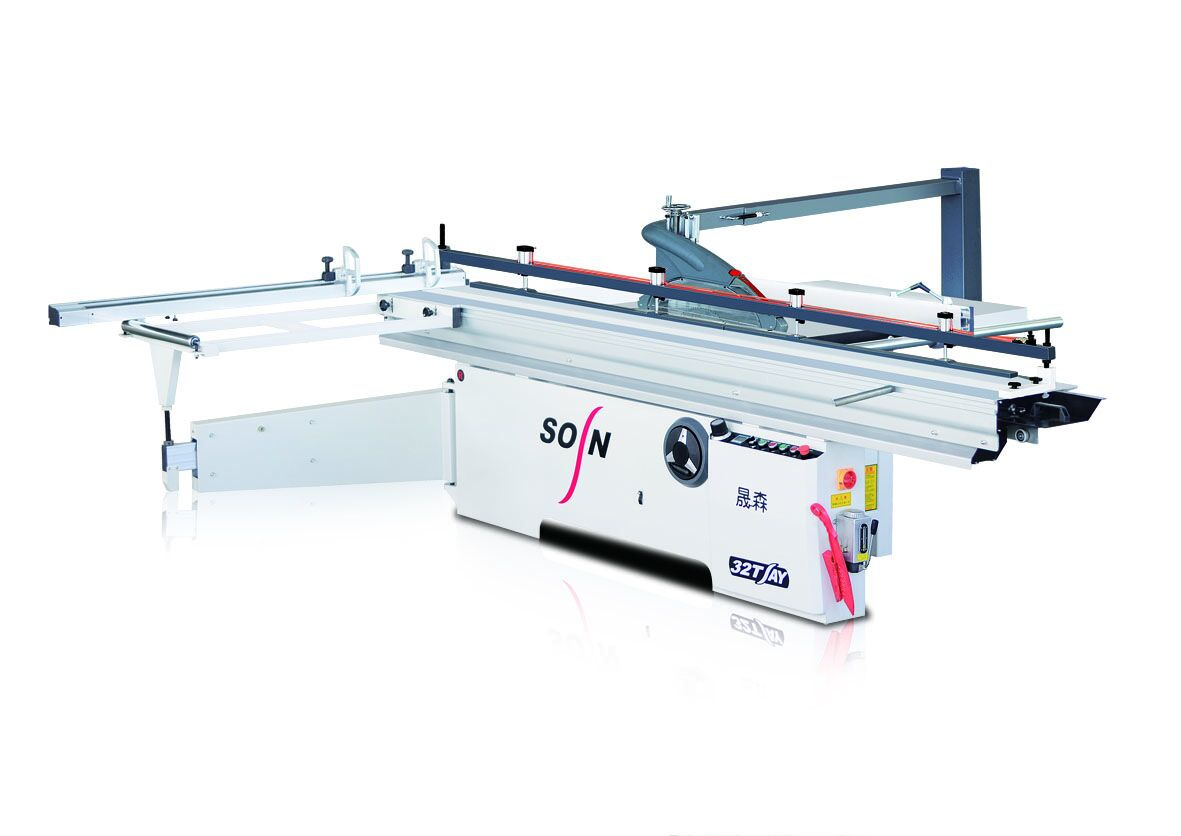

Sliding Table Saw Mj61-32tay with Ce Certification
Feature:

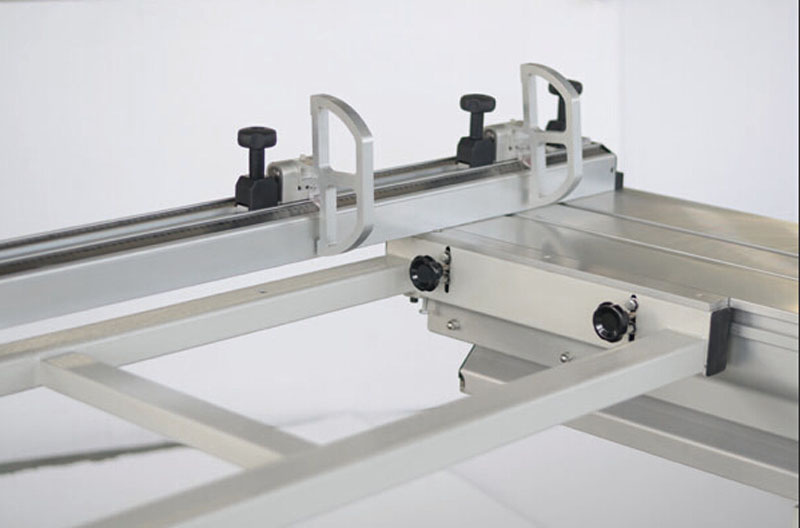

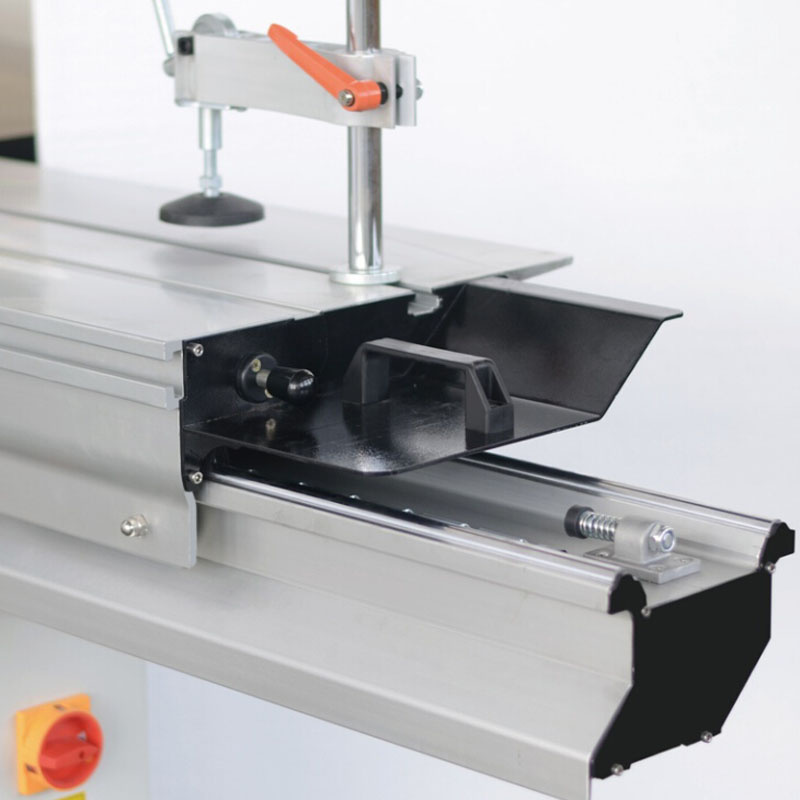

1. Sliding table guide track is plating chromium steel bars structure, exact and durable
2. Sliding table have multipoint locking, improving working efficiency greatly.
3. With oxidation treatment, movable table surface is beautiful and hard wearing
4. Blade up&down movement by electric control., tilting 0-45 degree and digital readout
1.electrics:CHINT brand 2. Motor 5.5+1.1kw, with copper wire and aluminum case 3.fixed points
on the machines to make sure the no changable 4.dynamic balance 5. Much heavier 6.can design as your need 6. With big dust cover as Altendorf
Main technical parameter:
| Dimension of sliding table | 3200X400mm |
| Gross cut capacity | 3200mm |
| Width of cut between saw blade and rip fence | 1250mm |
| Saw blade diameter | 300mm |
| scoring saw blade diameter | 120mm |
| Speed of main saw spindle | 4500/6000rpm |
| Speed of scoring saw blade | 8000r/min |
| Tilting saw blade | 0-45 degree |
| Main motor | 5.5kw |
| Scoring motor | 1.1kw |
| Height of cut | 90mm |
| Height of cut 300mm saw blade at 45 degree | 60mm |
| Main spindle diameter | 30mm |
| Net weight | 880kgs |
| Gross weight(with plywood wooden package) | 950kgs |
| Overall dimensions | 3200X3150X900mm |
1.the price vaild for two month .
2,15days production time after receive deposit.
3,wooden package ,especially for exporting
4,over-sea after sale service for machines
5,mainly for ASS board ,mdf ,plywood ,pvc ,solid wood ,etc .
Qingdao sosn woodworking machinery Co.,Ltd

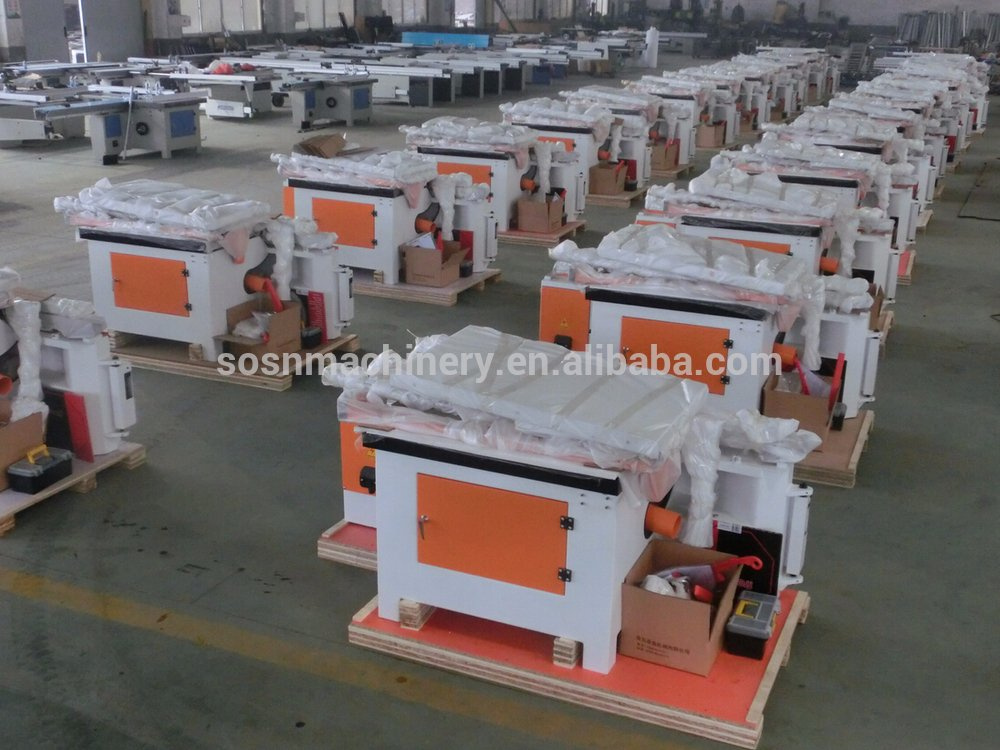

workshop
