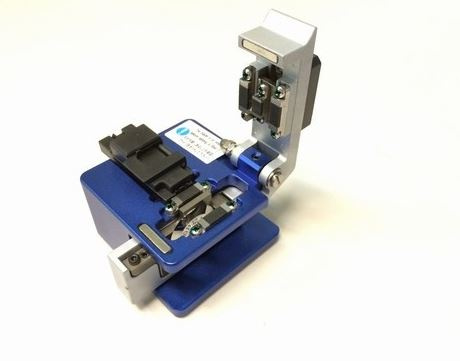

Optical Fiber Cleaver
Description
The Optical fiber cleaver is an economic multi-action clever, high precision preparation for single fibers, standard length 16mm. Compact, slim and simple is available for application.
Features
Stable operation with Multi-Action process
Typical cleave angle: 90° ± 0.5°
Compact & handy outfit design
High precision cleaving blade with 16 cleave spots
Scratch-free anodized body surface
Simplified blade adjustment & replacements
Built-in maintenance tool attached: On the bottom
Specification
Applicable fiber: SM, MM, DS, NZ-DS, EDF
Fiber Diameter: 100~150um
Coating Diameter: 100~1000um
Cleave Angle: 90° ± 0.5°
Cleave Length: Single fiber standard 8~22mm
Blade Lifetime: 40000 cleaves
General
Dimensions: 58.5 *56 *29 (mm)
Weight: 0.27 kg
Application
Fiber cutting tool
| Applicable range | Single Core silex-fiber |
| Coating Diameter | 100~1000um |
| Fiber Diameter | 100~150um |
| Cleave Length | 8~22mm |
| Dimension | 58.5 *56 *29 (mm) |
| Weight | 270g |
| Cleaving Angle | ≤0.5° |
| Blade Life | 40000 times |
