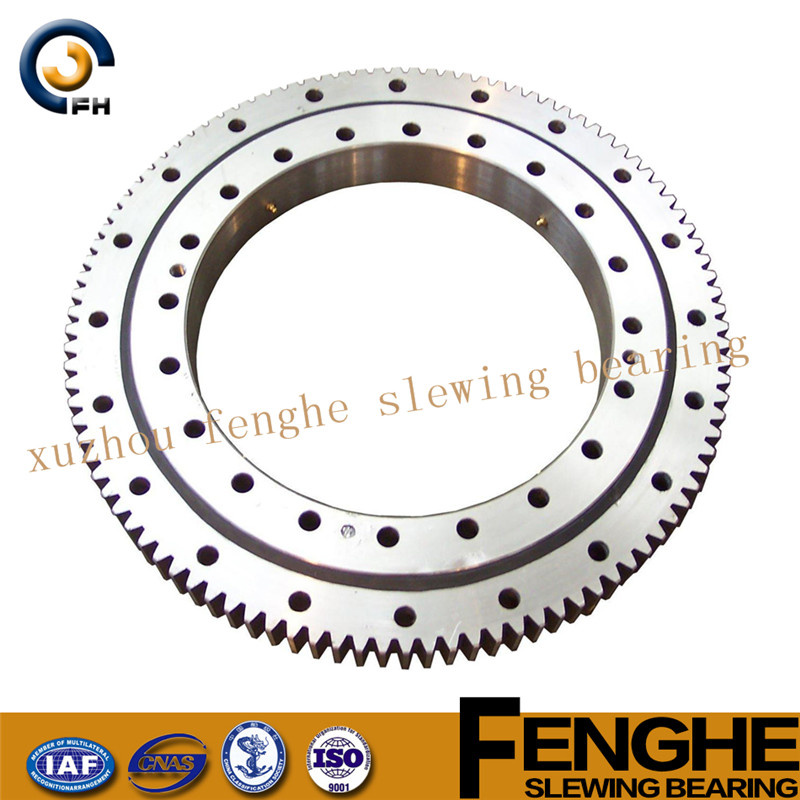

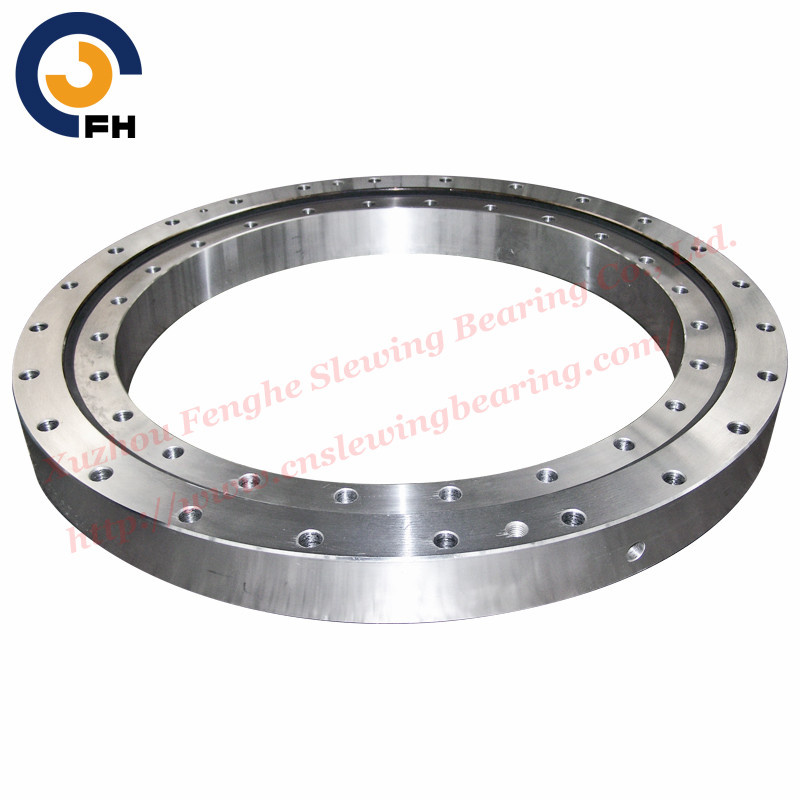

Single-Row Spherical Type Slewing Bearing (01 series)

Name: Single-Row Spherical Type Slewing Bearing (01 series)
Brand: tool-buy.com
SKU: 682834202
Availability: InStock
Rating: 4.6 (141 reviews)

Price:	US $ 100-5000/Set
Trade Terms:	FOB,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Xuzhou Fenghe Slewing Bearing Co., Ltd.

Showroom Product Company Profile

Own 20,000 production facility and 10,000 forging workshop.
Heat treated six times throughout production.

Model No.: 014.25.560
Brand: Fenghe
No. Of rows: Single row
Inner structure: Ball
Gear option: Internal Gear
No. Of mounting holes: 20
Internal diameter: 458mm
Outside diameter: 662mm
No. Of gear: 72
Thickness: 80mm
Weight: 95kg
Dimeter range: 200mm-7000mm
Material: 50Mn, 42CrMo

Types of our products:
single row ball slewing bearing
double row ball slewing bearing
three row roller slewing bearing
single row cross roller slewing bearing
double line ball slewing bearing
ball and roller combined slewing bearing

NO.	Internal Gear DL mm	Dimensions			Mounting dimensions						Structural dimensions					Gear data					Gear circumferential force		weig ht kg
		D mm	d mm	H mm	D1 mm	D2 mm	n	mm	dm mm	L mm	n1 mm	D3 mm	d1 mm	H1 mm	h mm	b mm	x	M mm	De mm	z	Norma lizing Z 104N	Quen ching T 104N
1	013.25.315	408	222	70	372	258	20	18	M16	32	2	316	314	60	10	50	0	5	190	40	2.9	4.4
2	013.25.355	448	262	70	412	298	20	18	M16	32	2	356	354	60	10	50	0	5	235	49	2.9	4.4
3	013.25.400	493	307	70	457	343	20	18	M16	32	2	401	399	60	10	50	0	6	276	48	3.5	5.3
4	013.25.450	543	357	70	507	393	20	18	M16	32	2	451	449	60	10	50	0	6	324	56	3.5	5.3
5	013.30.500	602	398	80	566	434	20	18	M16	32	4	501	498	70	10	60	1	5	367	74	3.7	5.2	85
	014.30.500																	6	368	62	4.5	6.2
5'	013.25.500	602	398	80	566	434	20	18	M16	32	4	501	499	70	10	60	1	5	367	74	3.7	5.2	85
	014.25.500																	6	368	62	4.5	6.2
6	013.30.560	662	458	80	626	494	20	18	M16	32	4	561	558	70	10	60	1	5	427	86	3.7	5.2	95
	014.30.560																	6	428	72	4.5	6.2
6'	013.25.560	662	458	80	626	494	20	18	M16	32	4	561	559	70	10	60	1	5	427	86	3.7	5.2	95
	014.25.560																	6	428	72	4.5	6.2
7	013.30.630	732	528	80	696	564	24	18	M16	32	4	631	628	70	10	60	1	6	494	83	4.5	6.2	110
	014.30.630																	8	491	62	6	8.3
7'	013.25.630	732	528	80	696	564	24	18	M16	32	4	631	629	70	10	60	1	6	494	83	4.5	6.2	110
	014.25.630																	8	491	62	6	8.2
8	013.30.710	812	608	80	776	644	24	18	M16	32	4	711	708	70	10	60	1	6	572	96	4.5	6.2	120
	014.30.710																	8	571	72	6	8.3
8'	013.25.710	812	608	80	776	644	24	18	M16	32	4	711	709	70	10	60	1	6	572	96	4.5	6.2	120
	014.25.710																	8	571	72	6	8.9
9	013.40.800	922	678	100	878	722	30	22	M20	40	6	801	798	90	10	80	1	8	635	80	8	11.1	220
	014.40.800																	10	634	64	10	14
9'	013.30.800	922	678	100	878	722	30	22	M20	40	6	801	798	90	10	80	1	8	635	80	8	11.1	220
	014.30.800																	10	634	64	10	14.1
10	013.40.900	1022	778	100	978	822	30	22	M20	40	6	901	898	90	10	80	1	8	739	93	8	11.1	240
	014.40.900																	10	734	74	10	14
10'	013.30.900	1022	778	100	978	822	30	22	M20	40	6	901	898	90	10	80	1	8	739	93	8	11.1	240
	014.30.900																	10	734	74	10	14
11	013.40.1000	1122	878	100	1078	922	36	22	M20	40	6	1001	998	90	10	80	1	10	824	83	10	14	270
	014.40.1000																	12	821	69	12	16.7
11'	013.30.1000	1122	878	100	1078	922	36	22	M20	40	6	1001	998	90	10	80	1	10	824	83	10	14	270
	014.30.1000																	12	821	69	12	16.7
12	013.40.1120	1242	998	100	1198	1042	36	22	M20	40	6	1121	1118	90	10	80	1	10	944	95	10	14	300
	014.40.1120																	12	941	79	12	16.7
12'	013.30.1120	1242	998	100	1198	1042	36	22	M20	40	6	1121	1118	90	10	80	1	10	944	95	10	14	300
	014.30.1120																	12	941	79	12	16.7
13	013.45.1250	1390	1110	110	1337	1163	40	26	M24	48	5	1252	1248	100	10	90	1	12	1049	88	13.5	18.8	420
	014.45.1250																	14	1042	75	15.8	21.9
13'	013.35.1250	1390	1110	110	1337	1163	40	26	M24	48	5	1251	1248	100	10	90	1	12	1049	88	13.5	18.8	420
	014.35.1250																	14	1042	75	15.8	21.9
14	013.45.1400	1540	1260	110	1487	1313	40	26	M24	48	5	1402	1398	100	10	90	1	12	1193	100	13.5	18.8	480
	014.45.1400																	14	1196	86	15.5	21.9
14'	013.35.1400	1540	1260	110	1487	1313	40	26	M24	48	5	1401	1398	100	10	90	1	12	1193	100	13.5	18.8	480
	014.35.1400																	14	1196	86	15.8	21.9
15	013.45.1600	1740	1460	110	1687	1513	45	26	M24	48	5	1602	1598	100	10	90	1	14	1392	100	15.8	21.9	550
	014.45.1600																	16	1382	87	18.1	25
15'	013.35.1600	1740	1460	110	1687	1513	45	26	M24	48	5	1601	1598	100	10	90	1	14	1392	100	15.8	21.9	55, 0
	014.35.1600											16						1382	87	18	25
16	013.45.1800	1940	1660	110	1887	1713	45	26	M24	48	5	1802	1798	100	10	90	1	14	1574	113	15.8	21.9	610
	014.45.1800																	16	1574	99	18.1	25
16'	013.35.1800	1940	1660	110	1887	1713	45	26	M24	48	5	1801	1798	100	10	90	1	14	1574	113	15.8	21.9	610
	014.35.1800																	16	1574	99	18.1	25
17	013.60.2000	2178	1825	144	2110	1891	48	33	M30	60	8	2002	1998	132	12	120	1	16	1734	109	24.1	33.3	1100
	014.60.2000																	18	1735	97	27.1	37.5
17'	013.40.2000	2178	1825	144	2110	1891	48	33	M30	60	8	2001	1998	132	12	120	1	16	1734	109	24.1	33.3	1100
	014.40.2000																	18	1735	97	27.1	37.5

Prod Model:	014.25.560
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Machinery Parts

Thanks for giving us a chance to introduce ourselves:

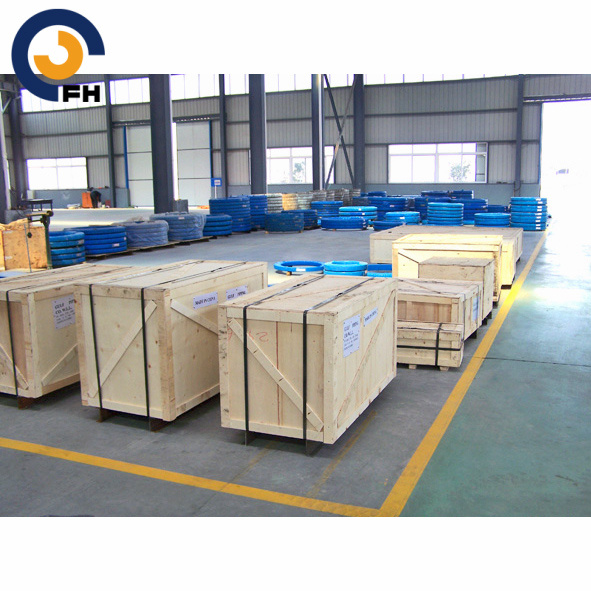

XuZhou FengHe Slewing Bearing Co., Ltd. Established in 2004 with registered capital of 20 million yuan to facilitate its self-support export, which has been engaged in producing and designing slewing bearing for the past 30 years. It covers an area of 38016 square meters, among which, the modernized construction area of production plant is nearly 20000 square meters, and forging workshop is nearly 10000 square meters.

The company specializes in Six types slewing bearings, including Single-row ball type (Series 01, series HS, and series Q), double-row ball type (series 02), three-row roller type (series 13), single-row cross roller type (series 11), double-line ball type (series 07) and ball-roller combined type. Our products are widely used in engineering machinery, building machinery, metallurgical and mining machinery, shipping port machinery, environmental protection machinery, light industry machinery, petroleum chemical machinery, engineering vehicle, war industry equipments and so on. The model of the products covers various standards and nonstandard specifications from 150mm to 5000mm.

The products of our company have been already registered with the trade mark of "Fenghe". The series of products produced by our company have passed the quality inspection identification of the national special type mechanical part quality testing and played a leading role in the industry. Our company is rewarded as "an enterprise which strictly abides by contracts and keeps promise" and "a enterprise with high quality". At the same time, we have already passed through production part approval procedure (PPAP) training. Our company passed ISO9001: 2008 quality system certification work in 2012, then passed ISO14001: 2004 and OHSAS 18001: 2007 in 2013. We are one of the main slewing bearing manufacturers in China. The relevant products have already passed product testing and certification of Chinese Classification Society (CCS).

The company's products are sold to all parts of our country and are exported to 42 countries all over the world such as U. S. A., Britain, France, Malaysia, Singapore, Germany, Japan, Brazil, Russia, Czech, Finland, Holland, Sweden, Irish, Turkey, the United Arab Emirates, Canada, Spain, which have won extensive acceptance and recognition from users.
