Single Head Any Angle CNC Cutting Saw for Aluminum Window

Single Head Any Angle CNC Cutting Saw for Aluminum Window
Price: US $ 13500Units
Min Order: 1Units
Pay Type: L/C,T/T,Paypal

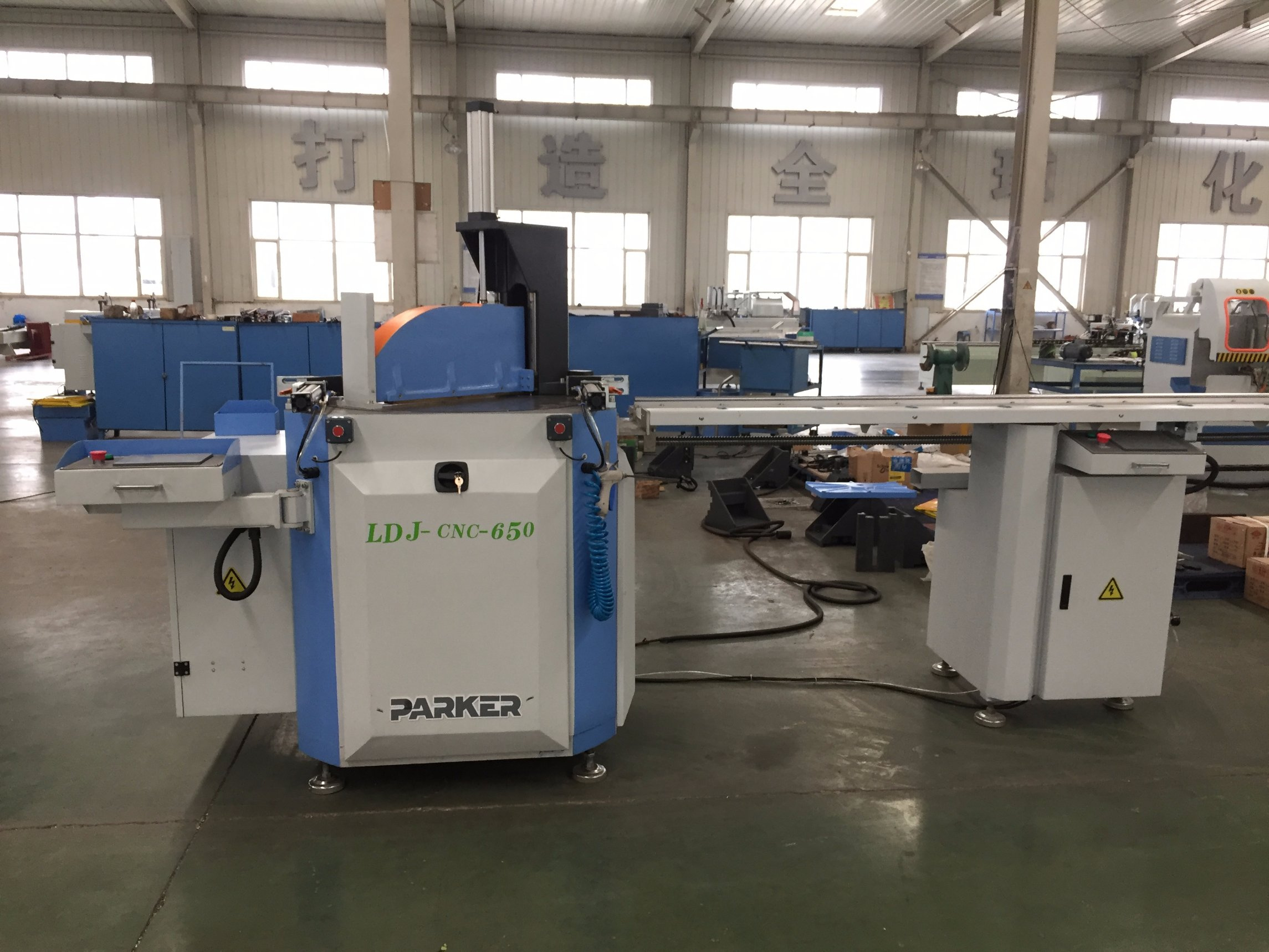

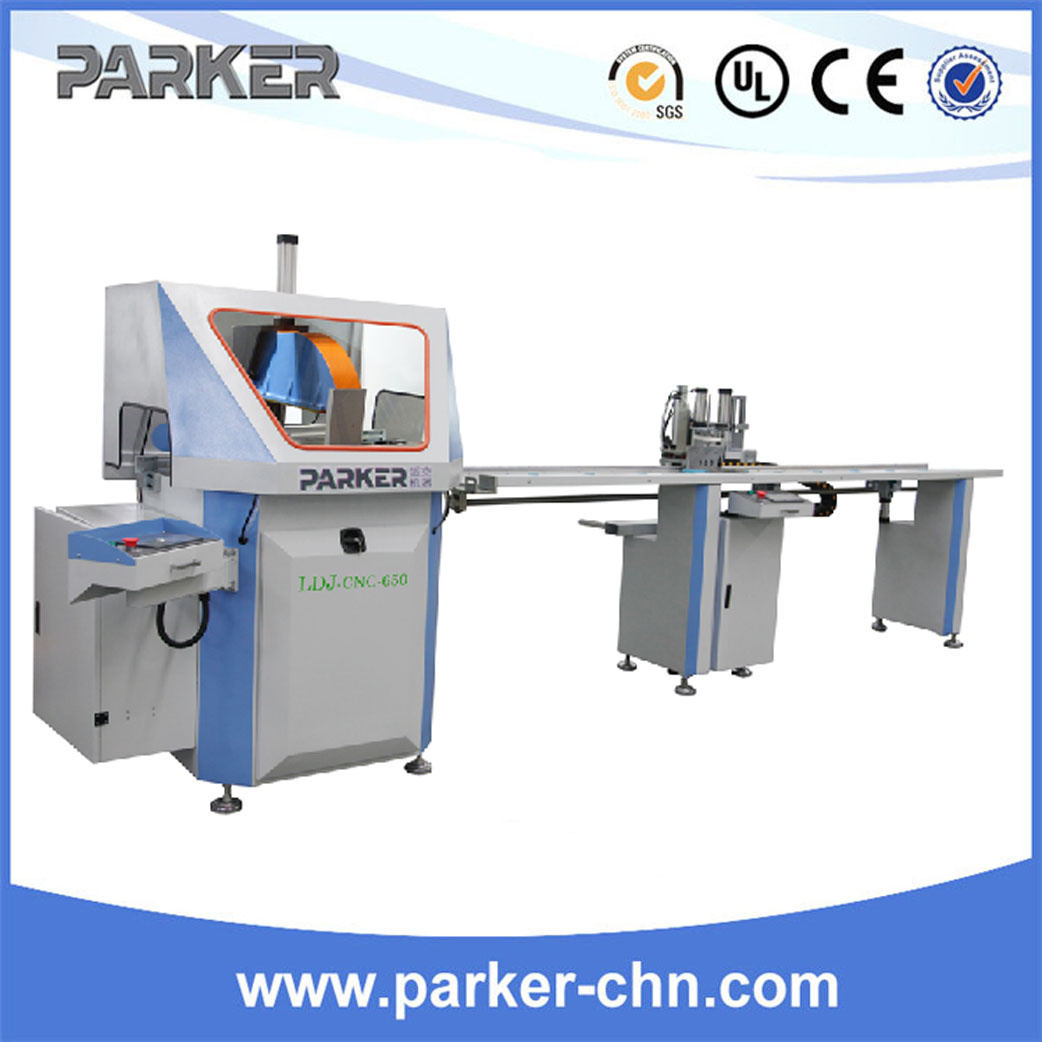

                    CNC Aluminum Profile Single Head Any Angle Cutting Saw

Model: LDJ-CNC-650
1. Whole control system adopts Schneider France;
2. Servo motor drive any angle cutting from -45°~45°;
3. Equipped with profile support arm;
4. Big saw blade suits large section profiles;
5. Automatic profile feeding section, profile support arm ( European style), servo motor drive. (optional)
Technical Parameter:
Voltage:380V  50Hz
Motor Power:3KW+1.5KW+0.75KW
Motor Rotary Speed:2800r/min
Air Pressure:0.5-0.8MPa
Automatic Feeding Length:2000mm (one time)
Cutting Width x Height:200 × 200mm (45°), 150×420mm
Diameter of Saw blade:φ650 x φ38.5 x 140z
Dimension (within support arm):7000 × 1200 × 1900(L×W×H)
Cutting precision:±10"

 Company Information
Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment.With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China.The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.
During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery.With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc.We have a perfect sales network and complete service system in China.We are also taking a leading role in setting branch companies abroad.


Q: How can I get the best machine for our business?
A: Just let us know your cutting material, size, thickness, and working area needed, we will suggest the most suitable machine and professional solution.

Q: When can we arrange shipment?
We usually arrange shipment in 15 days after getting deposit, but customized machines should be more than 25 days.

Q: This is my first time using this kind of machine, is it easy to operate?
A: Of course the machine is easy to operare. We will send you the English version user manual and install video which shows how to assamble and use the machine clearly, almost all the customers can operate the machine easily. No need to worry about this, after all, Parker will always be here to help!
Q: If the machine has problem in my place, how could I do?
A: Usually there won't be any problem under "normal use" as per the user manual. But in case you have any problem, our professional after-service team will provide you any support you need any time!
B.We can send you free components to you if your machines are in guarantee time.
C.We can send our engineers to repair your machines.

Q: This machine is not suitable for me, do you have more models available?
A: Sure, in order to meet different customers' different requirments, we reserched many other different machines.
     CNC machining center
     Aluminum window door/ curtain wall making machine
     UPVC window door making machine
     Insulating glass making machine

If need more details or video, please kindly contact below:
ContactCarina Zhang
Industrial Park add:Mingjia West Road, Qihe, Shandong, China
Prod Model: LDJ-CNC-650
Voltage: 380V  50Hz
Voltage:T380V  50Hz Motor Power: 3kw+1.5kw+0.75kw
.Motor Rotary Speed: 2800r/Min
Air Pressure: 0.5-0.8MPa
Automatic Feeding Length: 3000mm
Cutting Width X Height: 200*200mm (45°), 150*420mm
Diameter Of Saw Blade: φ650*φ38.5 * 140z
Dimension (Within Support Arm): 7000*1200*1900(L*W*H)
Weight: 1.8t
Cutting Precision: ±10"
Parker Machinery Co., Ltd., China has developed the assembly line equipment for door-window, curtain walls and Insulating glasses process. The operation of high precision, advancement and specialty makes the enterprise well-known. She sets an example for her pure quality and excellent service. So she becomes the reliable cooperative partner of the door-window enterprise for her responsibility.

Parker machines sell well, become well-known and outstanding at the national fairs of door-window equipment, owing to:

Using of European standards, and taking in the view and pithy of the design.

Purchasing main parts internationally.

Selling machines to other countries, such as USA, India, UAE, Brazil, Iran, North America, South Africa, Russia, Korea, Middle East, and so on.

Carrying our "Handover key project" ahead of other in this area.

Combining the manufacture with the development of design software of door-window.

Owing more than twenty sales and service agencies.

To meet the great need of development of hi-grade door-window, combining with almost ten years of experience, we introduced advanced technology from other countries, and developed five types, more than forty specifications of door-window and curtain wall equipment. Door-window factories needn't import any hi-grade machine from other countries any more.

Let's share science and technology of the world!

Parker machine core parts procurement achieved internationalization, and established a cooperative partnership with ABB, Omron, Schneider, Optima. PARKER people are always follow the core concept, it is "Parker is developing with the world", it is PARKER peoples' strict implementation of ecological system of Parker and of "zero defect" stern pursuit, which makes the Parker machine perfect implement unique global standard, achieves improvement value and sustainable innovation!

Parker machinery exports to the world more than80 countries and regions, and has firstly established branches in USA, India, UAE, Brazil, has 50 patents. PARKER products include aluminum, PVC windows and doors machinery, aluminum curtain wall processing machinery, industrial aluminum processing machinery and insulating glass series production line machinery. Parker machinery are all passed through high standard European CE certification, American UL certification and Canadian CSA certification.
