Simple Strapping Tool Match with Buckle

Simple Strapping Tool Match with Buckle
Price: US $ 21.5-30/Set
Min Order: 10/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal

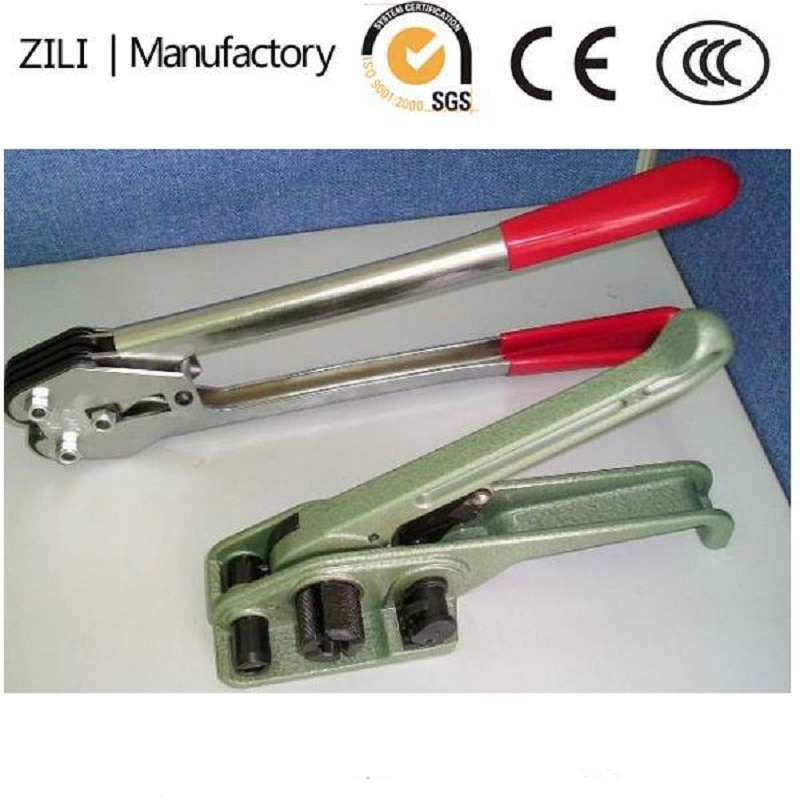

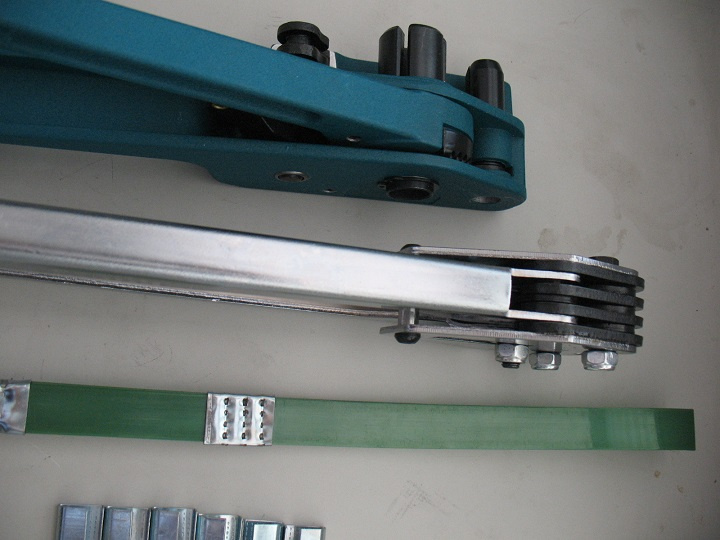

1. Manual Strapping Tool  Description
Manual packing tool ,one set with one tensioner and one Sealer.
The tensioner is for plastic strap tensioning only, and the sealer is to clamp the seal buckle.

2 Manual Strapping Tool Technical Data
Type:ZL 13 / ZL16 / ZL19
Packing strap width13,16,19mm (1/2",5/8",3/4") (one machine suit for one size strap)
Packing strap thickness0.6mm,0.8mm,1.0mm (one machine suit for one size strap)
Tool dimension505*122*45mm (sealer)
280*150*75mm( tensioner )
Tool Weight1.85kg ( tensioner )+1.3kg (sealer)
Suitable strap type PET / PP
Automatic grade Manual
Strapping mode Buckling type
Maximum tightening force 100kg

3 Manual Packing Tool Features
Suitable for all kinds of PET/PP strap
Hand tighten, seal notch, cut, easy to operate
Simple structure, low failure rate
The most suitable for small objects in packing
Portable,cheap,suitable for hard working conditions
low quality requirement for production workers.
Using spin to tighten the way to achieve greater tighten force.
Simple package for heavy goods

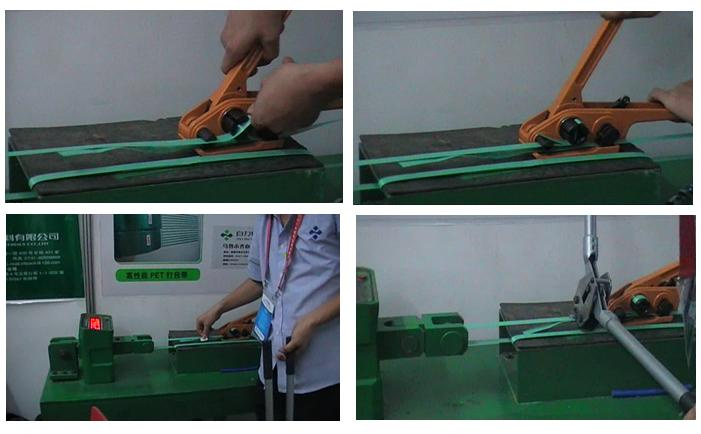

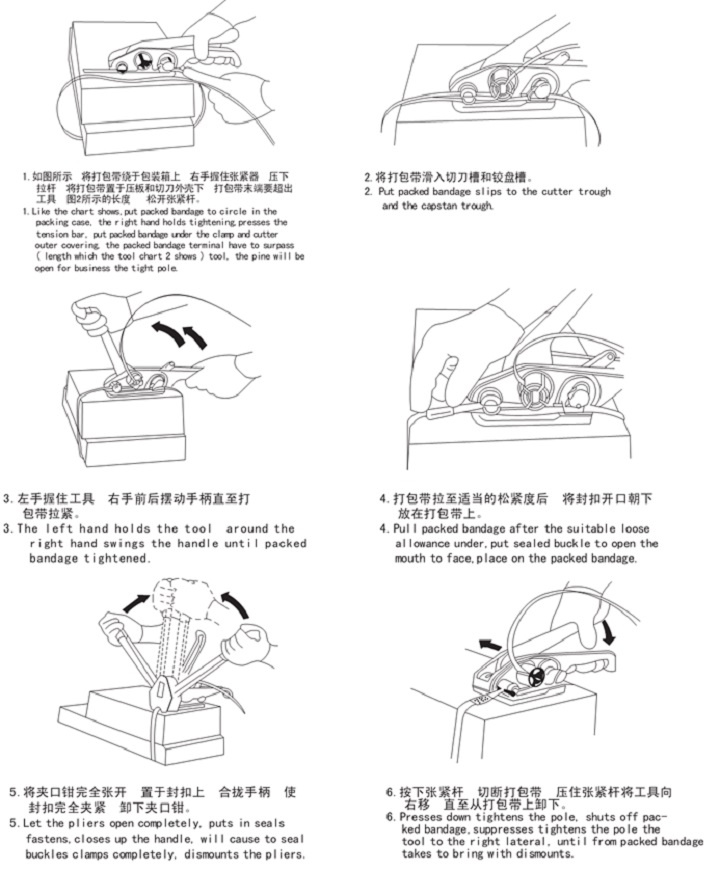

4 Manual Packing Tool Operation Instruction

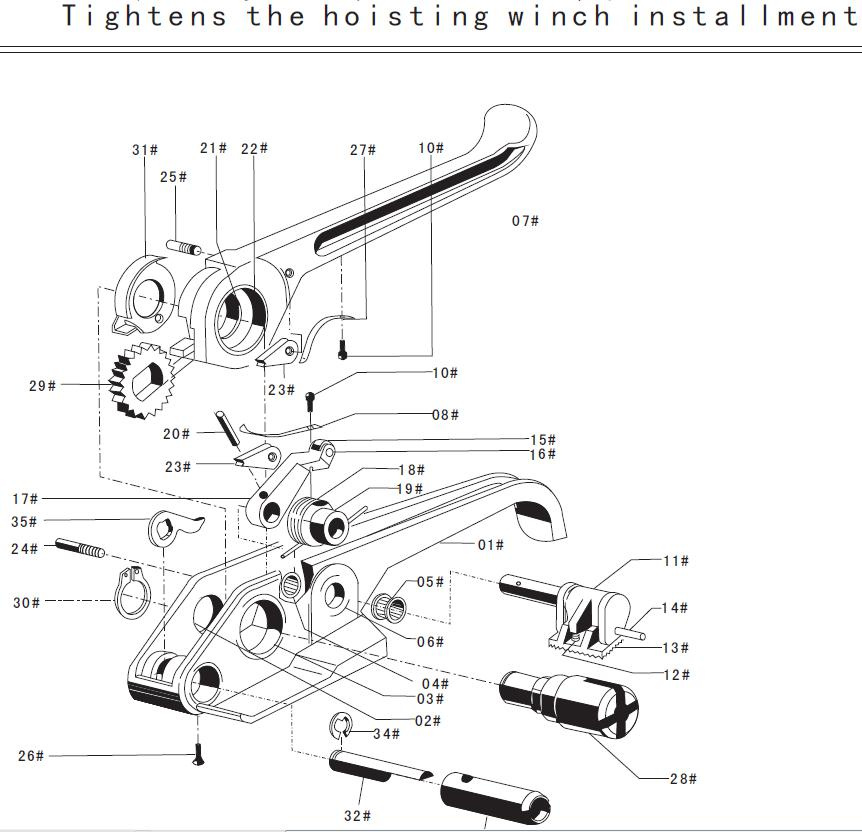

5 Detail of Tensioner

6.1 What does the tool work for?
It is a packing tool,working on the plastic straps, for example, pp strap, pet strap. strap bale the carton, wooden case,pallet, or round steel coil. But, it is only for strap tensioning, no, sealing. you need the seal and the sealer to work together.
6.2 What size of the strap does the tool apply for?
Strap width:13mm,16mm,19mm. thickness:0.6mm to 1.0mm. And remember it is plastic strap, not the steel strap.
 6.3 What else could we supply?
Our company also supply seal buckle to match this set of manual packing tool.
6.4 How about Zili Company?
We are 11 years professional manufacturer and trading company, have advanced machines, professional team, efficient organization, well-deserved reputation. OEM and free sample are available.
6.5 How to order
Please contact  directly to order the products ,there is no minimal order volume required. The price depends on the order volume.
6.6 Payment Method
we accept T/T, Western Union, MoneyGram,Paypal, Escrow, or customized if it is acceptable.
6.7 Shipping Condition
Once we received the payment, we will ship the samples in 1-3 days by air/, and ship the formal order in 15~30 days by air or ocean.

7 Contact
We are willing to support you a perfect packing solution.

Contact: Yadda
 Mobile: 0086 13507421160
Tel: 0086 0731 89784166  Fax: 0086 0731 89784266


Prod Model: ZL 19
Applicable Belt Width: 13mm 16mm 19mm
Applicable Belt Thickness: 0.6mm 0.8mm 0.9mm 1.0mm
Weight Of Tensioner: 1.3kg
Weight Of Sealer: 1.8kg
Max Tightening Force: 100kg
Suitable Strap Type: PP and Pet Strap
Using Method: Buckle
Contains: Tensioner and Sealer
Unit: One Set
Strapping Material: Plastic Tape
Packaging Type: Cartons
Automatic Grade: Manual
Strapping Mode: Buckling Type
Driven Type: Manual
Structure: Hand Strapping
Species: Manual Strapping Tool
Application: Package
Changsha Zili Packing Materials Co., Ltd.Is an ISO certificated high-tech enterprises specialized in production, researching and developing pet strap and pet strapping machines used for industrial products packing during transportation.With more than 20 years developing, we now have a annual production capacity with 10, 000 tons PET.Meanwhile we focus on integrating the world famous packing machine and advanced packing technology to big scale enterprise with professional and efficient packing solution.

We have much experience together with wide service net work to provide those enterprises such as cotton packing transportation and storage, steel industry, construction materials industry paper manufacture glass manufacture and ceramic manufacturers a set of solution on packing.

We provide our customer with one-stop service and high efficient packing solution.Being one of the biggest packing companies in south middle of China our packing materials and packing service has well known with domestic markets and oversea market such as Southeast Asia, Egypt, USA, Austrialia, UK.
