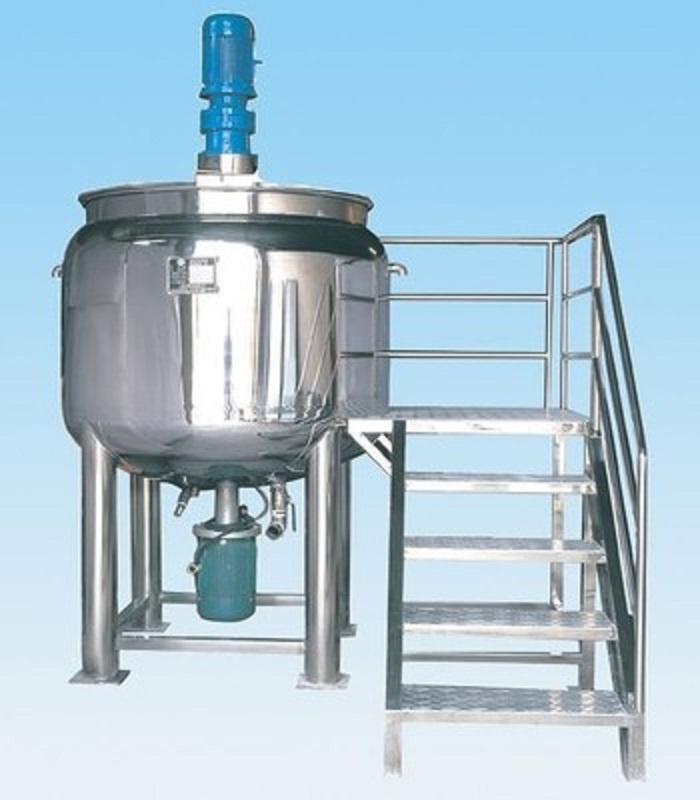

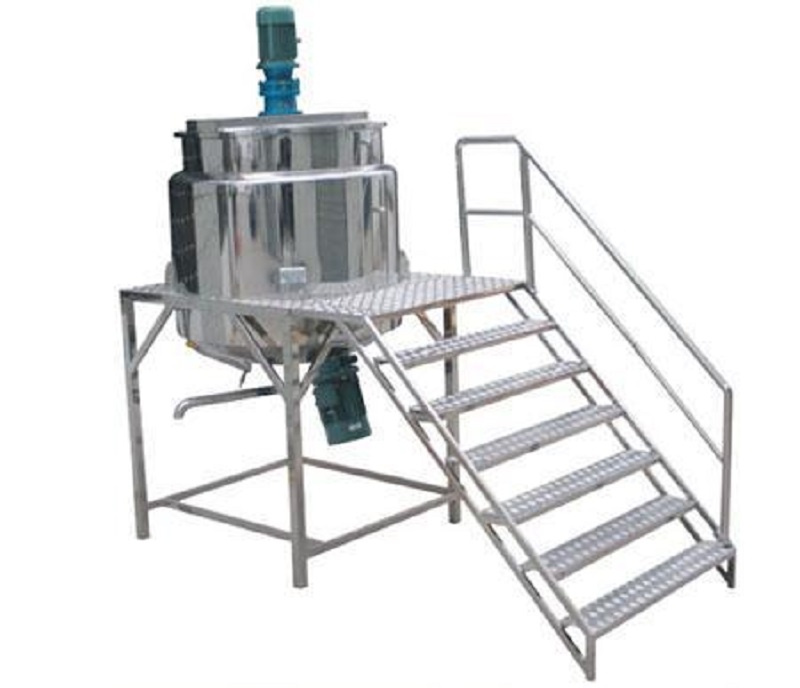

Liquid Washing Homogenizing Mixing Tank for Chemical Industry
Brief introduction to representative production process:
1. The heating pot & the cooling pot are used independently so as to enhance efficiency and save energy.
2. The material sucking(AES)homogenizer is adopted to accelerate the dissolution and alleviate labor intensity.
3. The whole machine has compact structure with convenient operation.
4. If it is allocated with heating water furnace, the plate type heat exchanger will make the using effect better.
Usage
This unite is available for manufacturing liquid products(such as detergent, shampoo, shower gel, ect) It integrates mixing, homogenizing, heating, cooling, pump discharging finished products and fefoaming(optional)functions. It is the ideal equipment for liquid products in domestic and international factories.
Performance And Features
The all-round wall scraping mixing adopts the frequency conventer for speed adjustment, so that high quality products with different process can satyisfy customer requirements.
The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and rapidly dissolve many indissoluble materials such as AES, AESA, LSA, ect. During the liquid detergent production process so as to save energy consumption and shorten production period.

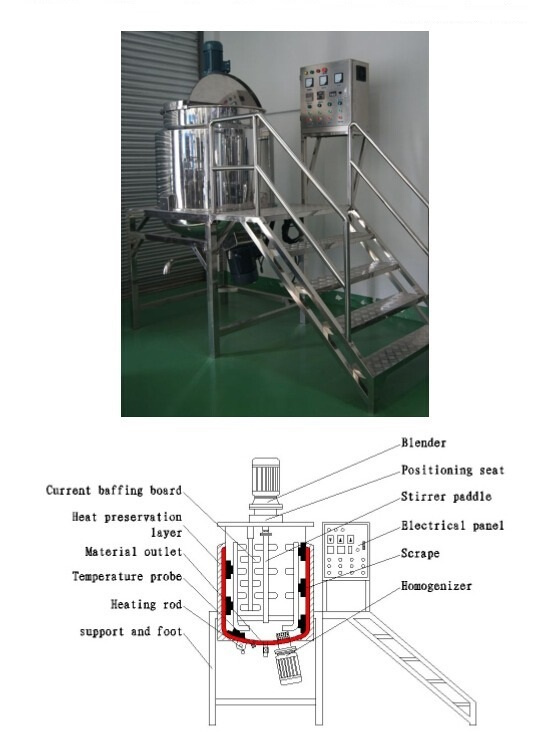

The pot body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mirror polishing, which fully conforms to GMP requirements.
According to customer's requirement, the tank can heat and cool materials.
The heating way include steam heating & electric heating. Easy to discharge, bottom direct discharge or by transfer pump.
Technology Parameter of LW Liquid Washing Homogenizing Mixer
Model | Capacity | Homogenizing motor(kw) | Stir motor(kw) | Length(mm) | Wide(mm) | Height(mm) | Total power(kw) | Limit vacuum(Mpa) |

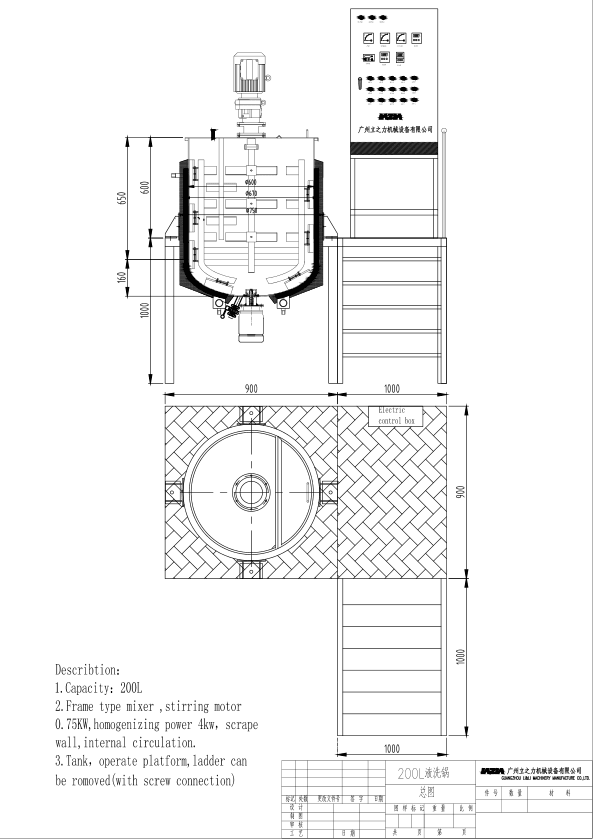

| LW-200 | 200L | 2.2-4 | 0.75 | - | - | - | 5 | - |
| LW-300 | 300L | 2.2-4 | 1.3 | - | - | - | 6 | - |
| LW-500 | 500L | 5.5-7.5 | 3 | - | - | - | 11 | - |
| LW-800 | 800L | 7.5-11 | 4 | - | - | - | 12 | - |
| LW-1000 | 1000L | 7.5-11 | 4 | - | - | - | 12 | - |
| LW-2000 | 2000L | 11-15 | 5.5 | - | - | - | 17 | - |
| LW-3000 | 3000L | 15-18 | 7.5 | - | - | - | 23 | - |
| LW-4000 | 4000L | 21 | 7.5 | - | - | - | 29 | - |
| LW-5000 | 5000L | 21 | 7.5 | - | - | - | 29 | - |
Technology Parameter of EL Liquid Washing Homogenizing Mixer
Serial
No. | Specification | Voume | Blending Power | Blending Rotation Speed | Homogenizing Power | Homogenizing Rotation Speed | Heating Method |
| L | KW | R/min | KW | R/min |
| 1 | ELJ-(X)-200 | 200 | 1.5 | 0-65 | 4 | 3000 | Steam Heating or Electric Heating |
| 2 | ELJ-(X)-500 | 500 | 2.2 | 0-65 | 7.5 | 3000 |
| 3 | ELJ-(X)-1000 | 1000 | 4 | 0-65 | 11 | 3000 |
| 4 | ELJ-(X)-1500 | 1500 | 5.5 | 0-65 | 11 | 3000 |
| 5 | ELJ-(X)-2000 | 2000 | 5.5 | 0-53 | 15 | 3000 |
| 6 | ELJ-(X)-3000 | 3000 | 7.5 | 0-53 | 18.5 | 1500 |
| 7 | ELJ-(X)-5000 | 5000 | 11 | 0-53 | 22 | 1500 |
Technology Parameter of PME Liquid Washing Homogenizing Mixer
| Model | Capacity
(L) | Mixing Power
(KW) | Mixing Speed
(r/min) | Homogenizing Power(KW) | Homogenizing Speed(r/min) | Heating Method |
| PME-200 | 200 | 0.75 | 0-65 | 2.2-4 | 3000 | Steam Heating or Electric Heating |
| PME-300 | 300 | 0.75 | 0-65 | 2.2-4 | 3000 |
| PME-500 | 500 | 2.2 | 0-65 | 5.5-7.5 | 3000 |
| PME-1000 | 1000 | 4 | 0-65 | 7.5-11 | 3000 |
| PME-2000 | 2000 | 5.5 | 0-53 | 11-15 | 3000 |
| PME-3000 | 3000 | 7.5 | 0-53 | 18 | 3000 |
| PME-5000 | 5000 | 11 | 0-42 | 22 | 3000 |
