Shot Blasting Machine Rotary Table
| Price: |
US $ 9000-50000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product DescriptionIntroduction of turntable shot blasting machine
Turntable shot blasting machine is suitable for cleaning flat, thin wall casting and heat treatment workshop, afraid of adhering sand on the surface of the oxide skin collision parts such as attachments.By blast cleaning, can not only remove the rust on the surface of the workpiece, remove the rust on the various artifacts, dirt, etc., and improve the surface quality of workpiece;At the same time, can improve the fatigue fracture resistance of processed workpiece, to prevent the fatigue failure, plastic deformation and brittle fracture, improve the fatigue life of dealing with the workpiece .
Technical Parameters
| Q35 | Q36 | Q76 |
| Item | Q3512 | Q3525 | Q365C | Q3610 | Q3620 | Q765C | Q76110 | Q7620 | Q7630 |
| piece dimension(mm) | 600*250*250 | 1000*500*250 | 2500*1300 | 2500*1500*280 | 4000*3000*700 | 2000*1000 | 2500*1500*280 | 4000*3000*700 | 4000*2000 |
| piece weight(kg) | 400 | 1000 | 5000 | 10000 | 20000 | 5000 | 10000 | 20000 | 30000 |
| capacity(kg/mir) | 200 | 2*250 | 2*250 | 4*250 | 4*250 | 2*250 | 3*250 | 4*250 | 4*250 |
| lifting amount(t/h) | 15 | 30 | 40 | 60 | 75 | 30 | 45 | 60 | 60 |
| separating amount(t/h) | 350 | 150 | 40 | 60 | 75 | 30 | 45 | 60 | 60 |
| ventilation capacity(m3/h) | 2400 | 6200 | 13200 | 240000 | 21000 | 11000 | 15000 | 21500 | 21500 |
| power(kw) | 17.3 | 35.2 | 39.2 | 188.45 | 185.25 | 35.8 | 188.45 | 183.35 | 83.2 |
| outline dimension(mm) | 1500*3450*3780 | 2200*3500*4300 | 9000*4200*9290 | 14900*500*8700 | 16900*6540*10020 | 9000*5200*9290 | 14900*5200*6100 | 16900*6540*10028 |

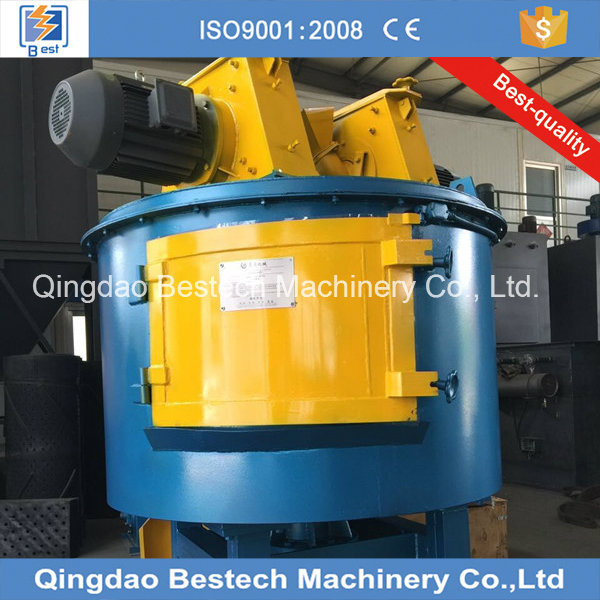

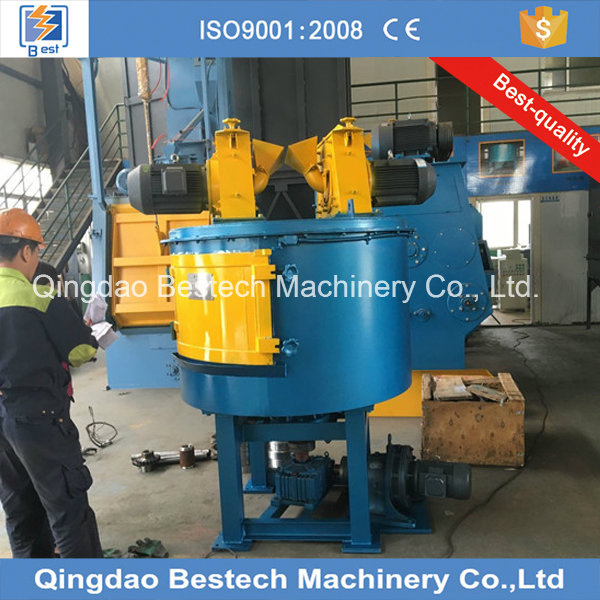

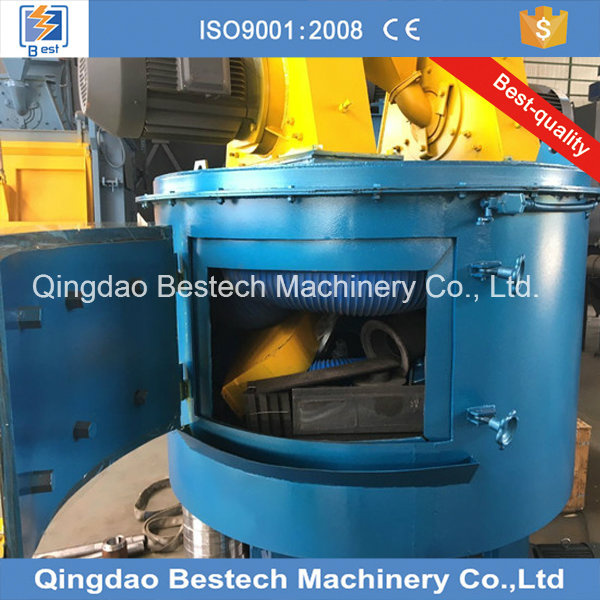

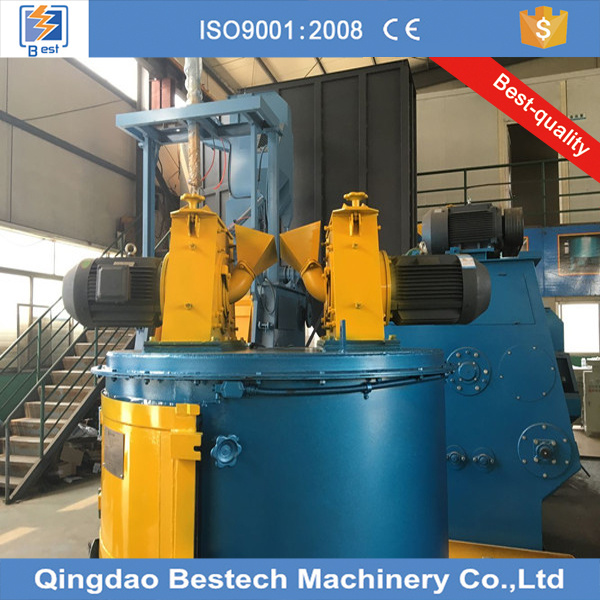

Product show
Contact:Sales Manager:Anne
Mobile:+8618561456376
| Prod Model: |
Q35 |
| Color: |
Selection |
| Name: |
Turntable Shot Blasting Machine |
| Price: |
Discount |
| Warranty: |
1 Year |
| Business Type: |
Industry & Trade Integration |
| Application: |
Metal Casting |
| Type: |
Turntable |
| Certification: |
ISO |
Qingdao Besttech Machinery Co., Ltd. Specializing in the production of dust environmental protection equipment, shot blasting cleaning machine, catenary shot blasting cleaning machine, through type shot blasting cleaning machine, crawler shot blasting cleaning machine, surface (lumen) blasting treatment and improved equipment, resin sand reclamation equipment production line, clay sand production line equipment, molding machine, hot metal ladle, casting Machinery and equipment, environmental protection equipment, steel shot blasting cleaning machine, etc. Is the highest technical content, complete varieties, production, sales of shot blasting machine and casting machinery production base, also is the Beijing Olympic Games the bird's nest, water cube and offshore oil platform main body engineering cooperation unit construction enterprises, is the domestic industry leader.
Qingdao caster ChongJi was founded in 1972, state-owned enterprises (original Qingdao three casting machine) the worker on the basis of the optimum combination to create enterprise, has more than 470 employees, professional and technical personnel 120 people, the factory covers an area of 120 mu, with various types of processing and manufacturing equipment more than 200 Taiwan (sets), has yearly produces mechanical equipment more than 1500 Taiwan (sets) of production capacity, products are exported to the United States, Russia, Ukraine, India, Vietnam, Thailand, Malaysia, Saudi Arabia, Hong Kong and other countries and regions, and took the lead through the ISO9001: 2008 international quality system certification.
