Ship's Hardware of Anchor Chain

Name: Ship's Hardware of Anchor Chain
Brand: tool-buy.com
SKU: 748581515
Availability: InStock
Rating: 4.5 (84 reviews)

Price:	US $ 600-2000shackle
Trade Terms:	FOB,CFR,CIF
Min Order:	1shackle
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Ningbo Hantian Electronics Technology Co., Ltd.

Showroom Product Company Profile

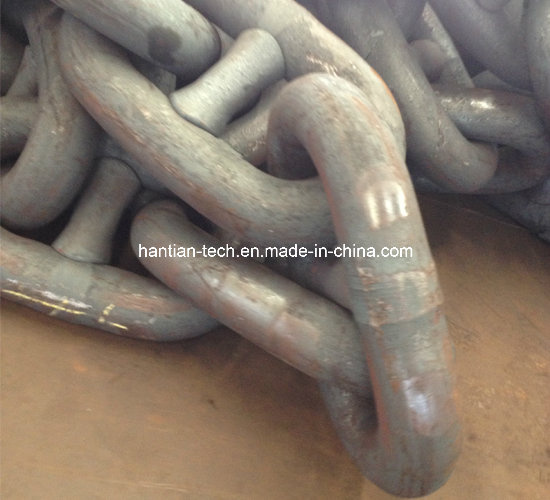

Marine hardware steel chain or mooring chain has adopted the most advanced industrial technology and equipment in the world. According to international standard ISO 1704. Chinese National standard GB/T549 and the specification stipulated: Grade 2 and 3 marine stud and stud-less flash welded chains, ORQ, R3, R3s, R4 mooring chains with diameters ranging from 12.5 to 174mm. And the Various accessories to match mooring chain mentioned above as well. It can also manufacture variety of products according to the user's requirements.

Marine hardware steel chain mentioned above have been approved successively by the world major marine classification societies: CCS(P. R. China), LR(U. K), GL(Germany), ABS(U. S. A), DNV( Norway), NK(Japan), BV(France), RS(Russia), RINA(Italy), KR(Korea). The offshore mooring chain has been licensed with API Monogram. It can provide its customers with the product certificate issued by any of above classification societies.

Anchor steel chain has a complete quality assurance ISO9000 system with advanced physical and chemical testing means and equipment for inspection. The main product MARINE SELDED CHAIN was awarded gold medal as top quality medal in China. Its export is the largest in that of same occupation in China.
The anchor chain sell well to more than 30 countries and regions, such as Japan, Korea, US, Germany and Norway.

Warmly welcome users and customers come to hold trade talks and technology communications.

Welcome order! ! !

Stud anchor chain Specification

Break Load			Proof Load
						Chain	Weight
						Diameter
	AM1	AM2	AM3	AM1	AM2	AM3
mm	KN	KN	KN	KN	KN	KN	kg/m
11	52	72	102	36	52	72	2.65
12.5	66	92	132	46	66	92	3.42
14	82	116	165	58	82	116	4.29
16	107	150	216	76	107	150	5.61
17.5	127	179	256	89	127	179	6.71
19	150	211	301	105	150	211	7.91
20.5	175	244	349	123	175	244	9.2
22	200	280	401	140	200	280	10.6
24	237	332	476	167	237	332	12.61
26	278	389	556	194	278	389	14.8
28	321	449	642	225	321	449	17.17
30	368	514	735	257	368	514	19.71
32	417	583	833	291	417	583	22.43
34	468	655	937	328	468	655	25.32
36	523	732	1050	366	523	732	28.38
38	581	812	1160	406	581	812	31.62
40	640	895	1280	448	640	895	35.04
42	703	981	1400	492	703	981	38.63
44	769	1080	1540	538	769	1080	42.4
46	837	1170	1680	585	837	1170	46.34
48	908	1270	1810	635	908	1270	50.46
50	981	1370	1960	686	981	1370	54.75
52	1060	1480	2110	739	1060	1480	59.22
54	1140	1590	2270	794	1140	1590	63.86
56	1220	1710	2430	851	1220	1710	68.68
58	1290	1810	2600	909	1290	1810	73.67
60	1380	1940	2770	969	1380	1940	78.84
62	1470	2060	2940	1030	1470	2060	84.18
64	1560	2190	3130	1100	1560	2190	89.7
66	1660	2310	3300	1160	1660	2310	95.4
68	1750	2450	3500	1230	1750	2450	101.3
70	1840	2580	3690	1290	1840	2580	107.3
73	1990	2790	3990	1390	1990	2790	116.71
76	2150	3010	4300	1500	2150	3010	126.5
78	2260	3160	4500	1580	2260	3160	133.2
81	2410	3380	4820	1690	2410	3380	143.69
84	2580	3610	5160	1800	2580	3610	154.53
87	2750	3850	5500	1920	2750	3850	165.76
90	2920	4090	5840	2050	2920	4090	177.39
92	3040	4260	6080	2130	3040	4260	185.36
95	3230	4510	6440	2260	3230	4510	197.56
97	3340	4680	6690	2340	3340	4680	206.06
100	3530	4940	7060	2470	3530	4940	219
102	3660	5120	7320	2560	3660	5120	227.85
105	3850	5390	7700	2700	3850	5390	241.45
107	3980	5570	7960	2790	3980	5570	250.73
111	4250	5940	8480	2970	4250	5940	269.83
114	4440	6230	8890	3110	4440	6230	284.61
117	4650	6510	9300	3260	4650	6510	299.79
120	4850	6810	9720	3400	4850	6810	315.36
122	5000	7000	9990	3500	5000	7000	325.96
124	5140	7200	10280	3600	5140	7200	336.73
127	5350	7490	10710	3750	5350	7490	353.23
130	5570	7800	11140	3900	5570	7800	370.11
132	5720	8000	11420	4000	5720	8000	381.59
137	6080	8510	12160	4260	6080	8510	411.04
142	6450	9030	12910	4520	6450	9030	441.59
147	6840	9560	13660	4790	6840	9560	473.24
152	7220	10100	14430	5050	7220	10100	505.98
157	7600	10640	15200	5320	7600	10640	539.81
162	7990	11180	15980	5590	7990	11180	574.74

Prod Model:	HT150
Ship Anchor Chain Length:	1 Shackle 27.5m
Mooring Chain Certificate:	CCS, Lr, Gl, ABS, Dnv, Nk, BV, RS, Rina, Kr
Stainless Steel Chain Diameter:	12.5 to 174mm
Mooring Chain Weight Per Shackle:	Depends on Different Diameter Chain
Marine Anchor Chain Type:	Stud and Studless
Marine Hardware Chain Package:	Naked or According to Customer's Require
Steel Chain Appliaction:	Ship Anchorage or Mooring
Marine Parts:	Anchors
Engine Type:	Nil
Usage:	Anchor and Mooring
Type:	All Types of Vessel
Material:	Iron and Steel
