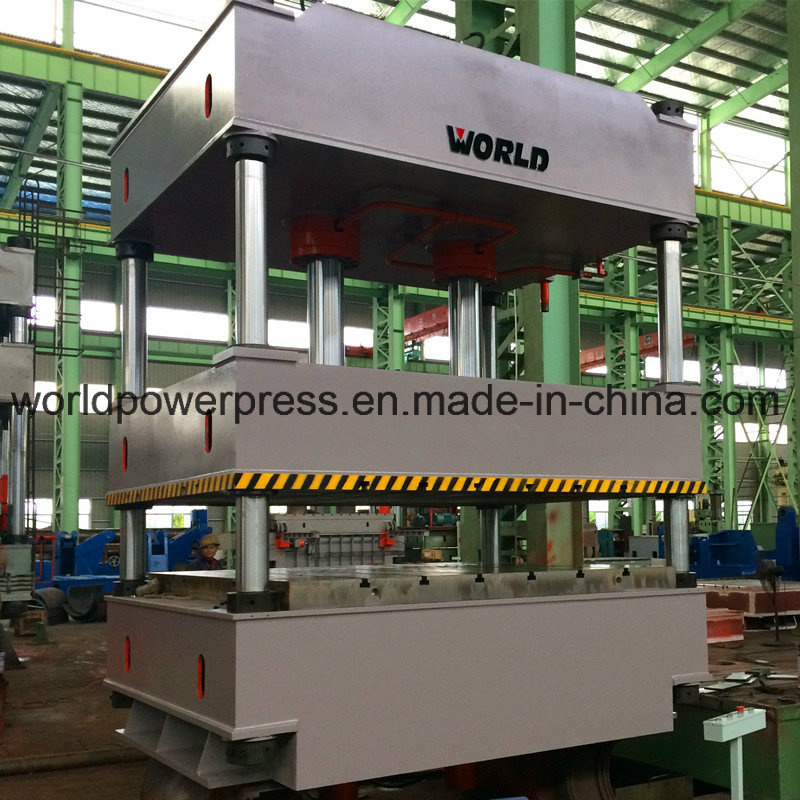

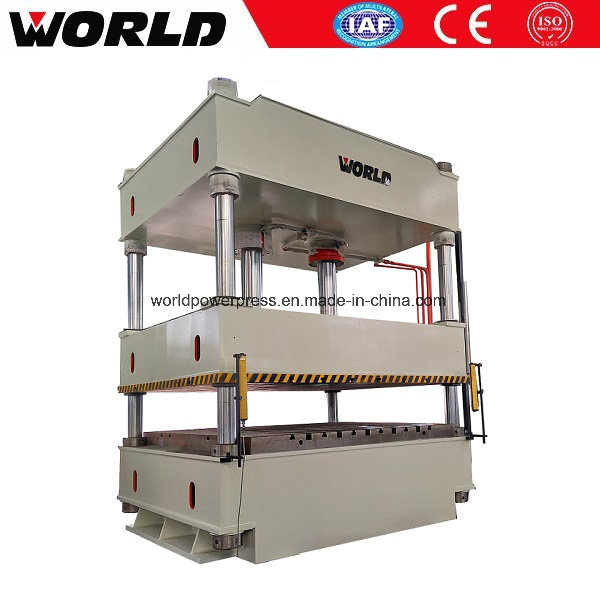

Sheet Blanking Hydraulic Power Press

Name: Sheet Blanking Hydraulic Power Press
Brand: tool-buy.com
SKU: 807672115
Availability: InStock
Rating: 4.6 (113 reviews)

Price:	US $ 10000-20000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Shanghai Yingxin World Machinery Co., Ltd.

Showroom Product Company Profile

sheet blanking hydraulic power press

Specifications:

MODEL			YW27-200	YW27-315	YW27-400	YW27-400A	YW27-400B	YW27-500	YW27-630
Capacity		kN	2000	3150	2000	4000	4000	5000	6300
Hydraulic cushion capacity		kN	1200	1500	1500	2000	1000	1500	2000
Slide Stroke		mm	800	1000	1000	1200	500	1000	1500
Hydraulic cushion Stroke		mm	260	300	350	350	200	300	400
Max. Shut Height		mm	1200	1600	1500	2000	1100	1400	2000
Bolster movement distance		mm			2000	2400		1600	2700
Slide Speed	Idle Stroke	mm/s	220	200	200	250	180	220	200
	Pressing	mm/s	15-25	10-15	9-15	10-25	10-25	8-20	6-15
	Return	mm/s	160	150	150	150	120	160	150
Ejecting Speed	Eject	mm/s	60	60	60	60	60	80	80
Ejecting Speed	Return	mm/s	100	100	100	80	80	120	100
Bolster Size	LR	mm	1000	2500	2700	3000	1700	2000	4500
Bolster Size	FB	mm	1000	1600	1500	2000	1400	1400	2500
Main Motor Power		kW	15	22	44	44	44	44	67
MODEL			YW27-630A	YW27-630B	YW27-630C	YW27-800A	YW27-800B	YW27-800C	YW27-1000
Capacity		kN	6300	6300	6300	8000	8000	8000	10000
Hydraulic cushion capacity		kN	2500	2000	2500	2000	2500	2000	3500
Slide Stroke		mm	1000	1200	1500	1500	850	1200	1600
Hydraulic cushion Stroke		mm	350	350	400	400	300	300	400
Max. Shut Height		mm	1600	2000	2200	2200	1450	1700	2000
Bolster movement distance		mm	2000	2400	2400	2700	2200	1800	2700
Slide Speed	Idle Stroke	mm/s	250	220	220	200	280	220	220
	Pressing	mm/s	10-25	10-25	10-25	6-15	12-25	15-23	15-23
	Return	mm/s	150	120	120	140	220	120	120
Ejecting Speed	Eject	mm/s	60	80	80	60	60	60	60
Ejecting Speed	Return	mm/s	80	100	100	80	80	100	100
Bolster Size	LR	mm	3000	3000	4500	4500	3200	2500	3800
Bolster Size	FB	mm	1800	2000	2500	2500	2000	1600	2500
Main Motor Power		kW	90	90	60	90	165	90	110

Prod Model:	Y27
Capacity:	100ton to 1000ton
Power:	380V/50Hz/3phase
Table Size:	Can Be Customized
Daylight:	Can Be Customized

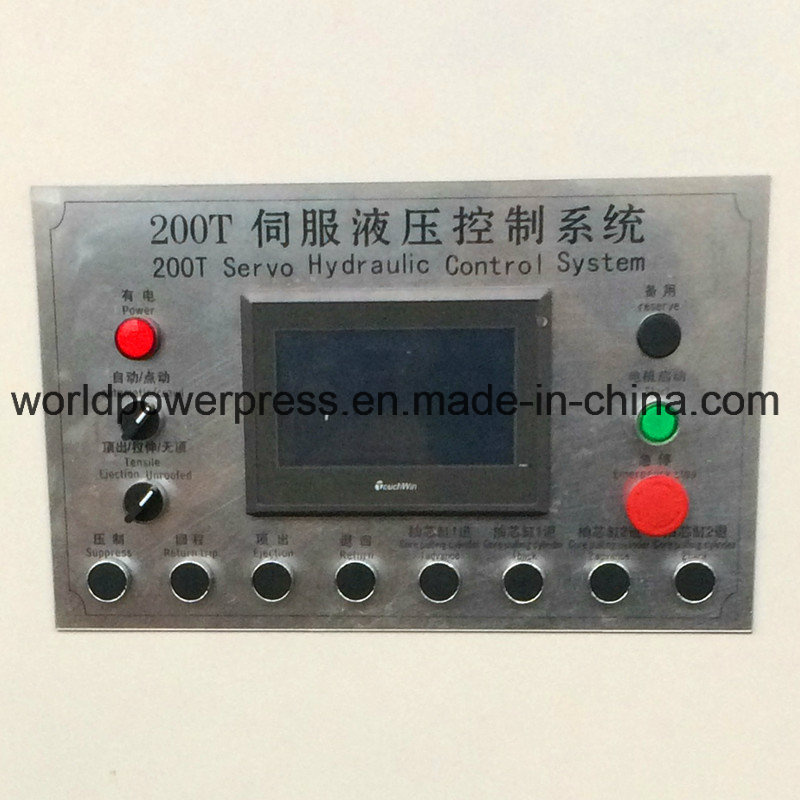

CNC System:	Optional

Shanghai Yingxin World Machinery Co., Ltd is a professional supplier and exporter of mechanical power press, hydraulic press brake and shearingring machines in China.

We can supply mechanical power press from 6.3Ton to 1600Ton, hydraulic press brake from 63Ton to 400Ton, hydraulic guillotine shear or swing beam shear with cutting depth from 6mm to 40mm, and feeders etc. With more than 10 years exporting experience, our machines have been used and approved by the market, such as Turkey, Russia, Norway, Germany, Brazil, South Africa, Saudi Arabia, Oman, Iran, Pakistan, Thailand and Indonesia.

We commit to offer best quality, reasonable prices and valuable technical assistance to every customer.

Warranty Policy

Since the buyer's final acceptance date, our company implements the products after sale service. The warranty period is one year. During the warranty period, our company provides free maintenance and replacement parts, if these parts or damages are out of quality problems. In the meantime, the machine should be under normal operation by the buyers. (Except for improper operation or man-made damage by the buyers. ) We can send the parts by courier if urgently needed while the buyer should pay the freight.

Installation Support

We can arrange our engineer to support the buyer to install the machines at buyer's factory. And the buyer should pay all the accommodations and round air tickets.
