Shearing, Guillotine Shearing Machine, Plate Cutting Machine, Metal Cutter, Stainless (4X5000mm)

Name: Shearing, Guillotine Shearing Machine, Plate Cutting Machine, Metal Cutter, Stainless (4X5000mm)
Brand: tool-buy.com
SKU: 690156491
Availability: InStock
Rating: 4.3 (55 reviews)

Price:	US $ 4480-5300/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Anhui Province Shenchong Forging Machine Co., Ltd.

Showroom Product Company Profile

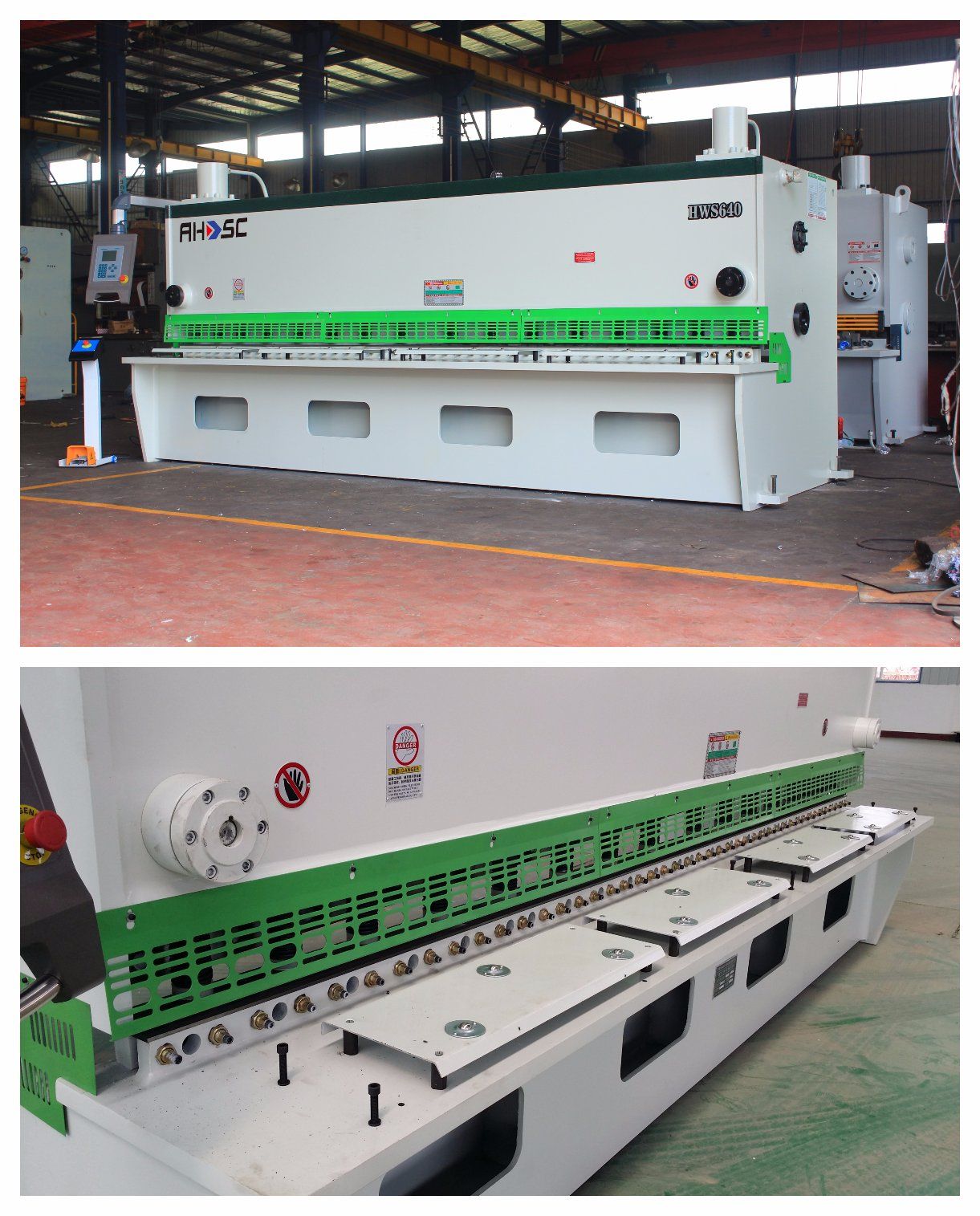

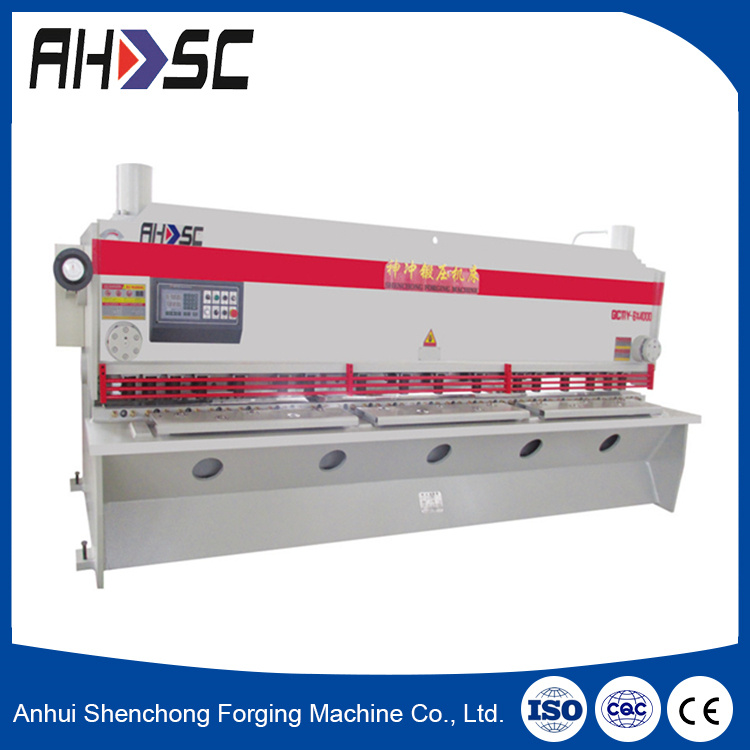

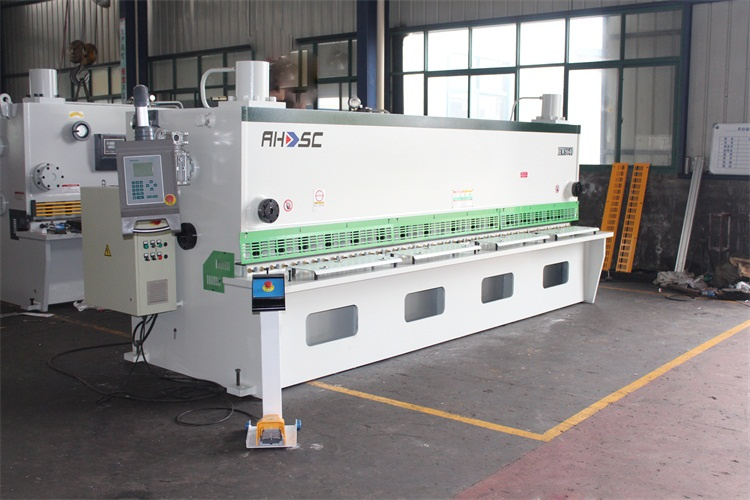

Hydraulic CNC Guillotine Shearing Machine
Features

1.Totally European design, streamlined looking,Monoblock,The frame of this machine tool is welded construction with steel plate, and stress is eliminated by vibration. As a result, this forging machine features high strength, stable performance, easy operation and convenient maintenance.
2.As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.
3.Adopt handwheel to rapidly and accurately adjust the blade clearance.
4.The rectangular monoblock blades featuring long life with 4 cutting edges, quality high-carbon high-chrome blades D2 quality.
5.The position of low blade is adjustable, thus ensuring the equilibrium of the gap between blades after regrinding
6.It is easy and quick to adjust the gap between blades. The value of the gap is indicated on a dial.
7.Motorized adjusting and manual adjusting for the back gauge
8.Cutting times of this machining tool are controlled by the time relay.
9.European key electrics
10.Light alignment device eases drawing line for cutting
11.Standard front support sheet frame
12.Protection fence and the electric interlocker to ensure the safety of the operator.
13.The machine by the European Union CE certification and ISO quality system certification

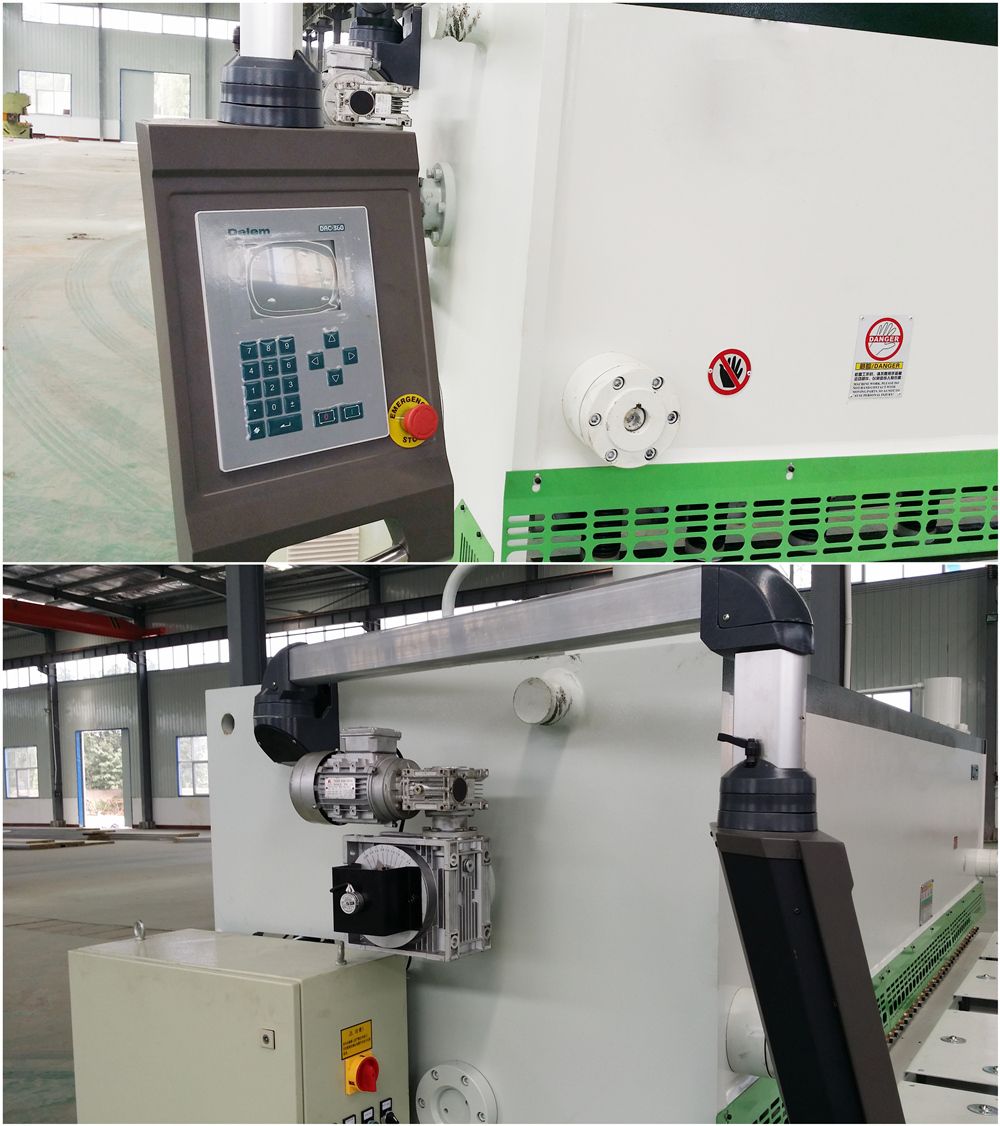

Controller	Holland Delem DA360
1.The DAC-360 control provides a complete solution for shearing machines. It includes the control of backgauge, cutting angle, stroke length and gap, based on state of the art electronics. 2.Beside backgauge control, the DAC-360 automatically calculates the required setting for the cutting angle and gap depending on material properties and thickness. The stroke length is limited for minimal production time and related to the material length to cut. 3.Full pressure control for clamping and cutting is on board the DAC-360. 4.With its bright LCD screen a clear and easy operation is offered. The numerical programming is user-friendly and guides the operator through the programming possibilities.
Features --Bright LCD screen --Backgauge control --Retract function --Cutting angle control --Cutting gap control --Stroke length limitation --Force control --Manual movement of axes

Standard Configuration
1.	CNC Controller	Delem From Holand
2.	Hydraulic System	Bosch Rexroth From Germany
Hydraulic system: --Adopt integrated hydraulic control system, more reliable and easy for maintenance.Hydraulic system is from Bosch - Rexroth,Germany. --All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance --Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly. --The hydraulic system is made in compliance with current regulations (Directive 98/37 EC).
3.	Main Motor	Siemens From Germany
4.	Main Electrics	SCHNEIDER from France
Electrical system and the safety interlock: --Electrical Cabinet under the standard of IP65, Electrical under international CE Standard, safe and reliable, strong anti interference capability --Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate --Front Side Covers with safety switches, Back light safety guards (Category-4),Foot pedal conforming to CE regulation.
5.	Seal Ring	NOK From Japan
6.	Pipe Connector	EMB From Germany
7.	Ball Srew	Hiwin From Taiwan
8.	Limit Switch	SCHNEIDER from France
9.	Pump	Bosch Rexroth From Germany
10.	Foot Switch	Karcon From South Korea

Technical Parametres

Model	Mild Steel (450Mpa)	Cutting Length(mm)	Depth Of Throat(mm)	Back Gauge Range(mm)	Rake Angle Adjustment	Strokes Per Minute	Main Motor	L×W×H(mm)	Weight(t)
4×2000	4	2000	80	600	0.5°~2°	14	5.5	2600×1680×1750	3.8
4×2500	4	2500	80	600	0.5°~2°	14	5.5	3100×1750×1765	4.5
6×2500	6	2500	80	750	0.5°~1°30′	14	7.5	3100×1725×1900	5.3
6×3200	6	3200	80	750	0.5°~1°30′	12	7.5	3935×1840×1995	6.5
6×4000	6	4000	80	750	0.5°~1°30′	10	7.5	4650×1840×2100	8.5
6×5000	6	5000	80	750	0.5°~1°30′	8	7.5	5650×2185×2380	10.5
6×6000	6	6000	80	750	0.5°~1°30′	8	7.5	6650×2260×2380	15.2
8×2500	8	6000	80	750	0.5°~1°30′	14	7.5	3135×1840×2075	6
8×3200	8	3200	80	750	0.5°~1°30′	12	7.5	3850×1990×2050	6.8
8×4000	8	4000	80	750	0.5°~1°30′	10	7.5	4650×2030×2075	9
8×5000	8	5000	80	750	0.5°~2°	7	15	5650×2050×2400	12.5
8×6000	8	6000	100	750	0.5°~2°	7	15	6805×2115×2715	19.8
10×2500	10	2500	100	750	0.5°~2°30′	10	15	3195×1915×2205	8
10×3200	10	3200	100	750	0.5°~2°30′	8	15	3895×1900×2235	8.8
10×4000	10	4000	100	750	0.5°~2°30′	6	15	4695×1970×2270	9.15
10×5000	10	5000	100	750	0.5°~2°30′	5	15	5700×2115×2715	16
10×6000	10	6000	100	750	0.5°~2°30′	5	15	6905×2115×2800	22
12×2500	12	2500	100	750	0.5°~2°30′	10	15	3195×2000×2210	8.3
12×3200	12	3200	100	750	0.5°~2°30′	8	15	3895×2050×2240	9.2
12×4000	12	4000	100	750	0.5°~2°30′	5	15	4710×2110×2450	13
12×5000	12	5000	100	750	0.5°~2°30′	5	30	5750×2115×2800	20
12×6000	12	6000	100	750	0.5°~2°30′	5	30	7150×2300×3100	29
16×2500	16	2500	100	750	0.5°~2°30′	8	15	3215×1970×2340	8.7
16×3200	16	3200	100	750	0.5°~2°30′	7	15	3915×1970×2455	11
16×4000	16	4000	100	750	0.5°~2°30′	6	15	4715×2010×2590	15
16×5000	16	5000	100	750	0.5°~3°	5	30	6000×2300×3000	23
16×6000	16	6000	80	750	0.5°~3°	5	37	7250×2400×3100	36
20×2500	20	2500	100	750	0.5°~3°	6	22	3235×2020×2465	10.5
20×3200	20	3200	120	750	0.5°~3°	5	30	4150×2065×2755	18
20×4000	20	4000	120	750	0.5°~3°	4	30	4955×2125×2885	21
20×5000	20	5000	120	750	0.5°~3°	4	37	6000×2300×3050	29
25×2500	25	2500	120	750	0.5°~3.5°	5	37	3465×2130×2710	15
25×3200	25	3200	120	750	0.5°~3.5°	5	37	4120×2200×3000	21
25×4000	25	4000	120	750	0.5°~3.5°	4	37	4950×2200×3150	26
30×2500	30	2500	120	750	0.5°~3.5°	4	37	3465×2170×2770	16
30×3200	30	3200	120	750	1°~3.5°	3	45	4200×2300×3200	23
40×2500	40	2500	180	750	1°~4°	4	45	3770×2550×3400	29
40×3200	40	3200	180	750	1°~4°	4	55	3770×2550×3400	29

Prod Model:	QC11Y-4X5000
Controller:	Delem From Holland (Optional Dac310+Dac360)
Main Motor:	Siemens Motor From Germany
Hydraulic System:	Bosch Rexroth From Germany
Tube:	Emb From Germany
Ball Screw:	Hiwin From Taiwan
Seal Ring:	Nok From Japan
Backgauge Size:	500-1000mm
Foot Switch:	Karcon From South Korea
Votage:	220V/380V/415V(Optional)
Safety:	Ce and IP54

ShenChong Forging Machine Co., Ltd. is committed to bringing high standard of professionalism, integrity and service in order to achieve a high reputation in the manufacturing & processing industry. We are a professional manufacturer of National Mechanical Industry, which produces press brake, shearing, section forging machines. The registered capital is RMB 6, 000, 000.

Shenchong occupies 20, 000 square meters workshop and office place. At present, the Company is staffed with 200 employees, 70% of which have junior college education background. During the producing of high-tech machine in the long run, the Company is not only able to supply a full range of CNC products, but also foster a strong skilled and talented team. The Company boasts to have its own R&D facilities, the strongest R&D capabilities in China.

Based on the advanced international management mode, our company brings pays more attention to the machine designs and quality of raw materials. In the process of prospecting its modern corporate system, the Company has attached importance on and given full play to the large-scale production, specialization in its development, standardization of its management, network construction for its sales and distribution, full and complete product lines in R&D, independent IPR, quality of services and knowledge increase of the employees; And it has gained advantages in science and technologies, quality and market share through state-of-the-art management, technical innovationm, equipment. We believe that we are a competitive supplier in our field and we warmly welcome your inspection.
