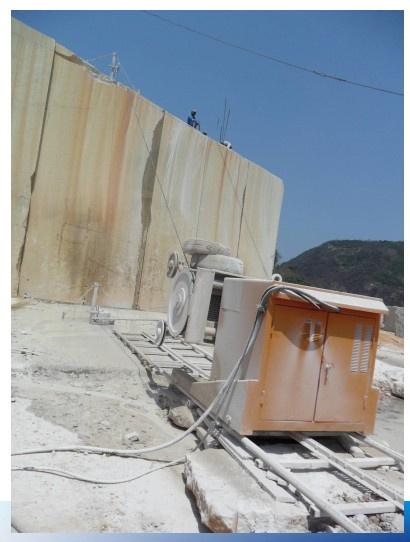

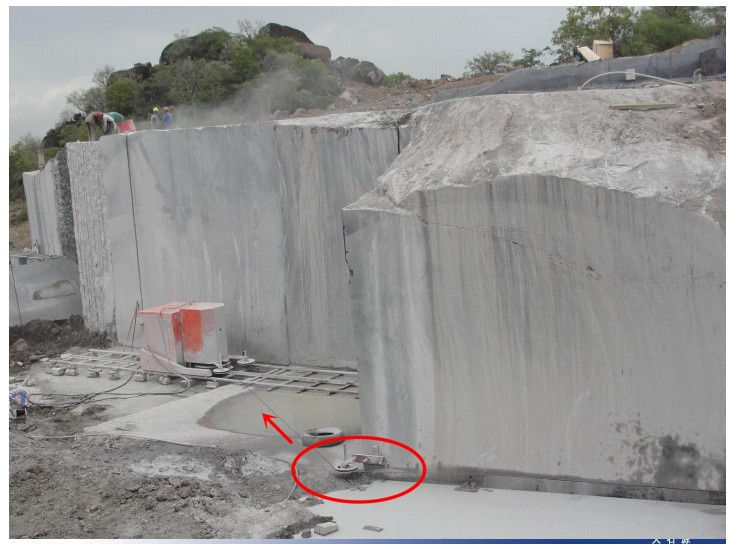

Description of diamond wire saw:There is no doubt that the appearance of diamond wires quarrying technique is a revolution for stone mining. This technique has following advantages in mining: improve the quarrying efficiency, work safely and protect environment well. High performance brings good sized blocks without inner breaks, and can exploit large dimension blocks with low quarry cost.

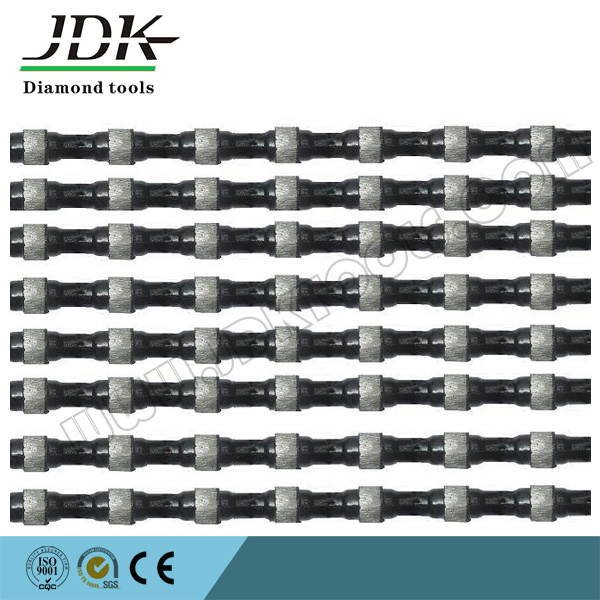

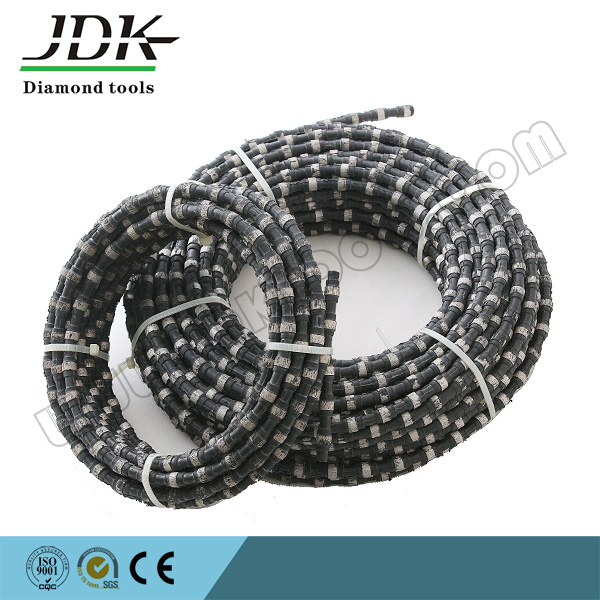

1. We can provide different support designs and sizes beads according to the stone types.
2.We have independently developed the special rubber and vulcanized technique to ensure that the diamond wires can work in all sorts of bad environment.
Specification as below:| Specification | Assembing Method | Beads/meter | Application | Linear Speed |
| Φ11.0 | Rubber | 37/40 | Soft granite | 25-28 |
| 37/40 | Medium granite | 23-25 |
| Φ11.5 | 37/40 | Hard granite | 20-23 |
| 37/40 | Sandstone | 25-30 |
Suggestion:Advantages of rubber wire used in granite quarrying: The rubber and cable sticking together tightly makes good bonding, and this can bemore strikes during the work. The rubber has good temperature resistance, and it can be used when water is not enough. Strong flexibility can reduce the cut-in-one-side problem, and even can be used for smaller curvature radius. Normally wire saw machines with 37-75kw are used in granite quarrying, according to the size of cutting area, water supply can be controlled with 25-50 L/min.
Our Feature:Factory == Own Exporting License == Quality Control == Competitive Price == Own Technology == OEMOur advantage:1. Manufacturer with more than 15 years experience2. A great quantity of formula special for all kinds of different stone3. Approved quality with factory competitive price4. Long lifespan, good sharpness, stable performance and high cutting efficiency5. Sandwich, groove type segment with shape straight, trapezia, boatshape, K, V, etc6. Custom-design can be meet upon request, small trial order available any time, sample for testing can be delivery in very short time.Payment:T/T, Western Union, L/C, CashDelivery time:For samples, shipped within 3 days after receiving the deposit, For regular order, around 3-7 days, depends on the quantity of your order.Packaging:The inner packaging is carton box .The outer packaging is carton box Or woodencase.(If by air ,carton box will reduce the weight, if by sea, we suggest woodenbox for waterproof.Shipment:<45kg, express service is recommonded
>45kg, air or sea is a better choice 45kgs
Quanzhou JDK Diamond Tools Co., Ltd. is one professional manufacturer of diamond tools in China, specially for the stone working industry. The main products are stone cutting Diamond Saw Blades, Kinds of Diamond Segments, Diamond Abrasives, etc...For over 12 years development with the support of JDK's Customers, suppliers and Staffs, now JDK is supplying big range stone cutting, Grinding & Polishing tools to the world.
JDK was established in 1995, initially JDK was producing and selling diamond tools products to China domestic market. Since 2000 year JDK is aiming at the world market and started to design and produce superior performance diamond tools to meet kinds of requirements of customers from all over the world. with these years export experiences now JDK is exporting his diamond tools products to over 30 countries which is in Europe, Middle East, Asia, America, etc...
JDK's experienced Engineer and R&D team are providing customers quality stone tools for cutting, grinding, polishing, milling, drilling, such as diamond saw blade, diamond segments, Diamond Wire Saw, Diamond abrasives, Flexible Polishing Pads, Grinding Cup Wheels, Core Drill Bits, ...
Always, JDK's target: Offer you most satisfied products and service, developing together.
