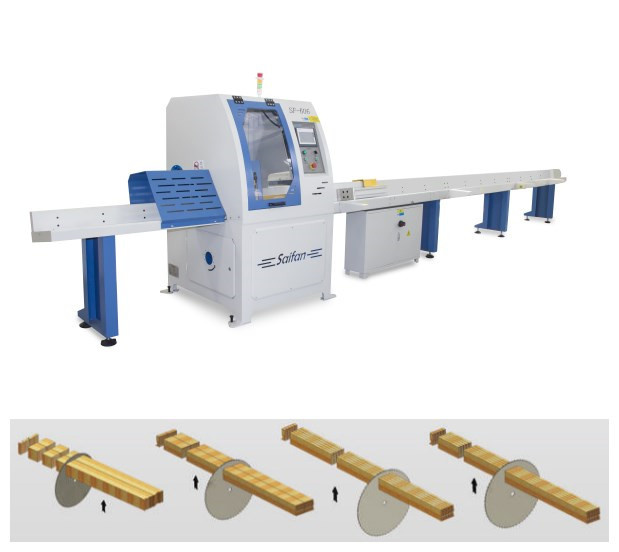

Serve Motor Automatic Wood Cut off Saw

Serve Motor Automatic Wood Cut off Saw
Price: US $ 15000-19000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal

HICAS High Efficient Auto Wood Cutting Off Saw Machine

An video link about this machine
https://www.youtube.com/watch?v=8253RLmw83U&list


Feature

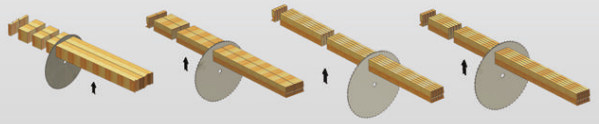

This saw is a cross cut saw, cutting continuously and automatically with high precision and high efficiency. Can pre-set and edit and save cutting plans.

Advantages
Easy to operate, high efficiency, safty for worker
Parameters

ModelSF606SF6061
Cutting lengthMax. 2m/ 4m/ 6m
Cutting height10-120mm10-140mm
Cutting width30- 200mm30-300mm
Cutting sectionMax. 120*150mm/100*200mmMax.140*140mm/140*300mm
Feeding speed5-30m/min
Cutting speed40pcs/min45pcs/min
Blade diameter450mm*30mm600mm*30mm
Cutter spindle rotation speed3000rpm3150rpm
Servo drive motor power0.75kw1kw
Cutting motor power7,5kw/11HP11kw/15HP
Total power8.5kw12.5kw
Pressing methodCylinder, air pressure 0.5-0.7Mpa
Cutting toleranceIn +/-1mm
Machine working dimensionL*W*H, 5.4m*1.2m*1.6m/7.4m*1.2m*1.6m/9.4m*1.2m*1.6m
Dust collection portDia. 100mm*2pc
Electrical componentsSchneider
PLC Touching screenSiemens
Voltage380v, 3 phase, 50Hz
Can customize (extra cost $200)

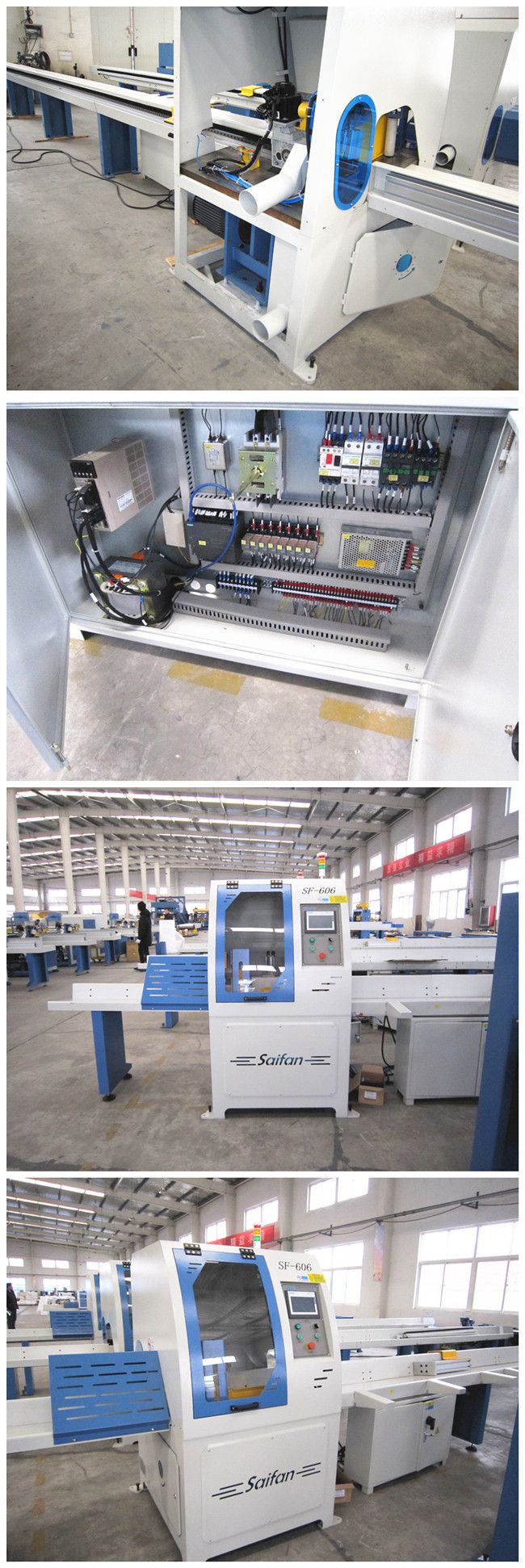

Products Overview

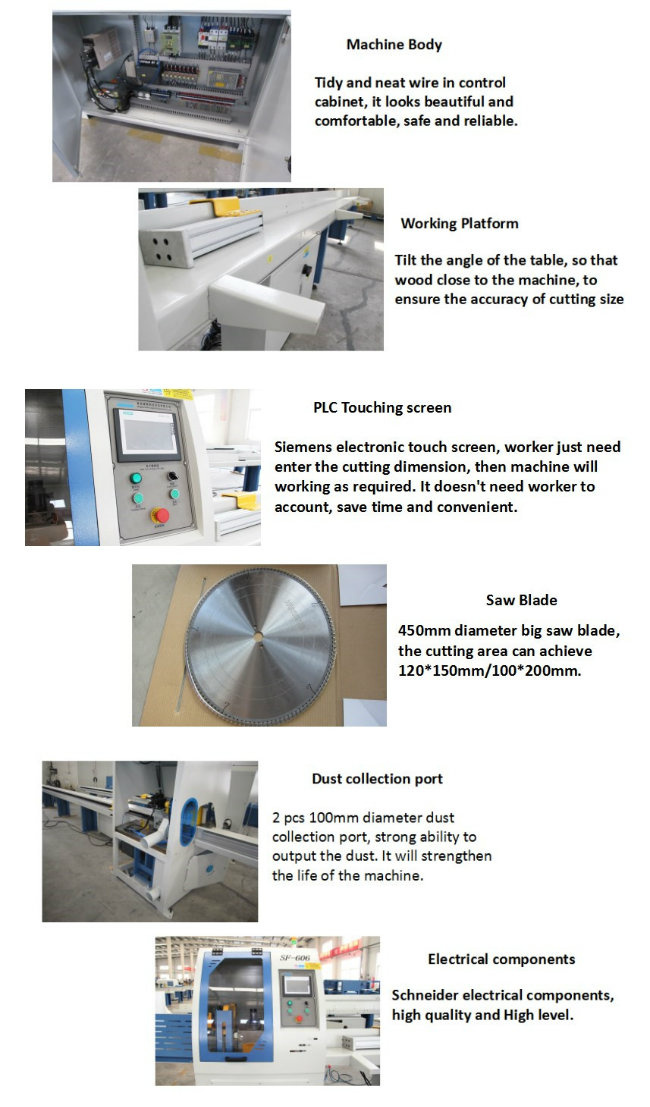

Details

Package Information

1.Packing details: Warrping film with plywood box or as your request.
2.Shipping: We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms.
3.Timely delivery and transportation

Company Information
Qingdao High-Class Service Import & Export Co., Ltd. is located in the beautiful coastal Qingdao city, which is also famous for woodworking machinery. We are professional in providing Chinese leading woodworking machinery products, whole-factory solutions and excellent services.

Now, we are engaged in offering woodworking machinery, metalworking machinery, packing machinery,WPC machinery and corresponding spares parts and raw materials. Our company has own professional technical team to make sure the perfect import and export service system run well.

With years of experience, we have established long and strong business relationships with more than10 professional distributors all over the world. We are the sole buying agent of customers from Russia, the Middle East, South Africa and Brazil. We always welcome partners to join us and develop the business together.

Under the guideline of "High Class Service", we would like to continue providing the best service for customers who need machinery. In accordance with the principle of mutual benefit, we are going to have a pleasant corporation.

FAQ
1) How quick we can get the parts from you?
As long as the problem with parts, we will send you free accessories by express, and you can get the parts in 4~5 days usually.
2) How much support we can get for problems ?
We will do our best to help you solve the problem by phone or video, also we can do the overseas services.
3) Manuals and electrical for drawings can made in English?
Of course we can do that in English.
4) What's the cutting section of this saw?
This saw max cutting section is 140*280mm or 120*300mm (thickness*width).

5) How many workers needed for this machine?
Just need 1 worker, when wood material placed on working table, machine feeding the wood automatic, then just need worker take the finished wood.


After-sale service
1. We respect your feed back after receiving the goods.
2. Tracing the working condition by email per month.
3. 24 hours technical support by email, call, video.
4. English CD and manual for machine using and maintainance.
5. Whole machine one year warranty.
6. Whole life warranty.
7. Engineers available to serve and train overseas, but your side should pay all the expense.


Contact Infomation

Tel:+86 0532-80922156 , Mobile: +86 18562586817
Qingdao Saifan Packaging Machinery Co., Ltd
Qingdao High-Class Service Import & Export Co., Ltd

www.qdsaifan.com  www.saifanchina.com  www.hicasmachinery.com
No.8 Changbaishan Road, Shuangyuan road Airport Industrial Area, Qingdao, Shandong, China.

Prod Model: SF606
Brand: Saifan
Product Name: Hicas High Efficient Auto Wood Cutting off Saw Mac
Warranty: 1 Year
Usage: Wood Process
Application: Making Wood Pallet
Power: 8.5kw
Model: Sf606
Voltage: 380V, 3 Phase, 50Hz
Layout: Horizontal
Controlling Mode: Hydraulic Semi-automatic
Automatic Grade: Semiautomatic
Precision: High Precision
Certification: ISO
Type: Wood Cross Saw
Qingdao High-Class Service Import & Export Co., Ltd was founded in March 2011, At present we already have three factories and our self-contained products have three models, including edge banding machine, panel saw, sanding machine, membrane machine. Our products are stable and have a price advantage, It can bring you the highest efficiency in the shortest possible time. Besides, Our current annual production capacity is also large, annual production of 500 edge machine, cutting board saw 1000, 200 membrane machine, sanding machine 500.

Due to our high quality products and professional services, we have accumulated seven international agency services. And take into account the particleboard production line, plywood production lines and packaging production lines, etc.

We have our own trade services company, currently has online service department, network development department and purchasing department.

We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers. We hope to be the top supplier and provide the best machines and service to customers who are in the woodworking industry. Sincerely hope to cooperate with you and creat a better future!
