Semi-Automatic Metal Cutting Circular Saw (mm-KHK350)

Semi-Automatic Metal Cutting Circular Saw (mm-KHK350)
Price: US $ 0.01/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

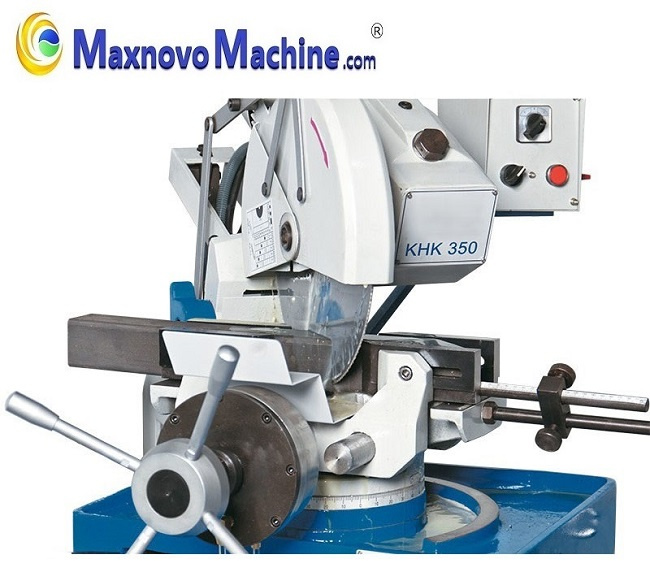

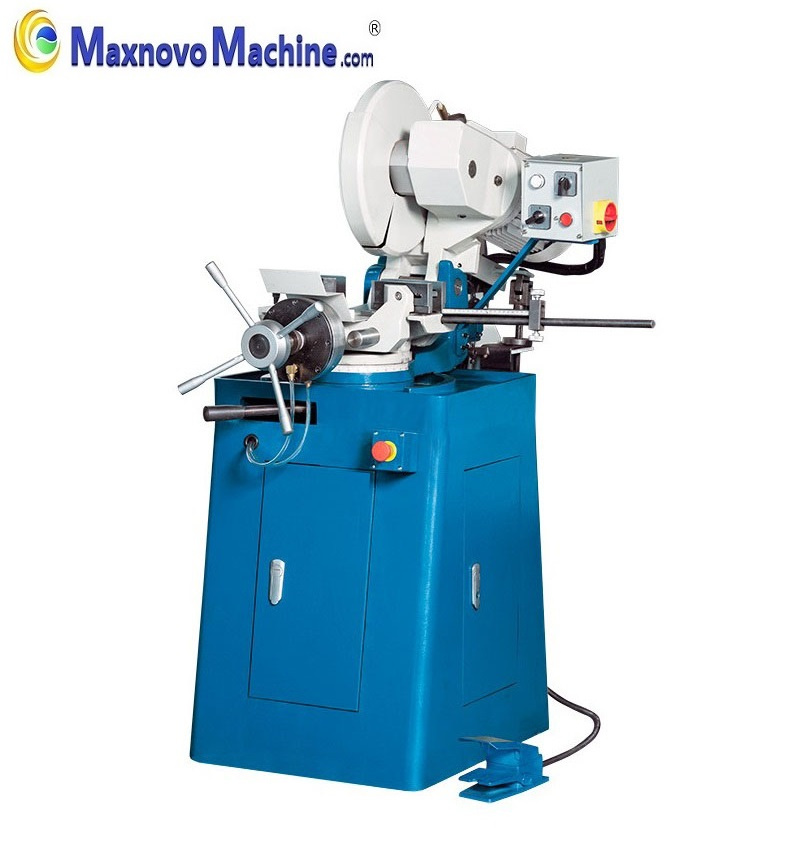

Such kind of MM-KHK350 is the high precision Semi-Automatic Circular Metal Saw (its Max Saw Blade Diameter is 350mm) with pneumatic part clamping is designed for economic production of single parts and small series. This cutting saw machine features 2 cutting speed settings, making them ideal for sawing of profiles, pipes and solid iron, stainless steel and non-ferrous metal. A perfect choice for clean, precise, spark-free metal cutting. The solid construction, precise cutting results and high user friendliness make this cutting machine essential for metal workshops. Dual-vise system clamps on each side of the blade and coolant system prevents the blade from overheating. As a result, Quality at a cost-efficient price and this Semi-Automatic metal circular saw cutting machine is for demanding users.

350mm Semi-Automatic Circular Saw With Pneumatic Part Clamping

Main  Feature :

Convincing Arguments : Quality, Efficiency and Price
-Quick-action vise with pneumatic clamping reduces setup time
-Automatic sawing process with infinitely variable feed speed
-Two saw blade speeds for optional cutting results in different materials
-Miter cuts up to 45 degree
-Adjustable saw stroke results in shorter cycle times when cutting
  small diameter parts

-Gears running in oil bath
-Includes base and coolant system
-Easy readable angle scale allows precise working
-Oil-bath lubricated gear
-Strong Two-speed powerful motor
-Pneumatic Clamp, quickly and reliability
-Automatic cutting vario speed
-Integrated coolant tank
-Head swivels 45° to the left and to the right
-Gear-driven blade for low-RPM Cutting
-Cooling pump keeps blade from overheating
-Dual-speed cutting ability
-Heavy machine base designed to add various roller tables
-Gear unit features slip clutch to avoid saw-blade breakage
-Powerful coolant tank integrated in machine base
-Pneumatic lowering of saw unit features regulator to allow
  lowering and lifting speed

-High-grade, fracture proof and movable protective device with
   rapid opening mechanism provides

-Slewing range of ± 45°
-Adjustment of the mitre in a matter of seconds
-Protected vice spindle
-Protective cover opens automatically when cutting
-Precise, self-centering double-clamping vice positioned on four guiding
-Ergonomically shaped handle with push button for high work comfort
-Reduction gear unit, quietly running in oil bath
-2 Speed settings-Ideal for cutting profiles, pipes and solid iron, stainless steel and non-ferrous metal
-Solid machine base with holes on both sides for the installation of
  material stand MSR

-Gear head swivels 90° to both sides for slotting
-Removable coolant tank integrated in solid machine base
-Gear unit features hardened, polished worm shaft and bronze worm wheel
-The saw is delivered without circular saw blade
   (saw blade pitch freely selectable)

-Certificate of Original (CO, FORM A, FORM E, FORM F )

Technical Data :
Product Name :High Precision 350mm Semi-Automatic Circular Saw With Pneumatic Part Clamping
Product Item :MM-KHK 350
In Feed: Semi-Automatic
Air Consumption : 120 I / min
Air Supply : 6 bar
Max Saw Blade Diameter :Ø 350 mm
Inner Blade Bore : Ø 40 mm
Spindle  Speeds ( rotations ): 38, 19 RPM
Blade Pin Holes : 2 X Ø 8 X PCD 55 mm
Width Of Vise : 145 mm
Clamping Vice : Double
Motor Rating Main Drive : 1500 W
Motor Coolant Pump :40W
Cutting  Angle :From -45 degree up to +45 degree
Cutting  Angle Adjustment : By means of a rotatable bearing block
Cutting Capacity 90 degree  (Flat) : 100 X 90 mm
Cutting Capacity 90 degree  (Square) : 90 mm
Cutting Capacity 90 degree  (Round) :  95 mm
Cutting Capacity 45 degree  (Flat) : 75 X 80 mm
Cutting Capacity 45 degree  (Square) : 75 mm
Cutting Capacity 45 degree  (Round) : 90 mm
Connecting Voltage : Three Phase 400V
Connecting Frequency : 50HZ or 60HZ
Net Weight : 310 KGS
Gross  Weight :345 KGS
Packing  Size :1100 X 640 X 1680 mm
Packing  Type : Export Type Wooden Case
Standard Equipment :Coolant System
Machine Base
Foot Pedal
Linear Stop

We are the professional OEM manufacturer vendor for Germany Top Brand Machine Companies , as a result, we have good technical background and full experience, all our customers would get the trustable support & solutions from us in time, moreover, we have full sincerity to support all our customers ( like you ) together. Welcome you to visit our company website ( ) to send enquiry to us so you would get the best factory direct price, it is only for you !

FAQ :

1.Question : Are you a factory or trading company ?
Answer: We are an SGS recognized OEM manufacturer factory with ISO certificate.

2. Question :  Why choose cooperate with us ?
Answer :  Right people, Right product, Right price ;
                Manufacturer Factory -wide customer awareness ;
                Reliable Quality and All components from world leading suppliers ;
                Cost-effective export infrastructure and total supply chain management ;

3. Question :  Can you do OEM ?
Answer :  Yes, we have the ability to do OEM to meet clients' requirements.

4. Question : How does your factory do regarding quality control ?

Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control , In Process Quality Control , Outgoing Quality Control , Environment Control, Product Traceability System , Internal Audits & Calibration, Equipment Control & Maintenance , Control of Non-Conforming Materials and etc.
5. Question : What is the average delivery time ?
Answer : Most of time, it would be within 1 week since after confirm receiving customers' contract money.

Prod Model: MM-KHK 350
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Type: 350mm Semi-Automatic Circular Saw
Max Saw Blade Diameter: 350mm
Main Motor: 1500W Powerful Motor
Cutting Speed: 38 / 19 Rpm
Jaw Width Of The Vice: 145 mm
Clamping Vice: Double
Cutting Angle: From -45 Degree up to +45 Degree
Connecting Voltage: Three Phase 400V
Gross Weight: 345 Kgs
Packing Size: 1100 X 640 X 1680 mm
Type: Hacksaw
Material: Metal
Processing Method: Longitudinal Saw
Shape: Circular Saw
Brand: Maxnovo Machine or OEM
Since more than 20 years the machine manufacturer company of MAXNOVO MACHINE is always dealing with the development, design and production of metalworking machines, CNC machines and Cutting Machines. It is SGS on-site Audited Chinese Trustable OEM / ODM manufacturer, specialist designer, supplier, distributor and exporter of Lathe Machine, Milling Machine, Drilling Machine, Saw Machine, Cutting Machine, CNC Lathe, CNC Milling Machine, Vertical Drilling Machine, Radial Drilling Machine, Universal Milling Machine, Turret Milling Machine, Multi-function Machine, Rolling Machine and Machine Tools with ISO9001 certified manufacturing factory in Yangzhou City, Jiangsu Province, China.

The MAXNOVO MACHINE is the professional OEM Vendor for world famous Germany Machine companies for many years, so all customers could trust us and cooperate with us.

Quality at a Cost-efficient Price:

Are you looking for a functional metalworking machine or a CNC working machine offering comprehensive features at an economical price? Then you make the right choice by purchasing a MAXNOVO MACHINE metal working machine or a CNC working machine. Our machines are convincing by outstanding quality, accurate manufacturing and offer an "MAXNOVO MACHINE" in price and performance. The quality at a cost-efficient price is our aim for you in the long term.

Intensively Production:

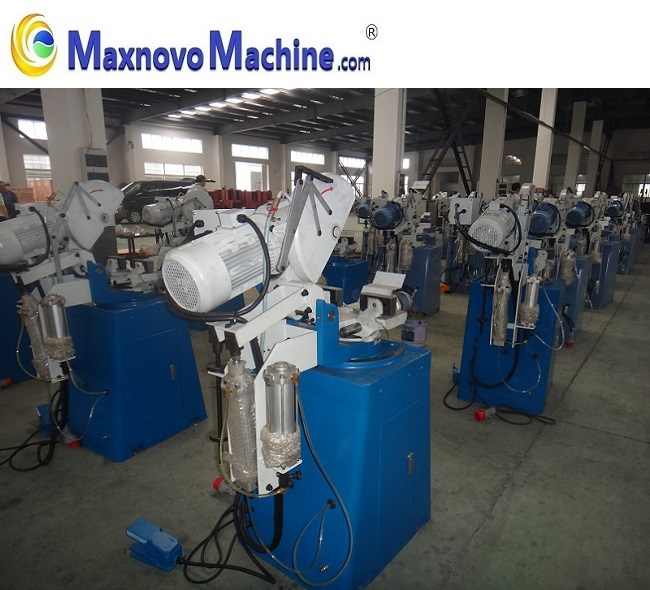

MAXNOVO MACHINE produces a large part of its metal working machines in its own factory in Yangzhou in China. There, the quality is controlled by the Germany Quality Management Representatives on-site. The final assembly and commissioning of our MAXNOVO MACHINE products provide added value and allows perfect long-term working with the machine. We never compromise on any materials validation and accurate quality control (IQC, IPQC, OQC) from start to finish.
