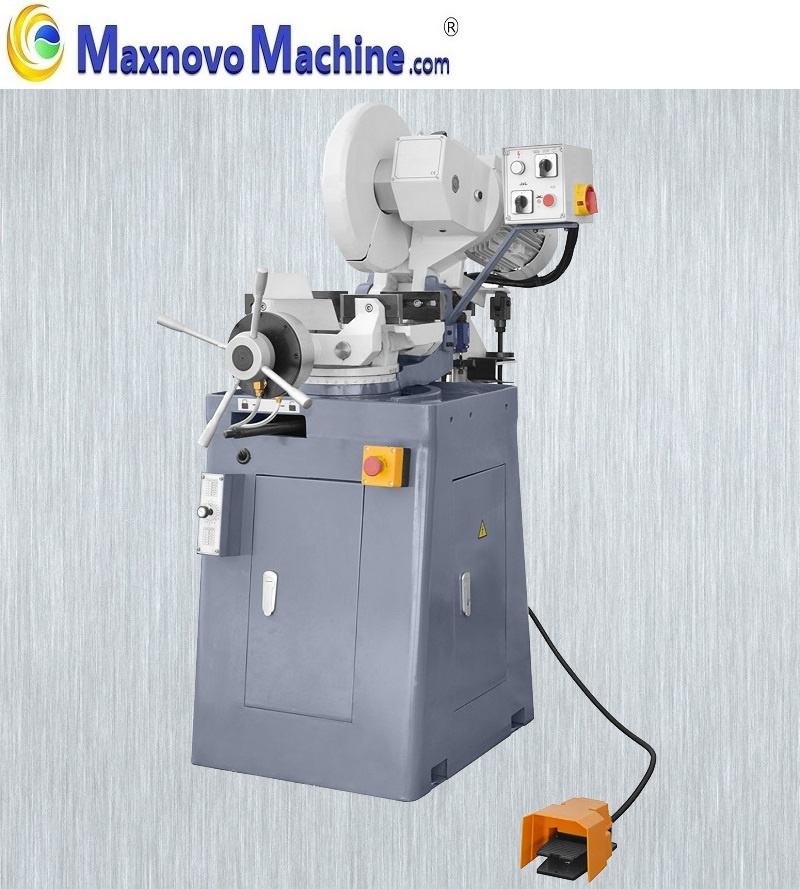

Semi-Automatic 350mm Cutting Machine Metal Circular Saw (mm-CS350SA)

Semi-Automatic 350mm Cutting Machine Metal Circular Saw (mm-CS350SA)
Price: US $ 0.01/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Such kind of MM-CS350SA is the high precision Semi-Automatic Circular Metal Saw (its Max Saw Blade Diameter is 350mm) with pneumatic part clamping is designed for economic production of single parts and small series. This cutting saw machine features 2 cutting speed settings, making them ideal for sawing of profiles, pipes and solid iron, stainless steel and non-ferrous metal. A perfect choice for clean, precise, spark-free metal cutting. The solid construction, precise cutting results and high user friendliness make this cutting machine essential for metal workshops. Dual-vise system clamps on each side of the blade and coolant system prevents the blade from overheating. As a result, Quality at a cost-efficient price and this Semi-Automatic metal circular saw cutting machine is for demanding users.



350mm Semi-Automatic Circular Metal Saws With Pneumatic Part Clamping For Steel, Iron, Light Metals, Solid Material and Profiles








Main  Feature :
Convincing Arguments : Quality, Efficiency and Price

-Automatic sawing process with infinitely variable feed speed
-Quick-action vise with pneumatic clamping reduces setup time
-Easy readable angle scale allows precise working
-Oil-bath lubricated gear
-Strong Two-speed powerful motor
-Pneumatic Clamp, quickly and reliability
-Automatic cutting vario speed
-Integrated coolant tank
-Head swivels 45° to the left and to the right
-Gear-driven blade for low-RPM Cutting
-Cooling pump keeps blade from overheating
-Dual-speed cutting ability
-Heavy machine base designed to add various roller tables
-Gear unit features slip clutch to avoid saw-blade breakage
-Powerful coolant tank integrated in machine base
-Pneumatic lowering of saw unit features regulator to allow lowering and lifting speed
-High-grade, fracture proof and movable protective device with rapid opening
  mechanism provides

-Slewing range of ± 45°
-Adjustment of the mitre in a matter of seconds
-Protected vice spindle
-Protective cover opens automatically when cutting
-Precise, self-centering double-clamping vice positioned on four guiding
-Ergonomically shaped handle with push button for high work comfort
-Reduction gear unit, quietly running in oil bath
-2 Speed settings-Ideal for cutting profiles, pipes and solid iron, stainless
  steel and non-ferrous metal

-Two saw blade speeds for cutting results in different materials
-Solid machine base with holes on both sides for the installation of material stand MSR
-Gear head swivels 90° to both sides for slotting
-Removable coolant tank integrated in solid machine base
-Gear unit features hardened, polished worm shaft and bronze worm wheel
-The saw is delivered without circular saw blade (saw blade pitch freely selectable)
-Includes coolant system and base
-Certificate of Original (CO, FORM A, FORM E, FORM F )





Technical  Data :



Product Name :350 mm Semi-Automatic Metal Circular Saw
Product Item :MM-CS350 SA
In Feed: Semi-Automatic
Max Saw Blade Diameter :Ø 350 mm
0 degree Max Cutting (Round) : 110 mm
0 degree Max Cutting (Square) : 110 X 110 mm
0 degree Max Cutting (Rectangle) : 135 X 110 mm
45 degree Max Cutting (Round) : 110 mm
45 degree Max Cutting (Square) : 95 X 95 mm
45 degree Max Cutting (Rectangle) : 110 X 90 mm
Cutting  Speed :38 / 19 RPM
Air Pressure : 120 I / min
Air Supply : 6 Kg / cm2
Inner Blade Bore : Ø 40 mm
Jaw Width Of the Vice : 145 mm
Max. Vice opening : 145 mm
Blade Pin Holes : 2 X Ø 8 X PCD 55 mm
Clamping Vice : Double
Cutting  Angle :From -45 degree up to +45 degree
Cutting  Angle Adjustment : By means of a rotatable bearing block
Motor Power :1500 W / 1100 W
(4/8 Pole)
Motor Coolant Pump :40W
Gross  Weight :350 KGS
Connecting Voltage : Three Phase 400V or Three Phase 230V
Packing  Size :650 X 1150 X 1850 mm
Packing  Type : Export Type Wooden Case
Standard Equipment :Coolant Device with Filter
Machine Substructure
Foot Pedal
Without Circular Saw Blade



We are the professional OEM manufacturer vendor for Germany Top Brand Machine Companies , as a result, we have good technical background and full experience, all our customers would get the trustable support & solutions from us in time, moreover, we have full sincerity to support all our customers ( like you ) together. Welcome you to visit our company website (www.maxnovomachine.com) to send enquiry to us so you would get the best factory direct price, it is only for you !





FAQ :

1.Question : Are you a factory or trading company ?
Answer: We are an SGS recognized OEM manufacturer factory with ISO certificate.


2. Question :  Why choose cooperate with us ?
Answer :  Right people, Right product, Right price ;
              Manufacturer Factory -wide customer awareness ;
              Reliable Quality and All components from world leading suppliers ;
              Cost-effective export infrastructure and total supply chain management ;


3. Question :  Can you do OEM ?
Answer :  Yes, we have the ability to do OEM to meet clients' requirements.


4. Question : How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control , In Process Quality Control , Outgoing Quality Control , Environment Control, Product Traceability System , Internal Audits & Calibration, Equipment Control & Maintenance , Control of Non-Conforming Materials and etc.


5. Question : What is the average delivery time ?
Answer : Most of time, it would be within 1 week since after confirm receiving customers' contract money.



Prod Model: MM-CS350SA
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Type: 350 mm Semi-Automatic Circular Saw
Max Saw Blade Diameter: 350 mm
Main Motor: 1500W and 1100W Powerful Motor
Air Pressure: 120I /Min
Cutting Speed: 38 / 19 Rpm
Jaw Width Of The Vice: 145 mm
Clamping Vice: Double
Gross Weight: 350 Kgs
Connecting Voltage: Three Phase 400V or Three Phase 230V
Packing Size: 650 X 1150 X 1850 mm
Material: Metal
Processing Method: Longitudinal Saw
Shape: Circular Saw
Type: Automatic Metal Circular Saw
Brand: Maxnovo Machine or OEM
Since more than 20 years the machine manufacturer company of MAXNOVO MACHINE is always dealing with the development, design and production of metalworking machines, CNC machines and Cutting Machines. It is SGS on-site Audited Chinese Trustable OEM / ODM manufacturer, specialist designer, supplier, distributor and exporter of Lathe Machine, Milling Machine, Drilling Machine, Saw Machine, Cutting Machine, CNC Lathe, CNC Milling Machine, Vertical Drilling Machine, Radial Drilling Machine, Universal Milling Machine, Turret Milling Machine, Multi-function Machine, Rolling Machine and Machine Tools with ISO9001 certified manufacturing factory in Yangzhou City, Jiangsu Province, China.

The MAXNOVO MACHINE is the professional OEM Vendor for world famous Germany Machine companies for many years, so all customers could trust us and cooperate with us.

Quality at a Cost-efficient Price:

Are you looking for a functional metalworking machine or a CNC working machine offering comprehensive features at an economical price? Then you make the right choice by purchasing a MAXNOVO MACHINE metal working machine or a CNC working machine. Our machines are convincing by outstanding quality, accurate manufacturing and offer an "MAXNOVO MACHINE" in price and performance. The quality at a cost-efficient price is our aim for you in the long term.

Intensively Production:

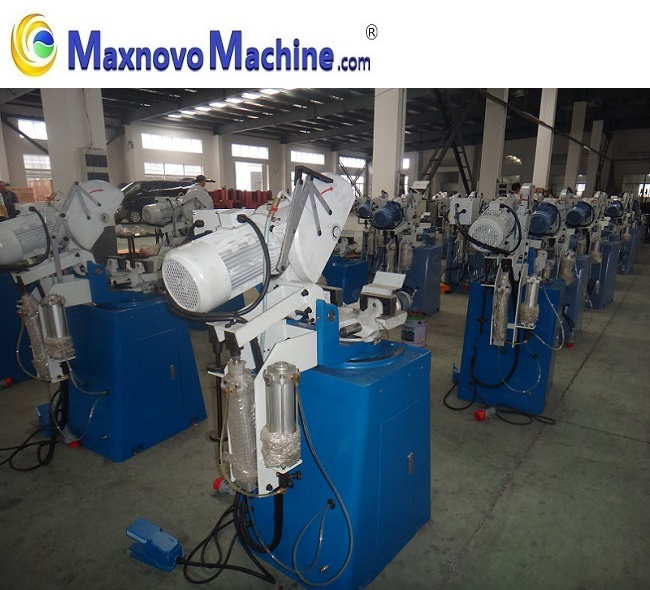

MAXNOVO MACHINE produces a large part of its metal working machines in its own factory in Yangzhou in China. There, the quality is controlled by the Germany Quality Management Representatives on-site. The final assembly and commissioning of our MAXNOVO MACHINE products provide added value and allows perfect long-term working with the machine. We never compromise on any materials validation and accurate quality control (IQC, IPQC, OQC) from start to finish.

Quality Assurance:

MAXNOVO MACHINE products are produced with high quality standards. The MAXNOVO MACHINE guarantee of quality, the well trained technical quality team is the first contact for adhering to quality on-site. They would do quality management incoming goods inspection and quality management outgoing goods inspection. All MAXNOVO MACHINE products are produced with high quality requirements.

Customer Support:

Customers may rightly expect that our specialists are able to use their full knowledge and experience to their utmost satisfaction. The professional customer consultants support the user and customers with technical information. Moreover, we are also optimizing the export infrastructure and improving the supply chain to make them the most cost-effective for you.

Technical Development:

The technical department has a well-established team of technically highly qualified specialists. Their well-founded expertise allows flexible and creative implementation of all requirements which are demanded for our products and service. The dynamic technical team of specialists comprises engineers, executives who had solid working experience in the field of offering one-stop complete solution for high precision machines.

Social Responsibility:

MAXNOVO MACHINE has a variety of commitments when it comes to culture, community, education and environment.

As a responsible manufacturer of metalworking machines and CNC working machines, we care about the working conditions and social welfare of our employees. We care about the quality and source of the material components. We care about how to make our machines still work well for you even after years of operation. We care about whether our machines have supported clients to increase their product sales and enhance brand image.

Welcome you to Visit our company website ( www.maxnovomachine.com ) to GET your current SPECIALS.
