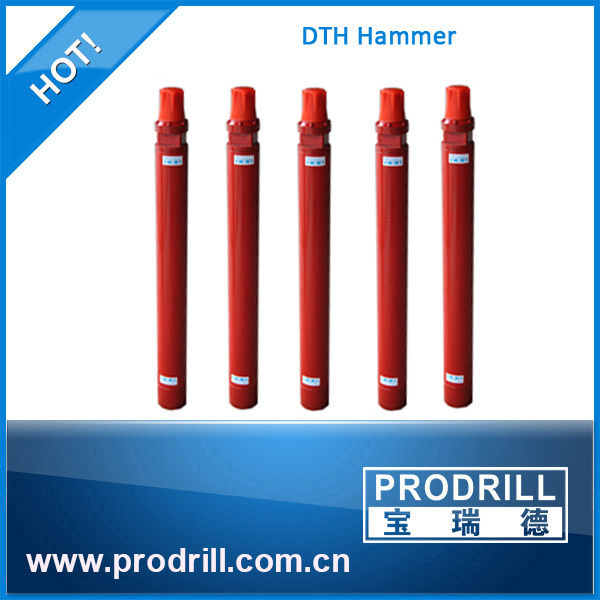

SD10 Down The Hole Hammer Mission Shank

SD10 Down The Hole Hammer Mission Shank
Price: US $ 119-120/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
1) Specific heat treatment standards
2) Premium hardened steel alloy
3) High-grade cemented tungsten carbide buttons.
4) Certification: GB/T 19001-2008/ISO 9001: 2008

1.      Introduction and Description:
What is ?
Introduction: DTH is short for "down-the-hole".
DTH Drill Bits are produced from premium quality nickel-alloy steel for increased durability and wear characteristics. Specific heat treatment standards and special "stress relief" processes ensure consistent performance. DTH hammer bits are designed for maximum performance and hole cleaning ability and high penetration rate.

"Down-the-hole" (DTH) drill bits are used with "Down-the-hole" hammers for drilling holes through a wide range of rocks types. In conjunction with DTH hammers, drill bits are designed with a splined drive for rotating the bit in the ground. Drill bits are available in different sizes and different styles so they can drill a wide range of hole sizes.

All Prodrill's DTH drill bits are also CAD designed, CNC manufactured for perfect bits body, and multiple heat-treated to enhance hardness, surface-compressed for fatigue resistance, all thus to extend the product life for maximum wear and performance in the toughest of drilling conditions.

Application: The down-the-hole drilling tool is used to drill large-diameter holes in rocks, usually in the initial stage prior to blasting, but it is also used in non-blasting application.
DTH drilling are used mostly in mining quarries, but can be used in a variety of other construction application.
The DTH drilling method is growing in popularity, with the increase in all application segments, including blast-hole, water well, foundation, oil & gas, cooling systems and drilling for heat exchange pumps.
Applications were later found for the underground DTH method, where the direction of drilling is generally upwards instead of downwards.

Description:
Product Name:DTH drill bits
Description:DTH drill bits are used for blast hole drilling and water well drilling projects.
Working with DTH hammer, mainly applied in Mining,
Marble quarry or well drilling and other construction projects.
Material:High quality carbide + High quality carbon steel
MOQ:5pcs
Compatibility Series:COP/ SD/ DHD/ IR/ Mission/ QL/ BR/ CIR etc

2.       Technical Specification
Specification:Diameter: (mm)Weight: (kg)
Low air pressure DTH bits CIR type68 ~ 2002.6 ~ 48
Middle air pressure BR & COP type76 ~ 1103.8 ~ 15
3 inch high Air pressure DTH bits85 / 90 / 95 / 100 / 1054.2 ~ 5.5
4 inch high Air pressure DTH bits105 / 110 / 115 / 120 / 1279 ~ 12
5 inch high Air pressure DTH bits133 / 140 / 146 / 152 / 16515 ~ 18.5
6 inch high Air pressure DTH bits152 / 165 / 178 / 190 / 20326 ~ 36
8 inch high Air pressure DTH bits195 / 203 / 216 / 254 / 30533 ~ 95

Specification:Weight (kg)External Diameter (mm)Connection threadHole rang (mm)Impact rateRecommended rotation speed
3 inch DTH hammer
COP34/QL30 etc
24.581API 2 3/8" Reg90~11028Hz (at 17 bar)28 r/min
4 inch DTH hammer
COP44/DHD340 etc
39.299API 2 3/8" Reg110~15027Hz (at 17 bar)25~40 r/min
5 inch DTH hammer
COP54/Mission50 etc
71.5125API 2 3/8" or API 3 1/2" Reg135~16525Hz (at 17 bar)20~30 r/min
6 inch DTH hammer
COP64/QL60 etc
98142API 3 1/2" Reg152~21623Hz (at 17 bar)15~25 r/min
8 inch DTH hammer
COP84/SD8 etc
188180API 4 1/2" Reg203~30520Hz (at 17 bar)15~


How to order?
Shank Type + Top Sub Thread + (With/Without Valve, if this parameter is optional)
3", 4", 5", 6", 7", 8", etc.. you can choose bits equiped with related hammer)

Ps.: Other rock drill: besides Down-The-Hole tools, we also supply following rock drilling tools:
Construction & Mining & Rock Drill Tools:
A. DTH Hammer and Bit (drill hole dia.: 76 ~ 381mm), Overburden Drilling System;
B. Top Hammer (drill hole dia.: 33 ~ 152mm):
Thread Tools (Button Bits, Rod, Coupling, Shank Adaptor): (R25/28/32/38, T38/45/51, ST58)
C. High Rang Soundless Cracking Agent (dia. 40 ~ 50mm): break rock or reinforced concrete with silent.

2. Advantages:
Compared with the oversea brands, our advantages are bellowing:
a. Our products can match over 95% against the original products
b. Price are competitive against the famous brands and best quality against the small factory

3. About Us:
1.    Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2.    We have advanced technology and equipment.
3.    Our technician has more than 13 year's professional working experience.
4.    Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.

4. Welcome your question and inquiry, Contact: Tina Xu
0086 150 6073 0593

Prod Model: mission, sd10
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name: Prodrill
Model Number: DTH
Machine Type: Drilling Tool
Certification: API
Processing Type: Forging
Model Type: Cop 34, Cop 32, DHD 3.5, Mission 30, Br 3
Application: Deep Hole Drilling
Color: Red or as Your Request
Xiamen PRO Drill Equipment Co., Ltd is a specialized company of Rock Tools, which is experienced in developing and manufacturing Top hammer and DTH rock drilling equipments. The main products include high, medium and low air pressure DTH hammers and bits, Symmetric and eccentric overburden advanced casing drilling tools, and Threaded button bits, Drill rods and Couplings, also

Air grinder for button bit, chisel bit, Diamond grinding cup for cemented carbide

Reconditions and sharpener.

PRO Drill Rock Tools can be perfectly matched with the world famous brand such as Atlas Copco, Sandvik, Ingersoll-Rand and other well-known manufacturers' Drill rigs and they are widely applied to varies of areas including blast holes, earthwork projects, mineral exploration, water-well, construction, geo-thermal exploration.

PRO Drill plants has introduced the most advanced manufacturing equipments and technology in the world, such as Electro-hydraulic forging hammers for forging process, Germany atmosphere-controllable sealed quench furnace for heat treatment, Super CNC machines and Processing Centre for accurate finishing and experienced staff in metal machining all contribute to the high performance rock tools.

In response to the demand from dimensional stone quarry, we also offer all kinds of splitting, pushing and grinding tools like Expansive Mortar, Soundless Cracking Agent Shims and Wedges, Hydraulic Rock Splitter, Cyliner Type Rock splitter, Hydro bag, Air Pushing Bag and Cemented Grinding Stone are available as integral services working for the worldwide quarry owners.

Our believe that innovative think drives the delivery of quality rock tools to customers, . Prodrill rock drilling tools are renowned for their great reliability, excellent and even quality and long services life with an expertise direct to any corner of the world.

We are committed for groundbreaking solution of drilling and Splitting & cutting for your unique operation in quarrying, mining and construction project. Looking forward to hearing from your enquiry.
