Jiangyin Derby Machinery Co., Ltd.Jiangyin Derby Machinery Co., Ltd. a Chinese manufacturer of recycling machinery. located in Jiangsu province, Jiangyin city, an economic leading city in eastern China.which is near to Shanghai PuDong International airport , with two hours away from Shanghai airport to our factory. It's convenient for you to visit us when you get to Shanghai. You can choose Sunan Shuofang International airport. Which is more closer and more convenient.The company run business designs and manufactures its own Hydraulic Alligator shear
machinery, hydraulic briquetting machines , Hydraulic baler machines and shredders for waste, ferrous and non-ferrous manufacture companies and recycling companies.
Our onsite design team, are able to design custom-made recycling systems to suit clients requirements, we then manufacture and install recycling systems at clients sites.Our team of engineers have a combined total of many years' experience working, bringing together a knowledgeable team ready to serve you.Our experienced staff are here to help and advise you from your first enquiry for recycling equipment, right through to installation, spares, service and repairs.1.Hydrualic alligator shearAlligator shears cut scrap metal into smaller pieces and help to separate different material types.
As the name suggests, Alligator shearing machine is a resemblance to crocodile and its blades move like jaws of the reptile. An ideal device for metal recycling which can cut cable, steel plate etc. to certain length.Derby have alligator shear models available for all sizes of material and throughput and for different types of working conditions, powered by both single and 3 phase power supplies as well as diesel options for larger shears.
2.What you want and choose One of the best things about alligator shears and handheld hydraulic industrial shears is that they are relatively easy to use. They mostly are simple tools with very basic controls that you can teach to workers.
When you have alligator shears and handheld hydraulic shears at your yards, you will have the best possible tools for your scrap metal recycling efforts and should be able to make quick work of big projects for more money.3.Application and Components:Alligator shears are ideal for recycling scrap bar, tube, extrusions, car radiators, gear boxes and gate valves as well as for weapons destruction and for cutting cable prior to stripping or granulation.All Derby shears have been built to last using quality heavy duty components and, with operator safety upper-most in mind, our range of shears are equipped with blade guards and foot-operated switches. 1).Balads
The Derby hydraulic alligator shear is equipped with different blades to allow you to handle with ease large pieces of scrap metal and a wide range of other materials.
It's particularly good at dealing with large pieces of non ferrous scrap.
2).Foot-operated switches
The Derby alligator shear can be operated via a foot pedal for Single operation with more accurate control, or can be set to work continuously to enhance processing speed.
3).Blade guards
The Derby alligator shear has a sturdy guard for operator safety. An automatic hold down clamp holds material in place during cutting and prevents material kick back.
4).Features
A long life, shear head adopts steel casting, overcomes the disadvantage of easy deformation of the welded plate.
Simple operation, a new integration design, convenient movement, hydraulic control handle , easy to operate, can realize automatic and semi-automatic operation, convenient and reliable.
Low failure rate, this machine adopts hydraulic control system, without the traditional electromagnetic valve and other electrical components, low failure rate, low maintenance cost.
Options for different force and blade length; Diesel engine optional for power.
5.Materials :

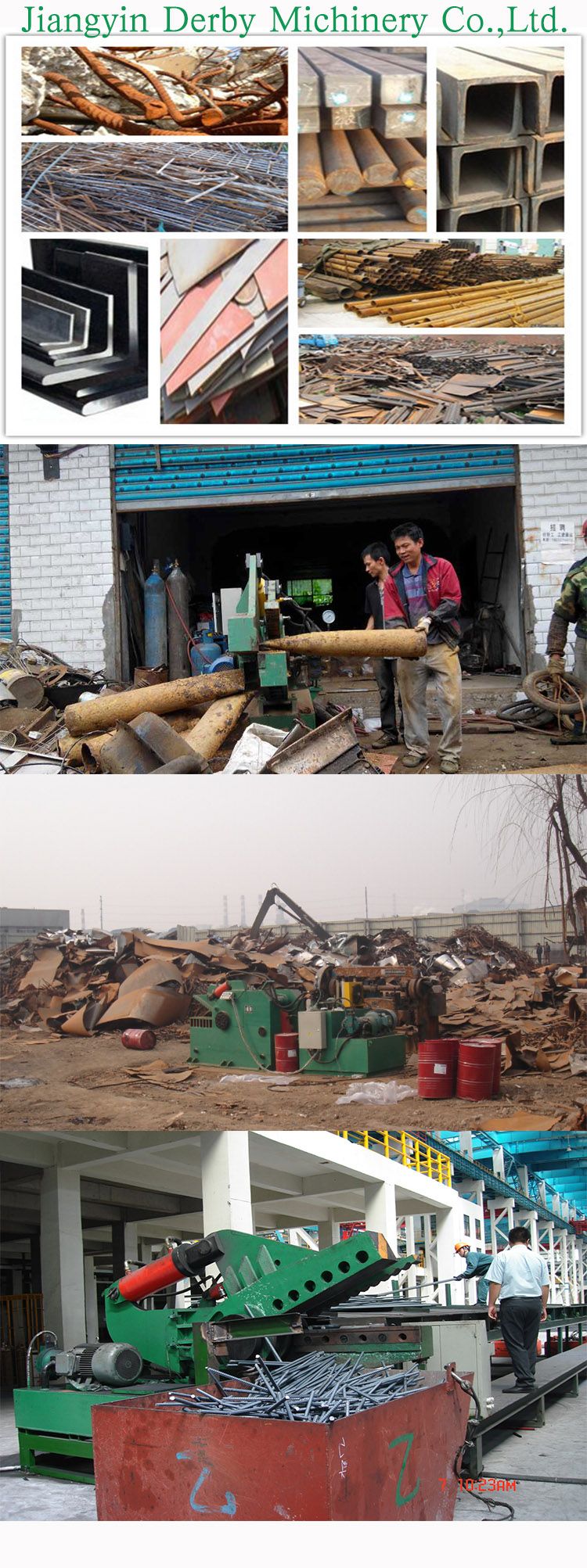

This machine is used in waste materials recycling processing industries, scrap metal (iron, steel, steel pipe, etc.) cold shearing to different section forms of middle and small steel factories.
Materials: round steel, square steel, box iron, angel iron, joist steel, steel plate, steel pipe, bicycle, rebar, frame, etc..
6.Specification:| Model | Q08-100 |
| Shearing force (kn) | 1000 |
| Press force (kn) | 105 |
| Shearing speed (times/min) | 14~25 |
| Max. blade opening (mm) | 320 |
| Blade length (mm) | 600 |
| Total power (kw) | 7.5 |
| Weight of machine (kg) | 2200 |
| Overall dimension (mm) | 2100*800*1550 |

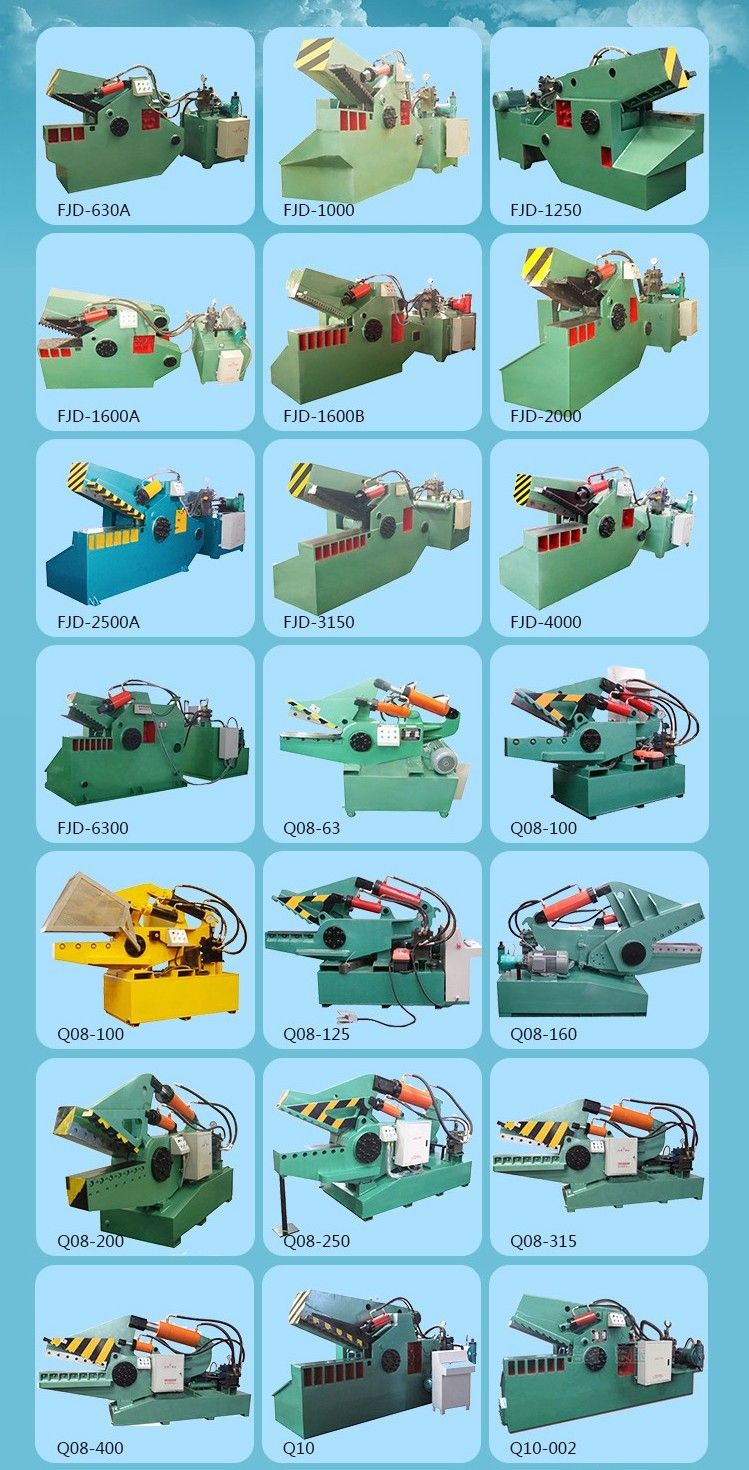

7.Other series Specification:
| Model | Max. Cutting Force(KN) | Blade Length
(mm) | Shear Opening (mm) | Max. Cutting Size (mm) | Shearing Frequency (times/min) | Motor(KW) |
| Q08-63 | 630 | 600 | 320 | 20*200 | 14-25 | 7.5 |
| Q08-100 | 1000 | 600 | 320 | 30*200 | 14-25 | 7.5 |
| Q08-125 | 1250 | 600 | 320 | 30*250 | 12-25 | 11 |
| Q08-160A | 1600 | 600 | 340 | 30*320 | 11-25 | 15 |
| Q08-160B | 1600 | 700 | 380 | 30*320 | 11-25 | 15 |
| Q08-200A | 2000 | 800 | 400 | 30*400 | 10-20 | 18.5 |
| Q08-250A | 2500 | 800 | 420 | 30*500 | 10-20 | 22 |
| Q08-250B | 2500 | 1000 | 500 | 30*500 | 10-20 | 22 |
| Q08-315A | 3150 | 1000 | 590 | 30*600 | 10-20 | 30 |
| Q08-400A | 4000 | 1200 | 600 | 40*650 | 6-12 | 45 |
8.Contact us:For more information, or to learn about the Alligator shears, Contact us to get your own alligator shears and industrial hydraulic shears from our stocked facilities located in China.
