Sb81 Korean Breaker Hydraulic Rock Hammer for Rock Demolition Machine

Name: Sb81 Korean Breaker Hydraulic Rock Hammer for Rock Demolition Machine
Brand: tool-buy.com
SKU: 732490062
Availability: InStock
Rating: 4.4 (90 reviews)

Price:	US $ 1200/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Yantai Chengtai Construction Machinery Co., Ltd.

Showroom Product Company Profile

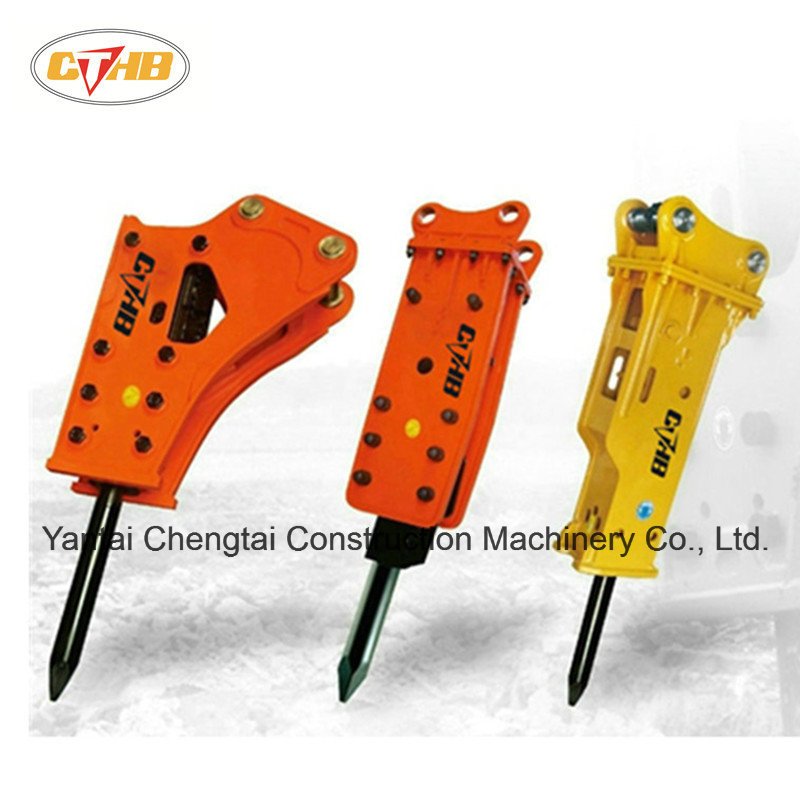

SB81 korean breaker hydraulic rock hammer for rock demolition machine

OUR PRODUCT AND COMPANY INFORMATION

***we are a factory in yantai city,shandong province,China

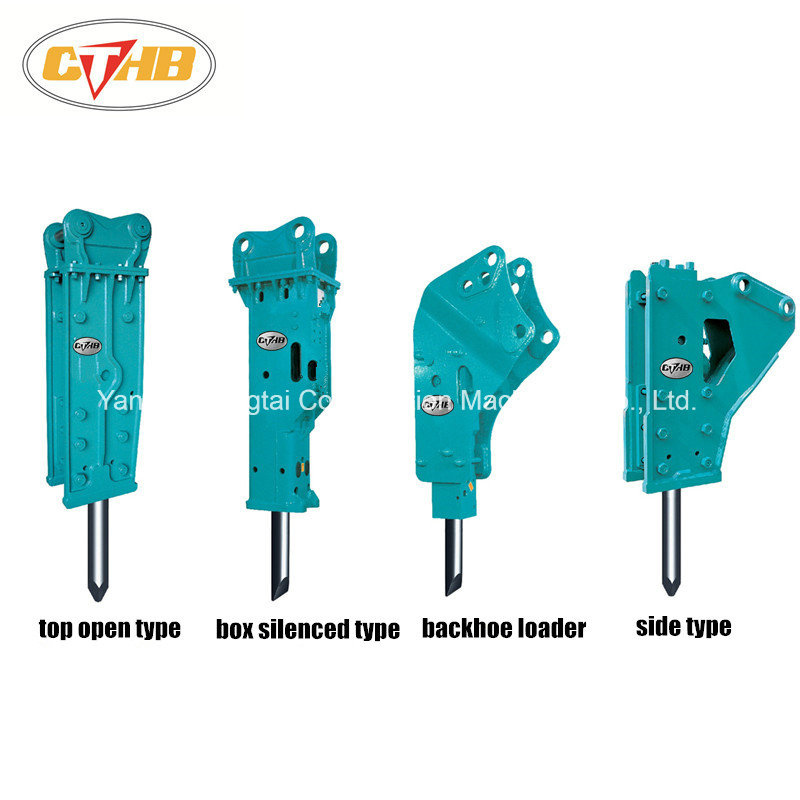

***we specialized in manufacturing soosan SB series hydraulic breaker more than 10 years.Chisel diameter from 40mm to 195mm .Side type ,top open type and box silenced type.

PRODUCT DETAILS

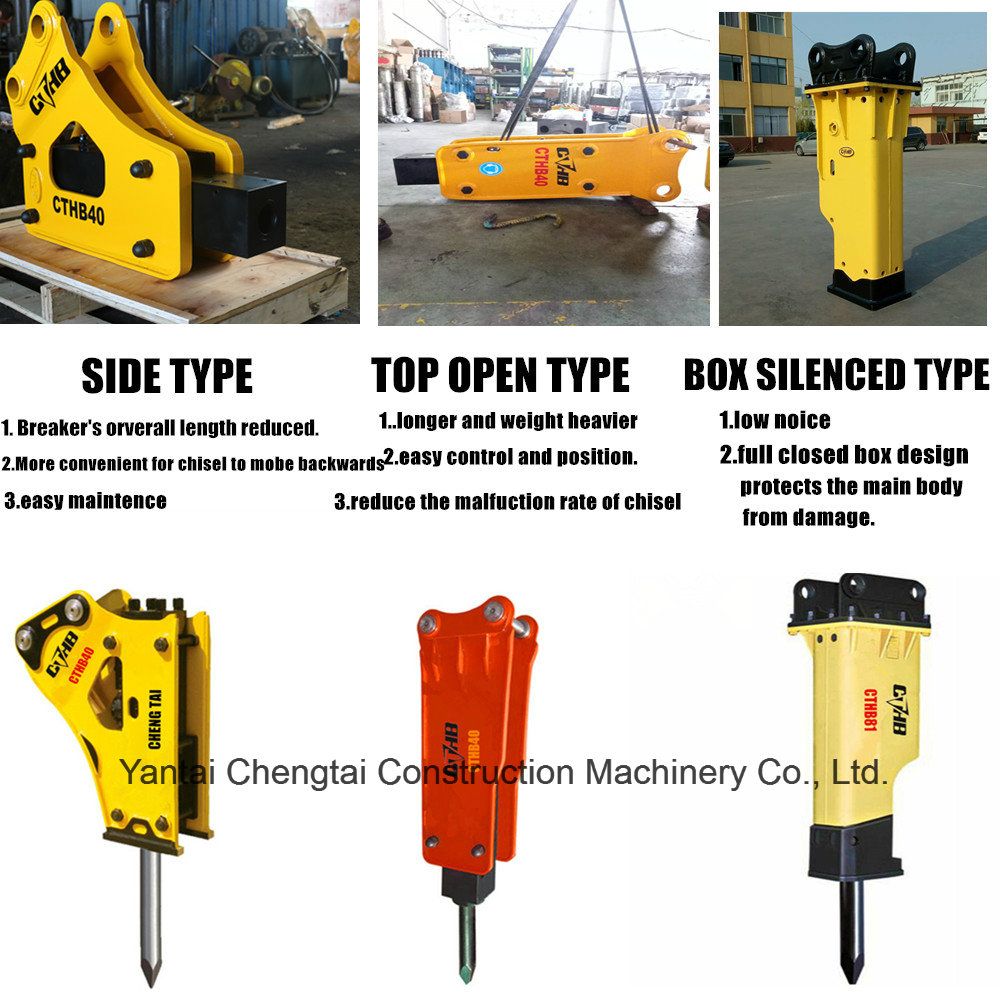

SIDE TYPE HYDRAULIC BREAKER

Model No.	Chisel diameter	suit excavator	Body weight (include chisel)	Total weight	Size (LWH)	Hydraulic oil flow	Hydraulic pressure	Blow frequency	Hose diameter
Model No.	mm	excavator weight (ton)	kg	kg	mm	l/min	kg/cm2	bmp	inch
CTHB10 (SB10)	40	0.8-2.5	53	70	918176360	15-25	90-120	800-1400	1/2
CTHB20 (SB20)	45	1.2-3.0	71	95	1090215435	20-30	90-120	700-1200	1/2
CTHB30 (SB30)	53	2.5-4.5	89	158	1178230500	25-50	90-120	600-1100	1/2
CTHB40 (SB40)	68	4--7	156	263	1373295772	40-70	110-140	500-900	1/2
CTHB43 (SB43)	75	6--9	214	334	1515295735	50-90	120-150	400-800	1/2
CTHB45 (SB45)	85	7--14	282	559	1735390910	60-100	130-160	400-800	1/2
CTHB50 (SB50)	100	10--15	479	761	1900390910	80-110	150-170	350-700	3/4
CTHB70 (SB70)	135	18--26	850	1658	24235001202	130-150	160-180	400-800	1
CTHB81 (SB81)	140	18--26	920	1767	24805901335	120-180	160-180	350-500	1
CTHB81A (SB81A)	140	18--26	956	1805	24805901335	120-180	160-180	350-500	1
CTHB100 (SB100)	150	27--35	1092	2218	26405901343	150-190	160-180	350-700	1
CTHB121 (SB121)	155	28-35	1313	2577	27765901382	180-240	160-180	300-450	1
CTHB131 (SB131)	165	30-45	1442	2751	2820-590-1378	200-260	160-180	250-400	1.1/4
CTHB140 (SB140)	165F	30-45	1590	3015	28206651445	200-270	160-180	250-380	1.1/4
CTHB151 (SB151)	175	35-50	1925	3910	31846701670	210-290	160-180	200-350	1.1/4

TOP OPEN TYPE HYDRAULIC BREAKER

Model No.	Chisel diameter	suit excavator	Body weight (include chisel)	Total weight	Size (LWH)	Hydraulic oil flow	Hydraulic pressure	Blow frequency	Hose diameter
Model No.	mm	excavator weight (ton)	kg	kg	mm	l/min	kg/cm2	bmp	inch
CTHB10 (SB10)	40	0.8-2.5							1/2
CTHB20 (SB20)	45	1.2-3.0	71	95	1235176200	20-30	90-120	700-1200	1/2
CTHB30 (SB30)	53	2.5-4.5	89	158	1344235370	25-50	90-120	600-1100	1/2
CTHB40 (SB40)	68	4--7	156	343	1684350486	40-70	110-140	500-900	1/2
CTHB43 (SB43)	75	6--9	214	409	1706390486	50-90	120-150	400-800	1/2
CTHB45 (SB45)	85	7--14	282	637	2120438570	60-100	130-160	400-800	1/2
CTHB50 (SB50)	100	10--15	479	856	2387450570	80-110	150-170	350-700	3/4
CTHB70 (SB70)	135	18--26	850	1852	2900560710	130-150	160-180	400-800	1
CTHB81 (SB81)	140	18--26	920	2052	2866560710	120-180	160-180	350-500	1
CTHB81A (SB81A)	140	18--26	956	2090	2866560710	120-180	160-180	350-500	1
CTHB100 (SB100)	150	27--35	1092	2380	2897600760	150-190	160-180	350-700	1
CTHB121 (SB121)	155	28-35	1313	2745	3102600760	180-240	160-180	300-450	1
CTHB131 (SB131)	165	30-45	1442	3156	3286760840	200-260	160-180	250-400	1.1/4
CTHB140 (SB140)	165F	30-45	1590	3447	3446665840	200-270	160-180	250-380	1.1/4
CTHB151 (SB151)	175	35-50	1925	4047	3812760920	210-290	160-180	200-350	1.1/4

BOX SILENCED TYPE HYDRAULIC BREAKER

Model No.	Chisel diameter	suit excavator	Body weight (include chisel)	Total weight	Size (LWH)	Hydraulic oil flow	Hydraulic pressure	Blow frequency	Hose diameter
Model No.	mm	excavator weight (ton)	kg	kg	mm	l/min	kg/cm2	bmp	inch
CTHB10 (SB10)	40	0.8-2.5							1/2
CTHB20 (SB20)	45	1.2-3.0	71	129	1331260295	20-30	90-120	700-1200	1/2
CTHB30 (SB30)	53	2.5-4.5	89	155	1417-350*305	25-50	90-120	600-1100	1/2
CTHB40 (SB40)	68	4--7	156	361	1660328486	40-70	110-140	500-900	1/2
CTHB43 (SB43)	75	6--9	214	450	1712328486	50-90	120-150	400-800	1/2
CTHB45 (SB45)	85	7--14	282	733	2074438570	60-100	130-160	400-800	1/2
CTHB50 (SB50)	100	10--15	479	1007	2345440570	80-110	150-170	350-700	3/4
CTHB70 (SB70)	135	18--26	850	1898	2847560710	130-150	160-180	400-800	1
CTHB81 (SB81)	140	18--26	920	2004	2793560710	120-180	160-180	350-500	1
CTHB81A (SB81A)	140	18--26	956	2042	2793560710	120-180	160-180	350-500	1
CTHB100 (SB100)	150	27--35	1092	2457	3002640760	150-190	160-180	350-700	1
CTHB121 (SB121)	155	28-35	1313	2968	3075640760	180-240	160-180	300-450	1
CTHB131 (SB131)	165	30-45	1442	2916	3337654840	200-260	160*180	250*400	1.1/4
CTHB140 (SB140)	165F	30-45	1590	3116	3337654840	200-270	160-180	250-380	1.1/4
CTHB151 (SB151)	175	35-50	1925	3906	3723670920	210-290	160-180	200-350	1.1/4

PACAKAGE AND SHIPPING

1.Inner is stretch film, outside is export wooden case or as customer's request

2.Delivery time:Usually 3-7days (1-5sets) after down payment.

3..We can arrange ocean or air transportation according to your request from any port

CTHB-----IN EXHIBITON

***OUR SERVICE

1.7Days*24Hours after-sales service

2.Your inquiry will be replied in 24 hours

3.Our customer-oriented sales and technical team are always at your service

4.OEM Service available

5.Warranty:12 months warranty for hydraulic breaker

CONTACT INFORMATION

MS.Ashley

Export sales manager

Mobile:+86 15553591276

Soosan SB series hydraulic rock breaker

website:http://www.ytchengtai.cn

Prod Model:	CTHB81
Body Weight Incl.Chisel:	71kg
Total Weight:	95kg
Size (LWH):	1090215435mm
Hydraulic Oil Flow:	20-30L/Min
Blow Frequency:	700-1200BMP
Chisel Diameter:	45mm
Suit Excavator:	1.2-3.0ton
Color:	Any Color Could Do, Normal Yellow, Blue
MOQ:	1 Set
Payment:	Tt LC
Certification:	CE
Condition:	New
Type:	Hydraulic Breaker

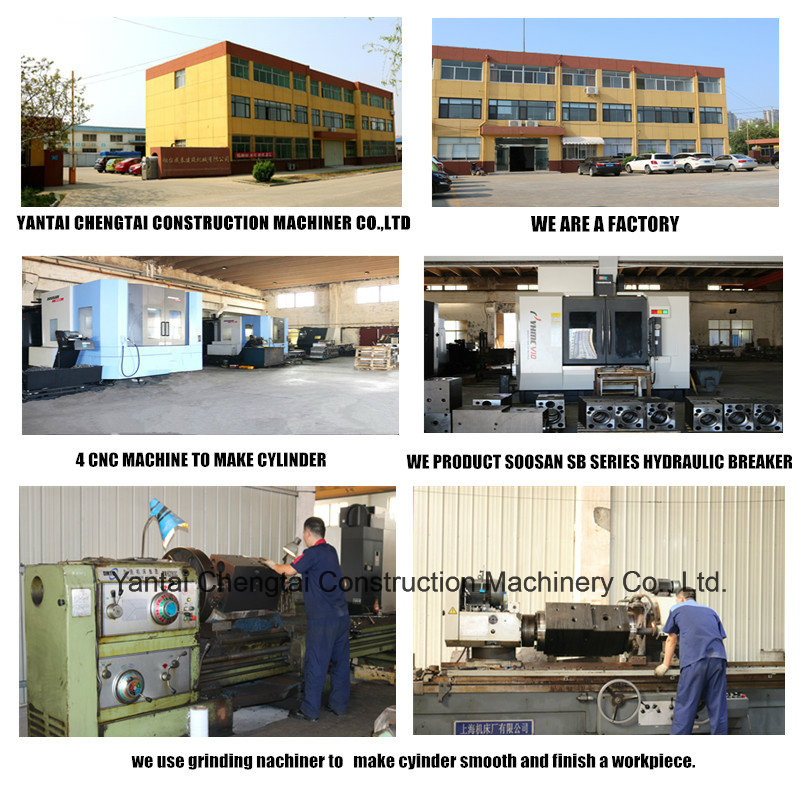

Yantai Chengtai Construction Machinery Co., Ltd is one of the professional manufacturer for excavator hydraulic breaker in Yantai city, shandong, China with area of 5000 square meters workshop. Specialized in manufacturing soosan SB series hydraulic breaker more than 10 years. Chisel diameter from 35mm to 195mm. Suit for 0.8ton to 60 ton excavator. We have several high precision production line, include Korea Doosan CNC, Doosan and so on which lay a solid foundation for products Precision machining.

We have our own brand ---CTHB, it means Cheng Tai Hydraulic Breaker as our export brand, OEM is acceptable. Welcome to visit us!
