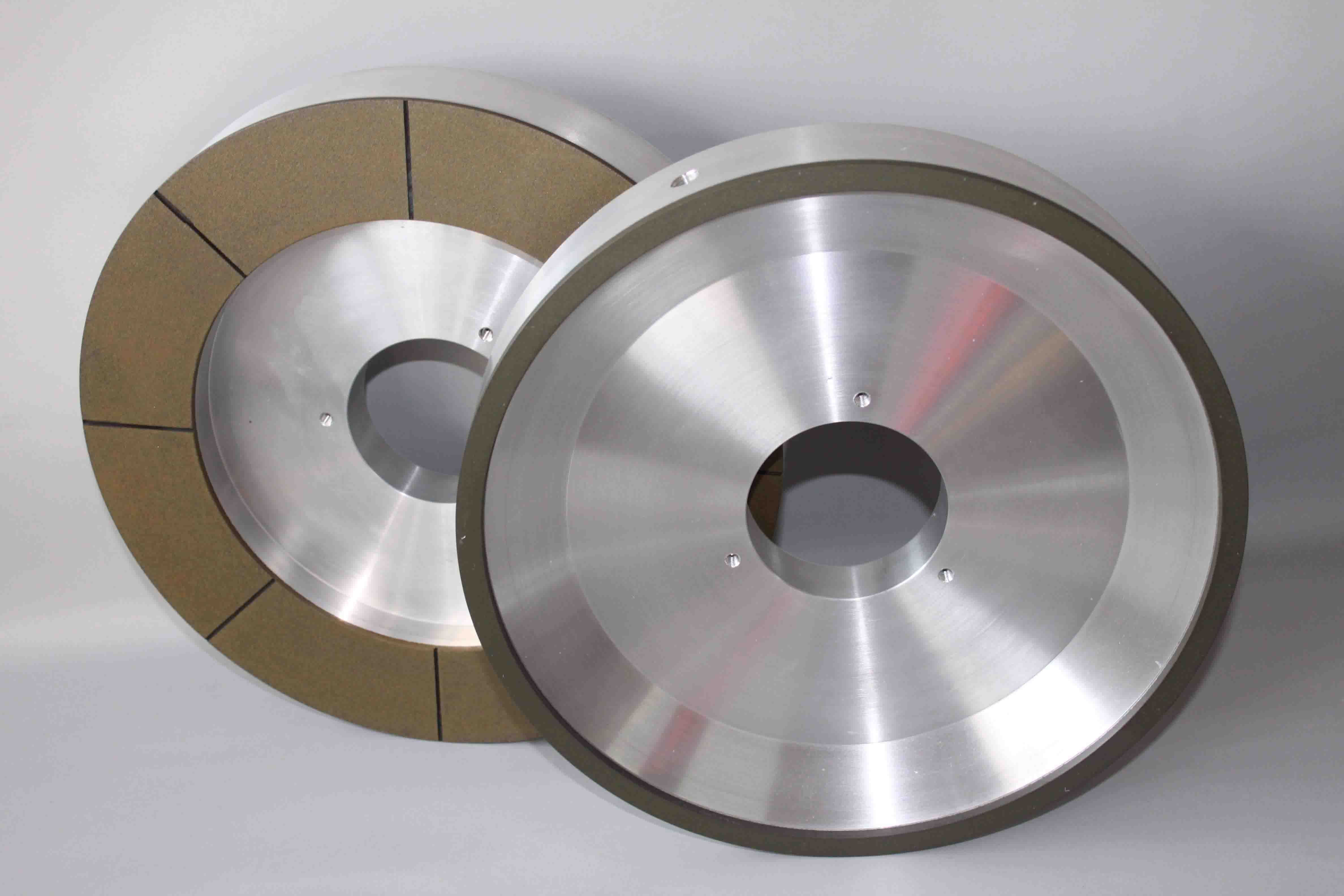

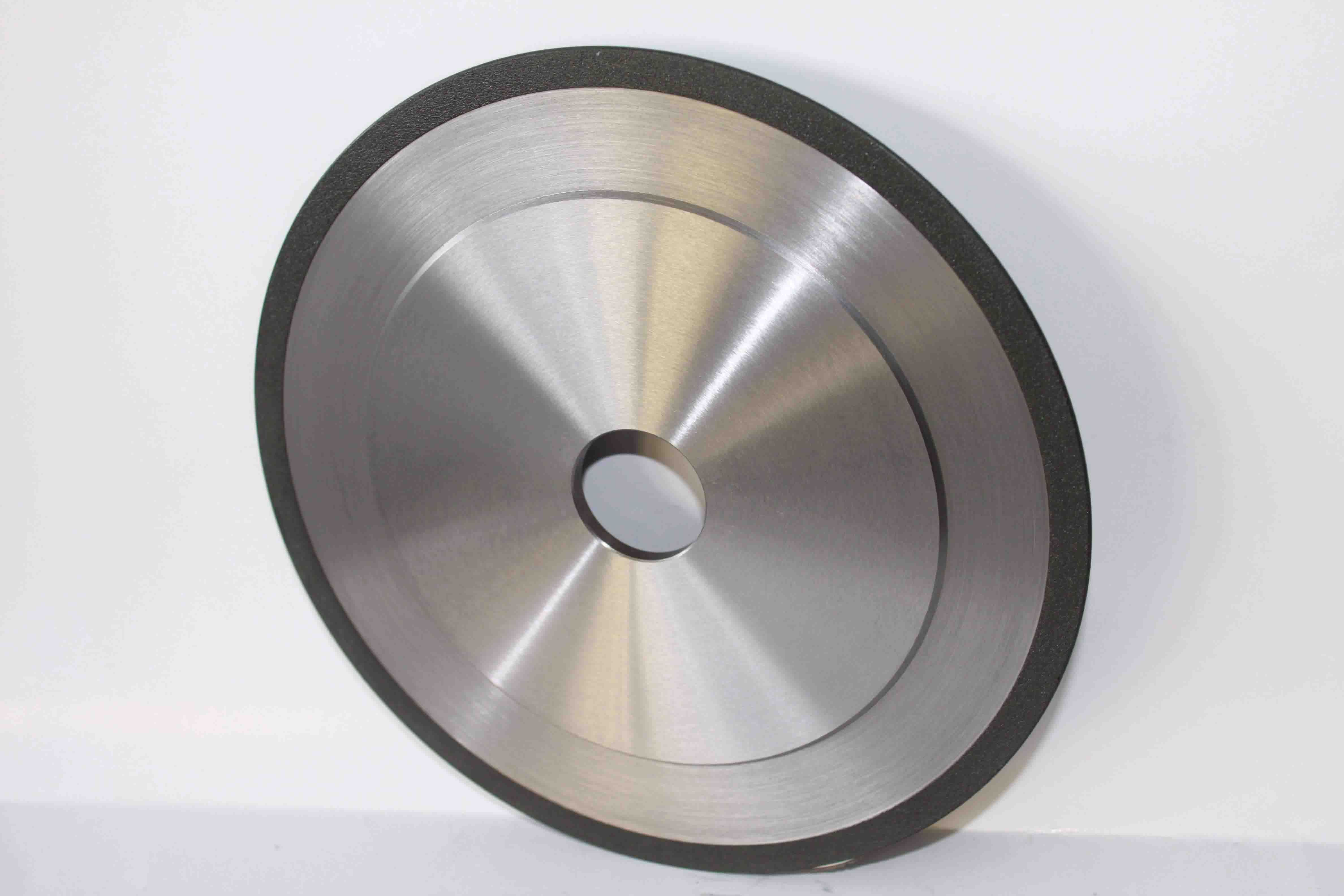

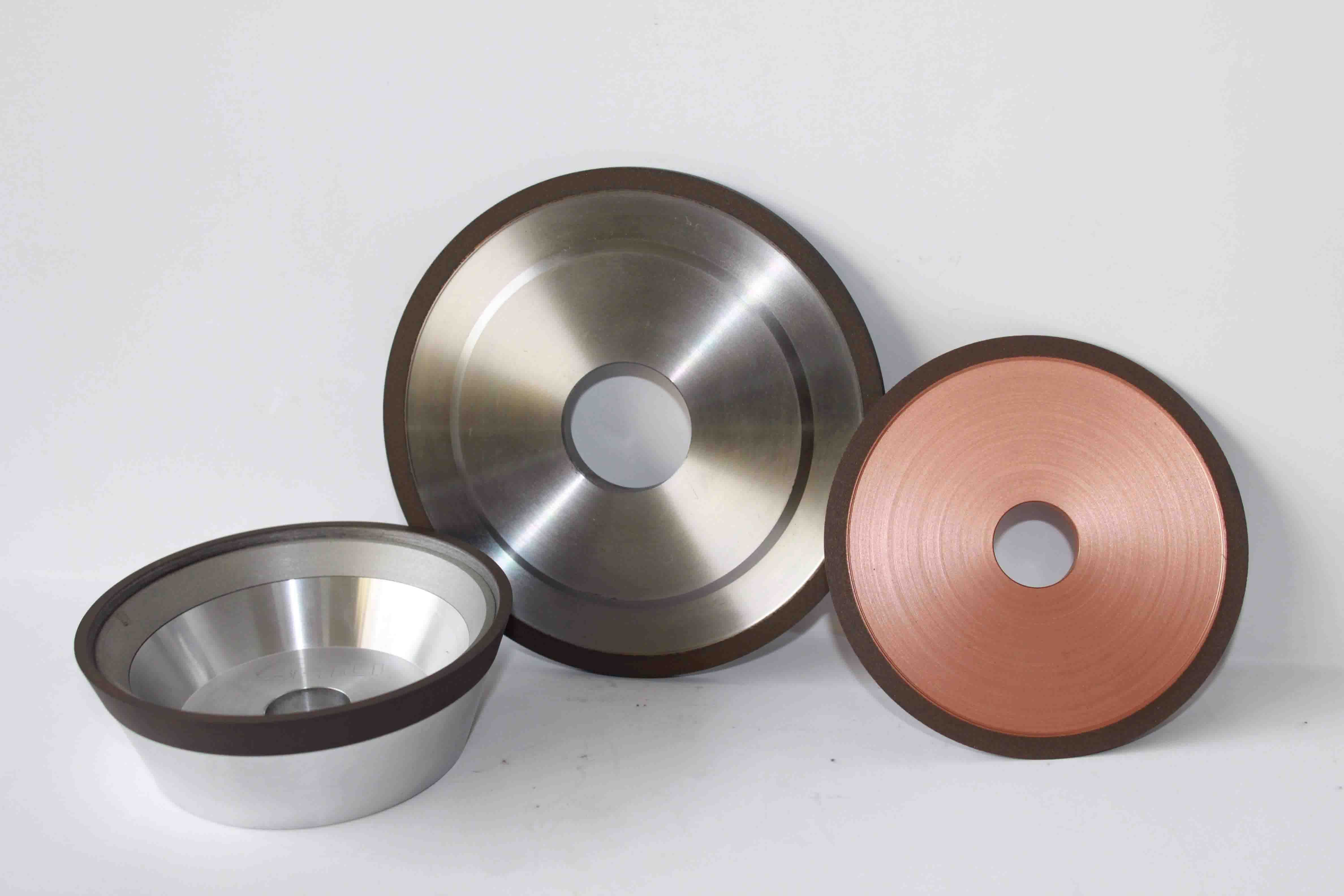

Saw and Knife Grinding, Diamond and CBN Grinding Wheels

Specialized in manufacturing abrasive products, including bonded abrasives and super abrasives, brown aluminum oxide, reinforced cutting wheels and grinding wheels, diamond & CBN grinding wheels, etc.

Resin bonded wheels

- Carbide insert grinding wheels
- Cylindrical grinding wheels
- Creep feed wheels
- Tip saw grinding wheels
- Carbide/steel alloy grinding wheels
- Diamond flaring cup wheels
- Centerless grinding wheels
- Other be available upon requests

Face Grind Akemat & UT. MA
FACE GRINDING WHEELS FOR AKEMAT AND UT. MA EQUIPMENT

D4A2 150mm x 3/8 x 32mm D 240 R 125 B 1/16 W=1/8
B12V9 200mm x 1/2 x 32mm CBN 220 R 100 B 1/16 S=20°

FACE GRINDING WHEELS FOR AKEMAT AND UT. MA EQUIPMENT
D4V2 6 x 13/32 x 32mm D 320 R 100 B 3/32 W=1/8
B4V2 200mm x 13mm x 32mm CBN 180 R 100 B 2mm W=4mm

Top Grind Akemat & UT. MA
TOP GRINDING WHEELS FOR AKEMAT AND UT. MA EQUIPMENT
D14B1 125mm x 8mm x 32mm D 180/400 R 100 B 1/4 U=5mm
D3M1 125mm x 8mm x 32mm D 220/600 R 125/100 B 3/8 U=4mm

Side Grind Akemat & UT. MA
SIDE GRINDING WHEELS FOR AKEMAT AND UT. MA EQUIPMENT
D4A1 3 x 9/16 x 20mm D 220 R 75 B 3/16 U=5/32
B4A1 100mm x 9/16 x 20mm CBN 120 R 50 B 5/32 U=5/32

Face Grind Vollmer

FACE GRINDING WHEELS FOR VOLLMER EQUIPMENT
D4A2 115mm x 11mm x 32mm D 280 R 100 B 1/8 W=1/8
B4A2 125mm x 3/8 x 32mm CBN 180 R 75 B 1/16 W=1/8

D4V2 125mm x 11mm x 32mm D 280 R 100 B 2mm W=4mm
B4V2 125mm x 13mm x 32mm CBN 180 R 75 B 2mm W=4mm
D12V9 125mm x 12mm x 32mm D 240 R 100 B 1/16 S=20°
B12V9 120mm x 12mm x 32mm CBN 180 R 100 B 1/4 S=30°

Top Grind Vollmer

TOP GRINDING WHEELS FOR VOLLMER EQUIPMENT
D6A2 125mm x 18mm x 32mm D 180 R 100 B 1/4 W=3/16
B6A9 115mm x 18mm x 32mm CBN 150 R 75 B 1/8 U=1/4

D6A2 125mm x 21mm x 32mm D 180/400 R 100/75 B 3/8 W=5mm
B6A2 115mm x 18mm x 32mm CBN 120/220 R 100 B 1/4 W=5mm
