Save Cost of Stone Diamond Wire Saw Machine

Save Cost of Stone Diamond Wire Saw Machine
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P

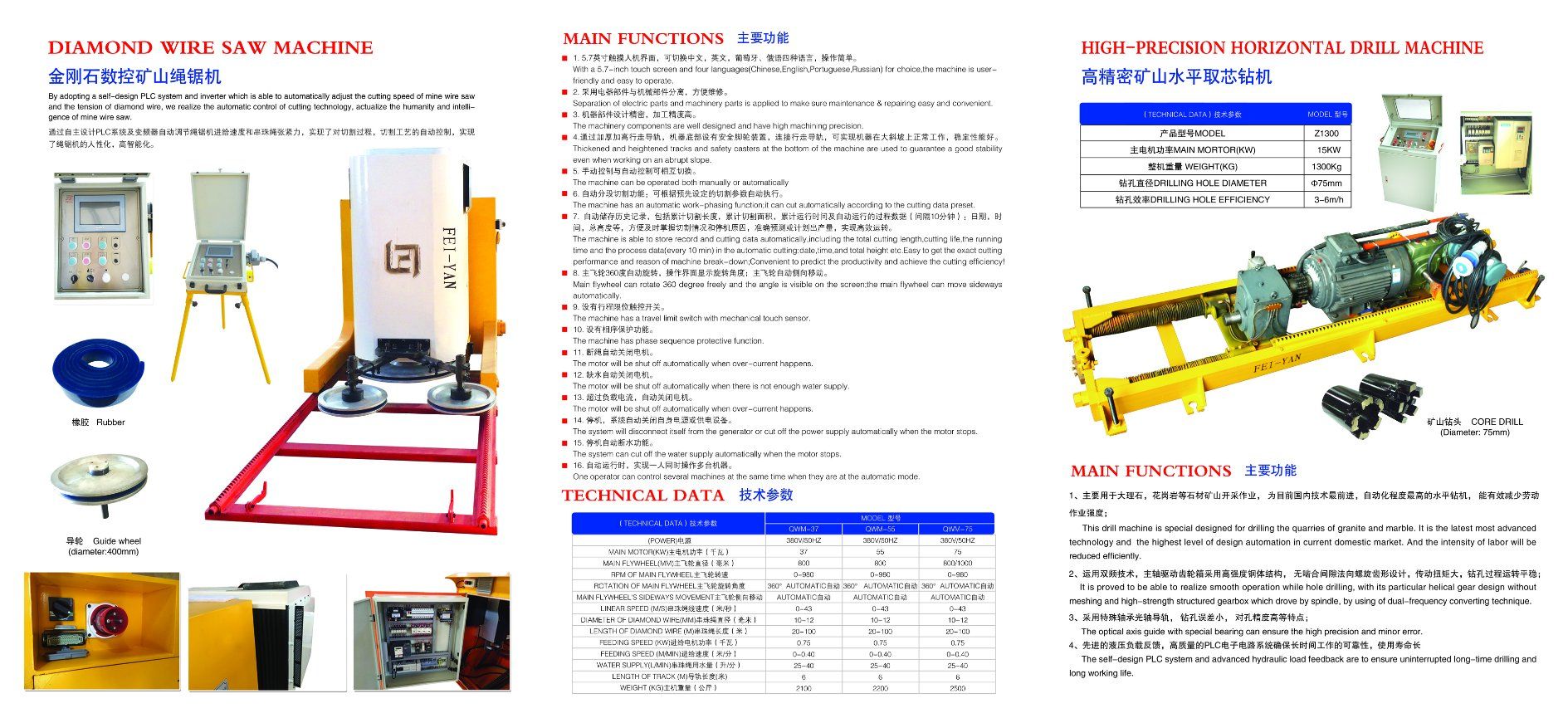

Numerical control mine wire saw is mostly used for stone mining, the company adopts the mode of coaxial connection between main motor and flywheel and the structure of electro-motion and self-design PLC system and inverter which is able to auto matically adjust the cutting speed of numerical control mine wire saw and the tension of diamond wire saw, realizing the automatic control of cutting technology, and actualizing the humanity and intelligence of numerical control mine wire saw, the numerical control mine wire saw the company manufactures owns various more intelligent and humanized functions such as cutting by work-phasing automatically. Storing record automatically, stopping work automatically once the diamond wire saw is broken or lacking of water, turning offer power or power supplying equipment automatically once it stops working, and cutting of the water supply automatically once it stops working, greatly increasing the stone mining efficiency and the production security. The numerical control mine wire saw has been sold at home and abroad and is widely praised by the industry.

Main functions:
1, with a 5.7-inch touch screen and three languages (Chinese, English, Portuguese) for choice, the machine is user-friendly and easy to operate.
2, Separation of electric parts and machinery parts is applied to make sure maintenance repair easy and convenient.
3, The machinery components are well designed and have high machining precision.
4, Thickened and heightened tracks and safety casters at the bottom of the machine are used to guarantee a good stability even when working on an abrupt slope.
5, The machine can be operated manually or automatically.
6, The machine has an automatic work-phasing function, it can cut automatically according to the cutting data preset.
7, The machine is able to store record and cutting data automatically, including the total cutting length, cutting life, the running time and the process data(every 10 min) in the automatic cutting: Data, time, and total height etc. Easy to get the exact cutting performance and the reason of machine break-down; Convenient to predict the productivity and achieve the cutting efficiency.
8, Main flywheel can rotate 360 degree freely and the angle is visible on the screen; The main flywheel can move sideways automatically
9, The machine has the travel limit switch with sensor
10, The machine has the phase sequence protective function
11, The motor will be shut off automatically when the diamond wire breaks
12. The motor will be shut off automatically when there is not enough water supplies.
13, The motor will be shut off automatically when over-current happens.
14, The System will disconnect itself from the generator or cut off the power supply automatically when the motor stops.
15, The system can cut off the water supply automatically when the motor stops.
16, Open operator can control several machines at the same time when they are at the automatic mode.

Prod Model: QWM75-1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification: CE, Germany MPa, Swiss SGS, Is09001, Is014001.
Type: Excavating Machinery
Mining Object: Metallic and Non-Metallic Ore Excavator
Quanzhou Shuangyang Diamond Tool Company Ltd., is a novel and hi-tech enterprise with economic strength and scientific research power, founded in 1994 with a total investment of 100 million RMB, occupying 86, 000 square meters. The company possesses three factories and one research and development center. The number of staff and employees is 500, including 50 researchers. It keeps the guideline that "Science and Technology Are Foundation Stone; Quality is Competitiveness", reinforce and perfects the quality managerial system, and has been granted the Certificate of International Quality Managerial certification system ISO9001, Certificate of International Environment Protection Managerial System ISO14001, Certificate of International Vocational Health & Security Managerial System GB/T28001, Germany Certificate of MPa, and Swiss Certificate of SGS.

For more than a decade, the company has been driving at the scientific research on the diamond tools and cemented carbide tools, and has firmly established and accumulated technical foundation, mainly manufactures product series, including diamond tool circular blades, diamond segments, diamond wires, diamond gang saws, diamond polishing pads, diamond cup grinding wheels, diamond fickert abrasive, diamond satellite abrasive, diamond resin fickert abrasive, diamond profile wheels, diamond core drills, cemented carbide blades, etc. The company has become one of the most professional diamond and cemented carbide tools manufacturers that have the longest history, possess the most comprehensive facilities and equipment, are with the premium techniques, produce on the largest scale, make the highest profit.

Since the establishment, the company has kept initiating, enhancing investment in research, and building up had boosting itself as the innovation enterprise. FEIYAN, the brand of products the company turns out, was awarded and granted several times with the title of The National Key Novel Products, The National Torch Program Projects, National Award for Science and Technology Progress, Provincial Premium Product, Premium Product of Ministry, Provincial Famous Brand Product, Provincial Celebrate Trade Mark, etc...This brand, so far, has widely been recognized with much value for the diamond and cemented carbide tools both at home and abroad.

From the strategic viewpoint, the company has besides developing the home markets, internationalized its products, set up and expanded company branches or promotion channels into USA, Canada, Italy, Germany, Spain, Poland, Russia, Ukraine, Dubai, and Turkey etc...The company runs in leading place in the trend of the globalization of diamond and cemented carbide tools production.

On the professional ethics, "The Market is the Guide, Existence Depends on Quality, Development Relies upon Promise and Credit", the company carries out market cooperation and promotion, providing the customers wholeheartedly with satisfactory service.
