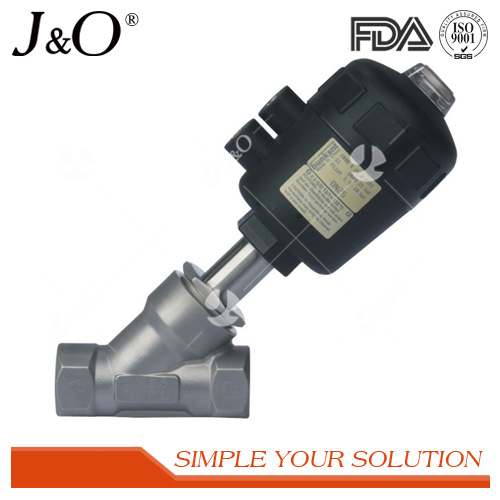

J&O FLUID CONTROL CO., LIMITEDReliable J&O® Brand ®Over 10 years Exporting ExperiencesISO9001,3A, FDA CertificationSanitary Angle Seat Valve with Plastic Actuator
Angle Seat Vakve

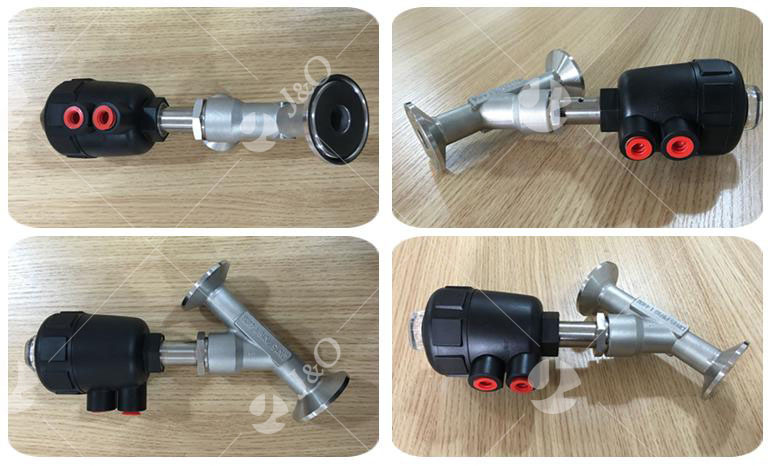

Sanitary Angle Seat Valve
Specification:
*long service life, economical investment.
*compact in size and lightweight.
* large flux, small flux resistance, no water hammer.
*stem automatic correction, self-lubrication, without maintenance.

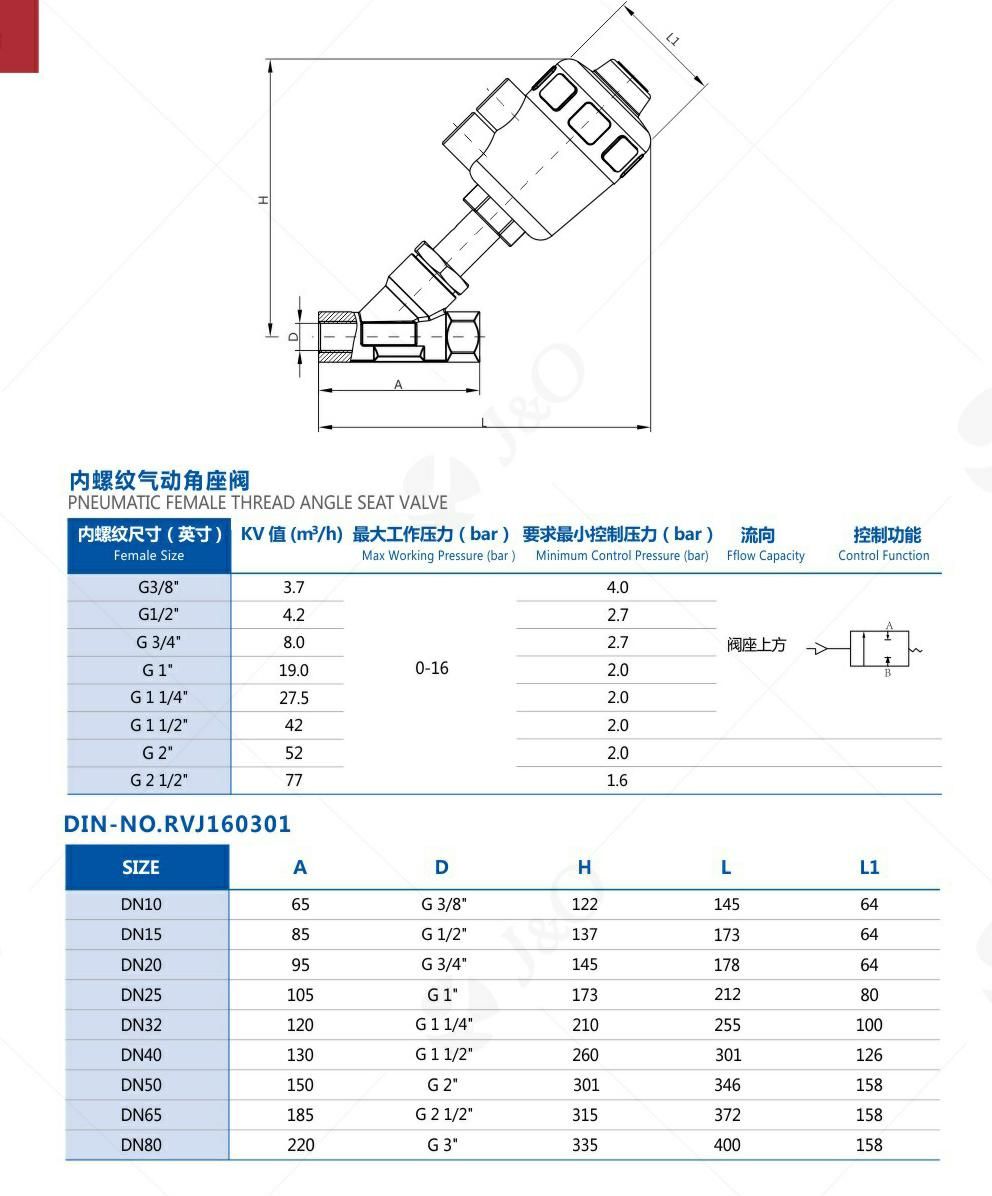

Technical parameter: | Control type: | Normally close, normally open, double acting. |
| Cylinder material: | Stainless steel, polyamide. |
| Pneumatic accessories: | Limit switch, positioner, solenoid valve, filter relief-pressure valve, manual operating device. |
| Medium temperature: | PTFE: -30~+180ºc |
| F46 | -30~+220ºc |
| Ambient temperature: | -30~+80ºc |
| Nominal diameter: | DN15~DN100mm |
| Nominal pressure: | 1.0~1.6mpa |
| Connection: | Thread, flange, clamp, weld. |
| Body structure: | One-piece |
| Body material: | 304, 316, 316l. |
| Spool material: | 304, 316, 316l. |
| Seal material: | PTFE, F46. |
| Appliance medium: | Steam, water, air, oil, gas etc. |
Pneumatic actuator working principle
Control mode:
According to the site condition has the following three kinds of control mode, the reasonable selection of the control
Method can make your valves service life more longer, more convenient operation, cost savings.
Normally open type user: Suitable for pneumatic valve in the working time longer occasion. When the valve is normally open
Spring does not load external gas source thrust, then the valve fatigue to a minimum. Because it is by the air pressure to
Close valve, so need filed air pressure stability, air supply reliable.
Normally closed type user: Suitable for pneumatic valve is in the closed time working longer occasion. For depends on the
Spring to close, when air pressure to drive the piston push spring, valve open. So for the normally closed user this valve
Service life more long, gas more economical. At the same time when the air supply fails, the valve is in the closed state,
This control state is the most widely used.
Double acting type user: Double acting type refers to the two chambers can be input compressed air separately, realize the
Two-way movement of the cylinder, no spring in the cylinder, the valve opening and closing rapidly, and can be used for
Large stroke valve, because it is by air pressure to close valve, so need the field gas source stability, air supply
Reliable. Related Product
