| Price: | US $ 0.69-5.39/Meter |
|---|---|
| Min Order: | 500/Meter |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |

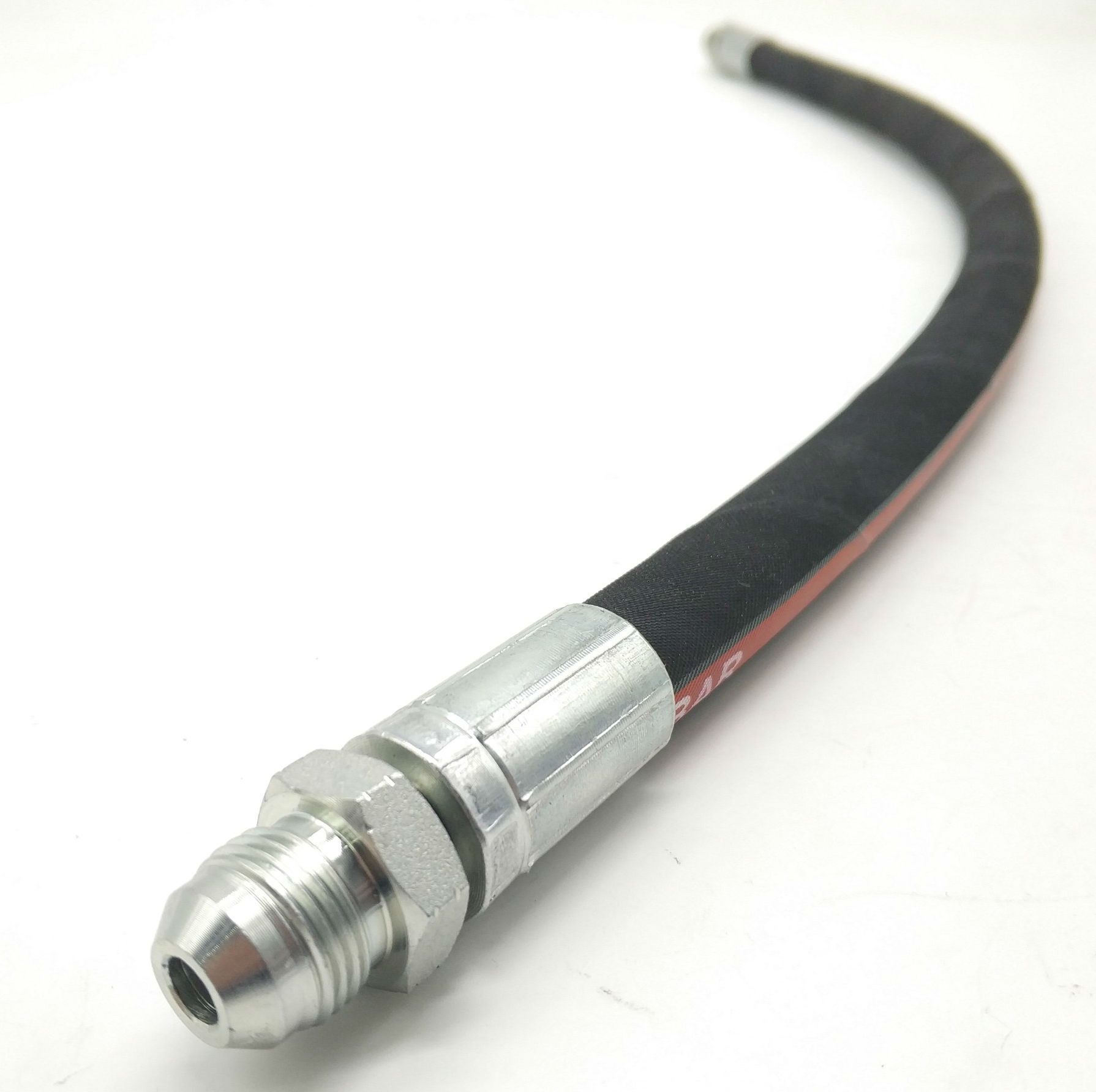

SAE 100R2 Hydraulic Hose with JIC Fitting for Earth Moving Machine
Advantages
* Professional manufacturer for over 10 years in East China, near Shanghai and Ningbo port.
* Free hose sample.
* We can print words and your logo on the hose as your request.
* We test the products before shipped out. We have complete line of test machines.
* We can also get you fittings or assembly.
* We ship the goods by express, by air, by sea or according to your requirement.
Detail Information of Hose
| Name | SAE 100R2AT/2SN |
| Material | NBR |
| Certification | CE approved. |
| Size | 3/16"~2" |
| Color | Black |
| Temperature range | -40ºC~+100ºC |
| Reinforcement | Two braids of high-tensile steel wire. |
| Surface | Smoothl wrapped |
| Capability/Feature | Oil resistant, abrasion resistant, anti-aging. |
| Length | 100m or 50m per roll. |
| Telerance | 0.05mm |
| Application | High pressure hydraulic oil lines used in construction, machine tool and agricultural applications using petroleum or water based hydraulic fluids. Can also be used on CAT KOMATSU Excavator. |
| Package | Well packed by poly stripes or as your requirement. |
| Delivery | According to your quantity,usually 35 or 40 days for a 20' container. |
Specification of Hose
| Part | In | Hose Size ID DIN Dash Size | Hose OD | Max.Working Pressure | Min.Burst Pressure | |
| in | mm | mpa | mpa | |||
| GR2SN-03 | 3/16 | 4.8 Din Dash size | 0.484 | 12.3 | 41.4 | 165.5 |
| GR2SN-04 | 1/4 | 6.4 Din Dash size | 0.593 | 15.1 | 40 | 160 |
| GR2SN-05 | 5/16 | 8.0 Din Dash size | 0.649 | 16.5 | 35 | 140 |
| GR2SN-06 | 3/8 | 9.5 Din Dash size | 0.753 | 19.1 | 33.1 | 132.4 |
| GR2SN-08 | 1/2 | 12.7Din Dash size | 0.875 | 22.2 | 27.6 | 110.3 |
| GR2SN-10 | 5/8 | 15.9 Din Dash size | 1 | 25.4 | 25 | 100.1 |
| GR2SN-12 | 3/4 | 19 Din Dash size | 1.157 | 29.4 | 21.5 | 86 |
| GR2SN-16 | 1 | 25.4 Din Dash size | 1.5 | 38.1 | 16.5 | 66.2 |
| GR2SN-20 | 11/4 | 31.8 Din Dash size | 1.877 | 47.7 | 12.5 | 50.2 |
| GR2SN-24 | 11/2 | 38.1 Din Dash size | 2.129 | 54.1 | 9 | 36.1 |
| GR2SN-32 | 2 | 50.8 Din Dash size | 2.627 | 66.7 | 8 | 32 |
Fitting: JIC, NPT, ORFS, BSP, Metric or as your request.
Packaging
Well packed by poly stripes or as your requirement.
Shipping
We ship the goods by express, by air, by sea or according to your requirement.

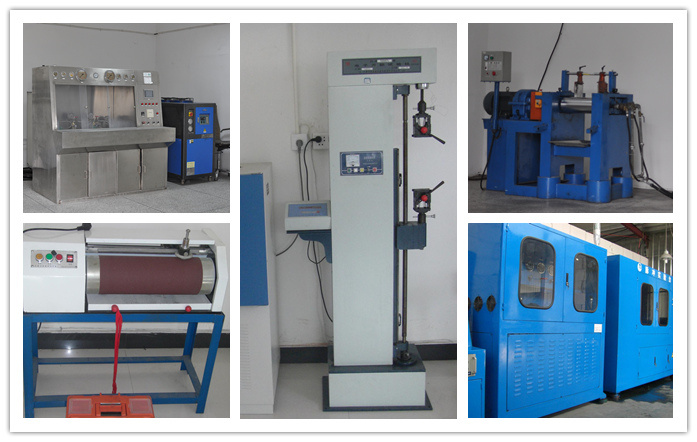

Test Machines
In order to ensure the quality of our hydraulic hoses are good and stable. We test every batch of goods before sent out. Below are some common tests.
1 Working pressure test
All the hoses need to do this test before shipment.
2 Burst pressure test
3 Impulse test
1 wire and 2 wire braided hoses pass the impulse testing of 200,000 times; 4 wire spiral hoses pass the impulse testing of 400,000 times.
If you'll need. We can supply testing report for you.

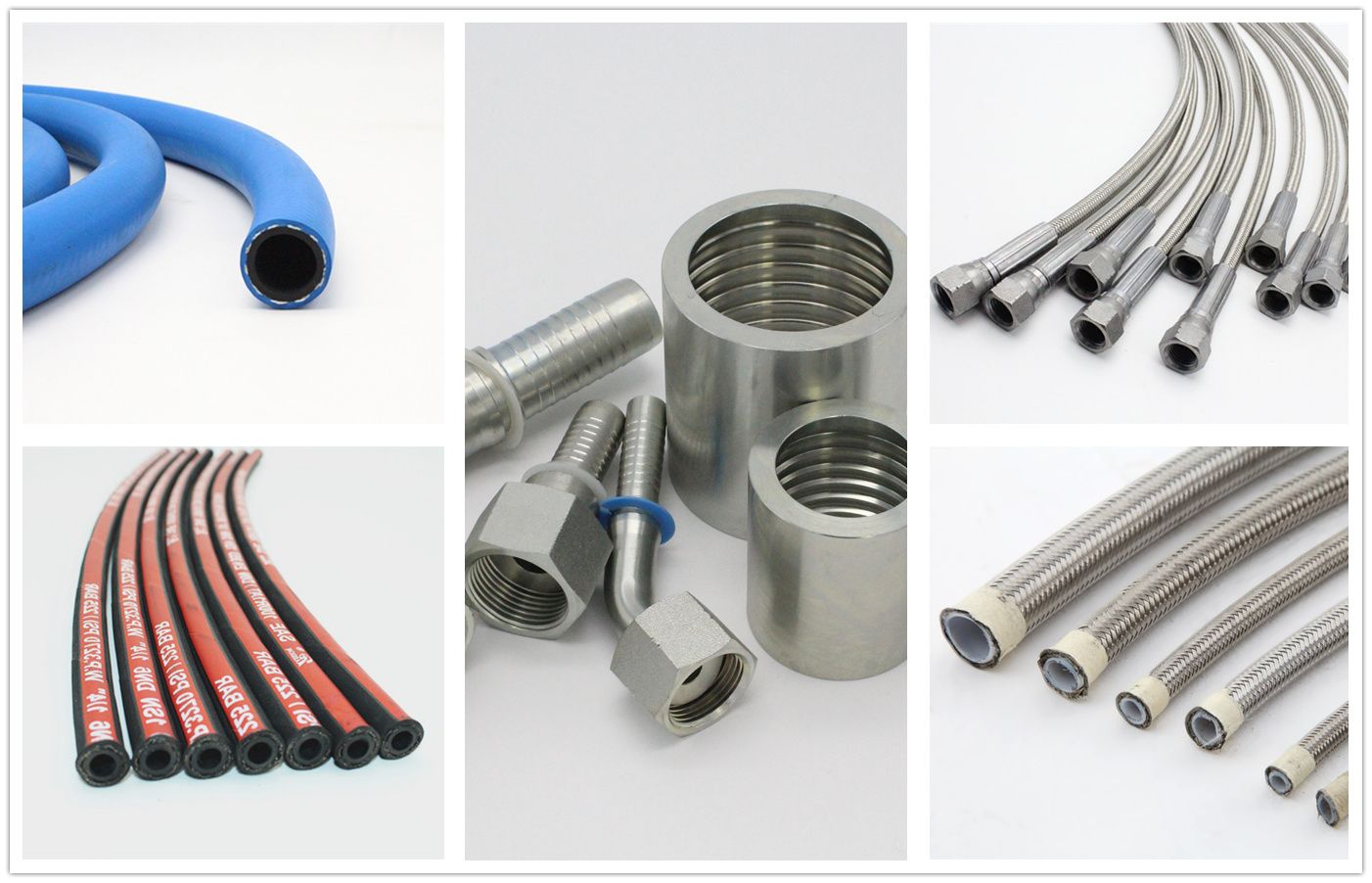

Other products we supply
* Hydraulic Fittings
* PTFE Hoses
* Rubber Air/Water Hoses
* Rubber Gas/LPG Hoses
* Fuel Hoses
* Other kinds of Rubber and Plastic Hoses

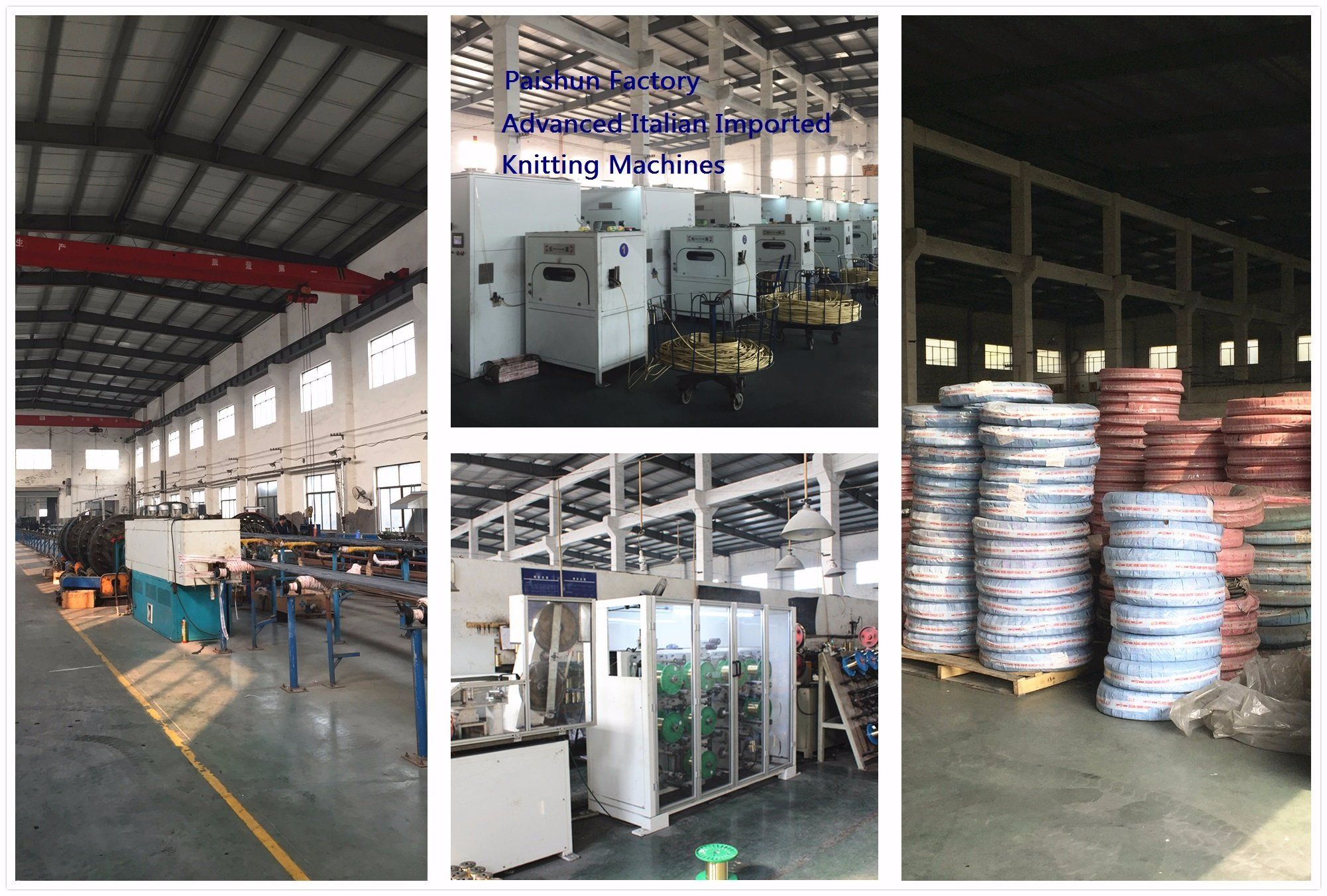

Factory
Our Services
1. We can provide matching hose connection.
2. We can provide free hose sample.
3. Hydraulic rubber hose is also served.
4. Other sizes can be customized.
5. We can print words on the hose according to your requirement.
6. We can package the goods according to your requirement.

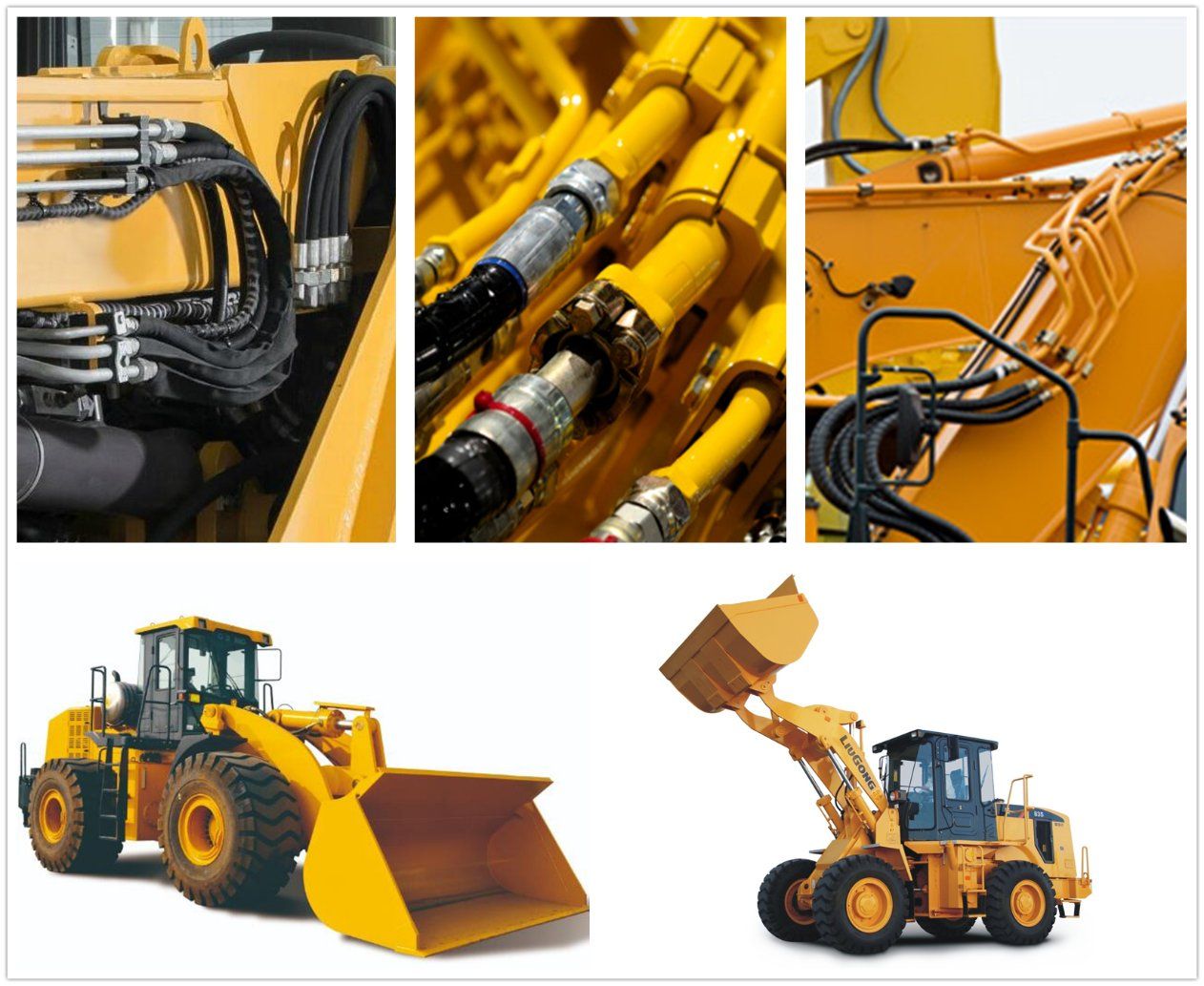

Application
About Paishun
Paishun factory covers a land of over 3 hectares, and the workshops occupy a surface of 25000 square meters. We own complete production lines of rubber mixing process, cold feeding material extrusion process, micro wave vulcanization process, and high speed braiding process, etc.
We produce mainly the industrial hoses like Air Hose, Water Hose, Oil Hose, Welding Hose, Hydraulic Hose and Assemblies. Paishun, being a rapidly growing enterprise focusing on the professional production of pure rubber hoses and braided rubber hoses, its yearly production capacity reaches 10 million meters.
Our key policy is "enterprise may thrive with the technology, and may last with good quality". So we put much investment in the research team, and in advanced testing laboratory equipments. We now use a series of tensile testing machine, vulcanization testing device, aging testing chest, pressure testing machines to ensure the effective quality control. All these testing machines and related procedures may form a complete quality control system, beginning from the selection of the raw materials till the end step. Thus, we wish our products can satisfy in maximum our customers, and help them to gain more and more market share.
| Prod Model: | SAE 100R2 |
|---|---|
| Size: | 3/16"~2" |
| Inner Tube: | Nitrile |
| Reinforcement: | Two Braids of High-Tensile Steel Wire |
| Cover Compound: | Neoprene |
| Temperature Range: | -40ºC~+100 CºC |
| Certification: | ISO9001 Ce |
| W.P: | 80bar~414bar |
| B.P: | 320bar~1655bar |
| Material: | Nitrile Rubber |
| Capability: | Rubber Oil Hose |
| Color: | Black |
