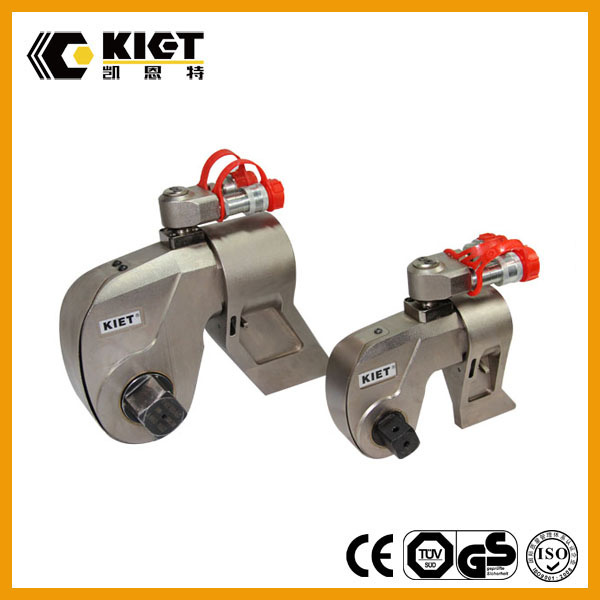

S Series Steel Square Driven Torque Wrench
Production Description
KIET Hydraulic torque wrench is powerful solution for high tensile bolt and nuts tightening and releasing. The hydraulic torque wrench is ultimate tool in heavy duty work. KIET hydraulic torque wrench offers standard products up to 70,000 Nm, with bolt size up to 125mm, and hexagon across flats up to 180mm. We have customized hydraulic torque wrench up to 160,000 Nm for the world's biggest man made dam - The Three Gorge Dam on the Yangtze River.
Parameter
Model | Socket range | Square Drive(In) | Max Nm under 700bar | Socket size |
| mm | inch | mm | inch |
| KT-S1500 | 15-50 | 5/8-1 7/8 | 3/4" | 1898 Nm 1400 ft.lbs | 14-24 | 2/1-1 |
| KT-S3000 | 20-100 | 7/8-3 7/8 | 1 | 4339 Nm 3200 ft.lbs | 17-32 | 5/8-1 1/4 |
| KT-S6000 | 41-155 | 1 5/8-6 1/4 | 1 1/2" | 8144 Nm 6010 ft.lbs | 17-32 | 5/8-1 1/4 |
| KT-S11000 | 41-155 | 1 5/8-6 1/4 | 1 1/2" | 14914 Nm 11000 ft.lbs | 30-46 | 1 1/4-1 3/4 |
| KT-S25000 | 60-255 | 2 3/8-10 | 2 1/2" | 34079 Nm 25140 ft.lbs | 36-85 | 1 1/2 -2 1/4
|
Features
1. 360 º x 180 º rotating tubing connector, without the use of space limitations, easy to operate
2. Drive shaft Zhu button release, fast switching tighten and removal of the state
3. Cylinders and power head shape is small, light weight, compact structure, small operating radius
4. Single operation nut corner too fast cylinder mesh process. High working efficiency
5. The reaction force in a straight line, reducing the internal torque loss
6. The cartridges torque wrench entire work process provides high accuracy
7. Easy to maintain, requiring no special tools
8. Surface of the torque wrench is nickel plated, with good anti-corrosive
Company Information
Jiangsu Canete Machinery Manufacturing Co.,Ltd.is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
Our Services
KIET provide one year guarantee for all the hydraulic Wrench. We promise if there is any dysfunction of the hydraulic cylinder during the quality warranty not by outside force, we will replace a new cylinder for free. Any quality defects reported by customers will be responded in 24 hours.
FAQ
Q1: How can contact sales?
A1: Please call: +86-18121376369 or cat with me
Q2: How can I buy Kiet products in my country?
A2: Please send us an inquiry or email, we will reply to your if there is distributor in your country.
Q3: How long does it take to get the product If I place an order?
A3: If products stock available, after confirmation of your payment or advance payment, we will pack
and deliver in 3-7 days. If you select international parcel service, it can be arrived in 3-7 days. If it is by sea shipment, it will take 15-45 days depending on different locations.
Q4: How to make payment?
A4: First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma invoice with our banking details.
Q5: Manufacturing time?
A5: Please send us an inquiry for stock condition, if we don't have stock, and it is our standard products (refer to our model), it can be produced in 100 days. If it is customized, not our standard products, it will take 20-45 days to produce.
