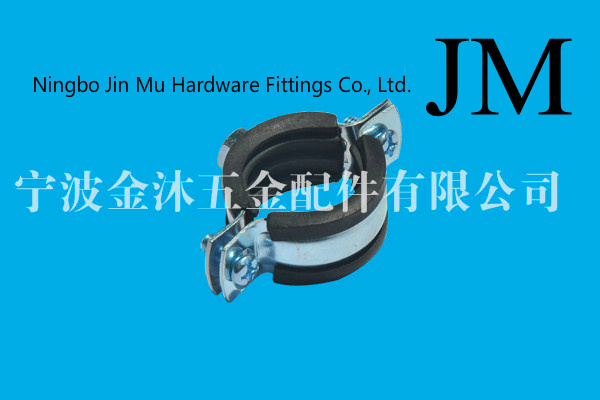

Strong Pipe Clamp With Rubber Size 54mm - 58mm For Building Facilities
ABOUT US
Ningbo Jin Mu Hardware Fittings Co., Ltd. is a company located in Ningbo China, and we focus on providing various China made hardware to meet different demand for our overseas customers.
Our Services:
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs,reasonable&competitive price,fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL,TNT,UPS,MSK,China Shipping,COSCO, Sinotrans etc.
7. You can also choose your own shipping forwarder
Specifications:
Pipe Size | Clamp Size | Material Plate | Connection | Locking Screw | Rubber(mm) |
| 3/8 | 16-20 | 20*1.5 | M8 | M5*15 | 20*3.5 |
| 1/2 | 21-25 | 20*1.5 | M8 | M5*15 | 20*3.5 |
| 3/4 | 27-32 | 20*1.5 | M8 | M5*15 | 20*3.5 |
| 1 | 33-36 | 20*1.5 | M8 | M5*15 | 20*3.5 |
| 1-1/4 | 40-43 | 20*1.5 | M8 | M6*20 | 20*3.5 |
| 1-1/2 | 47-51 | 20*1.5 | M8 | M6*20 | 20*3.5 |
| 2 | 59-63 | 20*1.5 | M8 | M6*20 | 20*3.5 |
| 2-1/2 | 72-76 | 20*1.5 | M8 | M6*25 | 20*4.5 |
| 3 | 87-91 | 20*1.5 | M8 | M6*25 | 20*4.5 |
| 4 | 110-115 | 20*1.5 | M8 | M6*25 | 20*4.5 |
| 4-1/2 | 123-126 | 20*1.5 | M8 | M6*30 | 20*4.5 |
| 6 | 159-164 | 20*1.5 | M8 | M6*30 | 20*4.5 |
Description:
1. The product bandwidth is 20mm, thickness is 1.5mm.
2. Two screw pipe clamp for all ap plications
3. M8 nut combinut.
4. The EPDM rubber provides vibr tion contro l and soun d insulation
5. Used with Wood Scr ew Adapter.
6. Electro galvanized for corrosion resistance(plating thickness 8-10micron).
7. Plastic Safe Washers on each side prevent the side screws to be lo st during assembly.
8. Provides easy and practical mou nting by the Pan Head Screws with Type H Cr oss Recess on each side.
9. Through t he nut, the height of the clamp ca n be adjust ed with a rod easily.
10. The torque nut is welded at least 60 cattle.
11. Product bearing capacity of at least 600 kg or more.
12. Quick and convenient installation
13. Being Fasteners for Pipe lines such as heating, sanitary, and waste water pipes.
14. Installation environment:To walls, ceilings and floors,Indoor and outdoor.
| Prod Model: | J-04 |
|---|---|
| Material: | Metal |
| Usage: | Pipe Clamp |
| Structure: | G Clamp |
| Standard: | Standard |
| Brand: | Jm |
