Rtfq-1600b High Speed Auto Craft Paper Label Cutter Machine

Rtfq-1600b High Speed Auto Craft Paper Label Cutter Machine
Price: US $ 24000-26000set
Min Order: 1set
Pay Type: L/C,T/T,Western Union,Paypal

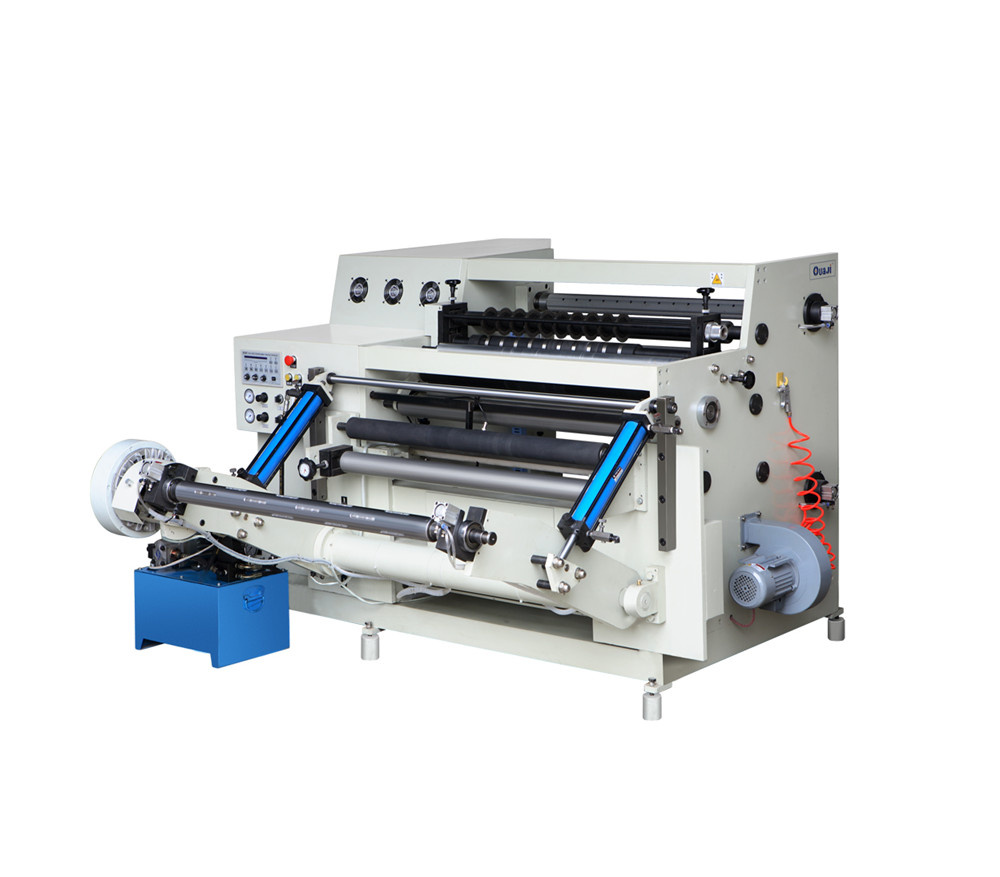

RTFQ-1600B high speed auto craft paper label cutter machine is complete equipment for auto label printing press and die cutting machine. This machine is suitable for slitting adhesive paper, craft paper, web paper, PVC plastic film, insulated material. This machine is good for slitting narrow web paper. It has frequency converting, automatic meter counting, auto stop when length settled, alarm, unwinding has web guide by photoelectric eye, rewinding through air shaft, unwinding and rewinding adopt automatically calculate tension conical control, The whole machine has compact structure, synchronous belt traction, features with high speed, precision cut, low noise, easy operation, stable running etc.



Product parameters:

Max web width
1600mm
Max rewinding diameter
500/600mm
Max. unwinding diameter
600/1000mm
Min width
25mm
Power Supplier
AC380V±10%
Cutting precision
0.3mm
Power voltage
10-20KW
Cutting peed
10-250m/min
Overall dimensions(L*W*H)
2.3*2.8*1.6m
Machine weight
3800kg



Prod Model: RTFQ-1600B
Slitting Material: Paper/PVC/Aluminium Foil/BOPP/ Plastic Film/Label
Classification: Single-blade Cutter
Driven Type: Electric
Blade Material: Steel
Computerized: Computerized
Our company estalish since 2015. During these 3 years we get more than 100 cilents. Our main aim is help our customer find suitable machine they need with acceptable price So we can get a win-win cooperate.

We're Manufacturing many kinds of machines like flexo printing machine, label die cutting, slitting machine, box forming machine, paper cup machines, blister packing machine etc.

We're also professional machine exporter, will bring the customer not only product, the more important is a service and the profession technical support.

Though we are a new company compared others, but we have many professional techincal persons who in this filed for more than 10 years to guide our production. Have professional person to check the machine when it finish, so it can make sure all the machine is running super well before shipping.

Now we have a team to research new machines and improve the old machine, we believe in the near future we will bring our customer more better, stable and competive machine.
