Rotogravure Printing Doctor Blades for Gravure
Price: |
US $ 1/Piece |
Min Order: |
1000/Piece |
Pay Type: |
T/T,Western Union,Paypal |
rotogravure printing doctor blades for gravure
gravure printing doctor blades for industrial printing
offset printing doctor blades for printing machinery
doctor blades for packing and printing machinery
pad printing doctor blades for printing machinery
industrial printing doctor blade for printing machinery
doctor blades for industrial printing machinery
blades Material and Hardness | various steel(stainless steel, carbon steel, high speed steel, alloy steel, SKH51,SKD11,SKS7,SK2,Cr12Mov,H13,9CrSi, 6CrW2Si,W6Mo5Cr4V2,YG8,YT15,P20,K30, D2 tool steel 440C, AISI M35 W6Mo5Cr4V2Co5,SKH55/SKH58,YXM4,MH55,1.3243,S705,Z100DCWV,1.3207,HS10-4-3-10,S10-4-3-10 JIS SKH57,CPM10V. Hardness coud be 55H.R.C to 65H.R.C. |
Heat Treatment model | Vertical pit furnace ,Salt-Bath Furnace, Vacuum Furnace |
Applicable Machine | for hand-use or automatic cutting tools or machines |
Scope of Application | multi-functional to cut different materials such as paper, tape, film, plastics, rubber, textil, carpet etc. |
Specification
Specification | Out diameter(mm) | Inner diameter(mm) | Thickness(mm) |
φ200*φ122*1.3 | 200 | 122 | 1.3 |
φ210*φ122*1.3 | 210 | 122 | 1.3 |
φ230*φ110*1.3 | 230 | 110 | 1.3 |
φ230*φ130*1.3 | 230 | 130 | 1.3 |
φ240*φ32*1.2 | 240 | 32 | 1.2 |
φ240*φ32*1.2 | 240 | 32 | 1.2 |
φ250*φ105*1.35 | 250 | 105 | 1.35 |
φ250*φ130*1.35 | 250 | 130 | 1.35 |
φ260*φ112*1.4 | 260 | 112 | 1.4 |
φ260*φ114*1.35 | 260 | 114 | 1.35 |
φ260*φ158*1.35(hole) | 260 | 158 | 1.35 |
φ260*φ158*1.35(non-hole) | 260 | 158 | 1.35 |
φ260*φ168.3*1.5 | 260 | 168.3 | 1.5 |
φ270*φ168.3*1.5 | 270 | 168.3 | 1.5 |
φ280*φ168*1.4 | 280 | 168 | 1.4 |
φ280*φ202*1.4 | 280 | 202 | 1.4 |
φ300*φ112*1.35 | 300 | 112 | 1.35 |
Blades Production Flow:

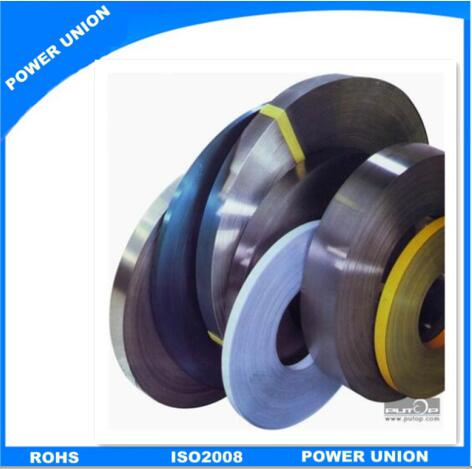

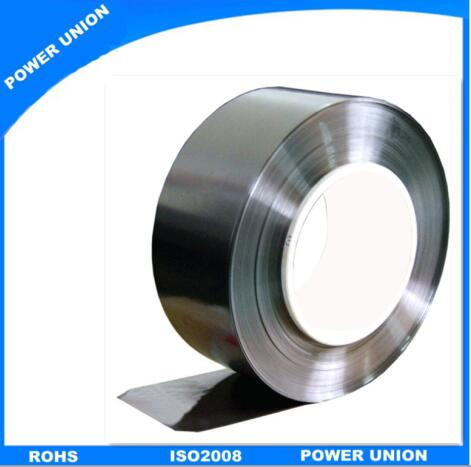

Blades:
![](/proimages/44f3j00GQqajPuhIcrl/rotogravure-printing-doctor-blades-for-gravure.jpg)
![](/proimages/44f3j00YToaZWussqgi/rotogravure-printing-doctor-blades-for-gravure.jpg)
![](/proimages/44f3j00RTqasbuKOkzW/rotogravure-printing-doctor-blades-for-gravure.jpg)

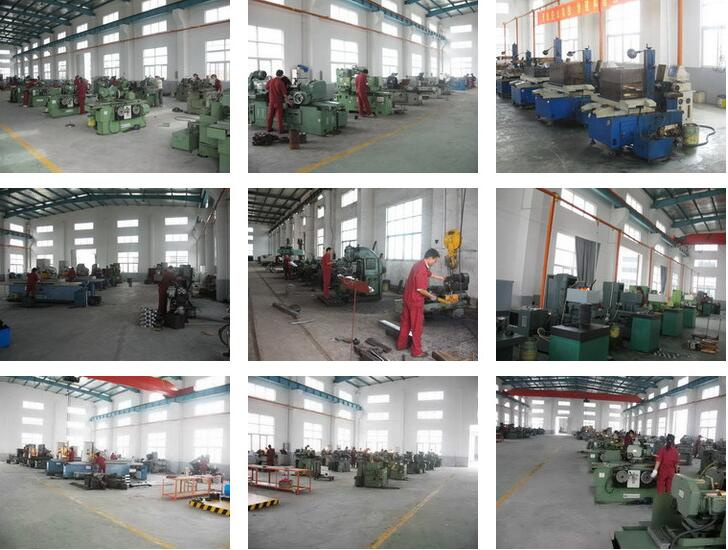

Our company:
![](/proimages/44f3j00facEjsrtIouh/rotogravure-printing-doctor-blades-for-gravure.jpg)
Power Union's plant started to manufacture industrail blades since 1998 .The blades are widely used for variety of cutting machines in such area as paper making,food production,textile and fabrics,plastics,metallurgy,packaging etc.
Now we have built up good reputation by high quality,competitive price and effective service.Our blades have been accepted by the customers and consumers are from Europe,America,Middle East to Africa.
We sincerely hope that the business would a bridge of friendship between customers and us, we cherish every inquiry and customer.
Our advantages:
1. 18 years production and service experiences
2. Piece by piece quality control
3. Excellent Steel+Competitive Price
4. Short delivery time and shipping by courier
5. Widlely export to Europe and USA
Our service:
1.Power Union only supply assuredquality blades at reasonable price
2. We can quotate and make samples for you just with your drawing. and If you give us your samples,we can supply accurate and detailed drawings for you with our competitive price
3.We can give ODM and OEM suggestions for your blades and provide you with best blade.4
4.Test your products you buy from other suppliers for you with low charges.
FAQ:
1. Why choose us?
1. We supply not only products but also the professional suggestion on your application.
2. Accept OEM service.
3. Large stock for standard items and fast delivery.
4. Lowest MOQ.
5. Exchange or refund for any rejected goods.
2. What's your payment?
1. TT, 50% deposit,50% before shipment
2. Western Union, 50% deposit,50% before shipment.
3. How to optimize our QA?
1. Research into the market. We know well about the blades, the machineries and how they work;
2. Comprehensive customer service. Together with the 1st we can offer our clients the products they really need, and keeps us getting better;
3. All products can take certification tests as customers' request.
4. Advanced production machineries and superior raw material.
5. Record and research of every steps of production of every order. Analyzing these data and making progress.
4. How to optimize our QC?
1.100% samples testing of the incoming materials;
2. All key production steps (CTQ) are under control every minute; Anything abnormal will be found out and corrected immediately;
3. 100% testing of the blade hardness. Make sure every piece of the blade enough to cut the product you want tocut;
4 . Random testing of the performance of products, sampling rate 1%.
5.100% double checking the appearance and packing. 5. How to distinguish high quality blade?
1. No black, surface crack, corrosion defects, chipping of performance
2. The error of per piece weight is minimal
3. High edge straightness and flatness
4. The tolerances of length, width, and thickness are small.
Prod Model: |
P. U. TGB0047 |
Raw Material: |
D2 Tool Steel, AISI M35 W6mo5cr4V2co5,Skh55/Skh58 |
Blade Thickness: |
8mm |
Surface Treatment: |
Electroless Nickel or Titanium Nitride Plating |
Blade Use: |
Printing Machine Blade, Cutting Paper |
Hardness: |
55-62h.R.C |
Production Standard: |
ASME Y14.5m-1994 |
Critical Imesion Tolerance: |
-0/0.01mm |
Outside Diameter: |
200mm to 300mm |
Service Type: |
OEM or ODM |
Exported To: |
The U.S |
POWER UNION TECHLINKS MANUFACTURE (HK) LIMTED
Power Union was established as a Partnership Company in 2012 in Honkong. We own four production plants in Dongguan and Shenzhen, specializing in designing and manufacturing blades & cutting tools, gears & power transmission parts, CNC machining parts, rubbers parts & silica gel parts.
For blades & cutting tools projects, we are experienced more than 15 years in blades production, and most machines for production are designed by ourselves and manufactured by our machinery suppliers. As a professional producer of blades & cutting tools, we are much experienced in blades designing, material, heat treatment, blade grinding and plating. Our blades are widely used in the FAX machinery, printing machines, sewing machines, plastic machines, leather cutting, food machines, packing material cutting and slitting etc. Main blades materials are D2, 440C SKD11, 9CrSi, Cr12MOV, W18Cr4V2, LD, 65Mn, HSS, SK4, SK5, M2, SKH-51, 3Cr13, 304, SUS440C, H13, 6CrW2Si etc. We are focus on the blades and cutting tools research & development, and keep innovating, that make us at first ranks in blades & cutting tool industry.
For gears & power transmission parts projects, our factory offers gears designing and produces gears by CNC machining for metal gears and plastic gears. And for plastic gears, we also design and manufacture plastic injection moulds to make gears, such as POM gears, PP gears, PVDF gears, Nylon gears, PEEK gears and PTFE (Teflon) gears etc. We are experienced in gears and power transmission parts more than 15years with designing and manufacturing team. Our gears as well as sprockets, rack gears sell although China and are exported to the U. S, Western Europe and Middle East, which are widely used in gear boxes, industrial machines and equipments, cars, motors, agriculture machines, UAVs, toys etc.
For CNC machining project, as a precision CNC machining parts supplier, we have a high efficiency working team in technology &design, manufacturing an sales. In 2011 we have equipped with new advanced production devices, such as high speed CNC, computer controlled lathe, automatic machines and microscope, projector, CMM, hardness tester and Swiss high instrument and so on. We have high requirements for parts quality control to assure the quality. High precision, steady supply capability and mass production are our featured advantages. Parts are sold to Japan, the U. S, Canada, Germany, and Italy etc.
For rubbers parts & silica gel parts, our team has been engaged in rubber and silica gel parts since 1998, we focus on technology exploitation, innovation and effective management and improvement and we have a complete line of production on compounding rubber, natural rubber, material testing, hydraulic plate vulcanizing, injection sulfide, manual and automatic de-flashing, washing, inspection, and, packaging, and rubber products including O-ring, gaskets, seal-ring, and rubber metal parts, etc. Most of our rubber & silica gel parts are exported to the U. S, Italy, and Germany.
Our assured quality, best service 24 hours a day and most competitive prices will meet your business demands and we are looking forward to providing you services all the time.
You will find us easy to work with!
POWER UNION, Where assured quality and best services is timeless!
