Rotational Electronic Digital Viscometer

Rotational Electronic Digital Viscometer
Price: US $ 485-495/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal

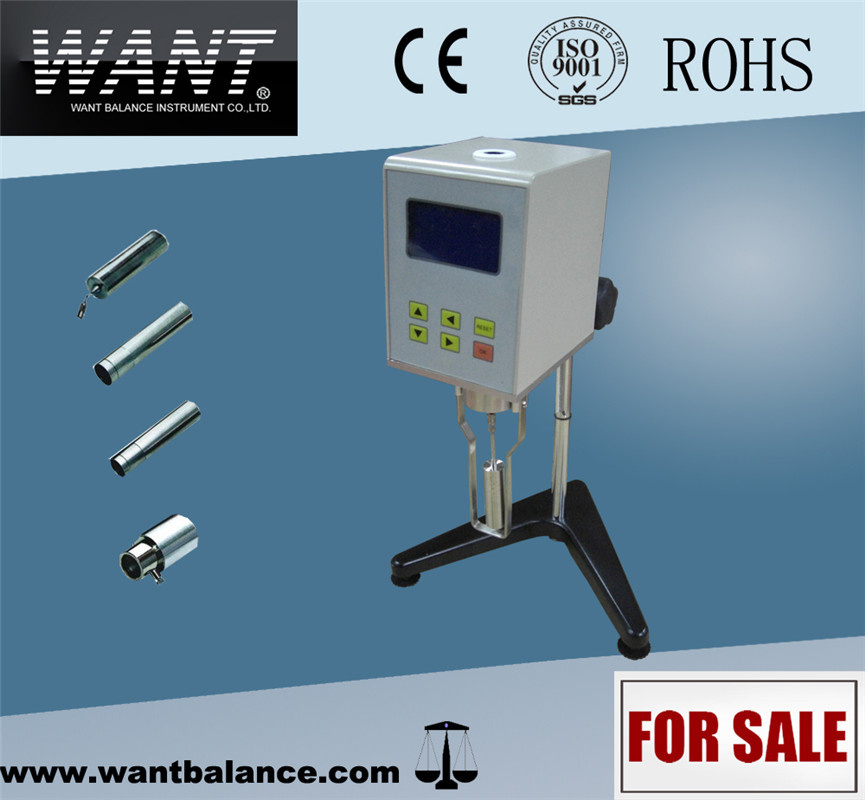

Rotational Electronic Digital Viscometer

This instrument is a new upgrading product of our rotational viscometer. The adoption of advanced mechanical design technology, manufacturing process, microcomputer control technology guarantees accurate data collection. Ultra bright LCD display with blue back-light guarantees clear data display. With the microcomputer technology, it is easier to set measuring span (rotor number and rotating speed), take digital process of the data measured by sensor, and clearly display rotor number, rotating speed, viscosity value of the tested liquid and its full-scale percentage on the screen. Besides, its automatic switch is set for free selection of proper rotating speed or rotor number.

This instrument is an instrument to measure absolute viscosity of Newton liquid as well as apparent viscosity of non-Newton liquid featured by high flexibility, reliable test result, easy operation and beautiful appearance, which is widely applied to grease, paint, plastics, drugs, decorations, coatings and detergent. In addition, NDJ-5S/8S is also added English/Chinese interface for user's selection.

ModelNDJ-5SNDJ-8SDV-1
Measurement Range1~2×10 5 mpa.s1~2×10 6 mpa.s
Rotor Specification1, 2, 3, 4#
Rotating Speed of Rotor6 / 12 / 30 / 60 rpm0.3 / 0.6 / 0.5 / 3 / 6 / 12 / 30 / 60 rpm


Interface


No


No
  • Printer Interface
  • PC Interface
  • Temperature Sensor Interface
Automatic Switchfree selection of proper rotating speed or rotor number.
Stable CursorStrip-type cursor fully charged displayed when reading basically stable
Measurement  Tolerance± 2%(newtonian liquid)
PowerAC 220V ± 10% 50 Hz ± 10%

Working Condition
Temperature 5-35ºC
Relative humidity no more than 80%
Outline Dimension (mm)100×140×170 mm (not including the foundation)
Packing (mm)410×490×250 mm
Net Weight (kg)7 kg
Gross Weight (kg)8 kg
FOB Shanghai in USD420465495
Delivery Date (1 pc)In 2~4 days after received the payment
H.S. Code9027

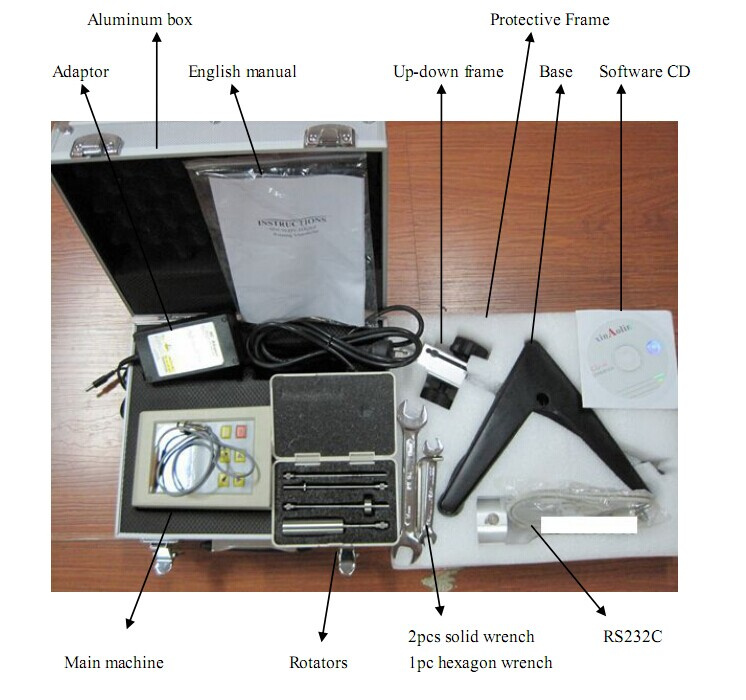

Attachments:
No. 1,2,3,4 Rotor ------------------------------------------- 1 set
Adaptor --------------------------------------------------------1 pc
Protection Frame ------------------------------------------- 1 pc
Foundation Plate ------------------------------------------- 1 pc
Up-Down Frame -------------------------------------------- 1 set
English Manual --------------------------------------------- 1 pc
Hexagonal Spanner --------------------------------------- 1 pc
Solid Wrench ------------------------------------------------ 2 pcs

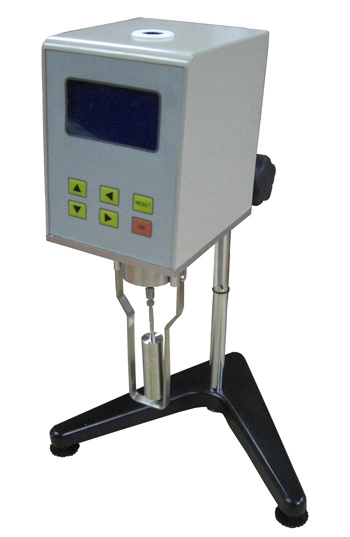

DV-1

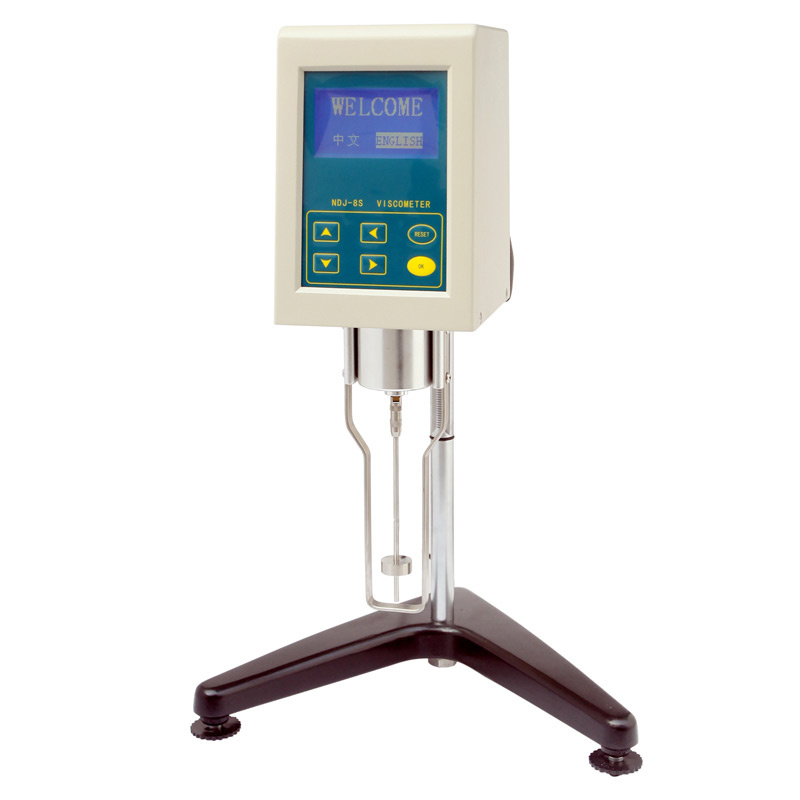

NDJ-5S/NDJ-8S

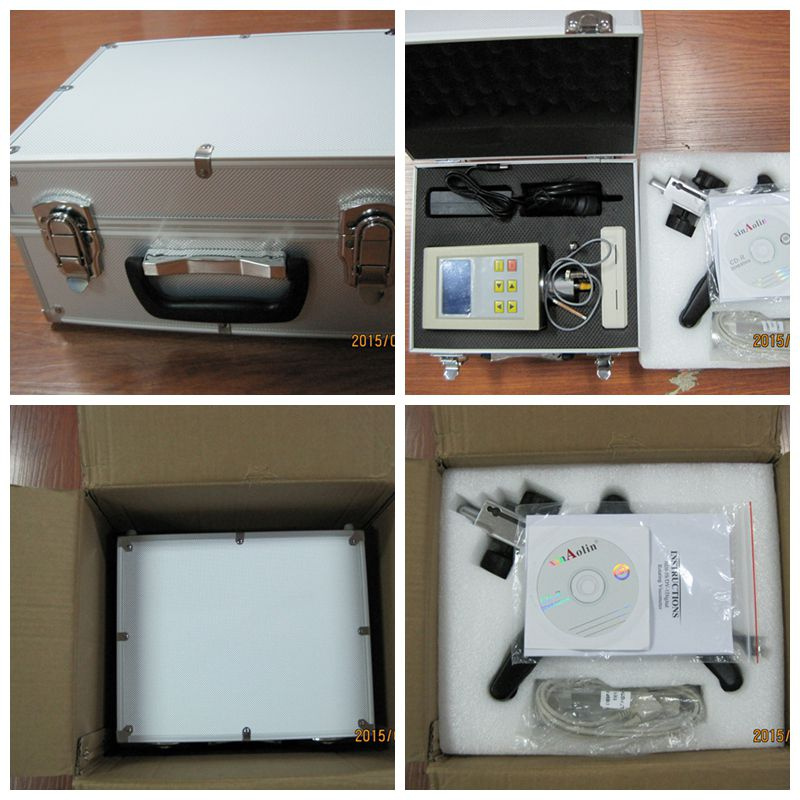

Packing:





Prod Model: DV-1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: Rotational Electronic Digital Viscometer
Viscometer Type: Rotary
Viscometer Rotor Number: 4
Viscometer Rotor Speed: 60r/min
Viscometer Rotor Specifications: 4 Size
WANT Balance Instrument Co., Ltd., has mostly engaged in theresearch, manufactureand sales of electronic balances for more than fifteen years.

Our factory has solid technical skill capability and administers a research institute which is engaged in the research and development of electronic balances. The technical skill level of Want balance is of the leading position among the products of the same category. Our products are sold many countries and are widely appreciated by our customers because of the good quality, reasonable price and the good service. We persists in the principle of " Put quality atthe first Place and regard customers as the most important". The entire production process has the strict quality control system.

Our goods are ISO9001: 2008, CE and RoHS approved, and comply with JB5374 standard (electronic balance). All thespecifications of our products are qualified in the test of Jiangsu provincial technology supervision bureau. Want balances can be used with weighing and counting dual purpose. And it can be equip with charge battery, printer, weights choosing equipment, shield and other Appendix. We can also make the special balances according to the requirement of the customers. WT series electronic balance has one year warranty period, and enjoys lifetime maintenance.

Analytical Excellence

To Improve Customer Processes

WANT BALANCE's comprehensive range of laboratory balances and analytical instruments provides users with flexibility and precision in every laboratory application plus outstanding quality and functionality

Research and Development Laboratory

WANT BALANCE offers a broad portfolio of high performance laboratory balances and analytical instruments for many laboratory applications. Our instrument portfolio was developed to meet the special needs of reasearch and development laboratories.

Effective Quality Control Laboratory

Getting reliable results efficiently is key for most quality control laboratories. Our laboratory balances and analytical instrument not only focus on providing precise results but also make operation easier and support compliance with regulations.

Weighing and Dosing

Analytical Balance, Precision Balance and Micro Balance

WANT BALANCE's weighing and dosing expertise and manufacturing competence goes into every analytical balance to bring you outstanding weighing and dosing performance. In combination with laboratory software and dedicated weighing accessories, you can create a customized weighing and dosing solution to make your laboratory applications fast, simple and worry-free.

From goods in through development and production to packaging and order fulfillment WANT BALANCE is your partner for all your weighing and measuring needs. Our wide portfolio of precision instruments provide consistent and accurate measurements and ensure your compliance with government regulations.

WANT BALANCE - A trustworthy Service partner for your equipment

We offer precision instruments and services for many applications in research and development, quality control, production, logistics and retail to customers around the world.

WANT BALANCE aim to meet your specific service needs. We offer a wide array of services, including a comprehensive weighing service portfolio, laboratory balance services, industrial scales service, equipment support and other measuring equipment services. You can request service support directly on our service support page and on any other service pages on http://www.wantbalance.com/

Let us be your trusted advisor and provide the necessary service balance between environment requirements and your production needs.
