Road Safety Mobile Crash Barrier Guardrail W Beam Repair Equipment

Road Safety Mobile Crash Barrier Guardrail W Beam Repair Equipment
Price: US $ 1-20000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

Product Introduction

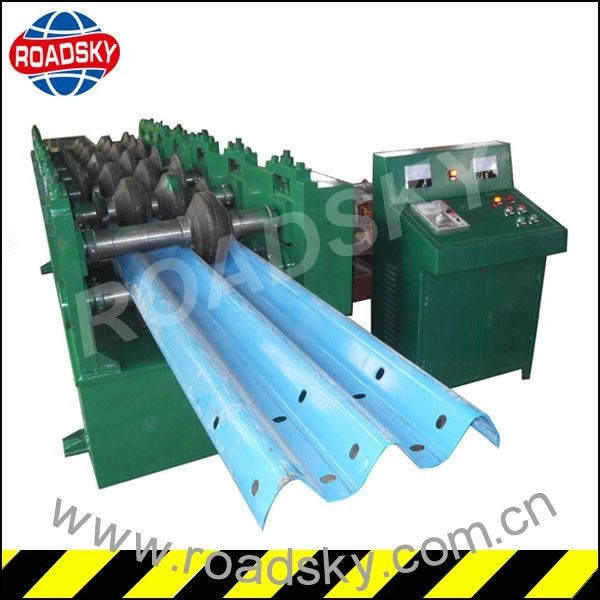

We are a professional manufacturer for Guardrail Repairing Machine which is primarily used in the repairing of dented and warped guardrails and there are two main series, RS110 & RS210.


A. Description

RS110

(1)It is mainly applied to repair the crashed and wave shape guardrail beam of highway with 7 rollers and accessorial equipment.

(2)It is consisted of main machine, electric motor, controller and other necessary accessories.


RS210

(1)Compared with RS110, RS210, whose one trailer with four wheels will be custom-built and one thickness steel plate will be fixed onto the trailer.

(2)The main machine, electric motor, diesel generator, controller and other necessary accessories will be fixed onto the thick steel plate.

(3)You can use one tow truck to tow this machine to any working site for repairing working which is superior to RS110.


B. Main Technical Specification

TypeRS110RS210
G.W.5000 KG6500 KG
Main Machine Size3300×2500×1120mm3300×2300×1500 mm
Size of Working Platform450×500×3500 mm450*850*3500 mm
450×500×2000 mm450*850*2000 mm
Thickness of steel plate for fixing all the
machines and accessories
--30 mm
Type of Diesel Generator --YZZ115ZD
Power of Diesel Generator --30 KW
Output Voltage --380-400 V
Output Current --54 A
Frequency --50 HZ
Rectifying SpeedTheoretical Value: 1 piece/min.
Roller Quantity7 pieces
Roller DiameterΦ80mm
Rated Power15-30 KW
Speed Adjusting Range3-25 r/min.
Rated Revolving Speed132-1320 r/min.
Working CircumstanceHeight above the sea level≤1500 m
Temperature of circumstance:-20ºC~+45ºC
Relative humidity≤98%

C. Equipment list

1. Front two meters working material platform

2. Guardrail Repair Machine Host

3. 31085 guardrail repair mold one set (already installed)

4. Behind 3.2 m working feeding platform

5. 15KW speed motor

6. 500 type reducer

7. Electrical control Casing (governor-pack)

8. 45 One of the open-end Wrenches

9. One (1) 12" wrench

10. One (1) Manual

11. One (1) 8mm hex wrench

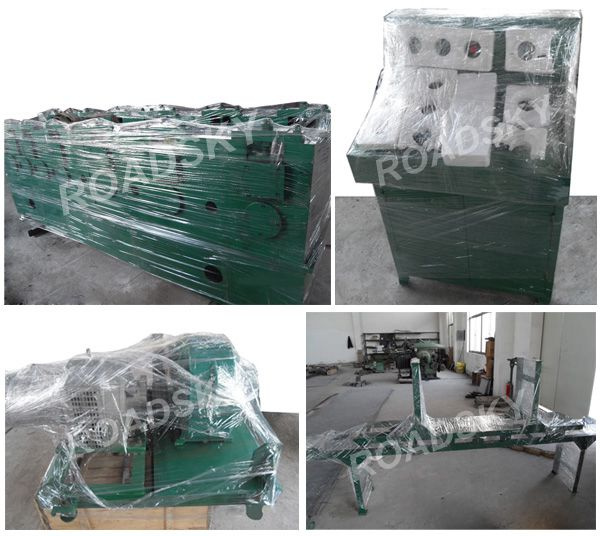

D. Packaging & Delivery

   Packaging Details: Starndard export package

   Delivery Detail: In store



Prod Model: RS110\RS210
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
G.W.: 5000-6500kg
Main Machine Size: 3300*2500*1120mm
Rectifying Speed: Theoretical Value: 1 Piece/Min.
Roller Quantity: 7 Pieces
Roller Diameter: Diameter 80mm
Rated Power: 15-30 Kw
Speed Adjusting Range: 3-25 R/Min.
Rated Revolving Speed: 132-1320 R/Min.
Repaired Guardrail: Two Wave Guardrail
Custom-Built Service: 9 Pieces Roller
Forging Forming Method: Mold Forging
Nanjing Roadsky Traffic Facility Co., Ltd. Is located in Nanjing city, 60km away from Nanjing International Airport and 10km away from the entrance of highway. ROADSKY is near to Yangtze River and 300 kilometers away from the eastern deepwater port wharf - Shanghai Port. We are a professional traffic facilities manufacturer in China specialized in developing, manufacturing and exporting traffic facilities including Highway Guardrails, Guard Rails, Guardrail Installation Machines, Road Marking Machines, Road Marking Paint, Reflective Glass Beads, Road Studs, Road Reflector, Reflective Film, Traffic Signs, Traffic Light, Traffic Cone, Speed Hump, Delineator Post, Wheel Stopper, other road construction & maintenance machines, and other road safety products. Our main products have passed the test conducted by National Traffic Bureau.

Our company has an efficient management system and advanced manufacturing equipment. Our strong R&D team, excellent product quality, timely delivery, perfect services, special functions and competitive prices help us win the trust and high reputations of numerous customers in domestic and overseas markets. Now our products have been sold to clients in North America, Middle & South America, Europe, Africa, the Middle East, Southeast Asia, Australia and other countries and regions.

We not only supply the above road construction machines and materials, but also supply the services and solutions to all kinds of road projects, such as guardrail installation project, road marking project and etc. Our guardrail installation teams and road marking teams have several decades thousands miles of guardrail installation and road marking projects construction experience in China. Depending on the strong company and teams, we are planning to expand our business of road projects to abroad. We can assist you to solve all the problems of the road projects even though you are a new comer, such as supply all the necessary information in order to win the bids, assist you to calculate all the cost of the machines, materials and manpower, the time and other details, dispatch our engineers to your country and train your workers so that you can finish the future road projects by yourselves. We can also dispatch our teams to your country and finish the road projects according to your requirements.

Welcome your enquiry and we promise to give you timely response. If you are interested in our products, please do not hesitate to contact us directly or visit our factory for more information. We are looking forward to establishing long-term business relationships with you and serving your esteemed company in the near future.
