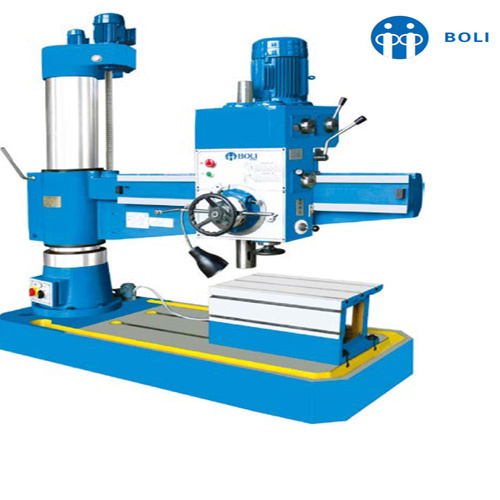

RM5016 Hydraulic Radial Arm Drilling Machine

RM5016 Hydraulic Radial Arm Drilling Machine
Price: US $ 2000-5000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
achine

· Mechanical driven
· Mechanical clamping
· Mechanical changing speed
· Up & down by power
· Auto feeding

Standard Accessories:
>  Rise block
>  Taper sleeve
>  Tool releasing wrench
>  Drift
>  Eyelet bolts
>  Box work table

Optional Accessories:
>  Quick instead chuck
>  Tapping chuck
>  Angle work table

Technical Parameters:
Model No.UnitRM4011RM4014RM5016
max drilling capacitymm40(1.57")40(1.57")50(1.97")
distance between spindle surface to work tablemm260~1050(10.24"~41.34")260~1150(10.24"~41.34")260~1150(10.24"~41.34")
distance between spindle center to column centermm360~1100(14.17"~43.31")360~1400(14.17"~55.19")360~1600(14.17"~63.00")
spindle travelmm200(7.87")200(7.87")220(7.87")
spindle taper MT4MT4MT5
spindle speed ranger.p.m.75,130,240,380,660,120075,130,240,380,660,120078,135,240,350,590,1100
spindle stepssteps666
spindle feed ranger.p.m.0.10~0.250.10~0.250.10-0.56
spindle feed stepssteps336
spindle rotary angel°360360360
main motor powerkw2.22.24
up & down motor powerkw0.751.51.5
packing sizemm1500×705×22001800×810×23002170×950×2450
G.W.kg160022002800
Prod Model: RM5016
Power Type: Electric
Type: Core Drilling Rig
Condition: New
Our company supplies different kinds of machines. High quality and favorable price. We're pleased to

Get your Inquiry and we will come back to as soon as possible. We stick to the principle of " Quality

First, service first, continuous improvement and innovation to meet the customers" For the

Management and " Zero defect, zero complaints" As the quality objective. We have a good sales and

Design team for satisfy customer's inquire, all equipment must use higher standard for produce the

Machine. Before leave the manufacture, we have professional engineer will arrive

The factory for check each machine, confirm the quality, after get the engineer's

Agreement we will export the machine to customer
