| Price: | US $ 1-100/Piece |
|---|---|
| Min Order: | 500/Piece |
| Pay Type: | L/C,T/T,D/P |
Our products include steel wire rope, Rigging hardware ,G80 & G100 rigging,Synthetic lifting sling & harness,Cargo control & Transport products ,Chains & Wire Rope Accessories,Stainless steel rigging,hoist & lifting equipment,marine hardware

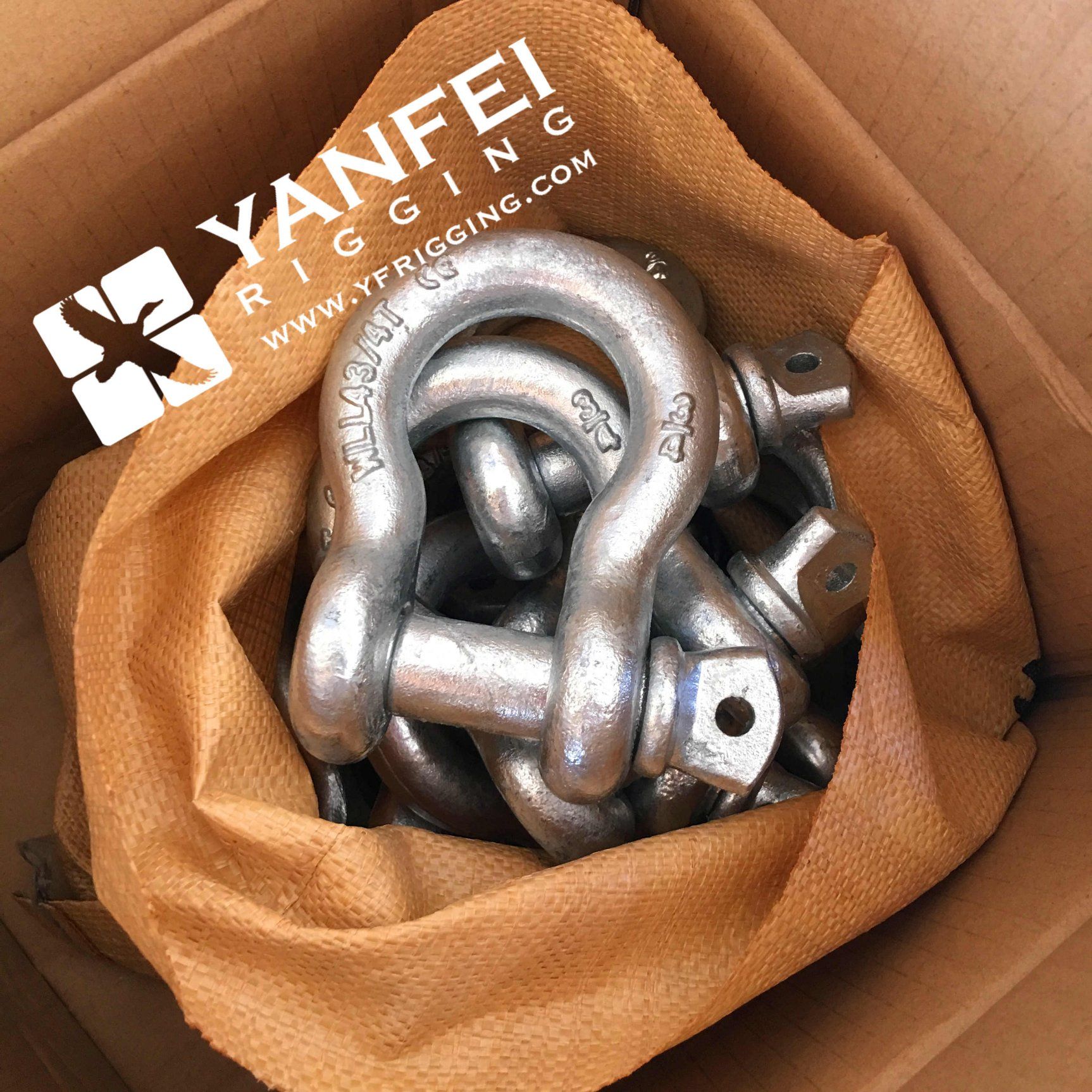

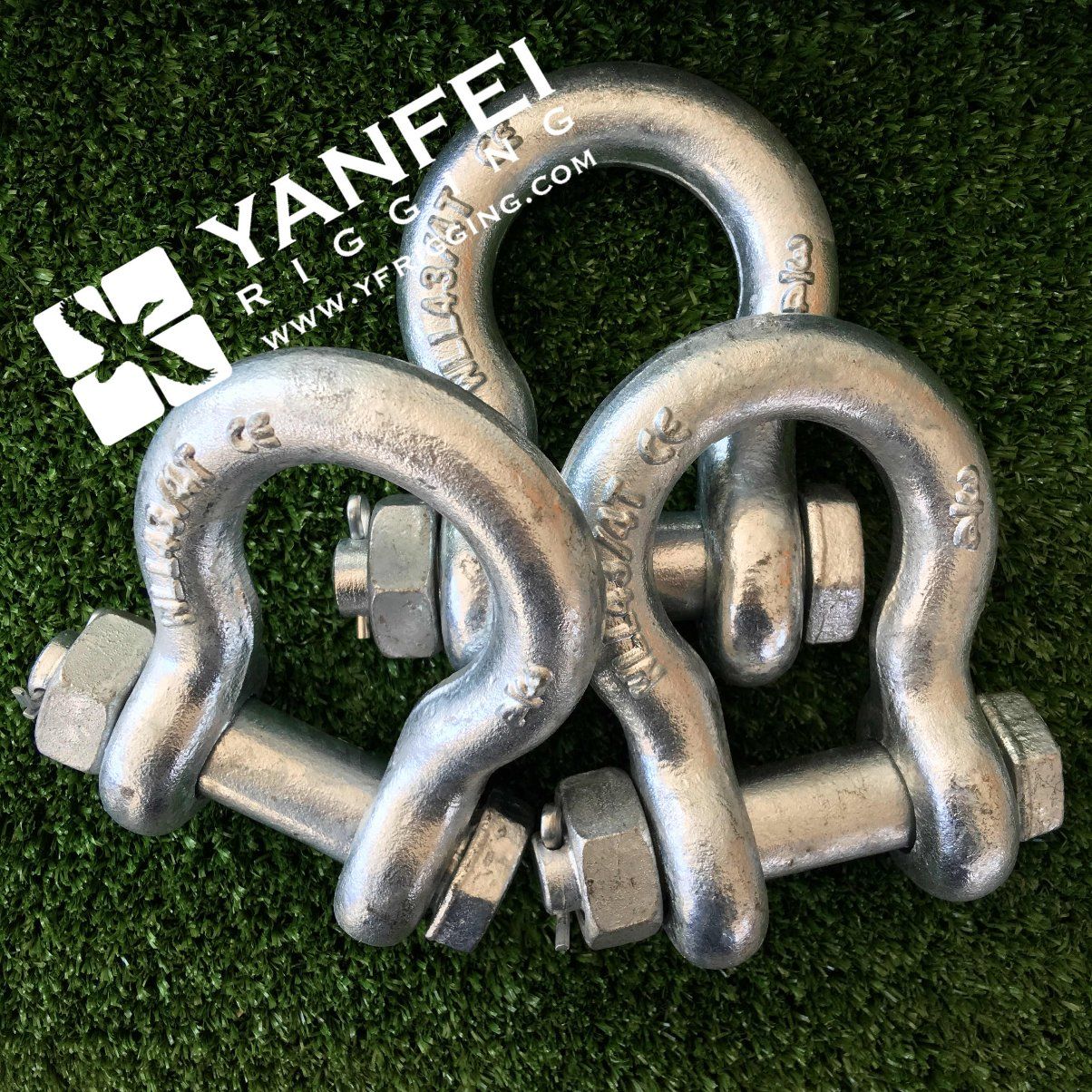

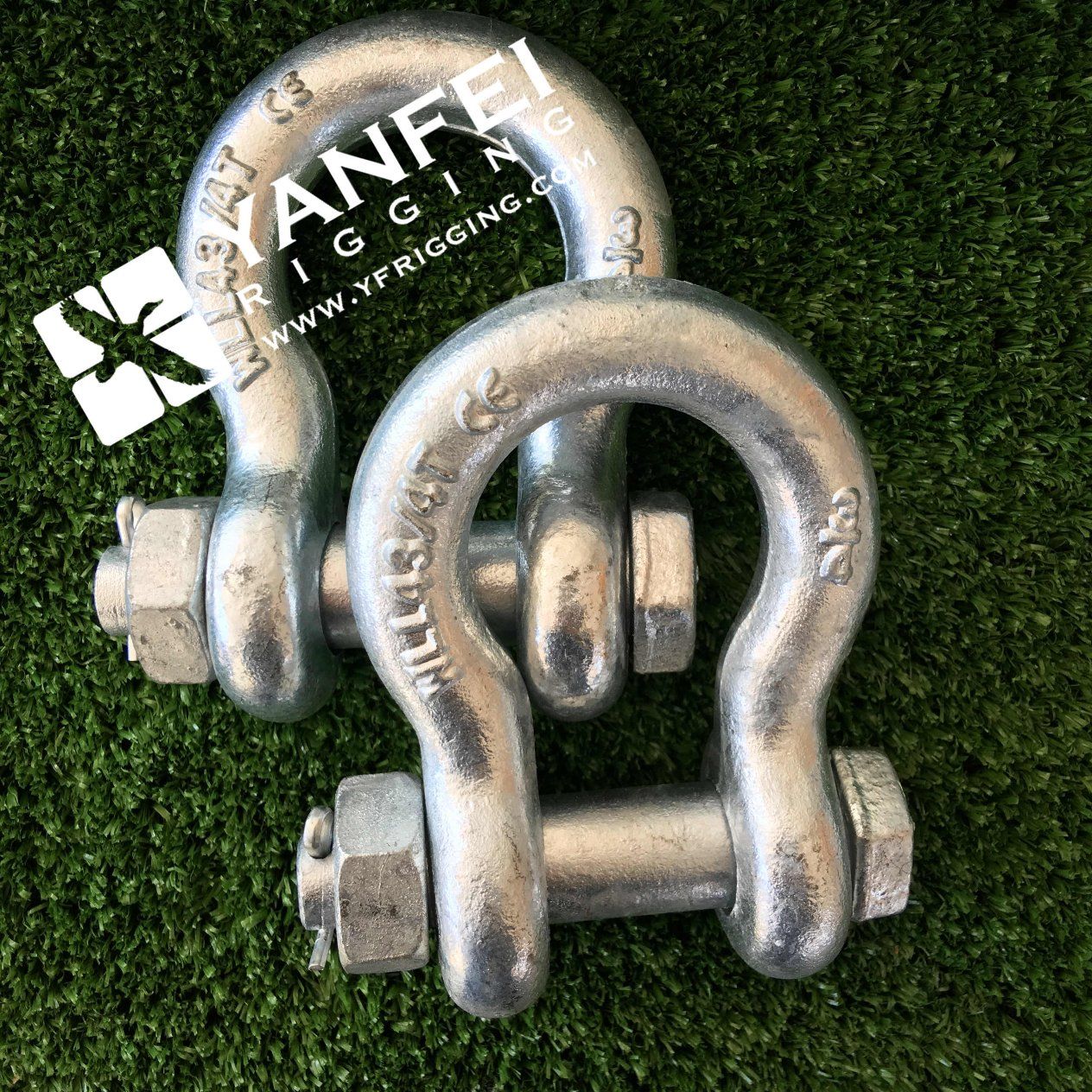

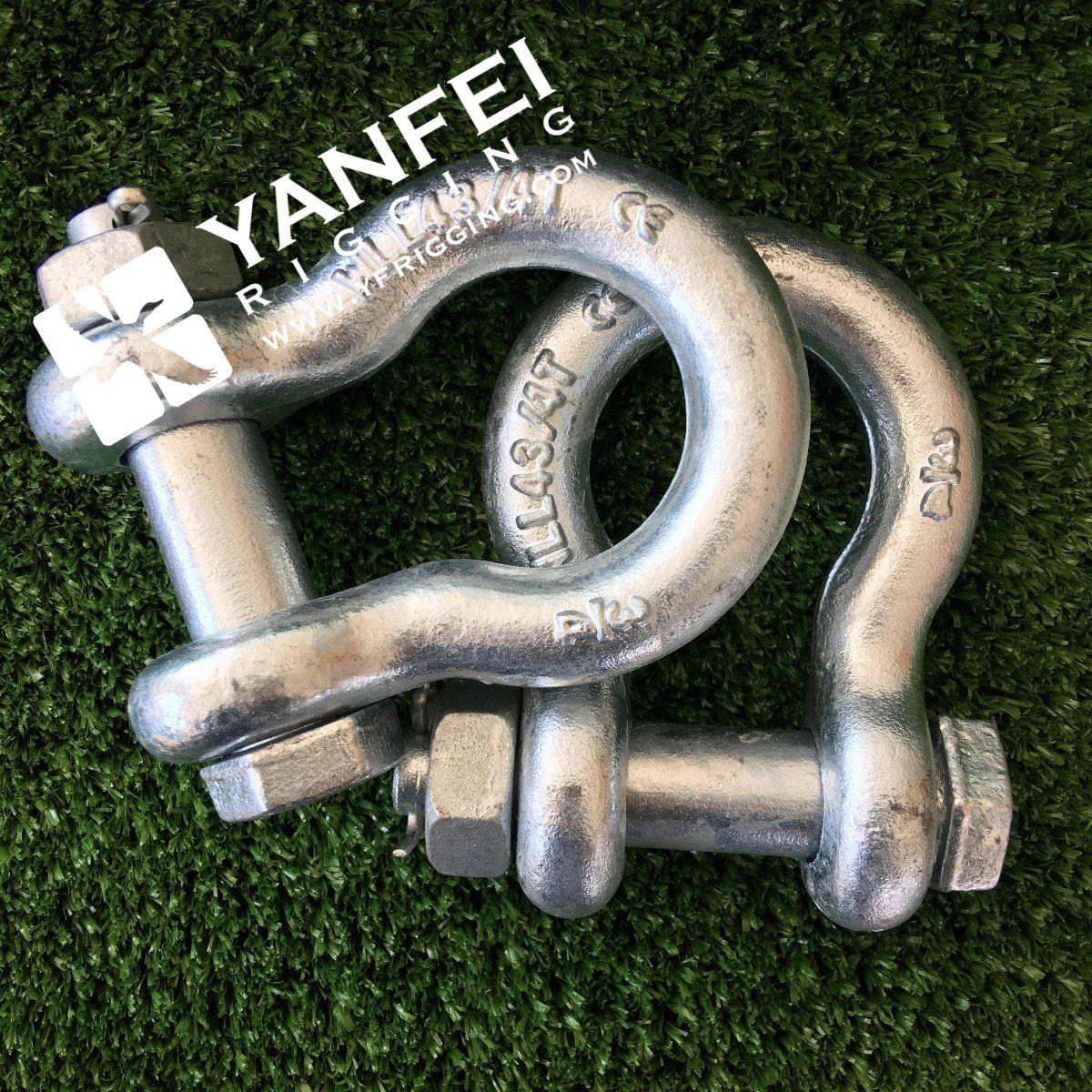

Rigging Hardware US Type G2130 Bow Shackle With Safety Pin
Material: Alloy Steel
Finishing: Hot Dip Galvanized/ Galvanized/ Self Colored
Heat treated: Tempered and Quenched
Minimun Utimate Strength: 6 Times /4 Times The Working Load Limit.
Packing: Gunny Bag / Carton, pallet
| ITEM NO | Nominal | Working | Dimensions | Weight | |||||||||
| Size | Load | (mm) | Each | ||||||||||
| Limit | (kg) | ||||||||||||
| (in.) | (tons) | A | B | C | D | E | F | G | H | N | P | ||
| BSC0832 | 1/4 | 1/2 | 11.90 | 7.85 | 28.70 | 6.35 | 19.80 | 15.50 | 32.50 | 46.70 | 34.00 | 6.35 | 0.06 |
| BSC1032 | 5/16 | 3/4 | 13.50 | 9.65 | 31.00 | 7.85 | 21.30 | 19.10 | 37.30 | 53.00 | 40.40 | 7.85 | 0.08 |
| BSC1232 | 3/8 | 1 | 16.80 | 11.20 | 36.60 | 9.65 | 26.20 | 23.10 | 45.20 | 63.00 | 47.20 | 9.65 | 0.13 |
| BSC1432 | 7/16 | 1-1/2 | 19.10 | 12.70 | 42.90 | 11.20 | 29.50 | 26.90 | 51.50 | 74.00 | 54.00 | 11.20 | 0.17 |
| BSC1632 | 1/2 | 2 | 20.60 | 16.00 | 47.80 | 12.70 | 33.30 | 30.20 | 58.50 | 83.50 | 60.50 | 12.70 | 0.32 |
| BSC2032 | 5/8 | 3-1/4 | 26.90 | 19.10 | 60.50 | 16.00 | 42.90 | 38.10 | 74.50 | 103.00 | 74.00 | 16.00 | 0.68 |
| BSC2432 | 3/4 | 4-3/4 | 31.80 | 22.40 | 71.50 | 19.10 | 51.00 | 46.00 | 89.00 | 126.00 | 87.00 | 20.60 | 1.05 |
| BSC2832 | 7/8 | 6-1/2 | 36.60 | 25.40 | 84.00 | 22.40 | 58.00 | 53.00 | 102.00 | 148.00 | 96.50 | 24.60 | 1.58 |
| BSC3232 | 1 | 8-1/2 | 42.90 | 28.70 | 95.50 | 25.40 | 68.50 | 60.50 | 119.00 | 167.00 | 115.00 | 25.40 | 2.27 |
| BSC3632 | 1-1/8 | 9-1/2 | 46.00 | 31.80 | 108.00 | 28.70 | 74.00 | 68.50 | 131.00 | 190.00 | 130.00 | 31.80 | 3.16 |
| BSC4032 | 1-1/4 | 12 | 51.50 | 35.10 | 119.00 | 31.80 | 82.50 | 76.00 | 146.00 | 210.00 | 140.00 | 35.10 | 4.42 |
| BSC4432 | 1-3/8 | 13-1/2 | 57.00 | 38.10 | 133.00 | 35.10 | 92.00 | 84.00 | 162.00 | 233.00 | 156.00 | 38.10 | 6.01 |
| BSC4832 | 1-1/2 | 17 | 60.50 | 41.40 | 146.00 | 38.10 | 98.50 | 92.00 | 175.00 | 254.00 | 165.00 | 41.10 | 7.82 |
| BSC5632 | 1-3/4 | 25 | 73.00 | 51.00 | 178.00 | 44.50 | 127.00 | 106.00 | 225.00 | 313.00 | 197.00 | 54.00 | 13.40 |
| BSC6432 | 2 | 35 | 82.50 | 57.00 | 197.00 | 51.00 | 146.00 | 122.00 | 253.00 | 348.00 | 222.00 | 51.00 | 20.80 |
Company Information
Qingdao Yanfei Rigging Co.,Ltd is located in Qingdao, China. For many years supplies a range of industrial products that covers lifting, lashing, slings, rigging, marine, mining, towing, transportation, construction, fishing and security applications... We provide not only high quality goods but also more additional benefits for our clients and partners.
With advanced production equipment, superb manufacturing process, strict management and with good quality product.
Under our business ideas "Quality first, Customer first", our goods are sold better and better.
Facing the market, our company will rely on a strong unity, forge ahead with determination and a leadership and workforce to meet the challenge, in fierce competition in the market ahead waves.
YANFEI will be your best business partner.
About sample:
Cost with free if the quantity small, and the express charge account into buyer's.
About payment:
T/T, LC in U.S. Dollars or EUR, for small orders, PayPal is ok.
About lead time:
Cause all of our products manufacturer according customers order,
usually within 35days after receipt of your deposit.
How Will My Order Be Shipped?
Usually shipped by sea, small order or urgent order can by air or by courier after received your agreement.
How long does it take to receive my order?
According the distance from China to your port. Usually from China to European about 22 days.
To West of American 20 days. To Asia 7 days or more.
By air or by courier will be faster, within 7days.
About mini order:
Different products with different limited, please contact us to confirm.
What's your quality guarantee?
We have different kinds of products which can meet different quality standard.
YANFEI QC department will teset products before shipping. We have 100% quality guarantee to customers. We will be responsible for any quality problem.
What's benefit will you bring?
Your client satisfied on the quality.
Your client continued orders.
You can get good reputation from your market and obtain more orders.
.
| Prod Model: | 5/16" |
|---|---|
| Product Name: | Rigging Hardware Us Type G2130 Bow Shackle with SA |
| Surface Finished: | Hot DIP Galvanized or Zinc Plated |
| Industry: | Rigging Hardware |
| Using: | Wire Rope& Chain Fittings |
| Material: | Steel |
| Shape: | Bow Shackle |
| Usage: | Industrial and Household |
