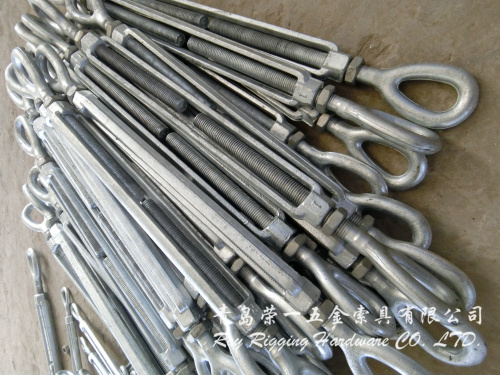

Rigging Hardware Eye/Eye Type Turnbuckle Carbon Steel HDG 1-1/4*18

Rigging Hardware Eye/Eye Type Turnbuckle Carbon Steel HDG 1-1/4*18
Price: US $ 1/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P
SPECIFICATION:

Name:US Fed Spec Galvanised Drop Forged Eye & Eye Turnbuckle

Item Number: HG-225

Thread Dia.: 1-1/4"

Take Up: 18"

Material: Carbon Steel 45#

Weight Each: 23lbs.

WLL: 15200lbs.

FOS: 4:1


DESCRIPTION:

End fittings are Quenched and Tempered; bodies are heat treated by normalizing

Hot Dip galvanized, zinc plated or self-colored.

In-line or straight pull application.

Lock Nuts available for all sizes.

Fatigue Rated.



THREAD DIA. & TAKE UP (IN.)ITEM NO.WORKING LOAD LIMIT (LBS.)WEIGHT EACH (LBS.)DIMENSIONS (IN.)
AJ        OPENK   CLOSEDM      OPENN   CLOSEDRSXBB
1/4 x 4
5000.260.2511.807.8012.258.250.780.341.754.00
5/16 x 4-1/28000.450.3113.569.0614.129.620.940.442.094.50
3/8 x 6
1,2000.760.3817.4711.4718.1612.161.120.532.536.00
1/2 x 6
2,2001.540.5020.0813.0820.9613.961.440.723.236.00
1/2 x 12
2,2002.140.5032.0819.0832.9619.961.440.723.2312.00
5/8 x 6
3,5002.400.6391.9314.6822.9315.681.750.883.906.00
5/8 x 12
3,5003.420.6333.9320.6834.9321.681.750.883.9012.00
3/4 x 6
5,2003.790.7523.8816.3825.1217.622.091.004.696.00
3/4 x 12
5,2005.480.7535.8822.3837.1223.622.091.004.6912.00
3/4 x 18
7,2007.190.7547.8828.3849.1229.622.091.004.6918.00
7/8 x 12
7,2007.220.8837.0723.3238.5724.822.381.255.1012.00
7/8 x 18
7,2009.950.8849.0729.3250.5730.822.381.255.1018.00
1 x 6
10,0009.041.0027.9719.9729.7221.723.001.446.366.00
1 x 12
10,00011.501.0039.9725.9741.9727.723.001.446.3612.00
1 x 18
10,00014.001.0051.9731.9753.7233.723.001.446.3618.00
1 x 24
10,00017.251.0063.9737.9765.7239.723.001.446.3624.00
1-1/4 x 12
15,20019.001.2542.8128.3145.0630.563.561.817.7212.00
1-1/4 x 18
15,20023.001.2554.8134.3157.0636.563.561.817.7218.00
1-1/4 x 24
15,20027.001.2566.8140.3169.0642.563.561.817.7224.00
1-1/2 x 12
21,40027.501.5045.5030.5048.0033.004.062.128.6212.00
1-1/2 x 18
21,40031.001.5057.5036.5060.0039.004.062.128.6218.00
1-1/2 x 24
21,40037.501.5069.5042.5072.0045.004.062.128.6224.00
1-3/4 x 18
28,00052.501.7557.3839.3860.3842.384.622.3810.0018.00
1-3/4 x 24
28,00058.001.7569.3845.3872.3848.384.622.3810.0024.00
2 x 24
37,00085.252.0075.6951.6979.1955.195.752.6913.0924.00
2-1/2 x 24
60,000144.252.5078.6254.6282.6258.626.503.1213.7824.00
2-3/4 x 24
75,000194.002.7581.0057.0085.5061.507.003.2515.2224.00





Prod Model: HG-226
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 1-1/4*18
Weight: 23lbs.
Wll: 15200 Lbs.
Material: Steel
Established in 1996, Roy Rigging Hardware Co., Ltd. Specializes in rigging hardware and electrical power hardware products. Locate in Qingdao, we enjoy convenient transportation networks, like Qingdao port. We produce nearly 300 kinds of products including earth anchors, rigging accessories, wire rope fittings, shackles, hooks, etc. The products are exported to more than 30 countries. The annual output is around 3000 ton and increasing year by year.

Covering an area of 15, 000 square meter, our factory is equipped with six advanced production lines, and operate under strict QC guidelines to guarantee high-quality product at competitive prices. Company currently employs more than 80 people including high-qualified engineers to provide customized solution for OEM/ODM projects.
