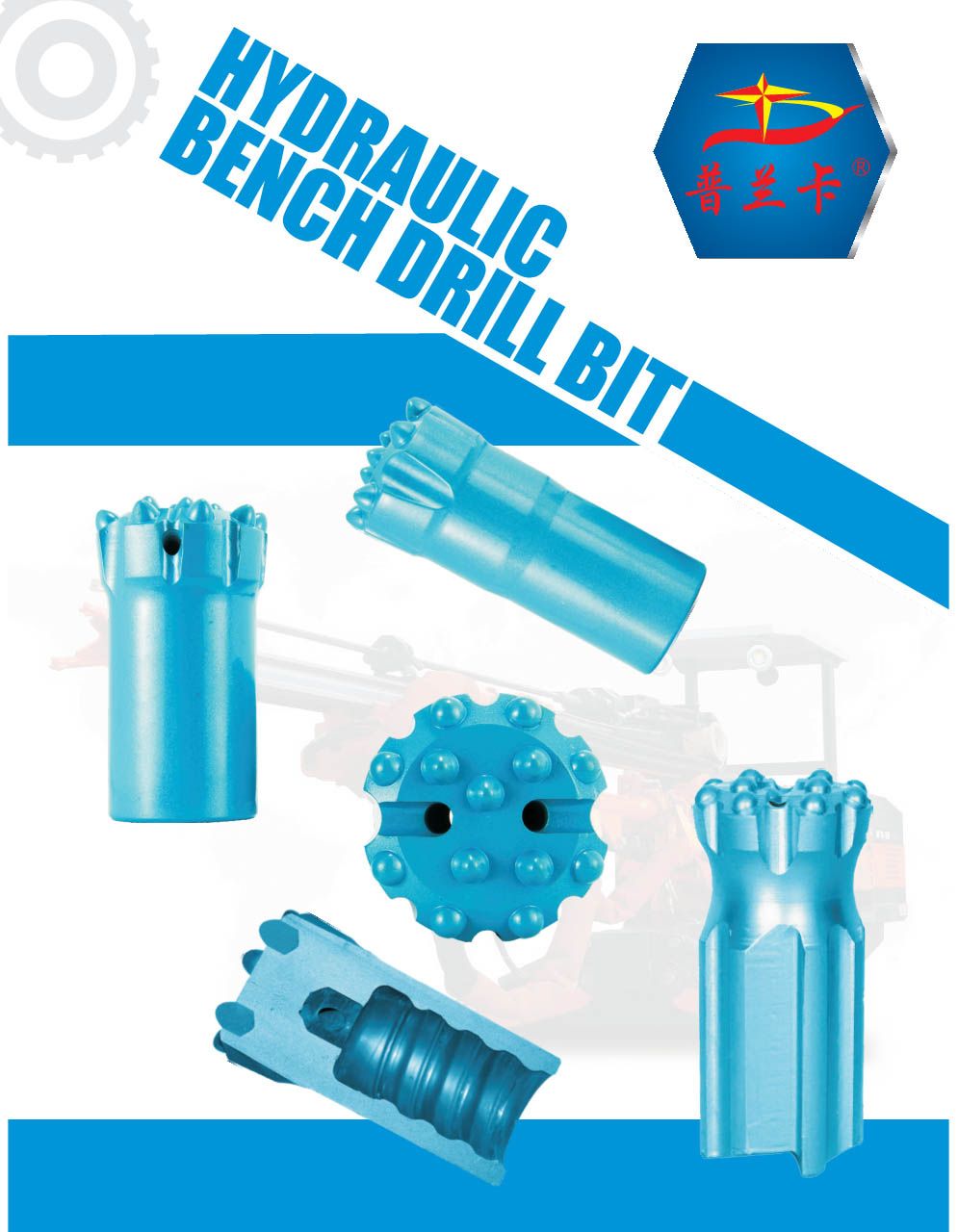

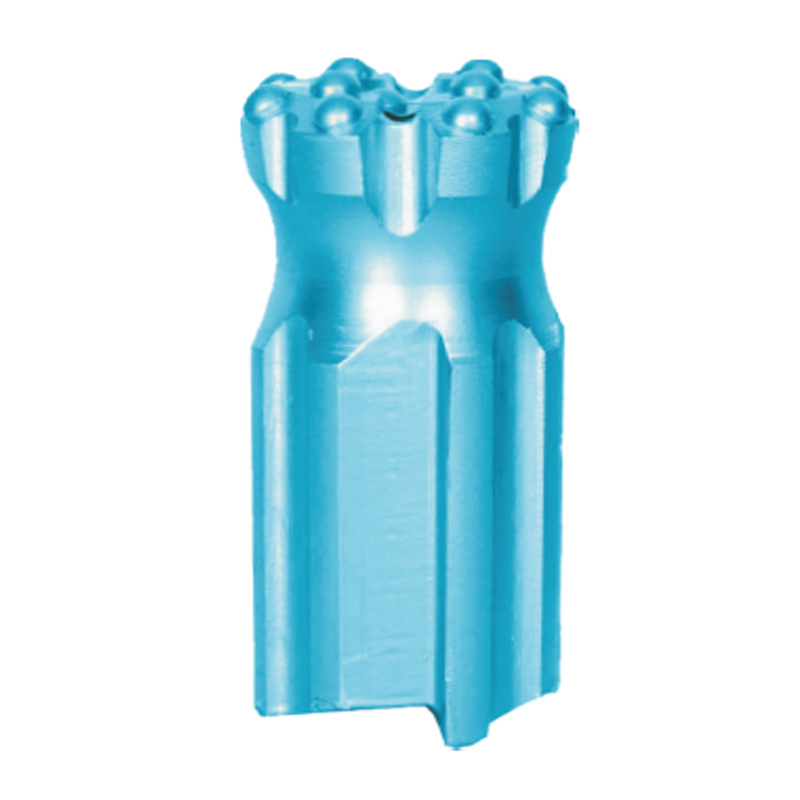

Retrac Thread Button Bit for Mining

Retrac Thread Button Bit for Mining
Price: US $ 52.6-53.3/Piece
Trade Terms: FOB,CIF
Min Order: 1000/Piece
Pay Type: L/C,T/T
Specifications:


product details:

1.Product Name:
thread drill bit
2.Application:Button bit Made with high quality of best quality alloy steel bar and tungsten carbide, through heat treatment like Atlas.
3.MOQ:No MOQ required for testing and trial orde
4.Body Type:Normal type and retract type
5.Thread type:R22,R25,R28,R32,R38,T38,T45,T51,ST58,ST68,GT60
6.Diamater:
32mm-152mm
7.Button shape
:Spherical and Ballistic
8.
Face shape:Flat shape and Drop-center shape

We can design and manufature according to your requirment of diameter, number air holes and carbide button shape.



The information you may like to know before order:

1.Method of payment:T/T(Telegraphic Transfer)or Western Union or L/C at sight.
2.Handing time for an order:Based on order quantity,normally it takes 25 days for production.only 2 or 3 days if we have stock on your request size.
3.Shipping way:Sample order,we suggest courier express like DHL/UPS/TNT by air.Bulk order we suggest by sea or by air.
4.Quality control:We have our own experienced QC,there will be strict inspection and testing for every order before shipping out.

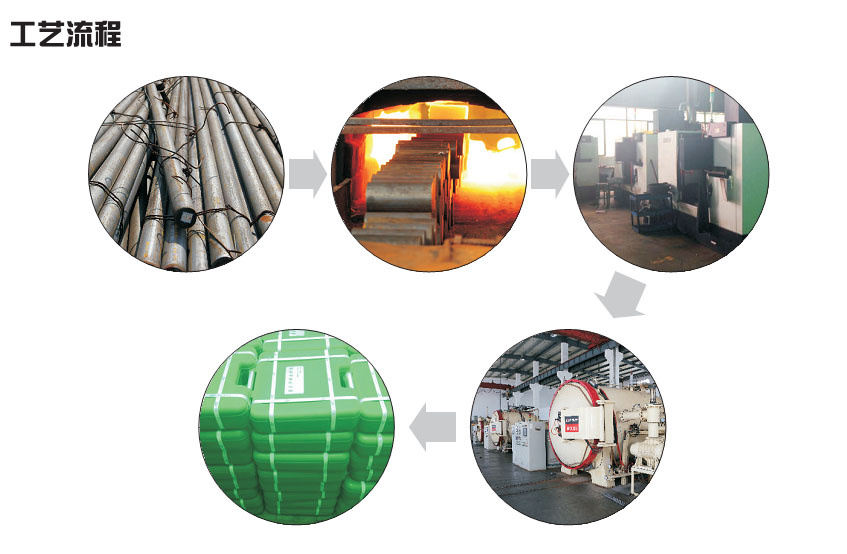

production process:

1.raw material-2.making bits body-3.making bit face-4.heat treatment-5package.
About us:

  1. our factory has been specialized in manufacturing drilling tools and spare since 2000.
  2. we have advanced technology and equipment.
  3. our technician has more that 10 years professtional working experience.
  4. rock drilling tools are exported throughout the word.main market:Norway.Turkey. Canada.Australia. Brazil.Iron. India.UAE
  5. We have professional technicians,advanced machine,responsible sales team
  Diam
No.×Button dia
connection
Item no.
retrac button bit mm in Front Gauge
76 3 4×11 8×12 T38 QZ1276-38156TP
    89 3 1/2 5×12 8×12 T38 QZ1389-38156TP
    76 3 4×11 8×12 T45 QZ1276-45184TP
    89 3 1/2 5×12 8×12 T45 QZ1389-45184TP
    102 4 1/5 7×17 8×14 T45 QZ15102-45184TP
    89 3 1/2 5×12 8×12 T51 QZ1389-51203TP
    102 4 1/5 7×12 8×14 T51 QZ15102-51203TP
    115 4 1/2 7×13 8×14 T51 QZ15115-51203TP


  Diam        No.×Button dia connection      Item no.
drop center retrac button bit mm in Front Gauge
76 3 1×10      3×11 6×12 T38 QZ1076-38156TA
    89 3 1/2 1×11     4×12 8×12 T38 QZ1389-38156TA
    76 3 1×10     3×11 6×12 T45 QZ1076-45184TA
    89 3 1/2 1×11     4×12 8×12 T45 QZ1389-45184TA
    102 4 1/5 1×12     4×12 8×12 T45 QZ13102-45184TA
    89 3 1/2 1×11     4×12 8×12 T51 QZ1389-51203TA
    102 4 1/5 1×12     4×12 8×12 T51 QZ13102-51203TA
    115 4 1/2 2×12     4×12 8×14 T51 QZ14115-51203TA
Prod Model: 76T45
Markets: South America,Africa,Mid East,Eastern Asia,Western Europe
Usage: Stone Cutting, Drilling
Manufacturing Arts: Sinter
Kind: Diamond Drill
Processing Type: Forging
Application: Mining and Quarring
Diamater: 45, 48, 50, 55, 60, 65, 76, 89, 102mm
Tip Size: 10mm
Thread Rock Drill Bit Type: R32, R38, T38, T45, T51
Package: Color Box
Material: Steel +Carbide Bit
Famous brand stems from the lasting quality, which is based on strict management and technological innovation. Located in TaiZhou city with flourishing economy and well-developed transportation system. Starting from the production of high quality mine tool drill bit, as chisel drill bits, cross drill bits and button drill bits. We import foreigner' S advanced technology and equipments to research and development DTH drilling products and hydraulic drifters drill bits. Through company' S efforts in recent years, Our products get continuous improvement, and obtained the domestic and foreign customers consistent high praise.

Product positioning market gradually shift from domestic to international markets, products exported to the United States, Germany, Britain, South Africa and so on more than 30 countries and regions, the international market established a good brand image and reputation.

Company can provide customers with regular import drilling machine, 90 domestic drilling tools, high air pressure DTH drilling tools and other products, can also according to customer' S use habit and requirements for design and processing, meet the demand of individual character. We warmly welcome the masses of customers to our company to visit, guide and communication, give us valuable comments and Suggestions.
