| Price: | US $ 1/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1000/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
1. Product Description

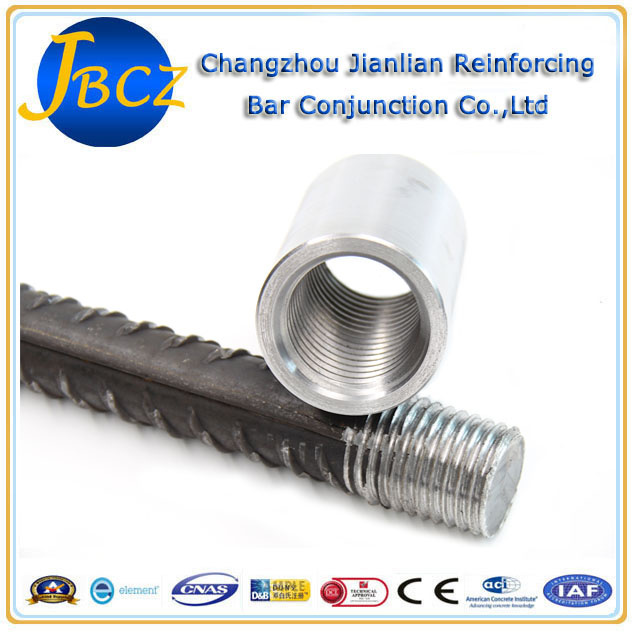

Upset forging parallel thread steel bar coupler can connect the deformed bars of FE500, FE550, FE600, ASTMA615 or other similar ones in the diameter range of 12~50mm. It can make sure 100% Bar Break Performance, it can connect steel bar diameter from 12mm to 40mm.

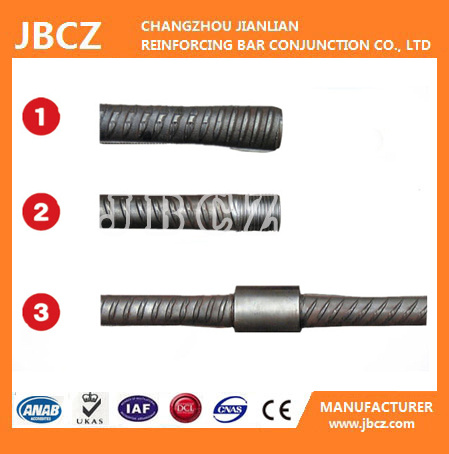

2. Working Principle:
First, we use GD-150 to forging the end of rebar.
Second, we use the GZL-45 to threading the end of rebar.
Third, we use the coupler to link the two ends of rebar.
3. Advantages:
1). The connection has the high tensile strength. The tensile strength of connector should equal to or not less than 1.1 times of steel bar itself. And the strength reach Grade I (reach 1.1 times of material's) and 100% exerted Grade II.
2). There are many types of couplers, are suitable to used in reinforcing steel bar cage, bend reinforcing steel bar.
3). High efficiency, easy operation and high speed connection, the processing of the reinforcing bar end is factory operation, it wont occupy the time of construction, the local connection can save a lot of time. Upset forging and threading one coupler only needs no more than one minute
4). Environmental protection, the processing of the reinforcing bar and the site operation is safe and reliable without noise, open flame and soot. Economize energy source and material, economy profit
Customer's special demand is available. For example, 38mm, 50mm.

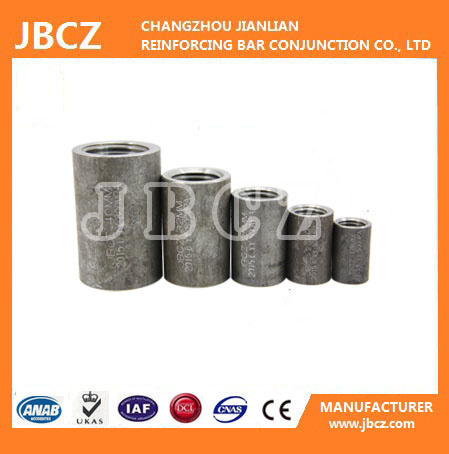

4. Technical data:
Steel bar Diameter(mm) | Outer diameter Of coupler (mm) | Length of Coupler (mm) | Size of thread (mm) |
12 | 20 | 30 | M14*2.0 |
14 | 22 | 34 | M16*2.0 |
16 | 26 | 40 | M20*2.5 |
18 | 29 | 44 | M22*2.5 |
20 | 32 | 48 | M24*3.0 |
22 | 36 | 52 | M27*3.0 |
25 | 40 | 60 | M30*3.5 |
28 | 44.5 | 66 | M33*3.5 |
32 | 50 | 72 | M36*4.0 |
36 | 56 | 80 | M39*4.0 |
40 | 62 | 90 | M45*4.0 |

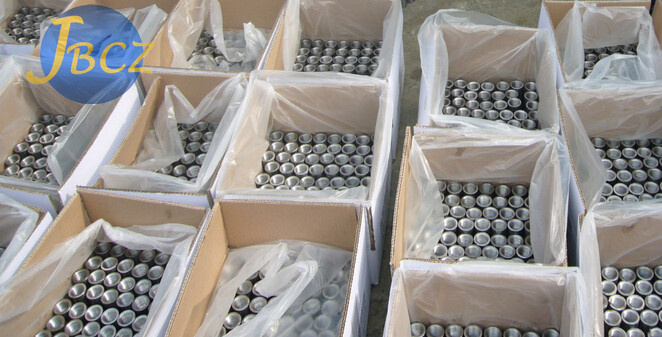

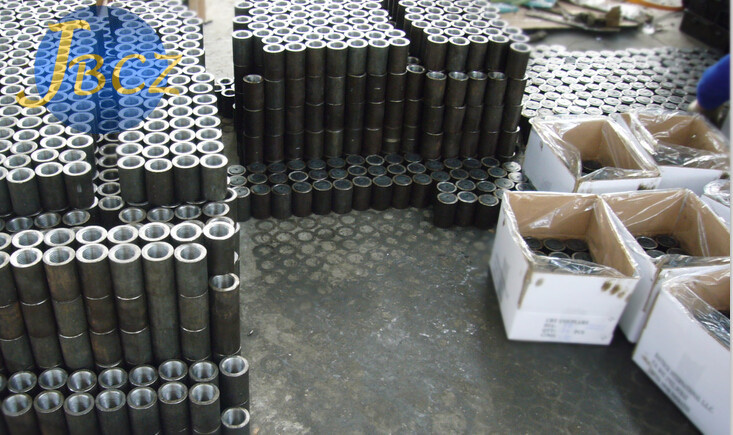

Carton, wooden case, wooden plate or according to your request
1. How can I know the quality of JBCZ rebar coupler?
We can send you FREE SAMPLE to do test, or you can send us your rebar, we link it with our rebar coupler, then send back to you, if the test result is bad, we will pay you for the courier charges.
2. Where is your company?
Our company is located between Shanghai and Nanjing China, if you arrive at Shanghai Airport, we are glad to pick up. It will take 2 to 3 hours from the Airport to our company by Car. You are very welcome to visit us!
3. If you have any problems, please send message to me, I will reply you within 1 working day.
Also you are welcome to contact me, my mailbox: ASSISTANT at JBCZ.COM
| Prod Model: | 12mm to 40mm |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Colour: | White, Black |
| Certificate: | Ce and ISO |
| Tensile Strength: | Strong Strength |
| Operation: | Easily Handy |
| Quality: | High |
| Price: | The Most Competitive |
| Service: | Excellent |
| Connection: | Mechanical Connection |
| Surface Finishing: | Threading |
| Material: | ["Medium Carbon Steel''] |
