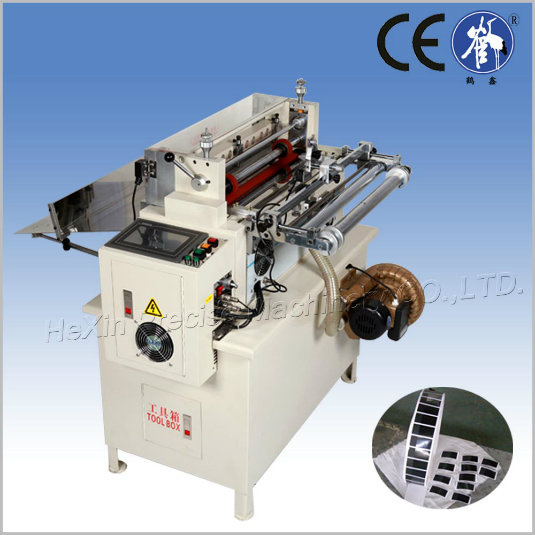

Refelctive Tape Band Sheet Cutter Machine

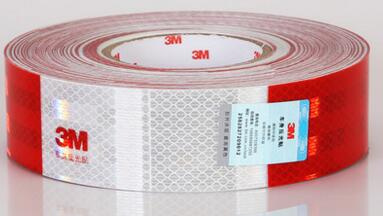

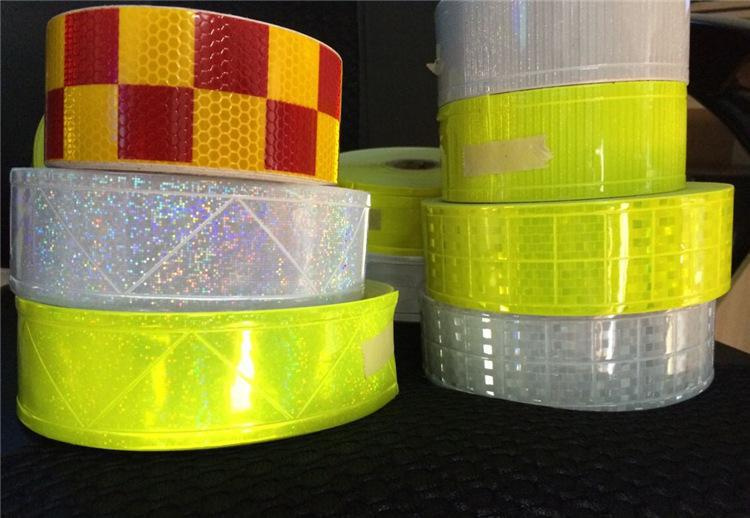

This machine is designed for EPE foam, pre-printed material, like label, sticker, reflective strap, paper, PET, PC, etc. It adopts an imported photoelectric sensor to achieve precise cutting.
Parameters:
Model | HX-160D | HX-360D | HX-600D | HX-1250D |
Voltage | 220V/380V | 220/380V | 380V | 380V |
Power | 375W | 750W | 2HP | 6HP |
N.W. | 80kg | 260kg | 320kg | 2200kg |
GW. | 130kg | 280kg | 350kg | 2400kg |
Cutting Length | 0.1-9999.9mm | 0.1~9999.9mm | 0.1-9999.9mm | 0.1-9999.9mm |
| Cutting speed | 120-130cut/min | 120-130cut/min | 120-130cut/min | 120-130cut/min |
Cutting Width | 1-160mm | 1~360mm | 1-600mm | 1-1250mm |
Measurement | 550*500*1000mm | 780x920x1070mm | 1500*1300*1200mm | 3200*1250*1250mm |
| Configuration list | ||
| Model:HX-360B | Micrcomputer sheet cutting machne | |
| Item | Description | Qty |
| Unwinding department | unwinding shelf | 1set |
| Guiding department | guiding shaft | 3 sets |
| fixture lines | 4 sets | |
| Feeding department | feeding rubber coil | 1set |
| control pressure spring | 1set | |
| lift rail | 1set | |
| Cutting department | lower knife | 1set |
| upper knife | 1 set | |
| Place rack | place rack | 1 set |
| Safty department | protective cover | 1 set |
| safe senser | 1 set | |
| safety fuse | 1set | |
| Lubrication department | two mechanical movements parts | 2 series |
| Cooling department | fans | 2 sets |
| PLC control department | touch screen | 1 set |
| switch | 5 sets | |
| counts sensor | 1 set | |
| Circuitry department | sevro motor | 1 set |
| Optional device for your choice: | ||
| * no material automatic stop device | ||
| *full/kiss cut pneumatic device | ||
| *electrical static eliminator | ||
| *hot or cold cut style | ||
| *fullor kiss cut | ||
Configuration brand:
Touch Screen | WEINVIEW | Made in Taiwan |
Programmable Controller | MITSUBISHI | Made in Japan |
Servo Driver | DELTA | Made in Taiwan |
Servo Motor | DELTA | Made in Taiwan |
Motor of cutting knife | SL | Made in Taiwan |
AC Contactor | SNAIDER | Made in China |
Solid State Relay 20A | OMRON | Made in Japan |
Photoelectric sensor | PANASONNIC SUNX | Made in Japan |
Machine Features:
1. Max material width: 360mm;
2. Tolerance: 0.05mm, Precision: 0.1mm;
3. Material thickness range: 0.5mm-15mm;
4. Both kiss cut and full cut are available, full cut is for standard machine, and kiss cut is an option;
5. This printed paper roll to sheet cutting machine employs a man-machine interface and PLC system to control;
6. This printed paper roll to sheet cutting machine adopts an imported photoelectric sensor and suction device to achieve precise cutting;
7. This printed paper roll to sheet cutting machine can preset cutting length, speed, and quantity, and it will memorize them when it runs next time;
8. This printed paper roll to sheet cutting machine adopts a servo motor to make sure accuracy;
9. Operation is easy with a touch screen.
Options:
1.Kiss cut knife
2. Hot cutting knife
3. Conveyor belt
4. Unwinding machine
5. Fixture
1. We are a factory, and the price is favorable.
2. We have strict QC system.
3. We offer a free after-sales service for one year.
4. Our engineers are available to service machinery overseas.
5. Our machines have been sold to over 40 countries.
1. Q: Are you a factory or trading company?
A: We are a factory and manufacturer
2. Q: Where is your factory located in ? How can I visit there?
A: Our factory is located in Kunshan which is very near from Shanghai, and our detailed address is: Factory 9, No. 157, Wulian Road, Yushan Town,
Kunshan, Suzhou, Jiangsu, China. If you fly to Shanghai hongqiao airport or Pudong airport, we can pick you up by car from there. We welcome all our clients, home and abroad, to visit us.
3. Q: what are your main products?
A: Our main products are belt cutting machines, slitting machines, sheeting machines, laminating machines and die cutting machines.
4.Q: Which industries can use your machines ?
A: All industries need to cut (include full cutting and kiss-cutting), slit, laminate, die cut raw materials can use our machines.
5.Q: How to control the quality in your factory ?
A: Quality is priority. We control the quality of our products strictly, from the incoming materials to the finished products. Our factory has obtained CE & ISO Certification
6. Q:If there are no machines available from your list, could we customize non-standard machines from you ?
A: Yes, we have our own professional design engineers, and can customize products according to your requirements.
Company information:
Kunshan Hexin pricision machinery co.,ltd is a collection fo production, research and development , sales and service as one fo professional electronic mahcinery manufacturing enterprises. We speciallized in microcomputer slicing machines, cuting machines, slitting mahcines, laminating machines and die-cutting machines for many years. Our company have obtained 11 patents and passed the SGS factory qualification certification and the European Union CE certification. In 2013, we have got "national high -teach enterprise". Our products are exported to Europe, America, Southeast Asia, the middle East, Africa and many other countries and regions that won the domestic and foreign customers consistent high praise.

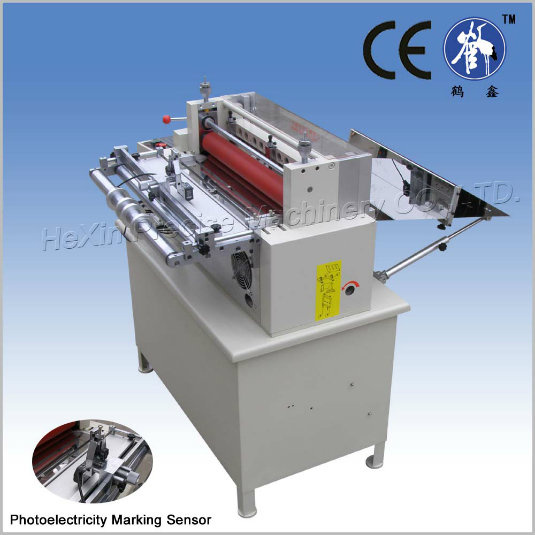

| Hexin 600D Microcomputer sheeting machine with photoelectricity marking | ||
| Configuration list | ||
| Model:HX-360D | Micrcomputer sheet cutting machne | |
| Item | Description | Qty |
| Unwinding department | unwinding shelf | 1set |
| Guiding department | guiding shaft | 3 sets |
| fixture lines | 4 sets | |
| Feeding department | feeding rubber coil | 1set |
| control pressure spring | 1set | |
| lift rail | 1set | |
| Cutting department | lower knife | 1set |
| upper knife | 1 set | |
| Safty department | protective cover | 1 set |
| safe senser | 1 set | |
| safety fuse | 1set | |
| Photoelectric department | photoelectric marking | 1 set |
| Lubrication department | two mechanical movements parts | 2 series |
| Cooling department | fans | 2 sets |
| PLC control department | touch screen | 1 set |
| switch | 5 sets | |
| counts sensor | 1 set | |
| Circuitry department | sevro motor | 1 set |
| Optional device for your choice: | ||
| *electrical static eliminator | ||
| * no material automatic stop device | ||
| *full/kiss cut pneumatic device | ||
| *hot or cold cut style | ||
| *fullor kiss cut | ||
| Prod Model: | HX-600B |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: | Hx-600d |
| Voltage: | 220V/380V |
| Power: | 1/2HP-6HP |
| N.W.: | 80kg-2200kg |
| Cutting Speed: | 130cut/Min |
| Cutting Length: | 0.1-9999.9mm |
| Cutting Width: | 1-1250mm |
| Measurement: | 980*1450*1300mm |
| Classification: | Double-blade Cutter |
| Driven Type: | Electric |
| Blade Material: | Stainless Steel |
| Computerized: | Computerized |
