Quarry Wire Saw for Granite and Marble (WSM-KT-37KW)

Quarry Wire Saw for Granite and Marble (WSM-KT-37KW)
Price: US $ 16800-27000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union
Wire saws are widely used for quarry cutting and block squaring of granite, marble and kinds of stone; As well as controlled demolition of construction, with advantages of high efficiency, perfect cutting results, good flexibility and adaptability, low comprehensive cutting cost, high output etc.

1. Variable wire speed range from 0-40M/S
2. Motorized rotation of driving wheel holder from 0- 360degree with limit protection for over movement
3. Motorized lateral extension of flywheel shaft position +/- 350-400mm with limit protection for over movement
4. Maximum travel speed on rail without loading 1.75M/Min
5. Safety alarm and stop system in case of unexpected wire break or any other faults
6. Distant control with very simple panel to operate the saw with better safety easier understanding to the operator
7. Separate automatic reset selection switch to control the rotation and lateral extension movement; Which can be take off when it is no need.
8. Schneider electronics with better reliability and convenient local source for replacement
9.20 second main motor start alarm sound and flash light to warn around people leave away.
10. Solid turbine and worm with perfect covering and protection against dust and water during work.
11. Direct Gear wheel driving for stable and fast travel movement on rail.
12. Big and strong steel frame with dimension of 2m length, 1.4m width and 1.3meter height which allows more inside space for easier maintenance and repair.
13. 1.3meter width rail with 5mm thickness and 70mm diameter steel pipe for better duration and more stable movement of saw.
14. General gross weight: 2300-3300kgs
15. General volume dimension: 4- 7cubic meter (with packing)

Packaging & Shipping:

Packaging: All packing will be done with protection against damages while transporting.
Delivery time: In 7 days for one set of wire saw machine.

Our Services:

1. Wire sawing operational assistance service.
2. Proposal for quarry development and plan, if necessary.

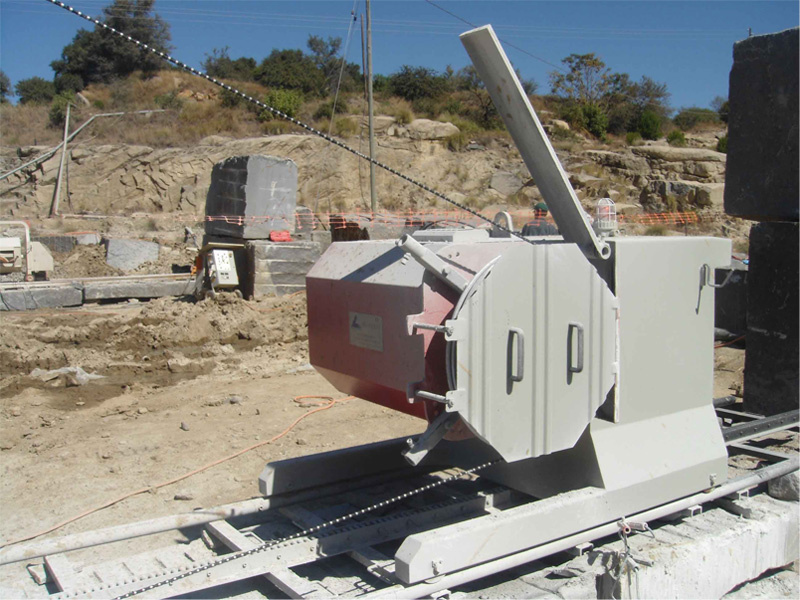

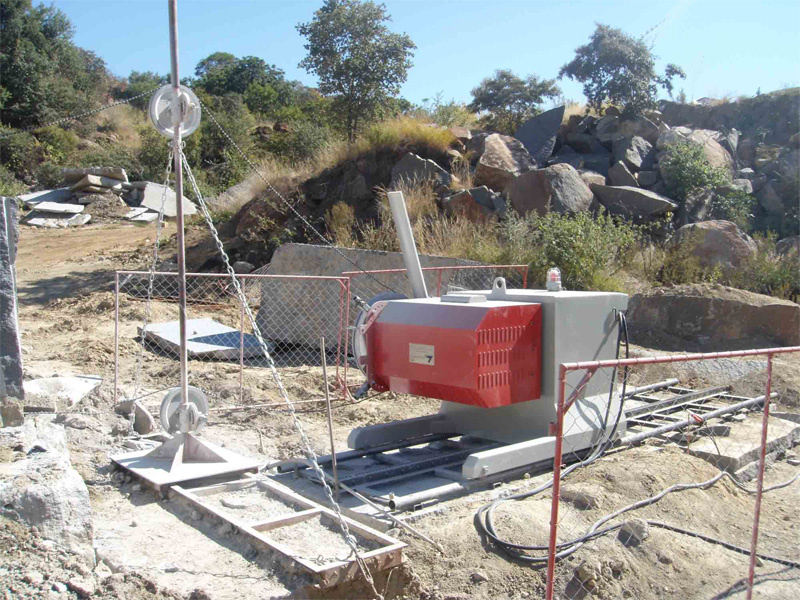

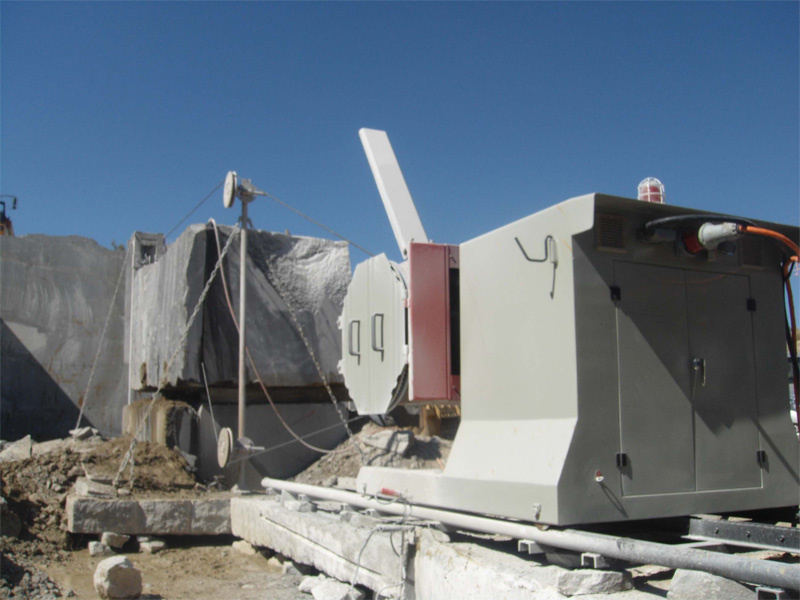

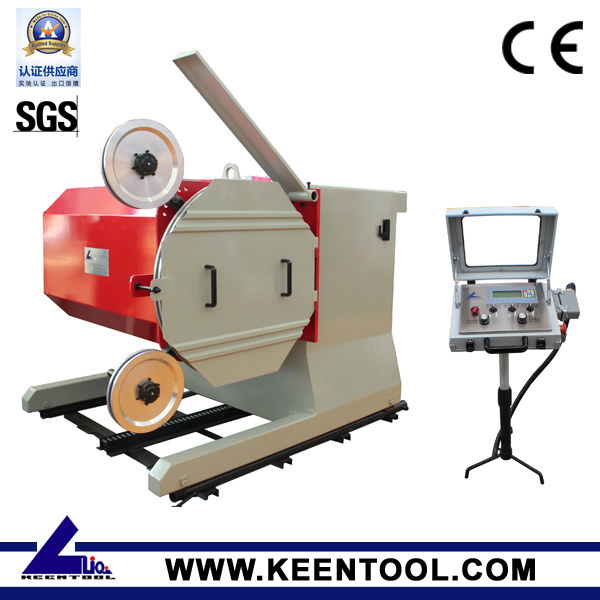

Pictures of wire saw machine:




ModelMain MotorLength of wire
(Meter)
Linear Speed
(M/Sec)
Diameter of driving wheels
(mm)
Application
LQ-WSM-11KW11KW/15HP5-200-40Φ550For block trimming
LQ-WSM-15KW15KW/20HP5-300-40Φ550
LQ-WSM-22KW22KW/30HP10-400-40Φ600
LQ-WSM-37KW37KW/50HP20-800-40Φ800For Quarry
LQ-WSM-45KW45KW/60HP20-100
LQ-WSM-55KW55KW/750HP20-120
LQ-WSM-75KW75KW/100HP20-1500-40Φ1000
Prod Model: WSM-KT-37KW
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Main Motor: 37/55/75kws
Linear Speed: 0-40m/S
Driving Wheel Diameter: 800mm-1000mm
Leading Wheel Diameter: 380mm
Standard Power Supply: 3 Phases 380volts,50Hz
Cutting Direction: Any Direction
Feeding Speed: 1750mm/Min
Adjustment Distance: 350-400mm
Weight: 2-3.5t
Source Voltage: 380V
Automation: Automatic
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.

We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:

1. For stone Quarry:

Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.

Consultant service for project evaluation, quarry development and mining construction

Consultant and marketing service for block distribution

2. For stone Factory:

Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.

3. For civil construction:

Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.

Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction

Diamond blade for cutting concrete, reinforced concrete and asphalt

Diamond Core Drills for concrete reinforced concrete, wall and asphalt

Diamond polisher for polishing of concrete floor, wall and blocks

The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
