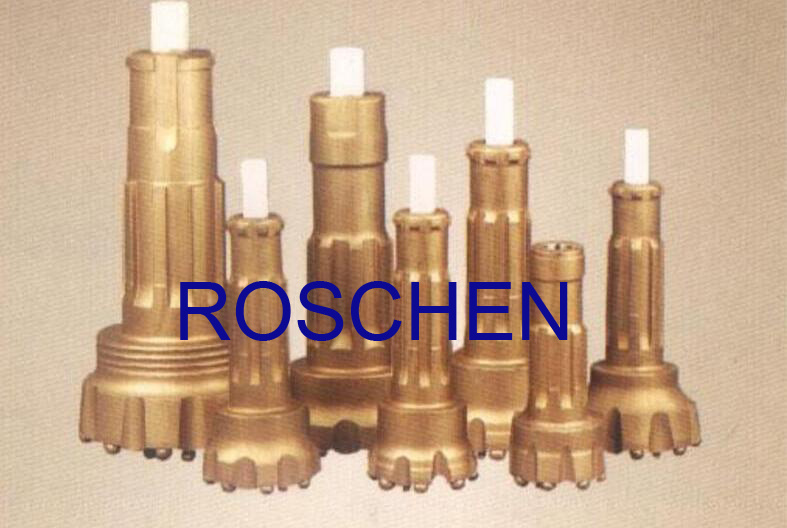

Ql40 Down The Hole DTH Hammer Bits for Drilling

Ql40 Down The Hole DTH Hammer Bits for Drilling
Price: US $ 300-10000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Germany, China(joint-venture).

We have rich experience in this field of DTH hammers and bits for 60 years.

Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as US, Canada, France, Spain, Italy, South Africa, Iran, Malaysia, Australia, etc.




Product specifications:


For 4" hammer
DTH bits shank
Bit Dia.No. Air HolesGauge
Buttons
Front
Buttons
Weight
(Kg)
Part No.
mminch
       DHD340A/COP441054 1/8"26×φ145×φ139DHD340-105
1104 1/4"27×φ136×φ139.3DHD340-110
1154 1/2"27×φ146×φ1310DHD340-115
1204 3/4"28×φ146×φ1411DHD340-120
127528×φ147×φ1412DHD340-127
                 SD41054 1/8"26×φ145×φ139SD4-105
1104 1/4"27×φ136×φ139.5SD4-110
1154 1/2"27×φ146×φ139.8SD4-115
1204 3/4"28×φ146×φ1411.5SD4-120
127528×φ147×φ1412.3SD4-127
                 QL401054 1/8"26×φ145×φ139QL40-105
1104 1/4"27×φ136×φ139.2QL40-110
1154 1/2"27×φ146×φ139.5QL40-115
1204 3/4"28×φ146×φ1410.3QL40-120
127528×φ147×φ1411.5QL40-127
               Mission401054 1/8"26×φ145×φ136M40-105
1104 1/4"27×φ136×φ136.2M40-110
1154 1/2"27×φ146×φ136.6M40-115
1204 3/4"28×φ146×φ147M40-120
127528×φ147×φ147.4M40-127





Other ROSCHEN hammer bit technical data:

ROSCHEN DTH Bits Specifications
Hammer  SizeBits diameterShankROSCHEN CODE
MetricInch
1"64mm-70mm2 1/2"-2 3/4"BR1ROS 11
2"70mm-95mm2 3/4"-3 3/4"MACH20/BR2ROS 22
3"90mm-102mm3 1/2"-4"COP32/COP34/MACH303ROS 32
M30/DHD3.5/BR3ROS 34
4"105mm-152mm4 1/8"-6"COP44/DHD340/MACH44ROS 42
SD4/M40/QL40ROS 44
5"133mm-165mm5 1/4"-6 1/2"COP54/DHD350R/MACH50ROS 52
SD5/M50/QL50/BR5ROS 54
6"152mm-254mm4 1/8"-10"COP64/DHD360/SD6ROS 62
M60/QL60/Bulroc BR6ROS 64
8"203mm-330mm8"-13"COP84/DHD380/SD8ROS 82
QL80/M80/M85ROS 84
10"254mm-380mm10"-15"SD10ROS 100
NUMA100
12"305mm-508mm12"-20"DHD1120/SD12ROS 120
NUMA120/NUMA125
Notes:
Metzke, Remet thread is available!
Any special size of DTH bits will be available by requests.





Shank can be available:

1), Dia. 64mm-70mm shank Bulroc BR1
2), Dia. 70mm-95mm shank Halco MACH20, Bulroc BR2
3), Dia. 90mm-102mm shank COP32, COP34, Halco MACH303, M30, DHD3.5, Bulroc BR3
4), Dia. 105mm-152mm shank COP44, DHD340, Halco MACH44, SD4, M40, QL40, Bulroc BR4
5), Dia. 135mm-165mm shank COP54, DHD350R, COP54, Halco MACH50, SD5, M50, QL50, Bulroc BR5
6), Dia. 152mm-254mm shank COP64, DHD360, SD6, M60, QL60, Bulroc BR6
7), Dia. 203mm-330mm shank COP84, DHD380, SD8, QL80
8), Dia. 254mm-380mm shank SD10, Numa100
9), Dia. 305mm-508mm shank DHD1120, SD12, N120, N125
10), Dia. 405mm-864mm shank SD15, SD18
11), VKP80, VKP95, CIR90, CIR100, CIR110, CIR150, CIR200...




We can also provide related products DTH hammers, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc


Product photos





Quality warranty:

Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.


Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.



Production time:

Generally need 15-25 days


Transportation:
By air, By Express or By sea according to your requests.














FAQ


Q: Are you a manufacturer or trading company?
A: We are a specialized manufacturer.

Q: What are your main products, and used for?
A: Our products include core bit, PDC bit, reaming shell, core barrel, casing, drill rod, SPT equipment, Shelby sampler, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling, geotechnical engineering and soil sampling.

Q: How about the delivery terms?
1. Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By DHL/TNT/Fedex express, air, sea, train.

Q: How about discount?
A: Price is based on products and order quantity.

Q: Do you accept sample order?
A: Yes sure, please contact us for details.

Q: How about your after-sales service?
A: As a manufacturer, we offer promt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.

Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, Roschen always makes a serious inspection for all products and raw materials in strict procedure. We have obtained certificate of ISO9001:2000 in 2004.



For more information please contact:



ROSCHEN INC.
ROSCHEN GROUP LIMITED
ROSCHEN HOLDINGS LIMITED





: +86-137 6419 5009 ; +86-135 8585 5390



Website: http://www.roschen.net

 ; http://www.roschen.cn


http://www.roschen.com

 ; http://www.roschengroup.com

Prod Model: ROS44
Name: Down-The-Hole Drill Bit
Bits: DTH Hammer Bits
Drill Bits: Down The Hole Drill Bits
Drilling Bits: Down Hole Hammer Drilling Bits
DTH: Down The Hole Hammers
Drilling: Down The Hole Hammer Drilling
Item: Rev Drill Down Hole Hammer
Sale: Down Hole Hammer for Sale
Use: Down The Hole Drilling Method
China: China Down Hole Hammer and Bits
ROSCHEN Geotechnical drilling, geothermal drilling, Oil and gas drilling, Exploration Core drilling, Rock Drilling products

ROSCHEN Geotechnical drilling, geothermal drilling, Oil and gas drilling, Exploration Core drilling, Rock Drilling, can offer the equipment needed for all rock drilling, underground and surface exploration applications in Mining Industry, Water Well Industry, Oil Field Industry and geothermal industry, etc. This includes rigs and all full range of high technology and high quality products, ITH equipment such as button bit, DTH bit, DTH Hammer, wireline series products, metric series products, drill rod and conventional core barrel, overshot, as well as casing and diamond core bit - all designed to maximize our customer profitability.

Rock drilling and Exploration drilling is tough, results-driven work. And if you want it done right, you need the right tools. ROSCHEN Exploration Products has the products you've depended on for many years.

All our products are designed to help the user minimize down-time and maximize productivity. ROSCHEN products used in many industries: Waterwell, Environmental, Oil Exploration, Mining, Geothermal and Construction.

We build drill bits to the highest standards - using raw materials selected for quality and durability, and assembling them with the latest metallurgical technology.

Our innovative and unique alloy formulations assure you of maximum penetration under all conditions, and ROSCHEN can customize drill bits to your specifications for any especially difficult drilling situations.

You'll find our experienced production team delivers exactly what you need - any time, anywhere. ROSCHEN has one clear focus - to provide the best diamond-drilling tools, equipment and accessories for the world's leading mineral drilling exploration companies.

ROSCHEN'S mission is:

· To strive to create and supply quality products for the industry that last longer than the average products.

· To provide excellent service for our clients. We work on a 24 hour-7 days a week schedule to get our clients what they need - FAST.
