Qingdao Jic Male/Female Hydraulic Hose Fitting / Pipe Fitting (16711) (26711)

Name: Qingdao Jic Male/Female Hydraulic Hose Fitting / Pipe Fitting (16711) (26711)
Brand: tool-buy.com
SKU: 681449391
Availability: InStock
Rating: 4.4 (118 reviews)

Price:	US $ 0.254-0.892/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	200/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

LOMOFLEX CO., LTD.

Showroom Product Company Profile

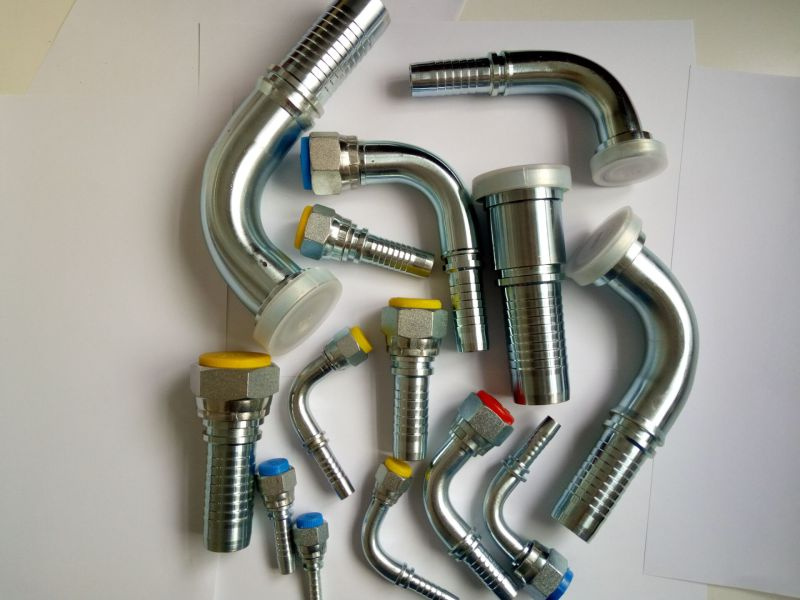

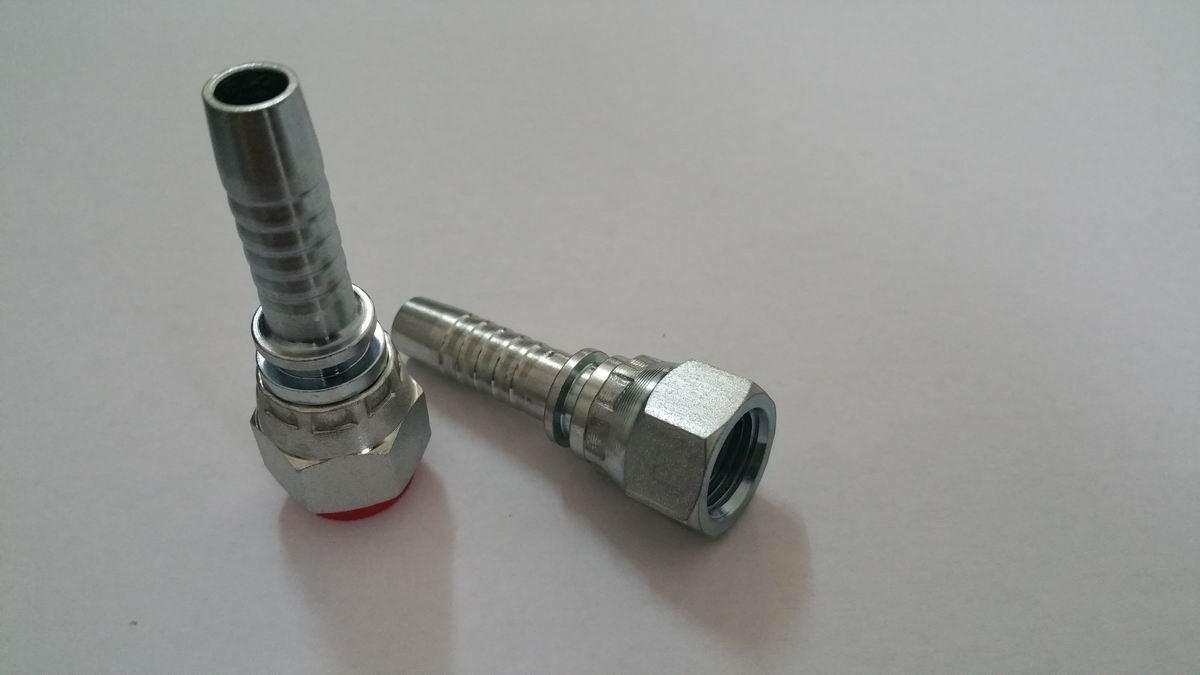

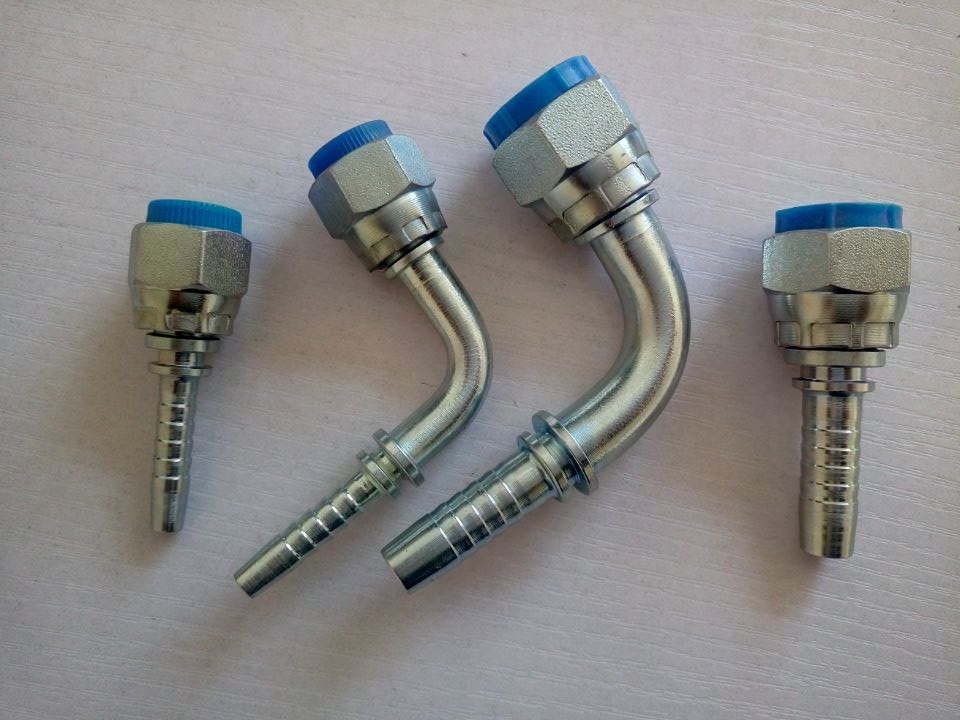

Qingdao JIC Male/Female Hydraulic Hose Fitting / Pipe Fitting (16711) (26711)

Material: Carbon Steel, Stainless Steel
Surface Treatment: Yellow or white Zinc-Plated
Standards: Eaton, DIN, ISO, SAE, JIC or As customers' drawing
Export Markets: Global

Company Introduction

QINGDAO UNITE MACHINERY CO.,LTD is specialized in manufacturing and exporting hydraulic fittings. Our Main products include : Ferrules, Hydraulic hose fitting, hydraulic adapter and hose assemblies.

We can supply full range of hydraulic hose fitting and adapters : Metric, BSP, BSPT, JIC, NPT, ORFS, SAE Flange etc. We also provide the OEM service for customers who have special requirements according to customer's drawing.

So far, our products have been exported to America, Canada, Chile, South Korea, Italy, UK, Switzeland, UAE and more than 40 countries. We totally believe our price and quality is pretty competitive in the market. Hoping we can get a chance to compete with your current suppliers.

Statement

1. Payment term: L/C, T/T
2. Delivery time: 45-75 days after down payment

3. Galvanization : Zinc Plating (Cr3 ) Silver & Yellow

4. Salt Spray Test > 72 Hours, 96 Hours, 120 Hours, 240 Hours Available

5. Product Logo : "Unimach" or according to your requirements.

6. Packing : Hose Fitting and adapters are protected by plastic caps. Then packed in the carton box with plywood boxes. Plastic bag+box+wooden pallent.

7. Sample : Free samples will be provided upon customer request.
8. Certification: ISO9001

QC procedure:

We have 3 professional and technical QC inspectors. They will ensure products quality.

1. Material checking: Strictly control of material using, meet international requested standards;

2. Semi-finished products inspection: Product inspection before 100% finished;

3. Production line test: With work team or data engineer who will inspect matchines and lines at fixed period.

4. Finished prodcuct inspection: Quality and property test before products are plated zinc, packed and loaded.

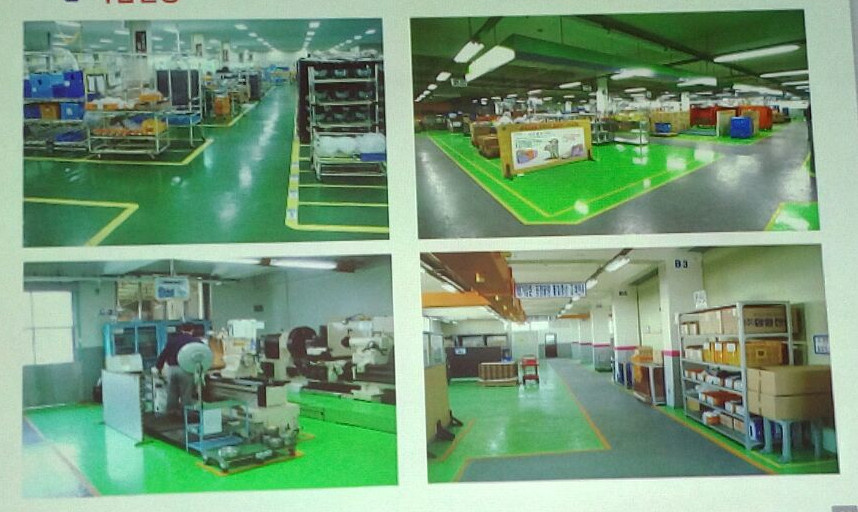

Our workshop:

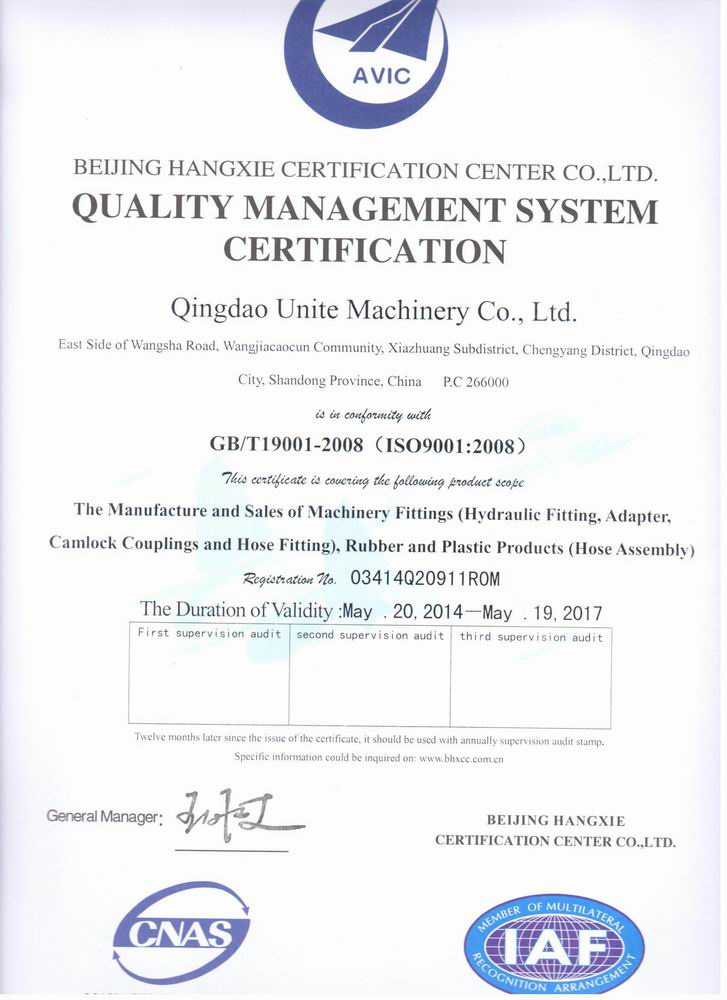

ISO(9001:2008) certificate:

FAQ:
1.How do you control the quality of your products?
-Talented in-house engineers' team.
-And strict ISO 9001:2008 quality control system;
-And before the cargoes sent, we will have strictly testing process.

2.How about your products price?
We have our own factory, so our price will be more competitive.

3.Can you offer the samples for us?
Yes, samples can be provided for you to test our quality. Customers just need to pay for the freight cost.

Products specification:(16711)

Number:16711
Name:JIC Male 74°Cone ISO 8434-2---SAE J514
Description:
PART NO.	THREAD E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	C	S1
16711-04-03	7/16"X20	5	3	26	14	12
16711-04-04	7/16"X20	6	4	26.5	14	12
16711-05-04	1/2"X20	6	4	26.5	14	14
16711-05-05	1/2"X20	8	5	26.5	14	14
16711-05-06	1/2"X20	10	6	26.5	14	17
16711-06-04	9/16"X18	6	4	26.5	14.1	17
16711-06-05	9/16"X18	8	5	26.5	14.1	17
16711-06-06	9/16"X18	10	6	26.5	14.1	17
16711-08-06	3/4"X16	10	6	31.5	16.7	22
16711-08-08	3/4"X16	12	8	32	16.7	22
16711-10-06	7/8"X14	10	6	32	19.3	24
16711-10-08	7/8"X14	12	8	34.3	19.3	24
16711-10-10	7/8"X14	16	10	35.5	19.3	24
16711-12-08	1.1/16"X12	12	8	39	21.9	27
16711-12-10	1.1/16"X12	16	10	40	21.9	27
16711-12-12	1.1/16"X12	20	12	40	21.9	27
16711-12-16	1.1/16"X12	25	16	41	21.9	30
16711-14-10	1.3/16"X12	16	10	41.5	22.6	32
16711-14-12	1.3/16"X12	20	12	40.6	22.6	32
16711-16-12	1.5/16"X12	20	12	42.5	23.1	36
16711-16-16	1.5/16"X12	25	16	43.5	23.1	36
16711-20-16	1.5/8"X12	25	16	46.5	24.3	46
16711-20-20	1.5/8"X12	32	20	47.5	24.3	46
16711-24-20	1.7/8"X12	32	20	53	27.5	50
16711-24-24	1.7/8"X12	40	24	53	27.5	50
16711-32-32	2.1/2"X12	50	32	62	33.9	65
Note: 1.For ues with braided hoses. 2.If use with spiral hoses,hose fitting series number is 16712-XX-XX.

Products specification: (26711)

Number:26711
Name:JIC Female 74°Cone Seat SAE J514
Description:
PART NO.	THREAD E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	C	S2
26711-04-03	7/16"X20	5	3	14.5	9	15
26711-04-04	7/16"X20	6	4	15	9	15
26711-05-04	1/2"X20	6	4	15.5	9.5	17
26711-05-05	1/2"X20	8	5	15.5	9.5	17
26711-05-06	1/2"X20	10	6	15.5	9.5	17
26711-06-04	9/16"X18	6	4	15.5	10.5	19
26711-06-05	9/16"X18	8	5	15.5	10.5	19
26711-06-06	9/16"X18	10	6	15.5	10.5	19
26711-06-08	9/16"X18	12	8	16	10.5	19
26711-08-06	3/4"X16	10	6	17.5	11	24
26711-08-08	3/4"X16	12	8	18	11	24
26711-08-10	3/4"X16	16	10	19.5	11	24
26711-10-08	7/8"X14	12	8	18.5	13	27
26711-10-10	7/8"X14	16	10	20	13	27
26711-10-12	7/8"X14	20	12	20	13	27
26711-12-10	1.1/16"X12	16	10	21.5	15	32
26711-12-12	1.1/16"X12	20	12	21.5	15	32
26711-12-16	1.1/16"X12	25	16	23	15	32
26711-14-12	1.1/16"X12	20	12	21.5	15	36
26711-16-16	1.5/16"X12	25	16	23	16	41
26711-16-20	1.5/16"X12	32	20	24	16	41
26711-12-08T	1.1/16"X12	12	8	19	15	32
26711-16-12T	1.5/16"X12	20	12	18.5	16	41
26711-20-16T	1.5/8"X12	25	16	23	17	50
26711-20-20W	1.5/8"X12	32	20	26	17	50
26711-24-20W	1.7/8"X12	32	20	26.5	20	55
26711-24-24W	1.7/8"X12	40	24	26.5	20	55
26711-32-24T	2.1/2"X12	40	24	27	23.5	75
26711-32-32T	2.1/2"X12	50	32	27	23.5	75
Note: 1.For ues with braided hoses. 2.If use with spiral hoses,hose fitting series number is 26712-XX-XX.

Prod Model:	(16711) (26711)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Surface:	Galvanize
Hydraulic Fitting:	Hydraulic Adapter
Color:	White or Yellow
Original Place:	Qingdao, China
Manufacture:	Factory
Standard:	DIN
Material:	Medium Carbon Steel
Connection:	Female

QINGDAO UNITE MACHINERY Co., Ltd(HAITE GROUP) is located in the beautiful seaside city-Qingdao China, which has very beautiful picturesque view and very convenient transportation. Qingdao port is one of the biggest ports of China and our factory is about 15 minutes to Qingdao airport. We specialize in the manufacturing of hydraulic fittings for many years and we have distributors and buyers all over the world.

Products: Our main products include: Ferrule, Hydraulic fitting(Metric, British, American, staplelok, etc. ), Banjo, Adaptor, Hose assembly, and Hose Crimper machinery.

R&D: We have big talent pool which has a large group of exporters and engineers. Some of them have been working in this field for more than 10 years and they have strong knowledge and experience in new product development and quality guarantee.

QC: We adopted an advanced and strict quality control system to guarantee our products comply with or exceed the quality standard.

Market: We focus on both domestic and international markets. Our buyers and distributors include some big and prestigious companies.

Principle: Quality first! Your satisfaction is our biggest goal!
