| Price: | US $ 0.17-8.09/Piece |
|---|---|
| Min Order: | 1000/Piece |
| Pay Type: | L/C,T/T,Western Union |

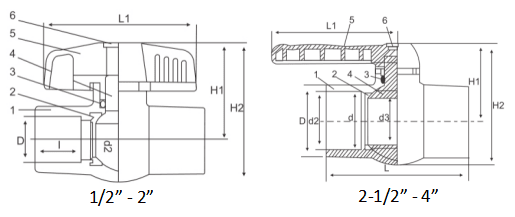

| NO. | Part | Material |
| 1 | Body | PVC |
| 2 | Seat Seal | TPE/TPV/EPDM |
| 3 | O-Ring | EPDM/NBR |
| 4 | Ball | PP/PVC |
| 5 | Handle | PP/ABS/PVC |
| 6 | Cap | PP/ABS/PVC |
| SIZE | Socket End | Thd./in | ||||||
| DIN | ANSI | BS | ||||||
| inch | d1 | d2 | d1 | d2 | d1 | d2 | NPT | BSPT |
| 1/2" | 20 | 20.3 | 21.23 | 21.54 | 21.3 | 21.5 | 14 | 14 |
| 3/4" | 25 | 25.3 | 26.57 | 26.87 | 26.7 | 26.9 | 14 | 14 |
| 1" | 32 | 32.3 | 33.27 | 33.65 | 33.5 | 33.7 | 11.5 | 11 |
| 1-1/4" | 40 | 40.3 | 42.04 | 42.42 | 42 | 42.2 | 11.5 | 11 |
| 1-1/2" | 50 | 50.3 | 48.11 | 48.56 | 48.2 | 48.4 | 11.5 | 11 |
| 2" | 63 | 63.3 | 60.17 | 60.63 | 60.3 | 60.5 | 11.5 | 11 |
| 2-1/2" | 75 | 75.3 | 72.85 | 73.38 | 75.1 | 75.3 | 8 | 11 |
| 3" | 90 | 90.3 | 88.7 | 89.31 | 88.8 | 89.1 | 8 | 11 |
| 4" | 110 | 110.4 | 114.07 | 114.76 | 114.2 | 114.5 | 8 | 11 |
| 1 | Standard | ANSI, DIN, BS |
| 2 | End Connection Type | Socket end or Thread end |
| 3 | Size | 1/2"-4" (20mm-110mm) |
| 4 | Color | White, Grey, Blue |
| 5 | Working Pressure | PN10/10kgs/150psi |
| 6 | Working Temperature | -10ºC - 50ºC |
| 7 | Applications | Water supply, Irrigation, Pools building, etc. |
FAQ: (Frequently Asked Questions)
1. What is your MOQ?
Our MOQ is usually 10 Ctns/Size.
2. What is your delievery time?
Our delievery is about 30-45days.
3. What is your payment terms?
We accept T/T, 100% L/C, or West Union and so on.
4. Could you provide free samples?
Usually we offer free samples,customer bear the freight cost.
5. Why choose us?
Firstly, comparing with many factories, our prices are more competitive.
Secondly, We 100% test working pressure for ALL our products, and we inspect 5 times every order.

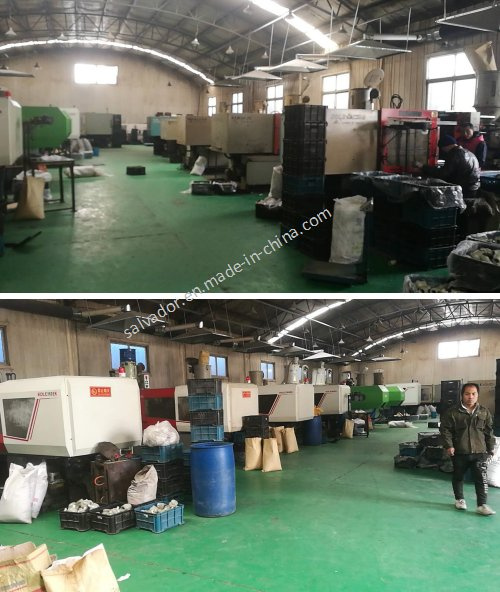

1) Inspect when the ball valves come out from the injection molding machine
2) Inspect when adding O-rings
3) Inspect when installing handle caps
4) Inspect after working pressure test
5) Inspect before packing
Finally, After- Services will be highly-satisfied. Any problems and feedbacks will be responsed efficiently.
| Color: | White/Grey/Blue |
|---|---|
| Structure: | Flexible Ball Valve |
| Type: | Flexible Ball Valve |
| Material: | PVC |
| Connection Form: | Thread/Socket |
| Nominal Pressure: | Pn10/150psi |
| Function: | Ball Valve |
| Application: | Water Supply |
