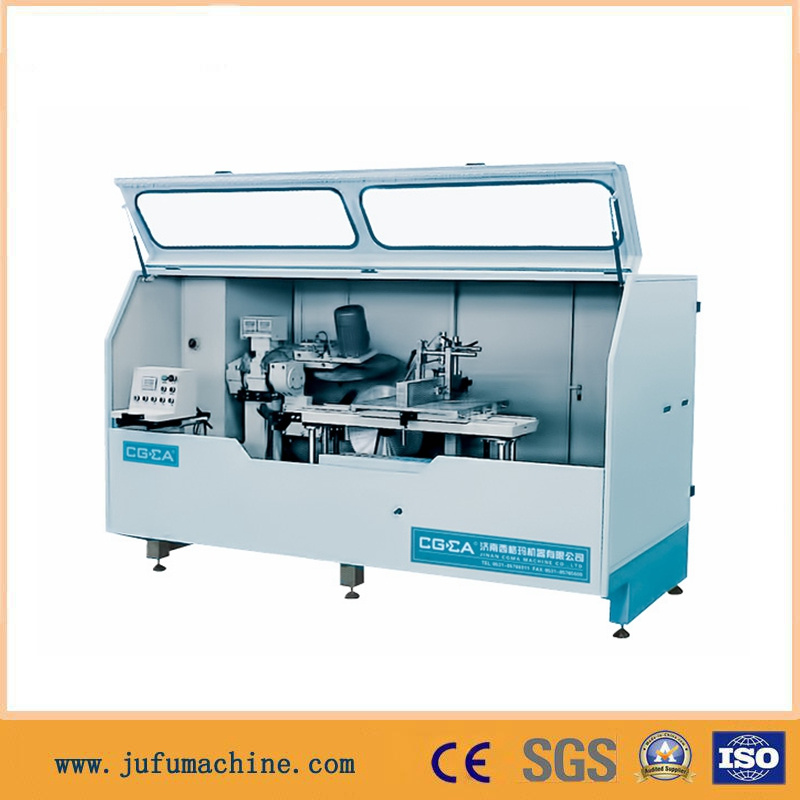

PVC Aluminum Window Door Machine Notching Saw

PVC Aluminum Window Door Machine Notching Saw
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C
Processing Performance and Features:

It is used for processing the end of the special interface of aluminum curtain wall and lighting skylight.

The cutting angles and workable height is adjust by the magnetic scale control system and its digital display.

Two blades can swing freely at -45°--+45°
Technical Parameter
Power supply380V/50HzMotor rotate speed2800r/min
Cutting motor power2*2.2KwCutting depth150mm
Working air pressure0.5~0.8MPaSaw blade swinging range+45°~-90°
Air consumption60 L/minDimension3140×1380×1800mm
Saw blade specification500*30*1800Weight1500kg
Feeding speed0~3m/min
Prod Model: LJKA-500
Saw Blade Specification: 500*30*1800
Saw Blade Swinging Range: +45°~-90°
Mtor Rotate Speed: 2800r/Min
Cutting Depth: 150m
Jinan CGMA group was established in 2003, is a integrating stock group company in researching and developing, manufacturing and trade as well as the after sales service. The group have JINAN CGMA MACHINE Co., Ltd. (manufacturer), JINAN CGMA & LIGHT MACHINE Co., Ltd. (manufacturer), JINAN JUFU TECHNOLOGY & TRADE Co., Ltd. (foreign trade company). The production of our machine including PVC window and door processing machines, Aluminum window and door processing machines, insulating glass processing machines, and wrapper pallet packing machines. All production have passed ISO Quality System Authentication.

CGMA Group builds up the aim of "create extractive grade products", and takes the quality as the core and production innovation as guide of management target. We know very well that "product quality is the root of the corporation". The main parts of products are imported from foreign companies. CGMA has advanced technical capability to supply high quality products.

With 4 years' trading experience, our main export markets has reached over more than 15 countries and regions, including Ukraine, Russia, USA, Thailand and Nepal. Exports percent now accounts for 35% of our total trade volume.

Our excellent service system not only offer you high quality products, but also share much produce experience with you. We can offer you the complete orientation service for you: Building the workshop, collocating machines, installation and testing, guiding producing and training workers for you.

We would like to expand our cordial cooperation with you for better future.
