| Price: | Negotiableset |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T |
Function
1. 7-inch full touch LCD;
2. The resolution rate is 0.05mm;
3. 60 program units;
4. Over 6000 different cutting positions;
5. The max paper-pushing speed is 5-10m/min.
==================================================
Configuration
1. It has self-diagnostic function of troubles and displays the
operating pattern with dynamic follow-up.
3. It has linear double guiderail and slotless working table to ensure the accuracy
for cutting and it has IR ray protective device.
4. Optical knife-line alignment, button operated by two hands and single
circulation cutting device make it convenient for cutting.
5. Flat worm speed reducer transmission for cutting

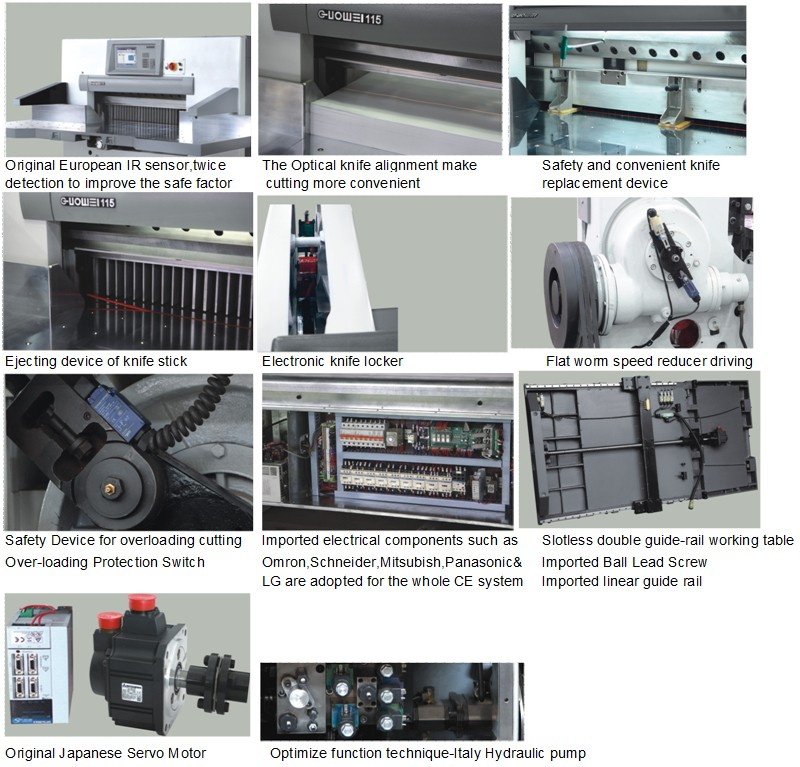

Configuration of Paper Cutting Machine/Paper Cutter/Guillotine

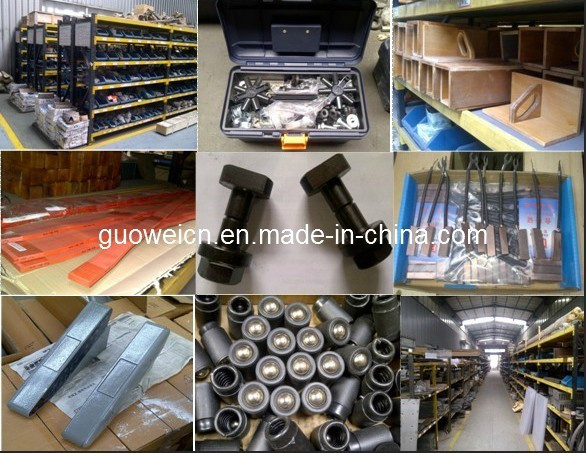

Spare Parts Warehouse

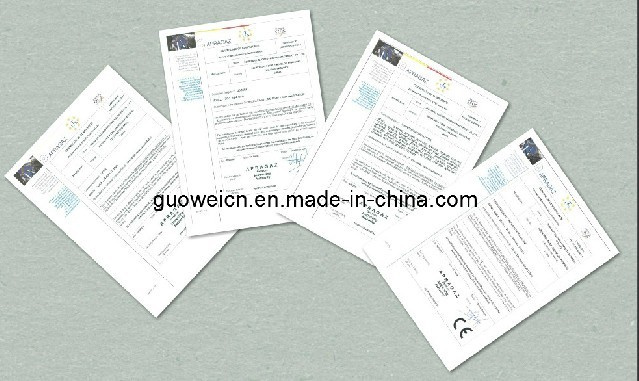

CE Certificate
Our Advantages
Our commitment
| Model | Unit | 78 | 92 | 115 | 130 |
| Max.Cutting Width | cm | 78 | 92 | 115 | 130 |
| inch | 30.7 | 36.2 | 45.3 | 51.2 | |
| Max.Cutting Height (without false clamp) | cm | 13 | 13 | 16.5 | 13 |
| inch | 5.1 | 5.1 | 6.5 | 5.1 | |
| Max. Cutting Depth | cm | 78 | 93 | 115 | 130 |
| inch | 30.7 | 36.5 | 45.3 | 51.2 | |
| Min.Cutting Size (without false clamp) | cm | 2.5 | 2.5 | 3 | 3 |
| inch | 1 | 1 | 1.2 | 1.2 | |
| Extended lenght of Working table | cm | 64 | 65 | 73 | 73 |
| inch | 25.2 | 25.6 | 28.7 | 28.7 | |
| Height of working table | cm | 86.5 | 86.5 | 89 | 86.5 |
| inch | 34 | 34 | 35 | 34 | |
| Machine Width including side working table | cm | 215 | 233 | 266 | 266 |
| inch | 84.6 | 91.7 | 104.7 | 104.7 | |
| Total length of working table | cm | 178 | 198 | 226 | 241 |
| inch | 70 | 78 | 89 | 95 | |
| Max.Cutting Speed | times/min | 45 | 45 | 45 | 45 |
| Max.paper Pressure | N | 30000 | 35000 | 40000 | 40000 |
| Power of Main Motor | Kw | 3 | 3 | 4 | 4 |
| Paper Feeding Motor | Kw | 0.75 | 0.75 | 0.75 | 0.75 |
| Air Pump | Kw | 0.55 | 0.55 | 0.75 | 0.75 |
| Net Weight | Kg | 2500 | 2700 | 4000 | 3900 |
| Overall dimension(L×W×H) | cm | 210×140×195 | 225×140×195 | 255×160×215 | 260×153×195 |
| inch | 83*56*77 | 89*56*77 | 101*63*85 | 103*61*77 | |
| Blade specifications(L×W×H) | cm | 96x12.7x1.27 | 110x12.7x1.27 | 139x16x1.37 | 152x12.7x1.27 |
| inch | 37.8*5*0.5 | 43.3*5*0.5 | 54.7*6.3*0.54 | 59.8*5*0.5 |
| Configuration | |
| Model | S |
| Imported ball lead screw | YES |
| Imported double guide-rail slotless working table | YES |
| Chrome-plated main and assistance working table with air ball | YES |
| IR photoelectric protection and hands operating protection | YES |
| Ejecting device for cutting stick | YES |
| Inside electronic knife locker | CAN |
| Safe and convenient knife replacement system | YES |
| Overloading protection device for cutting | YES |
| Flat worm speed reducer transmission | YES |
| Optical knife alignment | YES |
| PLC conrtol system | NO |
| Imported hydraulic system | YES |
| Imported electric components | YES |
| Enlarged side working table | CAN |
| Soft pressure | CAN |
| Optimize function | NO |
| YES: Standard configuration | |
| CAN: Optional configuration | |
| NO: Without this configuration | |

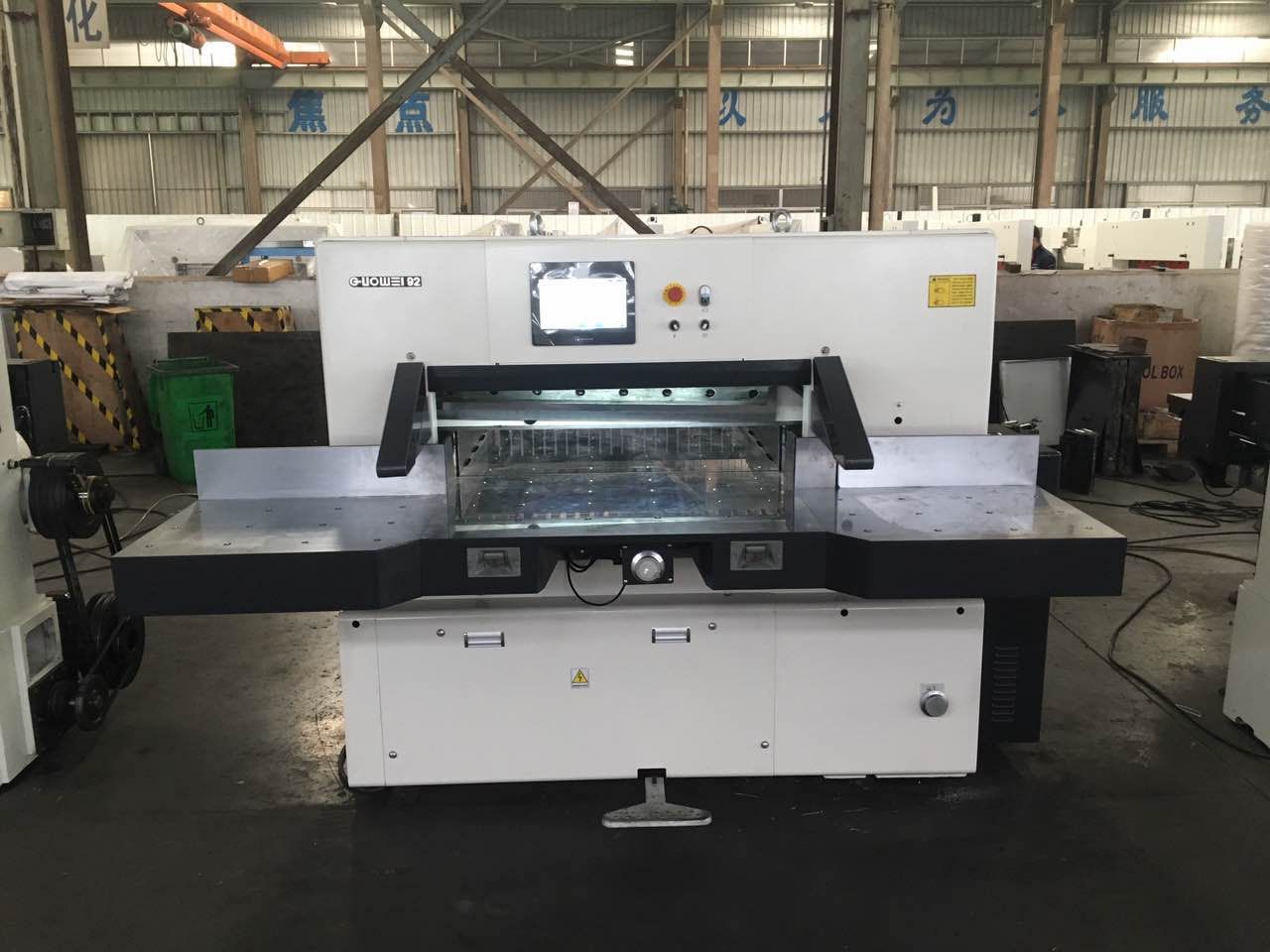

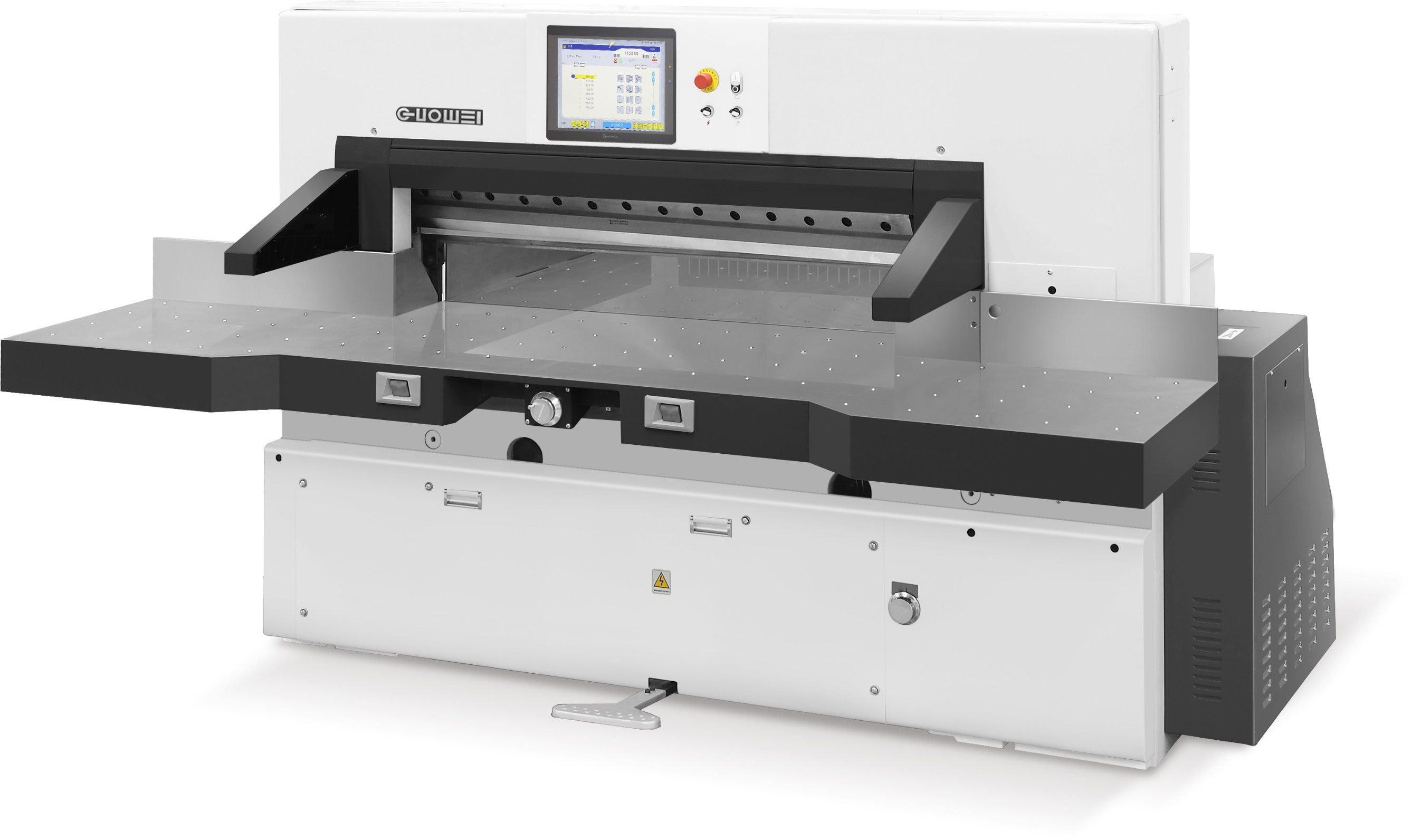

| Prod Model: | 92S |
|---|---|
| Resolution Rate: | 0.05mm |
| Max Paper-Pushing Speed: | 5-10m/Min |
| Max Cutting Width: | 36.2" |
| Table Height: | 34" |
| Cutting Speed: | 45r/Min |
| Power Of Main Motor: | 3kw |
| Max Paper Pressure: | 35000n |
| Machine Weight: | 2700kg |
| Max Cutting Height: | 5.1" |
| Overall Dimension: | 89"*56"*77" |
| Classification: | Single-blade Cutter |
| Driven Type: | Hydraulic |
| Blade Material: | Stainless Steel |
| Computerized: | Computerized |
