Precision Wire Saw with Sample Stage Diamond Wire Stx

Precision Wire Saw with Sample Stage Diamond Wire Stx
Price: US $ 99-5999/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal

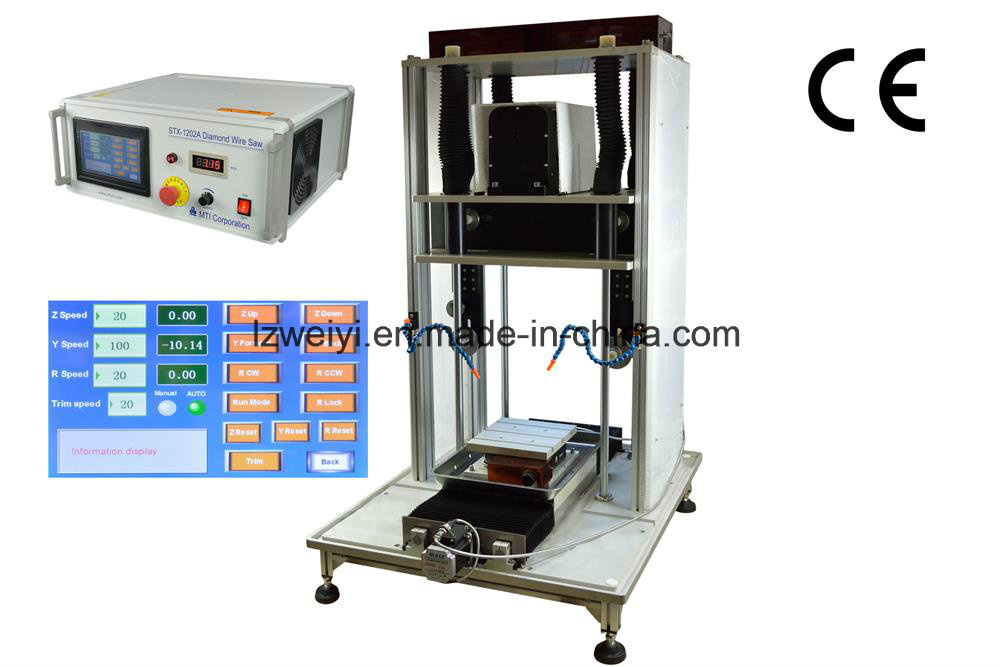

Model:STX-1202  Automatic Diamond Wire Saw
Brief
Introduction:
STX-1202  Automatic Diamond Wire Saw is a CE certified diamond cutting saw, researching and manufacturing support of the national innovation fund.It is used for cutting different hardness of fragile crystal, ceramic, glass, rock sample, meteoritic sample, fire proof material etc.Max cutting dimension is 12 inches.
Main
Feature:
1.Cutting different hardness of crystal, ceramic, glass, fire proof material, rock sample,especially for processing fragile and easy cleavage crystal.
2.Sample holder can program control, can adjust to 360°.
3.Main motor drives the diamond wire, cutting sample under the working operating platform, can keep sample steadily.
4.Design all kinds of frock fixtures for the customer, suitable for different sample size.
5.Cutting by the diamond wire, easier to operate, better processing quality.
6.Heavy duty Aluminum alloy structure, beautiful and steady.
7.Built in pneumatic valves, make tensile force steady and reliable.
8.PLC program control, easy to operate.
9.Big touch screen, beautiful vision, good touch.
Technical
Parameter:
1.30-64m domestic and imported 0.25-0.45 diameter mini diamond wire back and forth cutting, wire length adjustable.
2.Stepper motor feed automatic cut, cutting speed is adjustable and depends on different materials, can improve the cutting quality, increase acceptable life of mini diamond wire.
3.Built in stepper motor drive 360°sample holder, convenient to adjust cutting horizontal direction.
4.Cut different hardness of crystal, ceramic, glass, rock material, especially for cutting high valuable fragile crystal, Such as ZnO, BTO, YAG, BBO etc.The success rate can reach as much as 99%.
5.Max.Cutting dimension:300 X 300mm
6.X, Y, Z-axis accuracy:0.01mm
7.Y-axis and Z-axis max travel distance:≤300mm
8.Φ200 horizontal rotary operating platform angle:0.6Reduplicate position accuracy:1.92
Specification:Size:1072X 892X 1623mm Weight:150kg
Standard
Accessories:
1Diamond wire2PCS
2Tension wheel2PCS
3Leading wheel2PCS
4Water pump1PC
5Wax4PCS
6Resin ceramic block2PCS
Optional
Accessories :
1.Diamond wire
2.Other assistant material
Standard
Package:
1.Major part:Wooden box.
2.Others:Carton
company informationLaizhou Weiyi experimental machine manufacturing Co.,Ltd. was established in 2001,covering 55 acres,which is one leading enterprise in the field of a professional R&D,manufacturing metallographic sample preparation erquipment. Was identified as Technology high-tech enterprises by Shandong Provincial Science , Shandong Academy of Sciences Research Building .
In 2004 the company passed the ISO9001 quality management system certification,in 2012 the company obtained CE certification, laid the foundation for a comprehensive international markets.



Prod Model: STX-1202
Y: I
Laizhou Weiyi Experimental Instrument Manufacturing Co. Ltd. Is engaged in domestic metallographic sample preparation equipment, sample preparation supplies R & D, production and sales of leading enterprises. The company was founded in 2001, covering an area of 55 acres. We have 110 staff at present, among which there are 32 engineering and technical staff, 17 staff working for products and technology development. We are a high-tech enterprises authorized by Shandong science and technology department, as well as the base on scientific research in Shandong province.

In 2004, the company passed the ISO9001 quality system certification.

In 2005 we achieved the independent right of import and export.

In 2011 we first achieved CE certification in the domestic industry, laying the foundation for the comprehensive development of international market.

We have established 3 sales companied in China, more than 200 dealers. Meanwhile we have more than 20 foreign agents in the world.

We have been focusing on the investment in technology development. In recent years we have developed a number of international advanced level of metallographic sample preparation equipment. We have won 4 national invention patents, dozens of patents of utility model patents as well as the appearance patents. Several products can replace the imported products, which makes the "WEIYI"brand the leading brand in the domestic industry.
