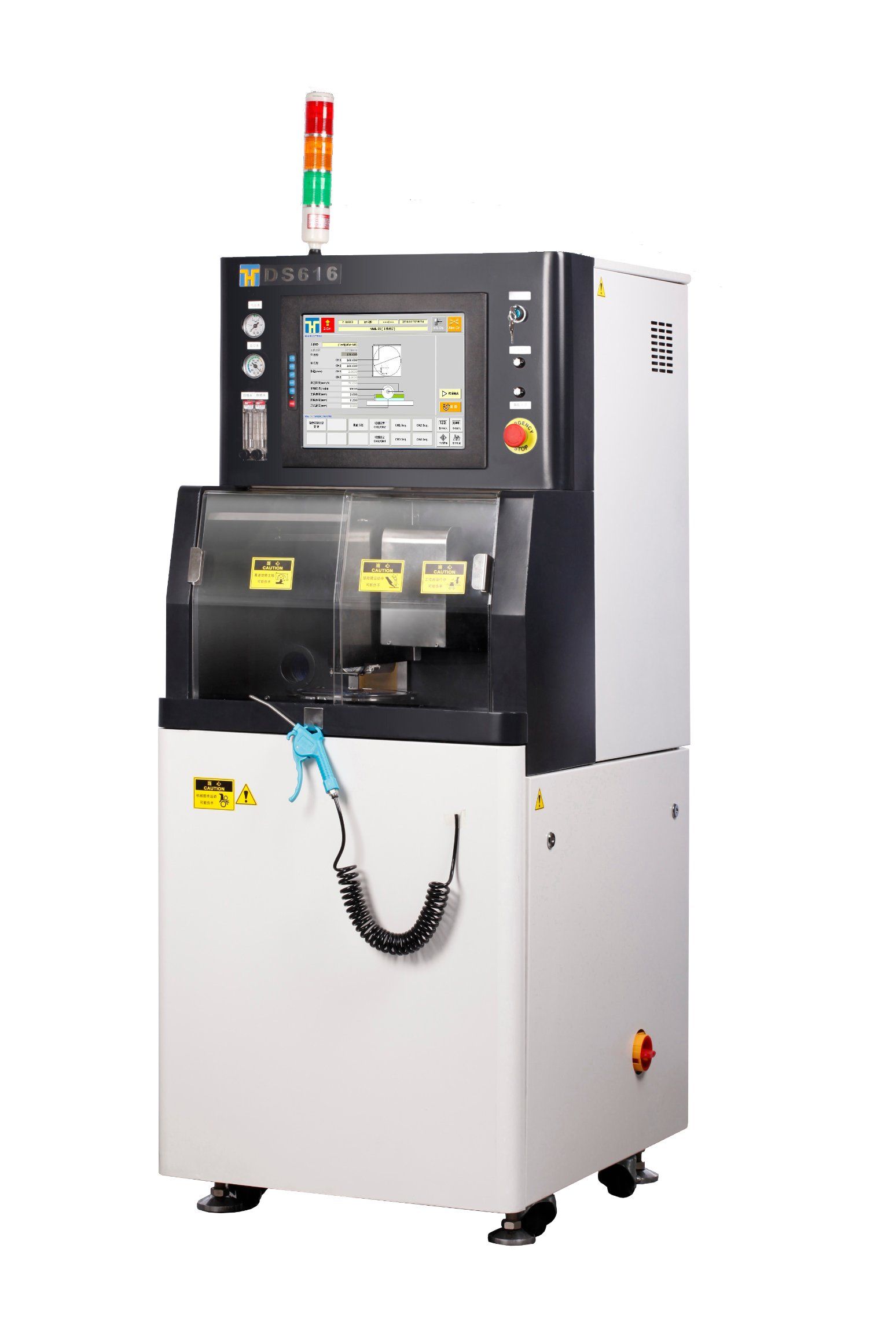

Precision Dicing Saw for Wafer Cutting of 6" Inch (DS616)

Precision Dicing Saw for Wafer Cutting of 6
Price: Negotiable/Set
Min Order: 1/Set
Pay Type: T/T,Western Union
DS616 precision dicing machine uses DS-200 software control system with touch screen control so that the image alignment of workpiece is simple and convenient. The machine is equipped with high-power spindle and DD motor with higher accuracy that further enhance the dicing performance. DS616 is applicable to the cutting process of silicon, gallium arsenide, ceramic, glass, lithium niobate, alumina, quartz, sapphire, crystal and PCB in the application fields including diode, triode, MEMS, IC, LED, NTC, photovoltaic, medical device and scintillation crystal.

Features
  1. Constantly monitor spindle air pressure, hydraulic pressure and current to reduce spindle damage
  2. Cutting scope available on request
  3. Available for 160mm × 160mm square plate
  4. Optional image automatic recognition function
  5. Optional NCS function (non-contact height measurement)
  6. Reasonable structure, easy maintenance, reducing fault
  7. High degree of automation
Specifications

Configuration and performance      Workpiece sizeΦ6" | 160mm x 160mm
Groove depth≤4mm
Table flatness±0.005mm/150mm
Alignment system70x straight light + ring light(210x optional)
SpindleRevolution speed range3000~40000 rpm
Output power1.5kW
X axisDrive modeServo motor
Max. stroke240mm
Stroke resolution0.001mm
Feed speed range0.1~400mm/s
Y axis Drive modeStep motor + grating closed-loop control system
Max. stroke170mm
Stroke resolution0.0005mm
Single-step positioning accuracy≤0.003mm/5mm
Index positioning accuracy ≤0.005mm/170mm
Z axisDrive modeStep motor
Max. stroke30mm
Scale resolution0.001mm
Repeatability accuracy0.002mm
Θ axis Drive modeDD motor
Max. rotating angle380°
Angle resolution0.0002°
Basic specificationPower supplySingle phase, AC220V±10%
Power consumption0.8kW (processing)
0.7kW (warming up)
Compressed airPressure: 0.55~0.8Mpa; average flow rate: 350L/min
Cleaning water Pressure: 0.2~0.4Mpa; flow rate: 3.0L/min
Cooling waterPressure: 0.2~0.4Mpa; flow rate: 1.5L/min
Exhaust air rate2m3/min (ANR)
Overall dimensions W×D×H665mm×850mm×1650 mm
Weight 500kg

Environmental Conditions

• Use clean, oil-free air (dew point below -15ºC, residual oil: 0.1 ppm, and filtration rating: 0.01μm/99.5 % or more).
• Keep room temperature fluctuations within ±1ºC of the set value (Set value should be between 20ºC - 25ºC), indoor humidity no more than 80% and no condensation.
• Keep cutting water 2ºC above room temperature (fluctuations within ±1ºC). Keep temperature of cooling water the same as room temperature (fluctuations within ±1ºC).
• The machines should be used in an environment, free from external vibration. Do not install machine near a ventilation opening, blower, heat generation equipment or oil mist generating parts.
• Please install the machine on the floor with sufficient waterproofing and drainage treatments.
Please follow the product manual of our company.


Prod Model: DS616
Workpiece Size: Φ6’’ ≤160mm X 160mm
Groove Depth: ≤4mm
Alignment System: 70X Straight Light + Ring Light(210X Optional)
Spindle: Revolution Speed Range: 3000~40000 Rpm
Spindle: Output Power: 1.5kw
X Axis: Feed Speed Range: 0.1~400mm/S
Y Axis: Single-Step Accuracy: ≤0.003mm/5mm
Z Axis: Repeatability Accuracy: 0.002mm
Power Supply: Single Phase, AC220V±10%
Power Consumption: 0.8kw (Processing); 0.7kw (Warming up)
Type: Fixed
Power Source: Servo Motor+Step Motor
Application: Silicon, Gallium Arsenide, Ceramic, Glass, Alumina
