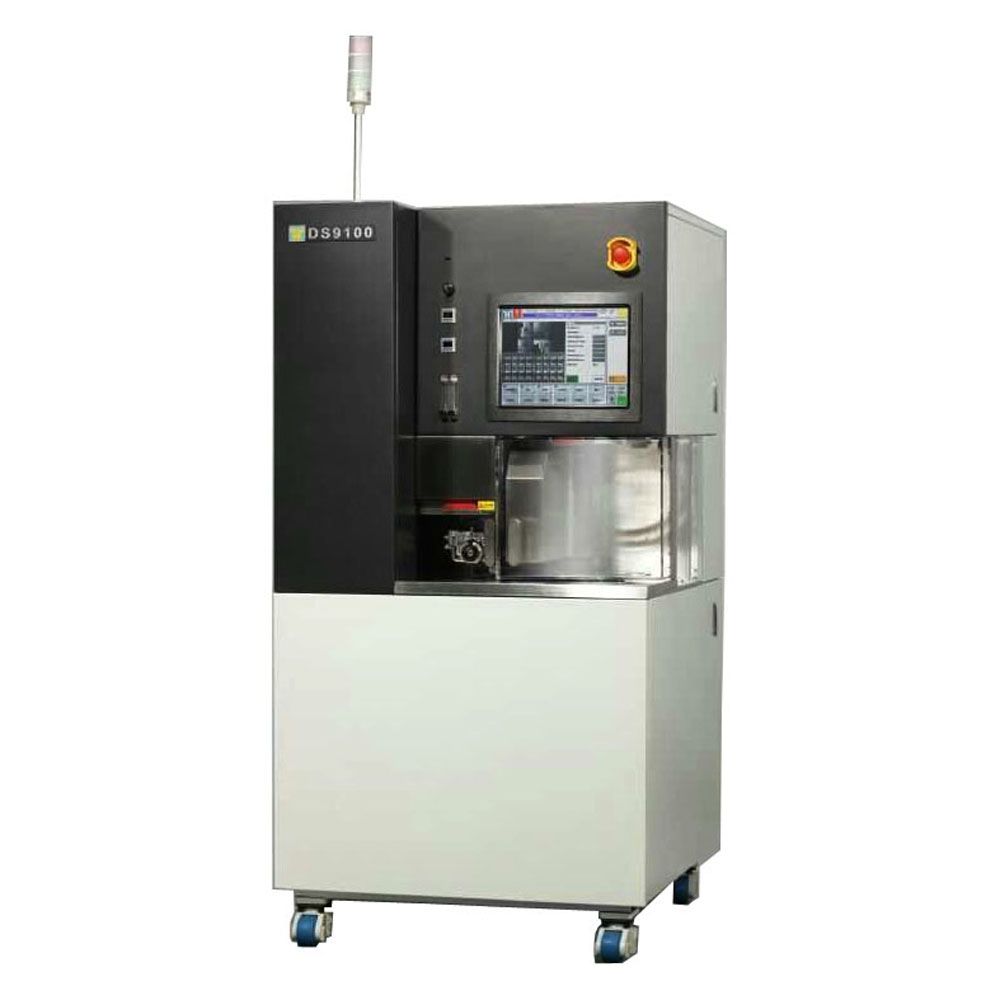

Precision Dicing Saw for 8" Workpiece Cutting (DS9100)

Precision Dicing Saw for 8
Price: Negotiable/Set
Min Order: 1/Set
Pay Type: T/T,Western Union
DS9100 precision dicing saw can be widely used for a variety of processing requirements. The 1.8KW spindle and high rigidity door structure are employed on dicing equipment, so it reduces the impact of spindle vibration on the cutting effect and improves the stability and quality of process. DS9100 is applicable to the cutting process of silicon, PCB, ceramic, glass, lithium niobate, alumina and quartz.

Features
  1. Available for workpiece with the dimension of 250 x 250mm
  2. High rigidity door structure
  3. With automatic image recognition function
  4. With NCS (non-contact height measurement) function
  5. Optional BBD (Broken Blade Detector) function
  6. Optional tool detection function
  7. Optional online sharpening function
Specifications

Configuration and performance      Workpiece sizeφ8 | ≤250mm x 250mm
Groove depth≤4mm or customize
Table flatness±0.005mm/200mm
Alignment system28x straight light + ring light  280x straight light + ring light(70x 140x optional)
SpindleRevolution speed range6000~60000 rpm
Output power1.8kW
X axisMax. stroke260mm
Stroke resolution0.001mm
Feed speed range0.1~600mm/s
Y axis Max. stroke260mm
Stroke resolution0.0001mm
Single-step positioning accuracy≤0.002mm/5mm
Index positioning accuracy ≤0.005mm/260mm
Z axisMax. stroke40mm
Stroke resolution0.001mm
Repeatability accuracy0.002mm
Θ axis Drive mode DD motor
Max. rotating angle380°
Angle resolution0.0002°
Basic specificationPower supplyThree phases, AC380V±10%
Compressed airPressure: 0.5~0.7Mpa; average flow rate 350L/min
Cleaning water Pressure: 0.2~0.4Mpa; flow rate 4.0L/min
Cooling waterPressure: 0.2~0.4Mpa; flow rate 1.5L/min (0.3MPa/hour)
Exhaust air rate5 m3/min (ANR)
Overall dimensions W×D×H900mm×1050mm×1800 mm
Weight 1200kg

Environmental Conditions


• Use clean, oil-free air (dew point below -15, residual oil: 0.1 ppm, and filtration rating: 0.01μm/99.5 % or more).
• Keep room temperature fluctuations within ±1ºC of the set value (Set value should be between 20ºC - 25ºC), indoor humidity no more than 80% and no condensation.
• Keep cutting water and cleaning water 2ºC above room temperature (fluctuations within ±1ºC). Keep temperature of cooling water the same as room temperature.
• The machines should be used in an environment, free from external vibration. Do not install machine near a ventilation opening, heat generation equipment or oil mist generating parts.
• This machine uses water. In case of water leakage, please install the machine on the floor with sufficient waterproofing and drainage treatments.
Please follow the product manual of our company.



Prod Model: DS9100
Workpiece Size: φ8 ≤250mm X 250mm
Groove Depth: ≤4mm or Customize
Spindle: Revolution Speed Range: 6000~60000 Rpm
Spindle: Output Power: 1.8kw
X Axis: Feed Speed Range: 0.1~600mm/S
Y Axis: Single-Step Accuracy: ≤0.002mm/5mm
Z Axis: Repeatability Accuracy: 0.002mm
Θ Axis: Max. Rotating Angle: 380°
Power Supply: Three Phases, AC380V±10%
Exhaust Air Rate: 5 M3/Min (Anr)
Type: Fixed
Application: Silicon, PCB, Ceramic, Glass, Lithium Niobate, etc
Power Source: Imported Dd Motor
