Precision Aluminum Window Door Double Head Cutting Saw
| Price: |
US $ 15000-20000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |

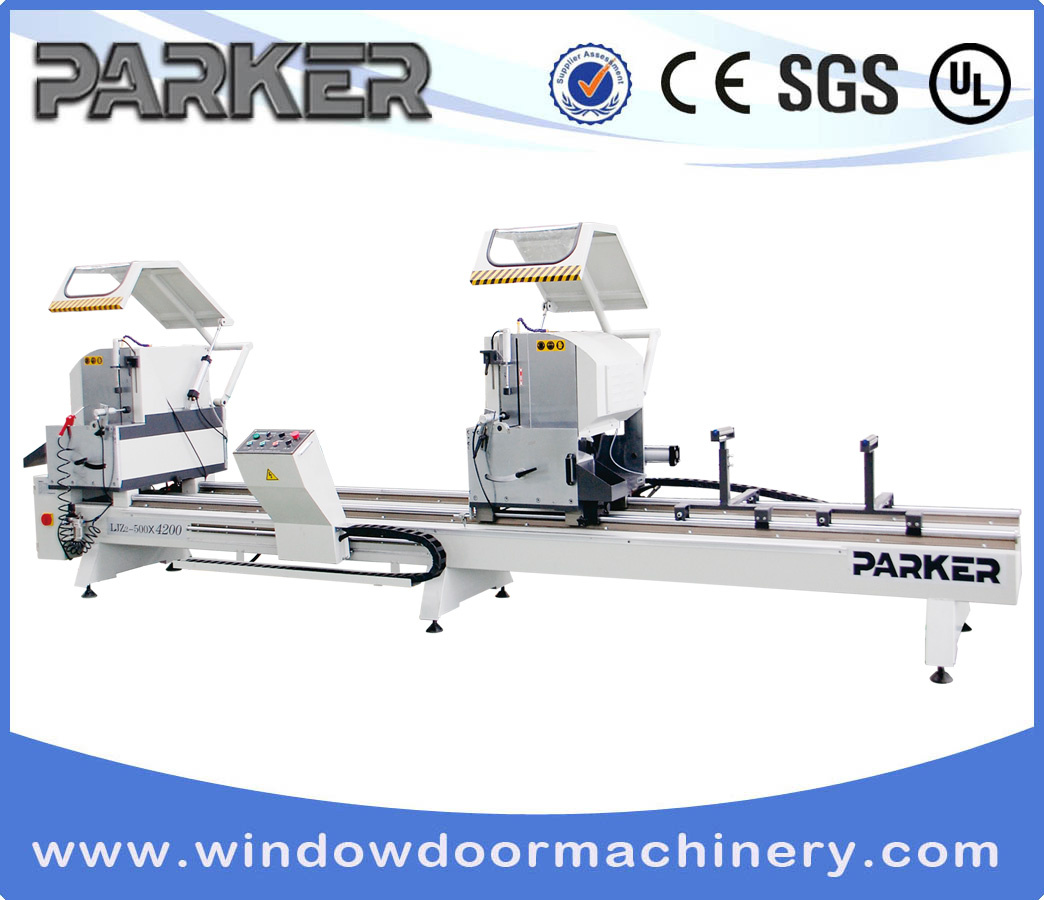

Precision Aluminum Window Door Double Head Cutting Saw
Model: LJZ2-500x4200
Ø Profile cutting length can be input into screen, but one time can only input one profile length; cutting quantity for each profile can be input into screen.
Ø When cut 45°, profile height can be input, red data shown on screen is just the profile length need to be cut, worker needn't to add "double profile height", it is much convenient.
Ø Left & right machine head can work separately and cut different angles.
Parameter:
| Ø Voltage: | 380V 50HZ |
| Ø Power: | 4.4KW |
| Ø Air pressure: | 0.5-0.8MPa |
| Ø Air consumption: | 200L/min |
| Ø Blade specification: | (standard size) |
| Ø Cutter moving speed: | 0-2m/min |
| Ø Cutting length: | Max4000mm Min200mm |
| Ø Cutting width: | Max.135mm |
| Ø Cutting height: | Max.300mm |
| Ø Cutting angle: | 45° 90° |
| Ø Repeat locating length error: | mm |
| Ø Angle error | |
| Ø Surface plainness: | mm |
| Ø Surface harshness: | Ra12.5m |
| Ø Overall dimension: | 5500mmX1750mmX1990mm |

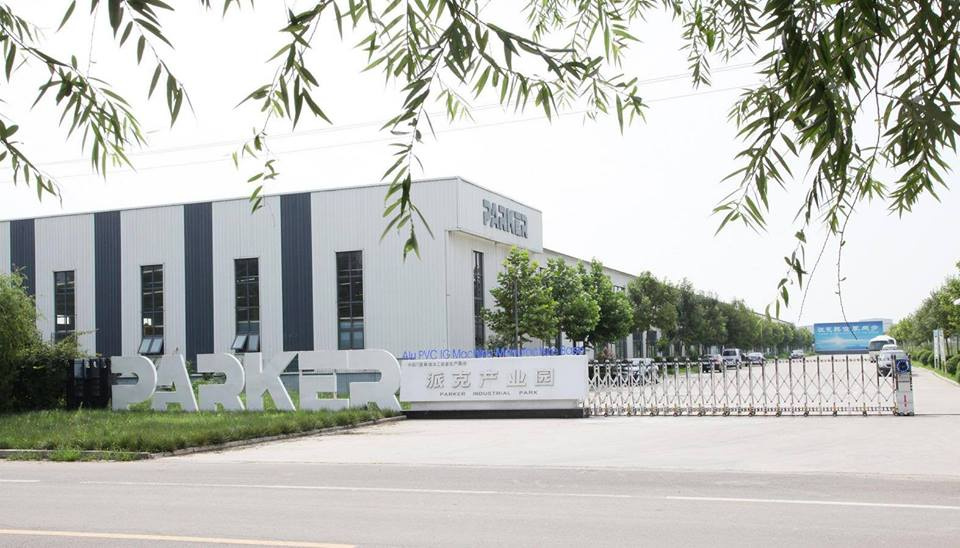

Company Information
Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment.With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China.The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.
During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery.With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc.We have a perfect sales network and complete service system in China.We are also taking a leading role in setting branch companies abroad.
Our Services
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory.
2.Q:Where is your factory located?Can I visit there?
Our factory is located in Jinan City, Shandong Province, China, near to Jinan and Qingdao.You are warmly welcomed to visit us!
3.Q:How does your factory do regarding quality control?
We have strict control in testing of raw material, production process and final process.Only qualified products can be sent out.And we have passed ISO,CE certificate.
4.Q:What you can do if my machines have problems?
A.We can send you free components to you if your machines are in guarantee time.
B.We can send our engineers to repair your machines
5.Q:If OEM available?
Answer:Yes, as we usually do.
6.Q:What are your company normal payment Terms?
Answer:We accept T/T (30% T/T prepaid before production, 70% T/T prepaid before shipment)
| Prod Model: |
LJZ2-500x4200 |
| Usage: |
Double Head Saw Automatic Double Head Mitre Saw |
| Cutting Degree: |
45, 67.5, 90 |
| Servo Motor: |
Schneider /Omron /Mitsubushi |
| Guide Rail: |
Taijing ( Korea ) |
| Screen: |
Mitsubushi ( Japan ) |
| Max. Cutting Width: |
135mm |
| Max. Cutting Height: |
300mm |
Parker Machinery Co., Ltd., China has developed the assembly line equipment for door-window, curtain walls and Insulating glasses process. The operation of high precision, advancement and specialty makes the enterprise well-known. She sets an example for her pure quality and excellent service. So she becomes the reliable cooperative partner of the door-window enterprise for her responsibility.
Parker machines sell well, become well-known and outstanding at the national fairs of door-window equipment, owing to:
Using of European standards, and taking in the view and pithy of the design.
Purchasing main parts internationally.
Selling machines to other countries, such as USA, India, UAE, Brazil, Iran, North America, South Africa, Russia, Korea, Middle East, and so on.
Carrying our "Handover key project" ahead of other in this area.
Combining the manufacture with the development of design software of door-window.
Owing more than twenty sales and service agencies.
To meet the great need of development of hi-grade door-window, combining with almost ten years of experience, we introduced advanced technology from other countries, and developed five types, more than forty specifications of door-window and curtain wall equipment. Door-window factories needn't import any hi-grade machine from other countries any more.
Let's share science and technology of the world!
Parker machine core parts procurement achieved internationalization, and established a cooperative partnership with ABB, Omron, Schneider, Optima. PARKER people are always follow the core concept, it is "Parker is developing with the world", it is PARKER peoples' strict implementation of ecological system of Parker and of "zero defect" stern pursuit, which makes the Parker machine perfect implement unique global standard, achieves improvement value and sustainable innovation!
Parker machinery exports to the world more than80 countries and regions, and has firstly established branches in USA, India, UAE, Brazil, has 50 patents. PARKER products include aluminum, PVC windows and doors machinery, aluminum curtain wall processing machinery, industrial aluminum processing machinery and insulating glass series production line machinery. Parker machinery are all passed through high standard European CE certification, American UL certification and Canadian CSA certification.
