Precast Hardware Steel Forged Eye Anchor

Precast Hardware Steel Forged Eye Anchor
Price: US $ 0.5-50/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Precast Hardware Steel Forged Eye Anchor

Product Description

A. Spread Anchor Ring Clutches: Divided into four categories the ring clutches can be used to lift all types of spread anchor which falls into its specific load category.
B. Pin Anchor: The pin anchor system is a heavy duty system and is an alternative to the spread anchor system. The standard anchor comes in a variety of lengths in each weight category.
C. Eye Anchor: For use in thin reinforced units the hole at the base of the anchor allows for additional rebar to be attached.
D. Pipe Anchor: For use with automated pipe production.

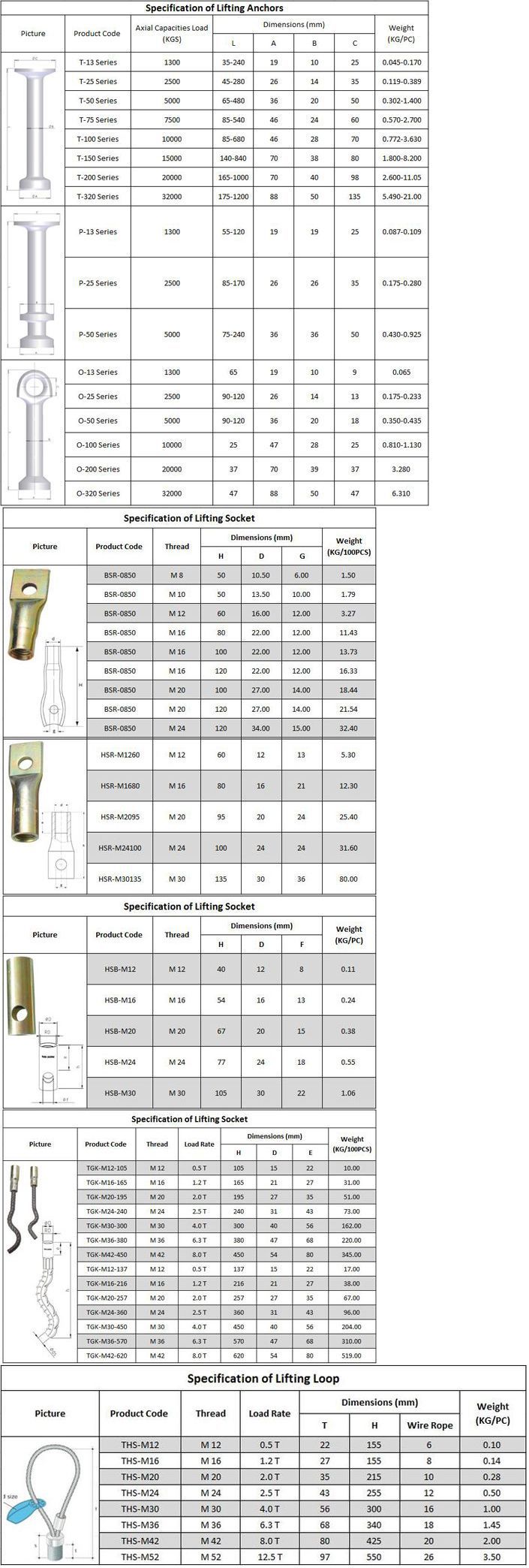

Product Specification
Specification of Lifting Clutch
Product CodeAxial Capacities Load
(KGS)
Dimensions (mm)Weight
(KG/PC)
abcefg
TH 1.3130047757145331651.0
TH 1.5-2.5250064988555422051.6
TH 3.0-5.05000701188866572403.3
TH 6.0-10.01000095160121117733489.6
TH 15-202000011818615015511044124.5


Our Advantage
A. Eathu is a manufacturer focus on building material products with more than 10 years experiences.
B. Eathu's products are enhanced by the factory QA and Quality Control checks during the production. If necessary each order can be send out with a certificate referring back to test.
C. Precast concrete elements may be lifted several times after casting and during storage and erection-by using this system the designer and the worker manager ensure that each lift is carried out safely and quickly.
D. Eathu has more then 10 years experience for the OEM/ODM products, more than 150 cooperation factories, we can  provide you competitive price and steady quality.

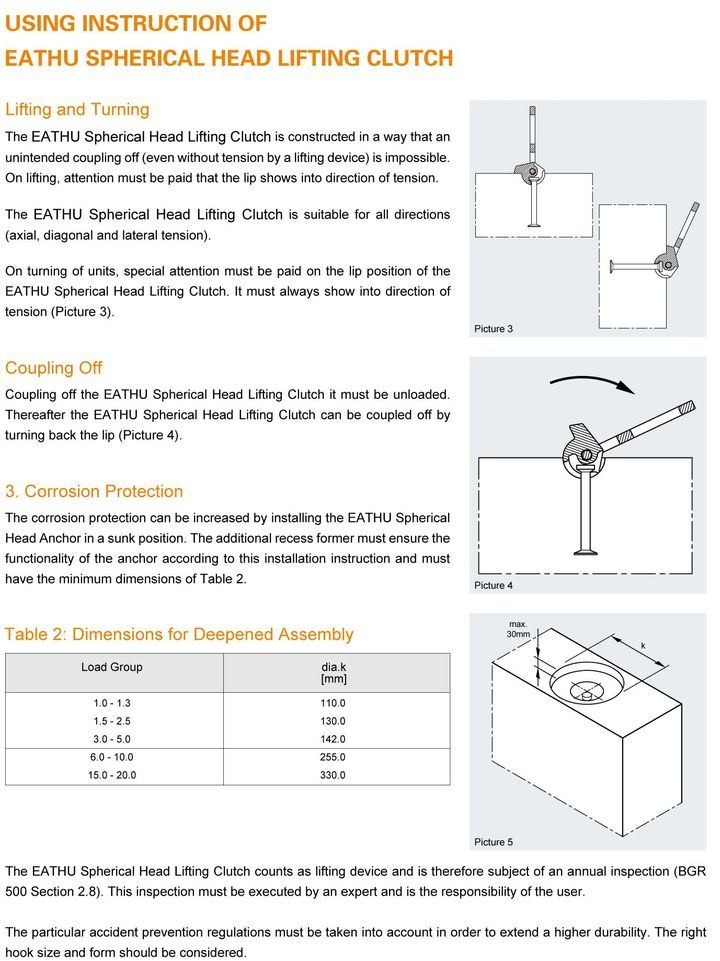

Using Instruction


WHO is EATHU
EATHU PRCAST is a leading china manufacturer of precast concrete accessories products, focused on improving safety, economical products in the areas of lifting and fixing and connection.
EATHU  PRECAST provides professional Threaded lifting, pin lifting, flat lifting, Fixing system, and Plastic spacer products for precast concrete industry. We have provide the accessories products for the precast concrete industry from 2001 for European and USA leading precast concrete accessories Company, and always know how to control and produce reliability precast concrete products with high safety factor and quality.

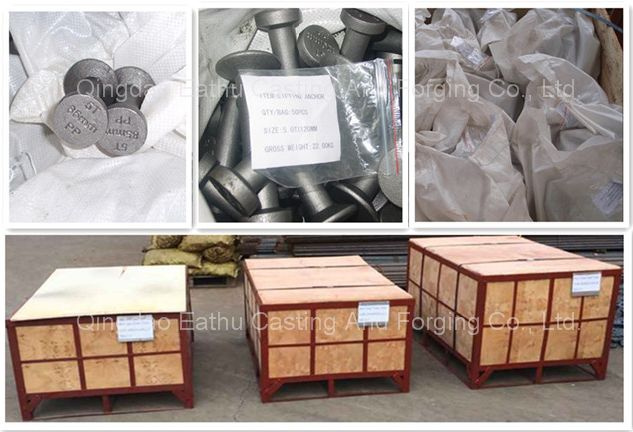

Packing & Shipping
Plywood crate is always used for our Spread Anchor Ring Clutches, Pin Anchor, Eye Anchor and Pipe Anchor.


FAQ
Q1. You are manufacturer or trading company?
A: We are factory. Welcome to visit our factory at anytime.
Q2. Can I have a sample before orders?
A: Yes, we welcome sample order to test and check our quality.
Q3. What about the lead time of sample order?
A: Standard parts need 3-5 days after sample order confirmed, and if the sample need to make new mould, the leading time will be about 30-40 days.
Q4. How can I get your quoted price?
A: If you need our standard parts, please let us know the detail item code and order quantity, then the quotation will be sent. OEM parts please provide the drawing at the same time.
Q5. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


Contact Us


Prod Model: BSR-1680
Product Name: Precast Hardware Steel Forged Eye Anchor
Steel Material: Q235
Apply: Precast Concrete Accessories
Usage: Building Construction
Certificate: ISO 9001/ Ce
Surface: Hot DIP Galvanized
Load Capacity: 1300-32000 Kgs
Production Process: Hot Forged
OEM Of Forged Parts: Available
Sample Of Anchor: Available
Type: Fasteners
Qingdao Eathu Casting and Forging Co., Ltd. is one of the biggest manufacturers and exporters of pipeline products in China.

We specialize in pipeline products, casting and forging (with or without machining): Malleable iron pipe fittings, ductile iron grooved fitting and coupling, 125# cast iron pipe fitting, steel butt-welding pipe fitting, steel flange, forged steel pipe fittings, stainless steel threaded pipe fitting, steel pipe nipple & merchant coupling, steel pipe, brass pipe nipple and bronze fitting, cast iron soil pipe and fitting, resilient seat non-rising stem wedge gate valves, check valve, butterfly valve, brass valve and bib-cock, scaffolding couplers / clamps, scaffolding frame & props, scaffolding accessories, pipe clamp fitting, concrete lifting anchors, lifting insert, socket & fixing insert, concrete hardware accessories, expansion shell, pipe coupling & hose clamps, radiator, cast iron manhole cover, auto parts, sand casting parts, investment (lost wax casting) casting parts, die casting parts, and kinds of casting and forging machinery parts according samples or drawing from customers.

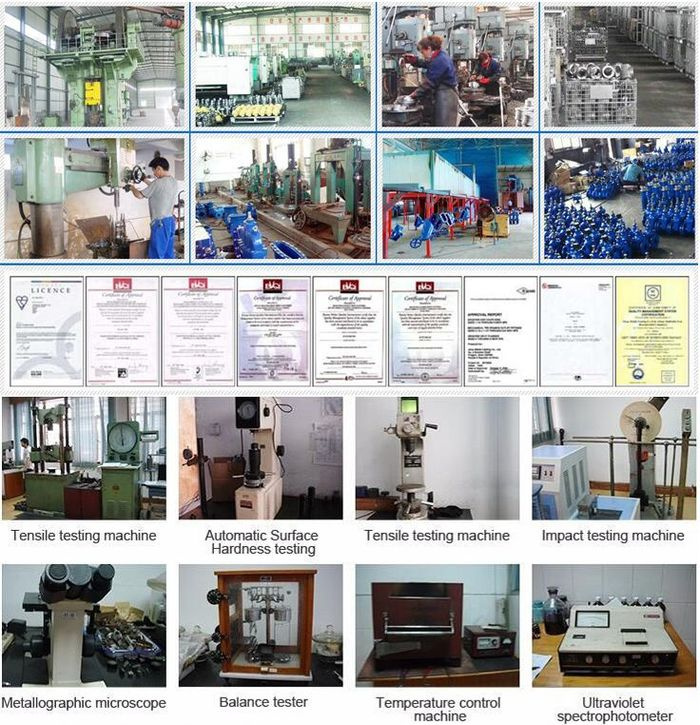

All our factories are certified to the international ISO-9001 quality system standard and all products are carefully tested to meet the strict quality requirements and industry standards prior to each shipment. Parts of our products have been tested, listed, approved by some predominant labs and bodies. In order to enhance our accountability for environment, the environmental management system to ISO14001 has been assessed and registered by BVQI (France).

Any information, samples and drawings which you can provide will facilitate us to make the correct supply to meet your special requirements.
