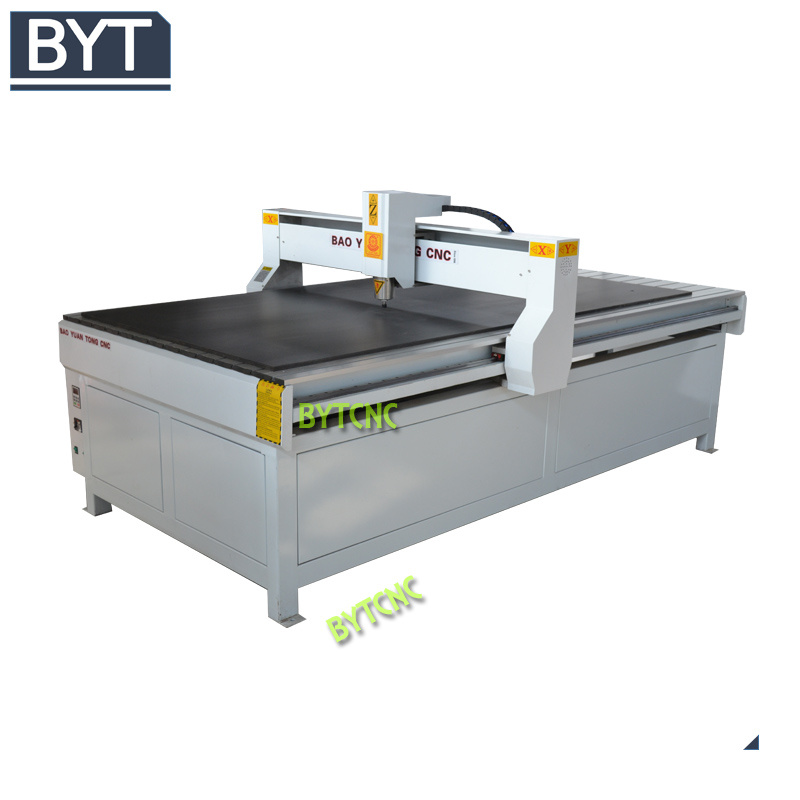

Power Saving High Speed CNC Router for Woodworking

Power Saving High Speed CNC Router for Woodworking
Price: US $ 3700-4700/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union







2015 new product! BJD-2020 mini desktop cnc router for circuit board



Features:

1.Guide Rail : X,Y,Z axis Adopt precision work round guild .Good stability , high accuracy ,lower wastage and long service time.

2. Portal Frame: Use aviation industry aluminum, long service time, resistant to wear and low noise. The X.Y.Z.Axis use import high precision and lower wastage extended nut automatic disappear gap ball-screw.

3. Principal Axis : Water-cooling principal axis, resistant to wear and low noise and can cooling the machine timely and effective .

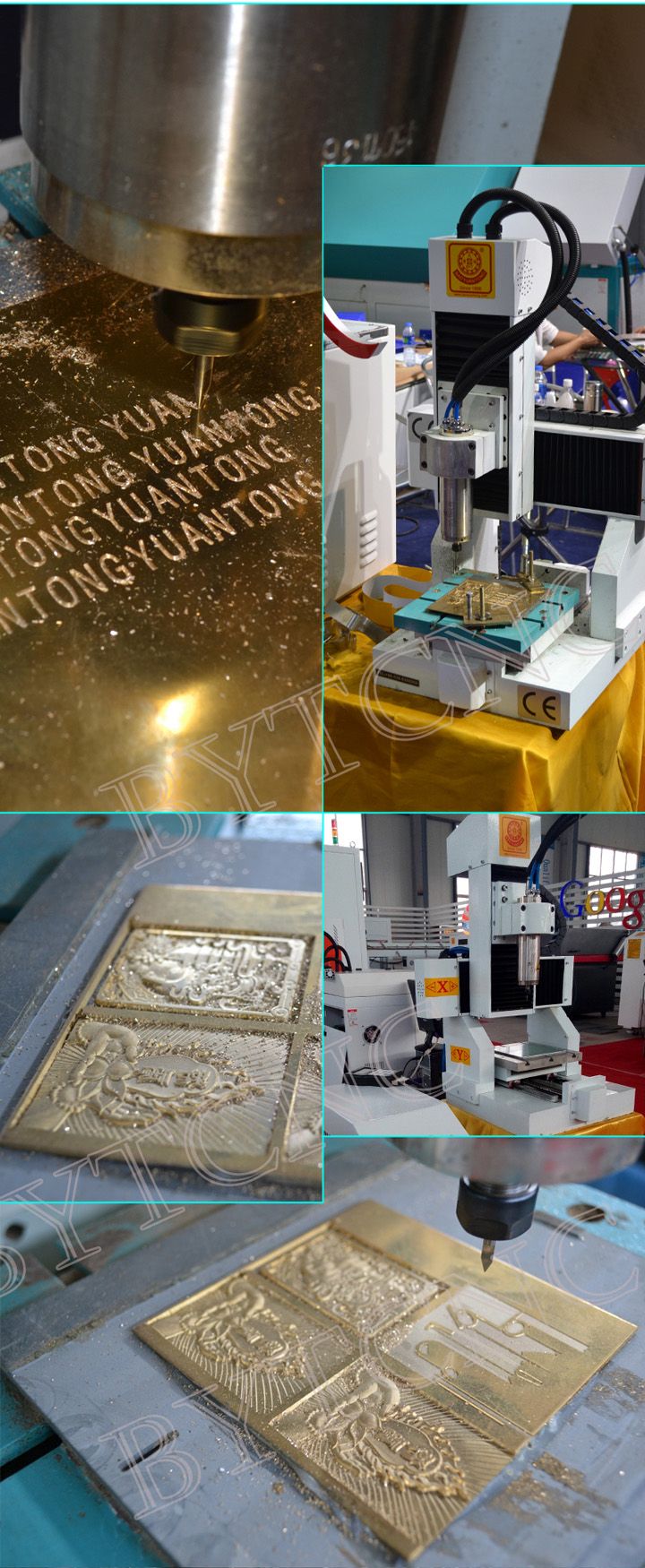

4.High accuracy , It could engrave 2mm-3mm little letter.

5.The control box adopts advanced CNC system, making it high stability. The high-speed subdivided engraver motor is installed to ensure low noise , non-polar speed change .It has the function of relief sculpture as well.

Technical data:


Model

BJD1326

BJD1318

BJD1315

BJD1312

BJD6090

X,Y working area(mm)

1220*2400

1220*1800

1220*1500

1200*1200

600*900

Z axis Travel (mm)

80

Weight

500KG

400KG

350KG

300KG

280KG

Overall Size(mm)

1700*2950*1250

1650*2230*1250

1650*1950*1250

1650*1650*1250

980*1160*1150

Processing Precision

0.01mm

0.01mm

0.01mm

0.01mm

0.01mm

Reposition Precision

0.05mm

Spindle Power

1.5kw or 2.2kw,3kw

Spindle Rotating Speed

0-24000rpm

Cooling Way

Water

Control system

Nc-studio or choose DSP controller

Drive motor

Stepper

Working Software

Windows98/2000/XP

Compatible Software

Compatible Software

Command

G code, *uoo, *mmg, *plt

Rail guide

Precision work round

Transmit way

Taiwan imported ball screw

Max Speed

5000mm/min

Max Working Speed

3000mm/min

Working Voltage

AC220V/50HZ1P


 Suitable material:acrylic, double color board, PVC, density board, soft metal like aluminum,

copper etc.

Service

1.One year quality guaranty. The machine with main parts (excluding the consumables)
shall be changed free of charge when problems happened during the warranty period.

2. Lifetime maintenance free of charge.

3. Free training course at our plant.

4. We will provide the consumable parts at an agent price when you need replacement.

 5.Engineers speaking English 12 hours on line service each day, free technical support. We
will solve your problems immediately by E-mail, fax, MSN, Skype, or telephone.

6. The English operation manual in electronic edition is included.

7. Machine has been adjusted before delivery.

8.Yuantong century is constructing oversea technical support center network, you can
contact us to find your nearest support center.
Engraving Machine Type: CNC Engraving Machine
Condition: New
Guide Rail: X Y Z Square Guide Rail
Shandong Yuantong Century Intelligent Technology Co., Ltd, founded in 1996, specialized in manufacturing kinds of CNC Machines. Our product ranges from CNC routers, laser, plasma machine, to various sign making machines dedicated to advertising and other applications. Such as decorating, label making carpentry industry, stone processing, craft gifts, garment and leather processing, embroidery industry and so on.

Now our products have been sold all over the world, and with the CE certification, they are exported to more than 100 countries, including: Algeria, Argentina, UAE, Oman, Azerbaijan, Egypt, Ethiopia, Ireland, Angola, Oliver, Australia, Papua New Guinea, Pakistan, Paraguay, Bahrain, Panama, Brazil, Bulgaria, Belgium, Puerto Rico, Poland, Bosnia and Herzegovina, Bolivia, Denmark, Germany, Dubai, Dominican, Russia, Ecuador, France, Philippines, Chile, Colombia, Costa Rica, Georgia, Kazakhstan, Korea, Netherlands, Honduras, Kyrgyzstan, Canada, Czech Republic, Zimbabwe, Cameroon, Qatar, Cô Te d'Ivoire, Kuwait, Croatia, Kenya, Curacao, Latvia, Laos, Lebanon, Lithuania, Libya, Romania, Maldives, Malaysia, Macedonia, Mauritius, United States, American Samoa, Peru, Myanmar, Moldova, Morocco, Mexico, South Africa, Nepal, Nigeria, Norway, Sweden, El Salvador, Serbia, Senegal, Cyprus, Saudi Arabia, Sri Lanka, Slovakia, Thailand, Tanzania, Turkey, Venezuela, Brunei, Ukraine, Spain, Greece, Singapore, New Zealand, Hungary, Armenia, Iraq, Iran, Israel, Italy, India, Indonesia, United Kingdom, Jordan, Vietnam, Vietnam, Zambia.

Rather than merely supplying stand-alone products, we offer customized solutions for different clients request. These solutions bring users a more efficient way with lower production cost.

Now we are developing more and more intelligent equipment to offer more advantages to our clients.

The integrity, reliability and high quality products guarantee us the leading position among CNC advertising equipment industry.

In order to provide better service for customers, Yuantong century is constructing oversea sales center in Dubai and oversea technical support center network all over the world,

We provide technical support and professional training for customers, make sure their machine run stable and efficiently. English speaking after service team make sure the customer's problem could be settled in shortest time.

All around the clock, all around the world, we are always here for you

Shandong Yuantong Century Intelligent Technology Co., Ltd

China:

No. 2999, 2ND Industry Road., Weifang Economic Development Zone, Weifang city, Shandong Province, China

Tel: +86 0536 8206275

UAE: China National Building Material Group FZE, S30408 Jafza South near Gate No. 10, UAE

+00971 507988256

+00971 508814825

Bytcnc. COM
