Post Tension Prestressed Wedges for cables
1. Description:YM Series products are composed of tensioning anchor,holding anchor,connectors.It can used to lock the steel strand wires on/under classes of 2000Mpa standard strength,which is usually in diameters of 12.7mm /12.9mm/15.2mm/15.7mm.
It has been verified by pratice that various type of YM anchor also can be used for the different kinds of strand wires produced according to ASTM/BS/JIS/JIG/AS and other international standards respectively only if its technical parameters shall mary the related detail materials.
2. Parameter table of Post Tension Prestressed Wedges for cables
Type |
The number of PC strand root |
Anchor plate
ΦAxBxΦD |
Bellows ID
ΦD |
Anchor ring
ΦExF | Spiral reinforcement | Anchor plate
|
Tension jack supporting models
|
| ΦGxΦHxL |
Laps |
Mounting hole Pitch |
Mounting hole diameter |
| YJM13-1 | 1 | 80x80xΦ10 | | Φ39x43 | Φ70xΦ6x30 | 4 | | | YDC260Q |
| YJM13-2 | 2 | 135x70xΦ58 | Φ50 | Φ73x45 | 100xΦ8x40 | 4 | 113 | M10 | YCW60B |
| YJM13-3 | 3 | 135x70xΦ58 | Φ50 | Φ78x45 | 100xΦ8x40 | 4 | 113 | M10 | YCW60B |
| YJM13-4 | 4 | 136x80xΦ62 | Φ55 | Φ88x47 | 130xΦ10x40 | 4 | 115 | M10 | YCW100B |
| YJM13-5 | 5 | 136x80xΦ62 | Φ55 | Φ98x47 | 130xΦ10x40 | 4 | 115 | M10 | YCW100B |
| YJM13-6 | 6 | 146x80xΦ62 | Φ55 | Φ103x45 | 140xΦ10x50 | 4 | 126 | M10 | YCW150B |
| YJM13-7 | 7 | 146x80xΦ62 | Φ55 | Φ103x45 | 140xΦ10x50 | 4 | 126 | M10 | YCW150B |
| YJM13-8 | 8 | 162x100xΦ78 | Φ70 | Φ117x50 | 160xΦ12x50 | 4 | 140 | M10 | YCW250B |
| YJM13-9 | 9 | 176x120xΦ88 | Φ80 | Φ127x45 | 170xΦ14x50 | 5 | 153 | M10 | YCW250B |
| YJM13-10 | 10 | 183x120xΦ90 | Φ80 | Φ137x45 | 180xΦ14x50 | 5 | 162 | M10 | YCW250B |
| YJM13-11 | 11 | 210x120xΦ100 | Φ90 | Φ147x50 | 210xΦ14x60 | 5 | 180 | M10 | YCW250B |
| YJM13-12 | 12 | 210x120xΦ100 | Φ90 | Φ147x50 | 210xΦ14x60 | 5 | 180 | M10 | YCW250B |
| YJM13-13 | 13 | 210x140xΦ100 | Φ90 | Φ157x50 | 210xΦ14x60 | 5 | 185 | M10 | YCW350B |
| YJM13-14 | 14 | 210x140xΦ100 | Φ90 | Φ157x50 | 230xΦ16x60 | 5 | 185 | M10 | YCW350B |
| YJM13-15 | 15 | 234x160xΦ100 | Φ90 | Φ167x50 | 230xΦ16x60 | 5 | 200 | M10 | YCW350B |
| YJM13-16 | 16 | 234x160xΦ100 | Φ90 | Φ167x55 | 230xΦ16x60 | 5 | 200 | M10 | YCW350B |
| YJM13-17 | 17 | 234x160xΦ100 | Φ90 | Φ167x55 | 230xΦ16x60 | 5 | 200 | M10 | YCW350B
YCW350B |
| YJM13-18 | 18 | 234x160xΦ100 | Φ90 | Φ167x60 | 230xΦ16x60 | 5 | 200 | M10 | YCW400B |
| YJM13-19 | 19 | 244x180xΦ100 | Φ90 | | 230xΦ16x60 | 6 | 210 | M10 | YCW400B |

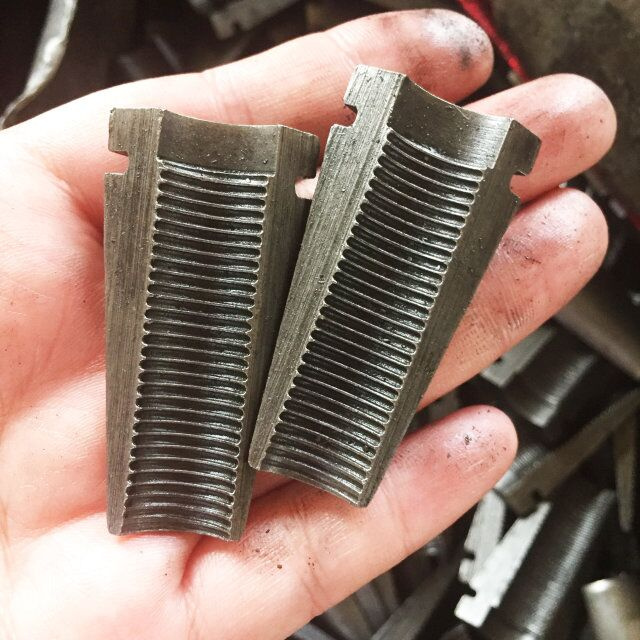

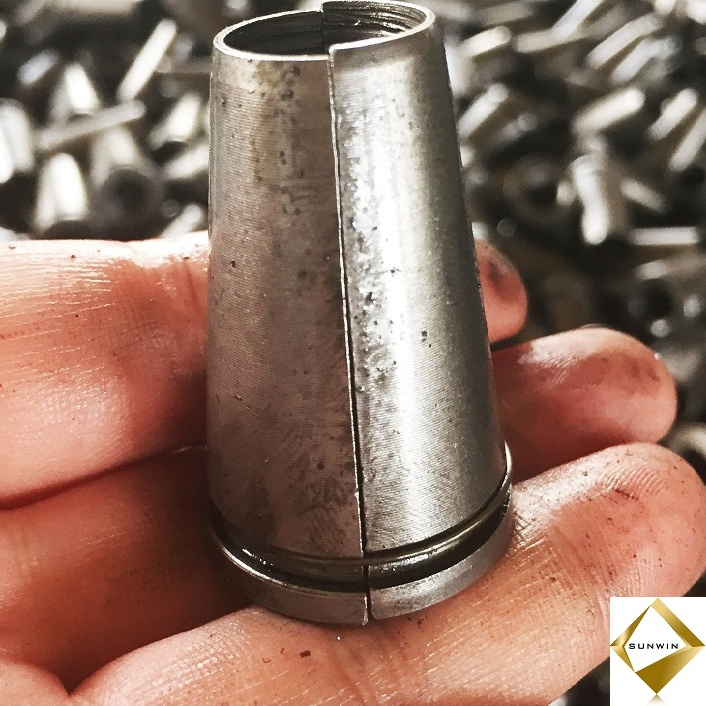

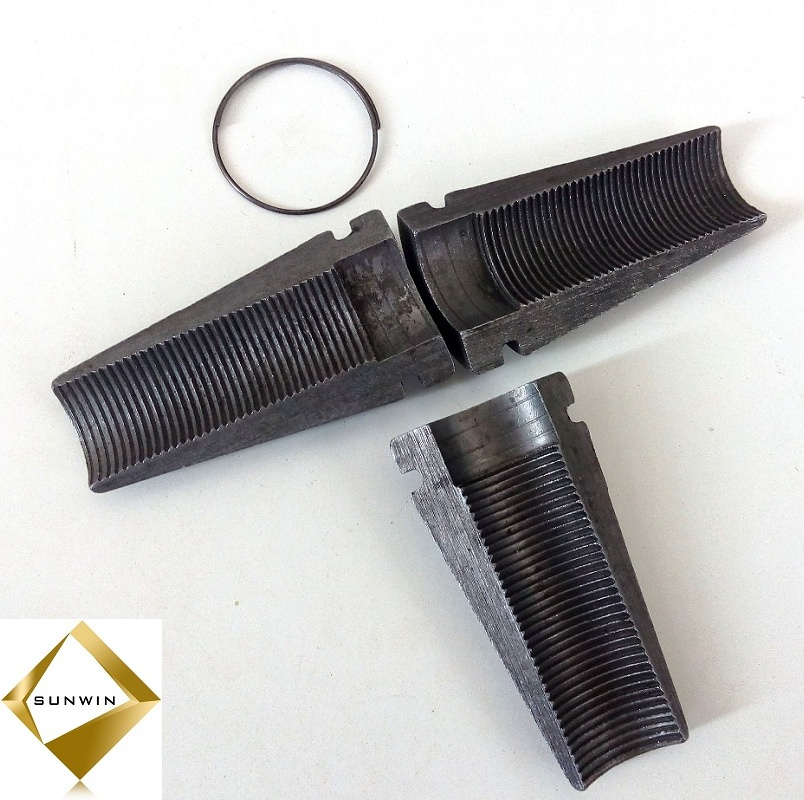

3. Product Photo

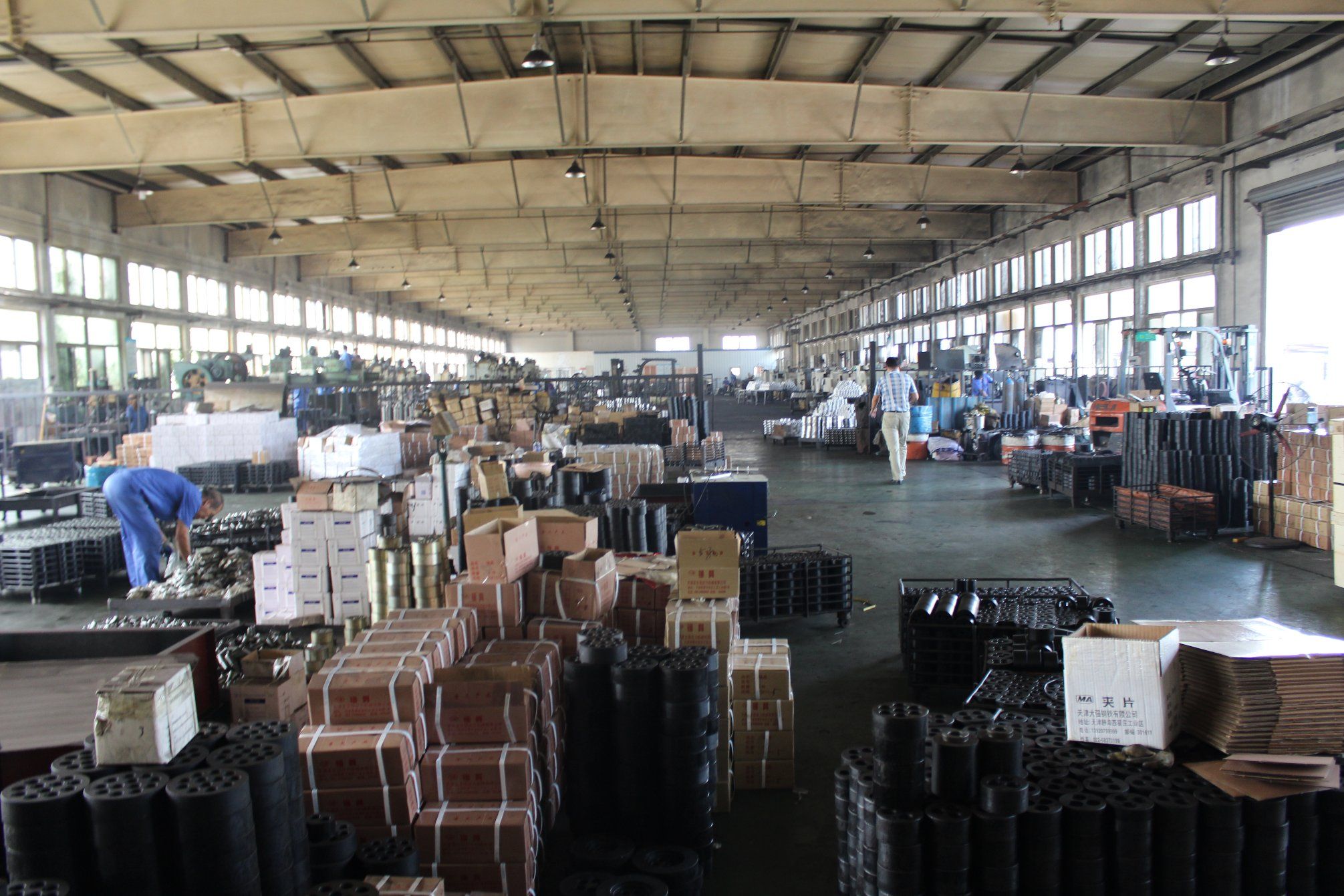

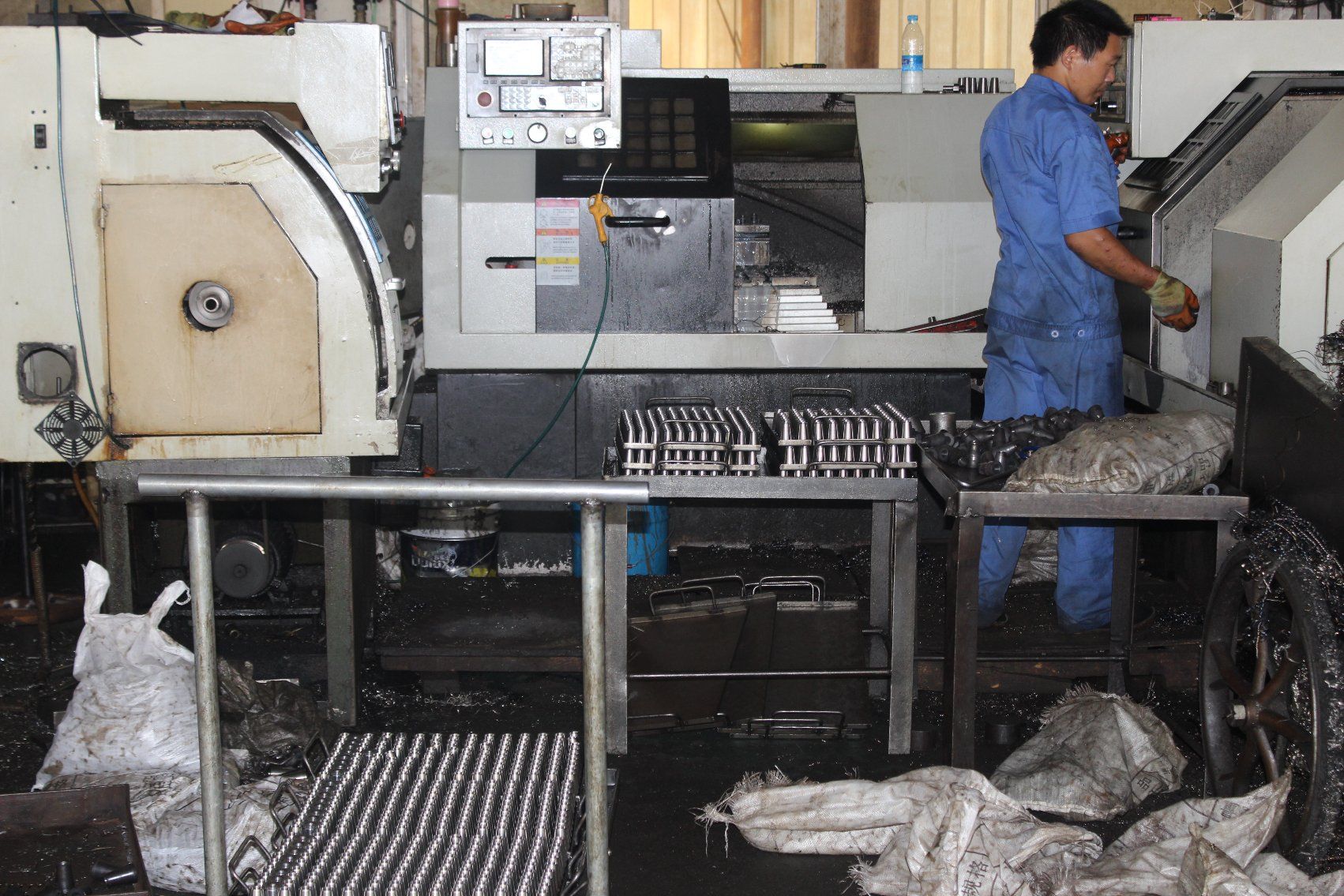

4. Factory Scene
