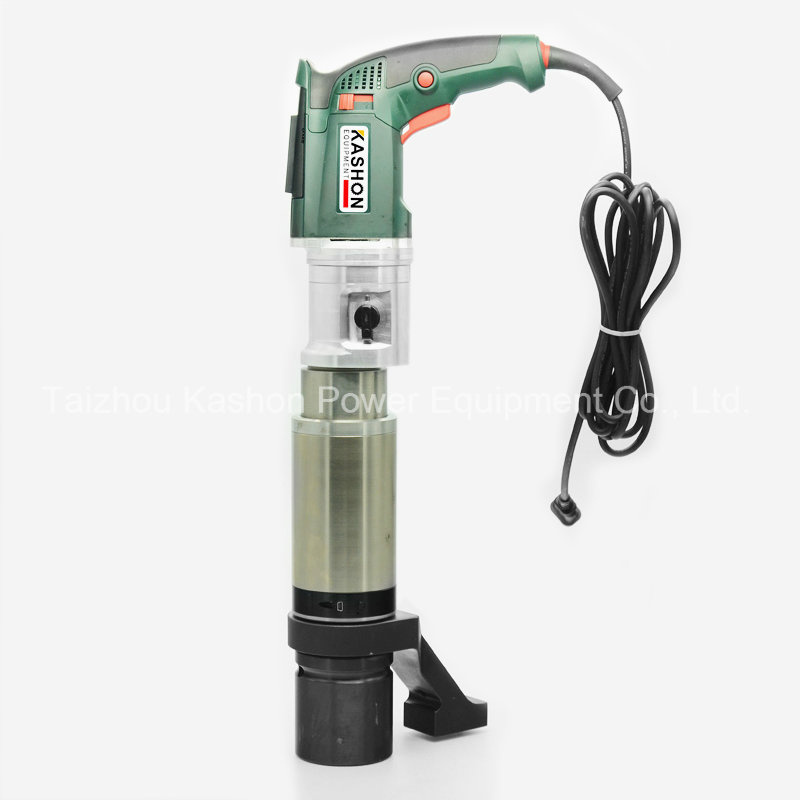

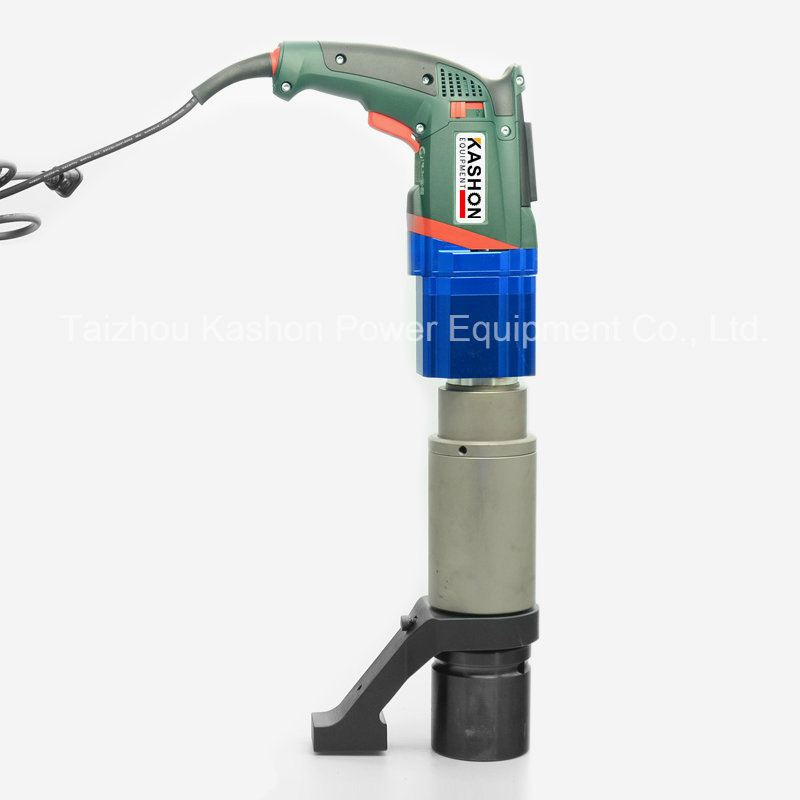

PROTABLE ANGLED TYPE DIGITAL ELECTRIC TORQUE WRENCH
Features:
High output and repeat accuracy: ± 5% and ±3%.
Preset torque and automatic shutoff when reaching the setted torque.

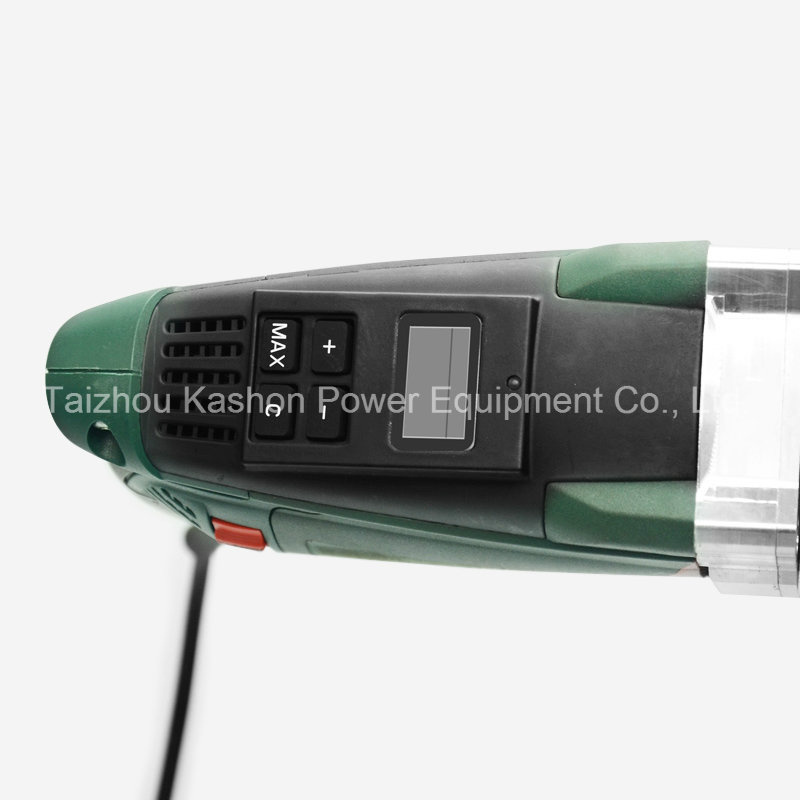

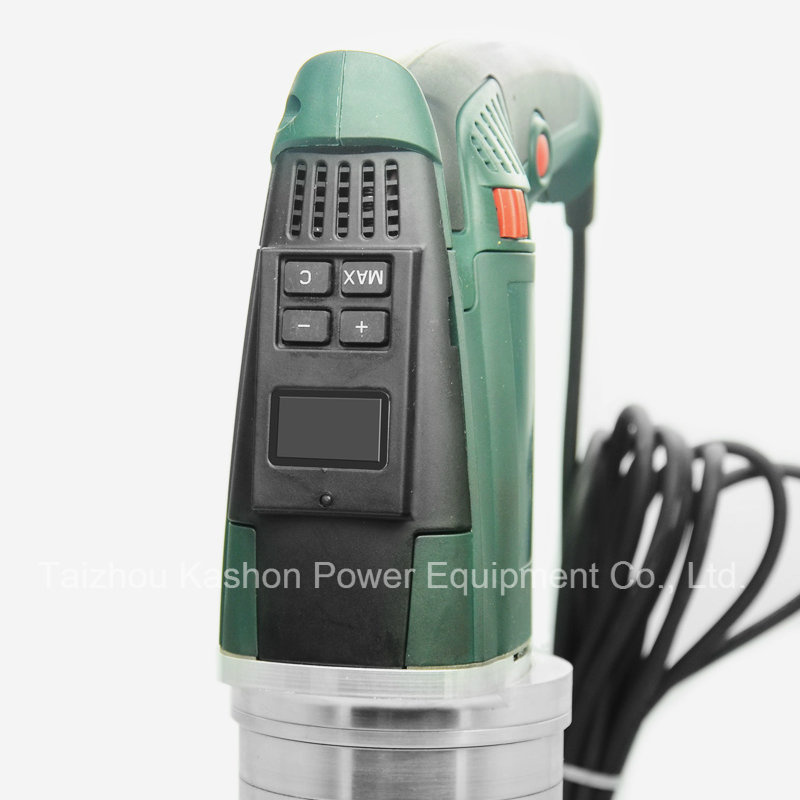

Single-chip intelligent torque control system with LCD display.
With manual 2-speed gearbox, high/low speed can be shifted freely
Very suitable for continuous operation in production assembly and maintenance.
Free connection of power handle and drive unit, could be rotated 360°.
Higher efficiency whether tightening or loosenning bolts and nuts than hydraulic torque wrench.
Portable and durable design, low noise, with overload protection.
After-sales service: 1 year guarantee period, life-long maintenance.
Supply scope :1 pcs torque wrench,1pcs reaction arm,1 copy operating instructions,1 copy test report.
Specifications:
| Model | Min torque(N.m) | Max torque(N.m) | Drive S(mm) | D(mm) | L(mm) | K(mm) | M(mm) | Weight(Kg) | Idle speed (rpm) |
| KSEW-08S | 100 | 800 | 3/4" | 65 | 420 | 205 | 145 | 5 | 30 |
| KSEW-16S | 200 | 1600 | 1" | 74 | 460 | 205 | 195 | 6.5 | 12.2 |
| KSEW-28S | 400 | 2800 | 1" | 78.5 | 480 | 205 | 215 | 8.2 | 6.3 |
| KSEW-40S | 700 | 4200 | 11/2" | 88 | 500 | 205 | 235 | 9.5 | 5.1 |
| KSEW-60S | 1000 | 6000 | 11/2" | 113 | 529 | 205 | 264 | 14.9 | 2.6 |
| KSEW-80S | 1200 | 8000 | 11/2" | 120 | 539 | 205 | 274 | 16.8 | 1.8 |
| KSEW-100S | 2000 | 10000 | 11/2" | 128 | 555 | 205 | 290 | 18.3 | 1.5 |
| KSEW-120S | 3000 | 12000 | 11/2" | 128 | 555 | 205 | 290 | 18.5 | 1.5 |
Photos:
Company Information:
Kashon Equipment has been in hydraulic tools industry since 2002. mainly export:
Hydraulic cylinder jacks (5-1500ton), single double acting, hollow plunger; low height, lock nut;
Hydraulic torque wrenches(100-72000Nm);
Electric and pneumatic torque wrenches(800-13500Nm);
Hydraulic lifting pumps, manual and electric type;
Hydraulic pullers, manual and hydraulic type;
Hydraulic flange spreader, manual and hydraulic type;
Hydraulic steel wire rope press machine
Hydraulic accessories(hoses, couplers, oil distributors, etc.)
Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.
We believe "service" is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.
| Prod Model: | KSEW |
|---|---|
| Max. Air Pressure: | 6bar |
| OEM Service: | Can Put Customers' Brand |
| Square Drive: | 1-1 / 2" |
| Accuracy: | ±5% |
| Characteristic: | Vertical Type, Electric Torque |
| Max Working Pressure: | 700 Bar |
| Weight: | 5-18.5kg |
| Delivery: | Expediting Service Available |
| Working Style: | Rotary Type |
| Type: | Pneumatic Torque Wrench |
| Usage: | Tighten and Loosen Bolts |
| Air Wrench Type: | Pneumatic Torque Wrench |
| Brand: | Kashon |
