Portable Pneumatic Core Drill / Mountain Geological Exploration Water Well Drill Machine

Portable Pneumatic Core Drill / Mountain Geological Exploration Water Well Drill Machine
Price: US $ 7000-10000/Set
Min Order: 1/Set
Pay Type: T/T,Western Union,Money Gram
Portable pneumatic core drill / mountain geological exploration water well drill machine

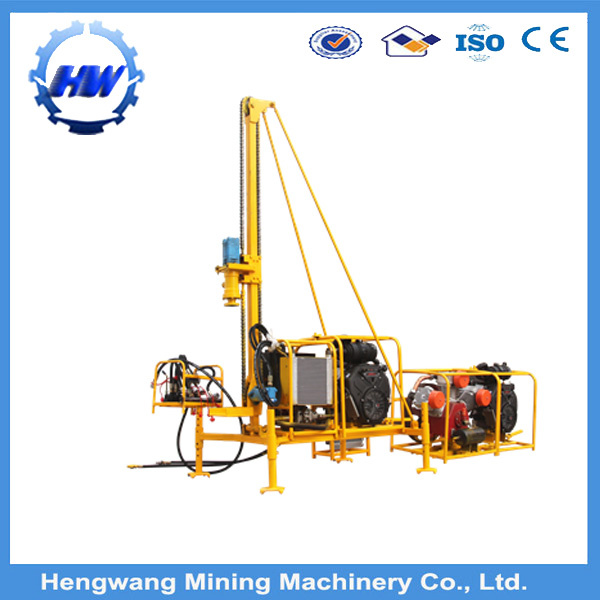

HW-S30 Hydraulic mountain drill rig  is a series of products developed by the company with independent intellectual property rights.
Mountain drilling rig  are widely used in oil drilling exploration, geological exploration, small and medium-sized mines and transportation, defense, rock Drilling and blasting hole in water Conservancy engineering, etc.
MAIN FEATURES:
1.Designed in strict accordance with the requirements of general industrial design standards, Product Parts, Module unit versatility,  interchangeable.
2.Adopt full hydraulic working mode and buckle type adjustment device, So the structure is simple, easy to operate.
3.Variable pump used in Hydraulic station, So that the entire hydraulic system optimization, with energy-saving, small, low-cost functions.
4. The hydraulic quick lift drill pipe design eliminates the derrick, hoist and gearbox, which makes the operation simpler and safer.

Main parameters

Model HW-S30
Drilling depth30m
Drilling methodpneumatic hammer drilling
Screwdrilling and mud drilling(alternative)
Drilling diameter(mm)pneumatic hammer   drillingrock70-90,soil75-95
75-90
drill rod(Dia*Length)(mm) pneumatic hammer
 drilling
Φ60×1500
Power head(N.m)Torque800-900
(r/min)Drilling speed0-135
Drilling  pressurization  and lifting(N) Feed pressure5500-6000
(kN)Lifting power12-16
(m/s)Max lifting speed0.71-0.81
Power(kw)/Rotatory(r/min)Main engine power/speed26/3600
hydraulic system(L/min) Flow0-60
(Mpa)Working pressure20
air compressorType/Quantity1Piston/1 unit Screw
(m3/min)Flow3.53.8
(Mpa)Pressure0.8
Power(kw)/Rotatory(r/min) Engine power/speed26/3600









Sunny Kong

Mobile+8615853785289

Tel: 0086-537-2881968

Jining Hengwang Mining Machinery Co., Ltd.
Prod Model: HW
Drilling Depth: 30m
Drilling Method: Pneumatic Hammer Drilling
Drilling Diameter: 75-90mm
Main Engine Power/Speed: 26/3600
Drill Rod(Dia*Length): 60 1500
Torque: 800-900
Drilling Speed: 0-135
Feed Pressure: 5500-6000
Lifting Power: 12-16kn
Max Lifting Speed: 0.71-0.81
Jining Hengwang Mining Machinery Co., Ltd. is located in Jining, Shandong Province, China. Established in 2002, comprehensive enterprise, collection of marketing, scientific research, trade. Registered capital of 10.8 million, Existing staff 200 persons, including 3 engineering experts, senior software engineer 8 persons, network information technicians 28 persons, ecommerce division, more than 80 persons, the international trade commissioner, 18 persons, logistics division 9 persons, all kinds of technical personnel more than 50 persons.

Specializing in the Drilling equipment; Railway equipment; Road machinery; Electrical equipment; Pumps; Hydraulic tools; New energy etc.

Our products sell to Vietnam, Malaysia, South Korea and other southeast Asia, Africa and the Middle East, South America, North America, Europe etc, is popular among the masses of customers. Our Companies adhere business philosophy "to provide convenient service to customers, to create development opportunities for employees" and "continuous improvement, enjoy the" spirit of enterprise. Warmly welcome new and old friends from home and abroad came to our company, to make negotiation.

Our company long term commitment to science connect with market, keep up with Reform Development, take science to be commercialization, marketization and industrialization, work with Coal science and design institute, Metallurgy Design institute, Coal science and technology university and some other famous scientific research, develop and research some mine machines and devices, we not only sell at home but also abroad, Southeast Asia: Vietnam, Malaysia, Korea, Africa and Middle East, our products get great popular from clients. We rely on top quality,

Competitive price and good service to offer metallurgy, coal, hydroelectric, railway, highway, mine etc, we quickly Occupied the Market, Achieved remarkable results.

Insist on "offer excellent service for customers, create development chance for employees" as operation principle and take "keep forging ahead, enjoy great success" as enterprise spirit, we sincerely welcome friends from home and abroad to visit us for business, Let us create great undertaking and brilliant togerther!
