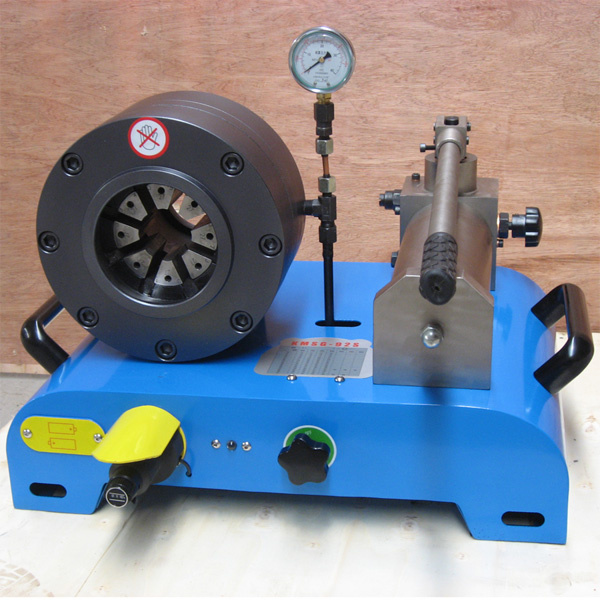

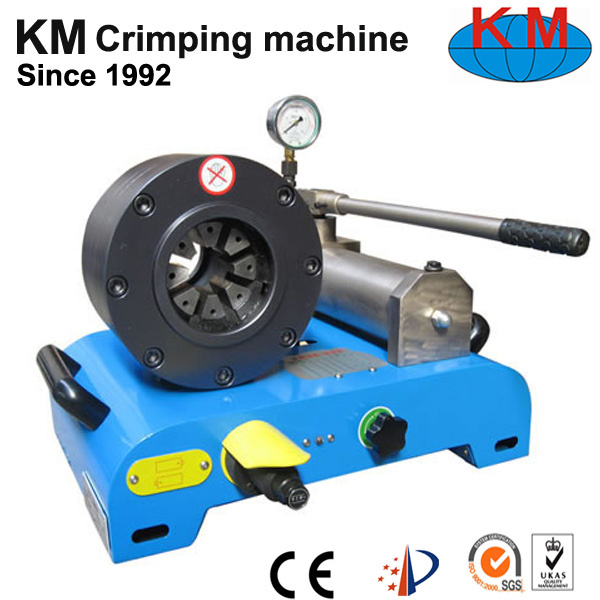

Portable Hand-Operated Manual Hose Crimping Tool Km-92s

Portable Hand-Operated Manual Hose Crimping Tool Km-92s
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Money Gram



Technical Datas Of KM-92S Manual Hydraulic Hose Crimping Machine
Model NO.KM-92S
Crimper Rage1/8 inch -1 1/4inch 4SP
Swaging Force1370KN
PumpMaual Pump
Opening without diesφ108mm
Opening min 27mm
Oil Box1.3L
Hydraulic OilL-HM32
No. of standard die sets12 sets
Weight71 kg
Systematic Pressure30Mpa

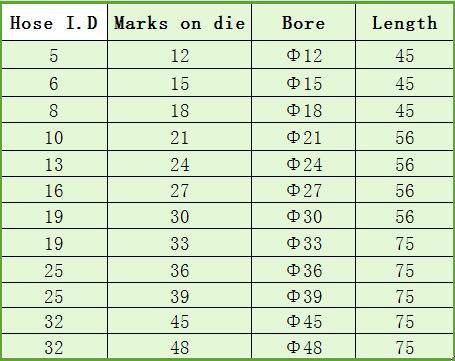

Die information about manual hose crimping machine KM-92S

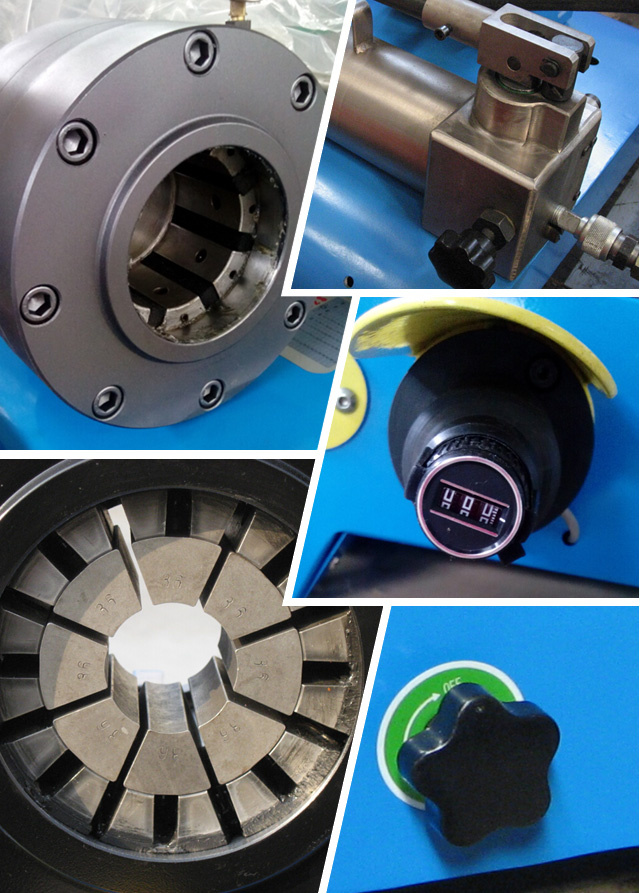

Advantages Of KM-92S Manual Hydraulic Hose Crimping Machine
1).Small volume,low weight and easy to be moved;
2).When crimping to the pre-set size, indicator light will be on;
3).Suitable for outdoor, non-electricity manipulation;
4).Fast speed with compound dienbase;
5).Load-off handwheel make the die return fast.

Applications Of Manual Hydraulic Hose Crimping Machine KM-92S
1). Suitable for OUT DOOR MAINTAINCE, ONLY 71KGS, EASY TO CARRY.
2).Used rubber hose to transmit hydraulic pressure as there working power.
3).Used in Building Construction, Petroleum Industry, Chemical Industry, Car and motor Industry.

Hydraulic Hose Crimper why not choose Kangmai?
1). Kangmai hose crimper has approved CE & ISO and audited by SGS.

2). The fitting and hoses crimped by kangmai machine never leakage the oil and never broken. The reason are like below:
  (a)The machine head process by CNC machine, roundness and taper is within 0.1mm.
  (b)The machine die base and dies adopt special die steel and process by advances craft,the hardness is above 55HRC. The die hardness is enough so that the die life is very long and easy to crimping high pressure hydraulic hose, such as 4SP even 6SP.
  (c)The technical of machine head is forging or cast. Casting is cheap but has small hole on the machine head. The piston will divide from casting machine head.


Prod Model: KM-92S
Product Name: Manual Hydraulic Hose Crimping Tool Km-92s
Crimp Rage: 1/8 Inch to 1 1/4 Inch
Machine Max Opening: 108mm
Die Material: Special Steel
Machine Valves: From Taiwan
Machine: Blue
Weight: 71kg
Volume(L-W-H): 550*520*395(mm)
Automatic Grade: Manual
Handan Kangmai Hydraulic Equipment Co., Ltd...Located in East of Wang Zhuang, Han (Dan) - Lin (Zhang) Expressway with covered an area of 50 acres. We invest RMB30 million and built mechanical processing workshop, finished debugging workshop, mold workshop, new product development center, warehouse, and spare parts warehouse. We can product 2000 sets machines in one year.

Our employees reach to 60 people now. Professional and technical personnel account more than 50%. With a number of technology patents, we passed the ISO9001 quality system certification, obtained the self import and export rights and the European Union CE certification. And now we are one of largest factory in hydraulic area.

The main products are hose crimping machine, hose cutting machine, hose skiving machine, hose coupling machine, marking machine, nut crimping machine, hose testing machine, and cleaning machine, nine series more than 50 models. We successively provided equipment for XAC, Jizhong energy, South car group, the Beijing Shanghai High-speed Rail, and Yiwan railway company. Meanwhile, our products are exported to the United Kingdom, Spain, Portugal, Ukraine, Russia, Mexico, Brazil, Argentina, USA, Saudi Arabia, Iran, Thailand, Indonesia and other more than 30 countries and regions, and get good response by domestic and foreign customers.

In the future, we will insist on innovation and development, make the product more and more precisely. Make Chinese Kangmai become the world's Kangmai.
