Portable CNC Plasma Cutting Machine Plasma Cutter

Portable CNC Plasma Cutting Machine Plasma Cutter
Price: US $ 1-2000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
crossbow portable cnc flame plasma cutter Cutting machine

Product description

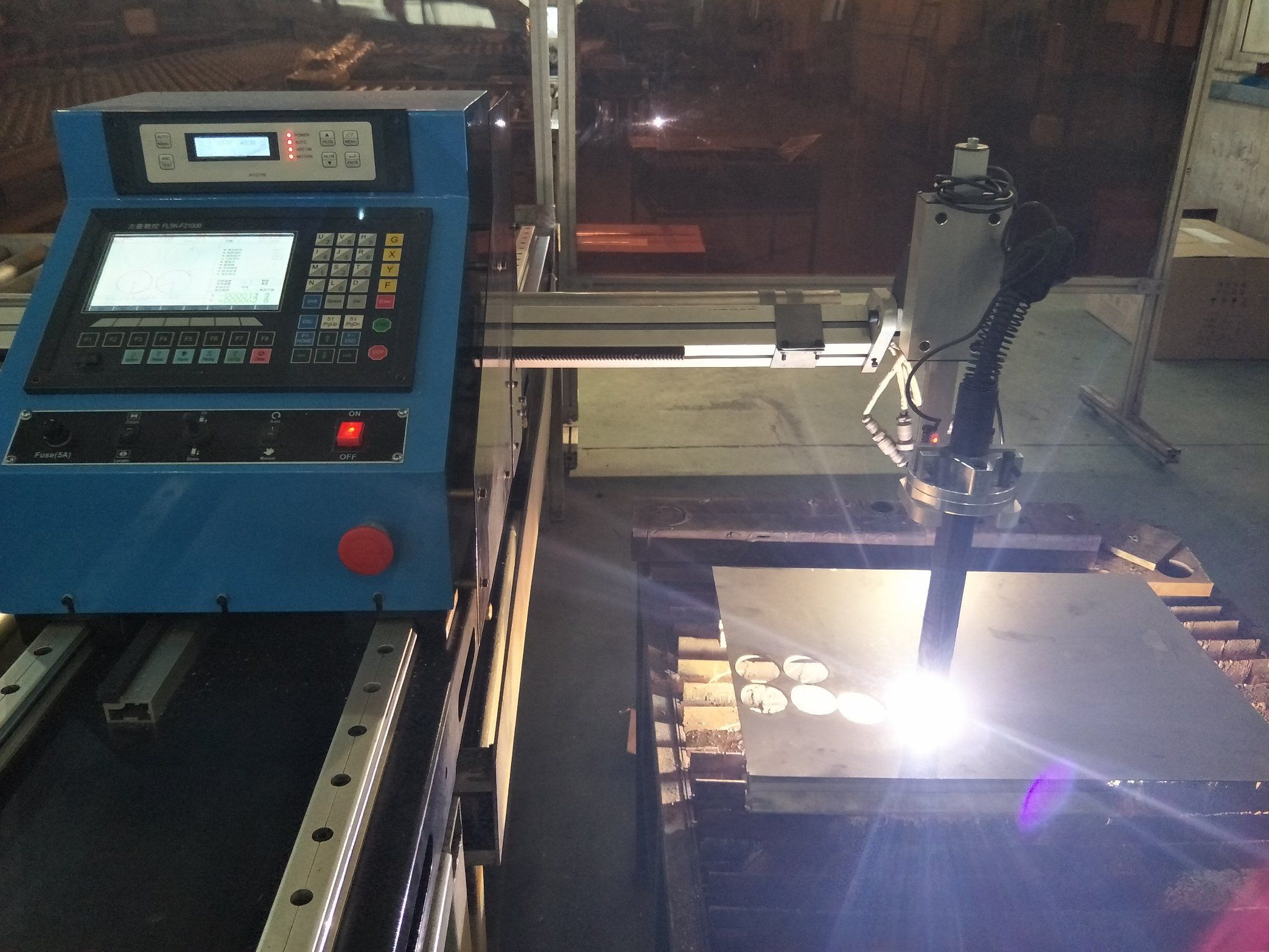

It is portable ,economical , flexible CNC plasma cutting machine . Compact CNC plasma cutting system . Equipped with plasma , oxy-fuel or both . It is simple and fully integrated CNC .

Function
Effective cutting range (X*Y axis) 1500x7500mm
Freely switching in English, Russian, French, Portuguese, Spanish etc. for CNC control system.
Storing over 1000 program files to be cut.

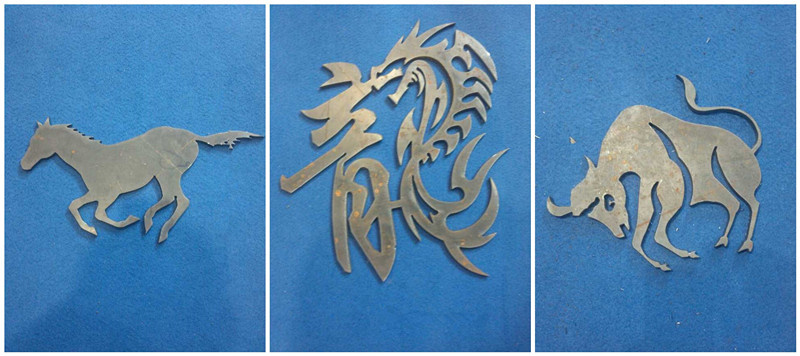

Able to cut any complex flat graphic


Feature and advantage
Portable , economical , flexible CNC plasma cutting machine
Compact CNC plasma cutting system
equip with plasma , oxy-fuel function
it is simple and integrated CNC cutting machine .
It is built-in library of common shapes .
USB port for program loading.
FastCAM nesting .



Technical details

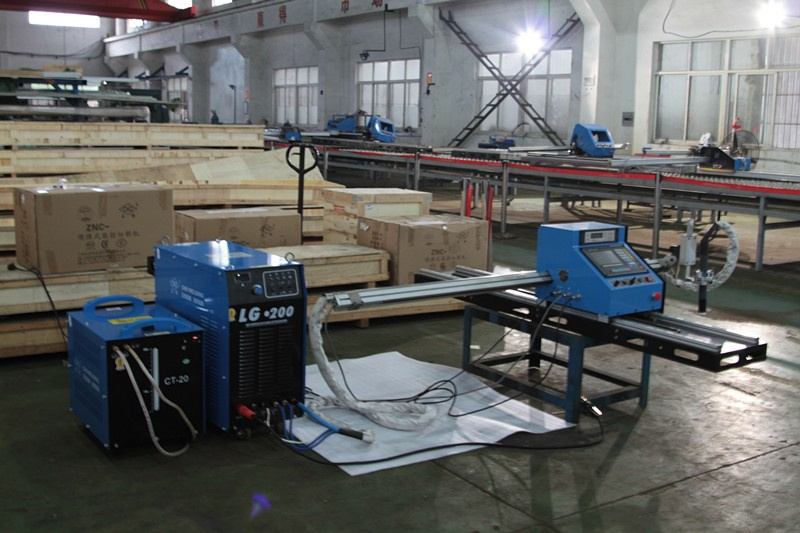

Product ZNC-1500A portable CNC cutting machine
Model ZNC-1500Ax2500ZNC-1500Ax3000
Input voltage AC 220VAC 220V
Power supply frequency 50Hz50Hz
Rated power500-1000W500-1000W
Effective cutting range (mm)
(X*Y axis)
1500x75001500x7500
Effective cutting width (mm)
(X axis)
15001500
Effective cutting length (mm)
(Y axis)
25003000
could be extended as per customer demand
Cutting mode gas / plasma cutting  gas / plasma cutting
Motor stylestep motor step motor
Drive modesingle-side single-side
Gas cutting thickness 6-100mm6-100mm
Plasma cutting thickness (0.5-90mm)Depends on plasma source capacity
Cutting speed 10-3000mm/min10-3000mm/min
Working precision ±0.2mm/meter±0.2mm/meter
Cutting gas Oxygen + Acetylene/ Propane
Gas pressure Oxygen: 1Mpa
Fuel: 0.1Mpa
Torch height control modeMotor drive torch height control
Display screen LCD color screen
Nesting software fastCAM
Option (1 or 2)1. External automatic plasma torch height control
2. Internal automatic plasma torch height control


How does plasma cutter work on our CNC machines?

Easy, we supply the CNC platform with CNC controller and software.

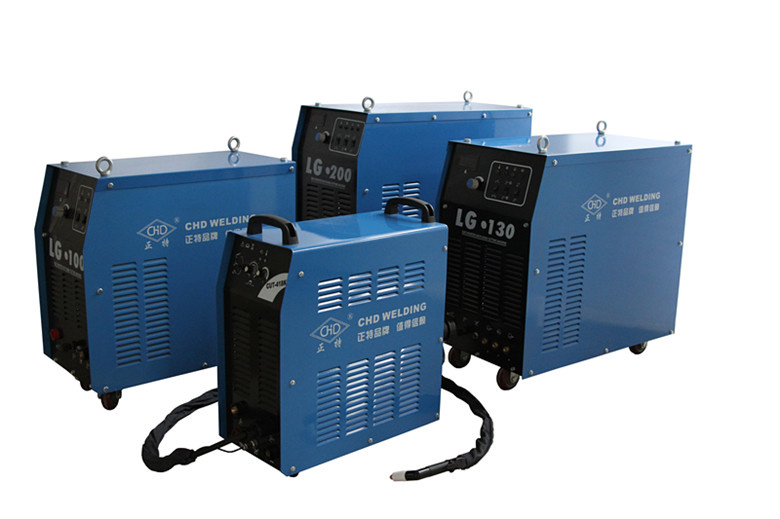

We supply the Hypertherm Powermax plasma cutter of choice.
The Plasma cutting nozzle mounts on the CNC machine quickly and easily.
Plug the Plasma controller cable into the CNC controller.
Load a file onto the PC and start cutting.

Torch Height Controller
We supply and install a complete THC system for our CNC platforms. The torch height controller allows the CNC machine to control the cut height of the plasma nozzle above the material to give the best cut quality and also the best consumable life span for the torch consumables.
Torch Break Away is added to prevent the torch from getting damaged if it collides with any obstacle on the machine bed


FAQ:

Q: Are you a manufacturer or trading company?
A: We are manufacturer with the plant area of 24,000 square meter in Shanghai, and we have also production bases in Wenzhou and Chengdu.

Q:
What material could the machine cut?
A: all kinds of metal plate, includes carbon steel, stainless steel, aluminium, copper and Zinc etc.


Q: what's the lead time or delivery time?
A: 7 working days

Q: what's Warranty?
A: 12 months

Q: How is your after-sales service?
A: Consumable parts will be supplied in free, shipped to you with your purchased machine.


Q: Is there oversea engineer available?
A: Our engineer could service you 24 hours online by Skype, or on cellphone, and they can   go to your country to service you if     necessary.


Or you can tell us the following info, we'll suggest you the best item needed.
  1. Material you'll cut.
  2. Thickness of Material.
  3. Cutting range (Length, width) you want.
  4. Handheld torch or automated machine you prefer.
CHD brief introduction

CHD was founded in 1989, is a High-Tech Enterprise which integrates R&D, Production, Sales and Service of cutting machine.
CHD, as one of the largest metal cutting machine manufacturers, headquartered in Shanghai, China. With 3 production bases, totally plant area of more than 53,000 square meters , respectively located in Shanghai, Chengdu and Wenzhou.
CHD focus on quality control, our factory have passed ISO9000:2008 certificate, and our product  obtained CE, CCC, etc.. We are one of the world's largest manufacturer's partners of steel plate cutting equipment. CHD cutting machines have already been exported to more than 100 countries in the past 20 years.

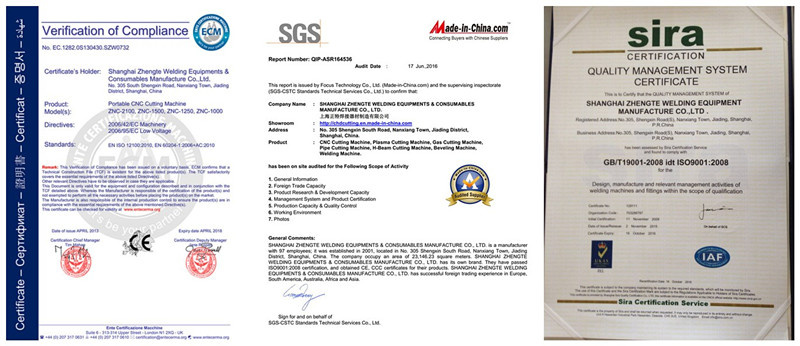

Certificate


Prod Model: ZNC-1500
Model No.: Znc-1500A
Condition: New
Certificate: Ce/ ISO9001/ CCC
Input Voltage/Frequency: 220V/50Hz
Motor Style: Step Motor
Effective Cutting Width X Axis: 1500mm
Effective Cutting Length Y Axis: 2500mm/ 3000mm
Cutting Speed: 10-3000mm/Min
Gas Cutting Thickness: Gas Cutting 6-100mm
Plasma Cutting Thickness: (0.5-90mm)Depends on Plasma Source Capacity
CHD was founded in 1989, is a High-Tech Enterprise which integrates R&D, Production, Sales and Service of cutting machine.

CHD, as one of the largest metal cutting machine manufacturers, headquartered in Shanghai, China. With 3 production bases, totally plant area of more than 53, 000 square meters, respectively located in Shanghai, Chengdu and Wenzhou.

CHD focus on quality control, has passed many certification audits including ISO9000, SGS, CE, CCC, etc., was one of the world's largest manufacturer's partners of steel plate cutting equipment. CHD cutting machines have already been exported to more than 100 countries in the past 20 years.

Products

CNC Cutting Machines, ZNC Portable Cutting Machine, Air Plasma Cutting Machine, Gas Cutting Machine, Pipe Cutting Machine, H-Beam Cutting Machine

Comapny Honor

20 years experience in cutting machine and welding machine market

20 years continuous title"A promise-keeping&Faithworthy unit"

Drafter of the national standard of the arc welding machines

Drafter of the national standard of the welding coupling equipments

"Hope Award"unit of the Chinese welding industrial

"Keeping&Developing Award" unit of the Chinese welding industrial

"Most improved Award" unit who boost the welding industrial

"Developing potential Award" from Shanghai Developing zone

Great contribution Award" from Essen Welding&Cutting fair

Recommended products from Chinese electrical equipments industrial association

ISO9001 certified enterprise

CCC certified enterprise

CE certified enterprise

The supplier of Beijing Olympics' welding equipments

The partner of the 60% of the national Hardware&Electrical Mechanical sales agent

Supplier of the consumables for the 80% of national well-known welding enterprise

The partner of the welding machineweldingwelding technologymodern welding

The member of the Chinese Welding Association

The member of the Chinese Welding machines Association

The member of the CHMECC organization

The member of the Shanghai Association of International trade service
